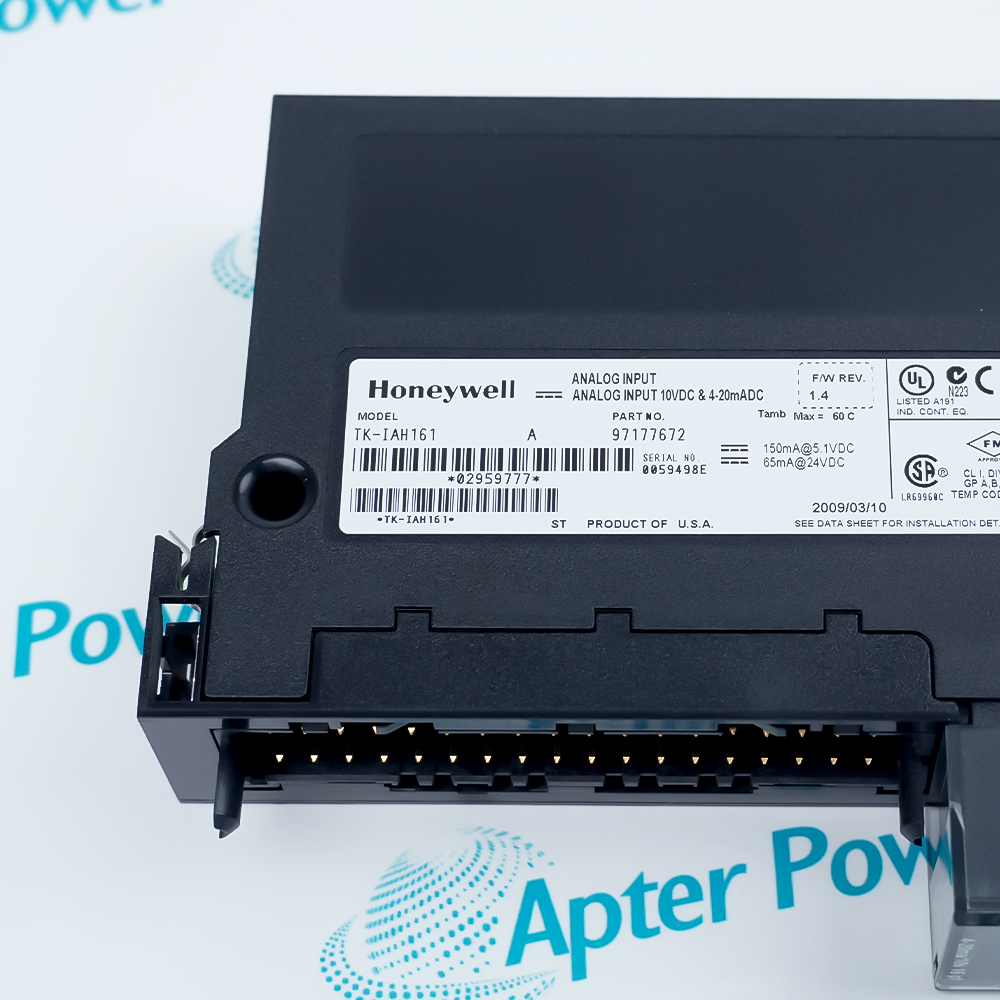

      Honeywell TK-IAH161
      Honeywell TK-IAH161
      Honeywell TK-IAH161
      Honeywell TK-IAH161
      Honeywell TK-IAH161
      Honeywell TK-IAH161
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      TK-IAH161

      Analog Input Module
      In Stock
      Ships by Sunday, October 4
      Fast Shipping Available

      Product Describe：

      Honeywell TK-IAH161 is a coated 16-point analog input module for the Series A I/O family used with C200 and C200E control hardware. It brings configured analog field inputs into the Experion control environment through the approved chassis and channel arrangement.

      Ask our team:

      Get a quick price for： TK-IAH161
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for TK-IAH161

      Technical specifications for TK-IAH161

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        Analog Input Module
      • Estimated shipping dimensions:
        7x14x14.5cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Module type:
        Analog input module
      • Input points:
        16
      • Environmental version:
        Coated
      • I/O family:
        Series A I/O
      • Controller platform:
        C200 / C200E
      • Control environment:
        Experion PKS
      • Lifecycle context:
        C200/C200E platform phased out; C300 or UOC migration path
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell TK-IAH161 is a coated 16-point analog input module for the Series A I/O family used with C200 and C200E control hardware. It brings configured analog field inputs into the Experion control environment through the approved chassis and channel arrangement.
      • Sixteen configured analog input points
      • Coated Series A module construction
      • C200 and C200E chassis integration
      • Experion PKS control-data connection

      Install TK-IAH161 only in the documented Series A chassis location and retain the approved channel configuration, field wiring and C200/C200E control strategy.

      Important Notice: Confirm the exact TK-IAH161 coating, slot, sixteen channel assignments and current migration record before replacement or recommissioning.

      Honeywell TK-IAH161 Manuals & Downloads
      Honeywell TK-IAH161 Technical Reference (PDF)Honeywell TK-IAH161 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Multi-point process input
      Collects sixteen configured analog field inputs for the associated C200 or C200E control strategy.
      Series A chassis retrofit
      Maintains the documented coated analog-input position during controlled legacy-system maintenance.
      Experion control integration
      Presents approved field measurements to the CEE-based control application through Series A I/O.
      Migration baseline capture
      Preserves channel mapping and engineering values needed when a C200 installation is migrated to C300 or UOC.
      Read the applicable Honeywell instructions before work. Verify Honeywell TK-IAH161 and the installed system configuration before commissioning.
      1
      Verify the exact TK-IAH161 marking and coated-module identity.
      2
      Place the C200/C200E controller and Series A chassis in the approved maintenance state.
      3
      Record the chassis, slot and all sixteen channel assignments before removal.
      4
      Label field conductors, shields and common connections without changing the approved topology.
      5
      Use ESD controls and inspect the backplane and keyed module interfaces.
      6
      Restore the saved channel configuration and engineering scaling after installation.
      7
      Do not substitute another analog-input model solely by matching the channel count.
      8
      Verify every enabled channel, module status and control-strategy response before release.

      Technical notes

      Technical notes

      Record the Series A chassis slot and all sixteen configured channel assignments before replacement. Preserve the approved field wiring, shielding and channel scaling, then compare every enabled input with its engineering baseline before release.

      FAQS

      • How many analog inputs does TK-IAH161 provide?
        TK-IAH161 is identified by Honeywell as a sixteen-point analog input module.
      • What distinguishes the coated TK-IAH161 version?
        The official model table identifies TK-IAH161 as the coated version of the sixteen-point analog input module.
      • Which controller hardware is associated with TK-IAH161?
        It belongs to the Series A I/O family used with Honeywell C200 and C200E control hardware.
      • What must be captured before replacing TK-IAH161?
        Record the Series A chassis and slot, every enabled channel assignment, field wiring and channel scaling before removal.
      • Can another sixteen-point analog module directly substitute for TK-IAH161?
        No. Channel count alone does not establish compatibility; the exact module identity, chassis support and saved control configuration require approval.
      • How should TK-IAH161 field-side work be controlled?
        Place the associated control hardware in its approved maintenance state, preserve conductor and shield assignments, and use ESD controls.
      • What migration context applies to a TK-IAH161 C200 installation?
        Honeywell lists C300 or UOC as the technology-upgrade path for the phased-out C200/C200E platform.
      • What confirms a successful TK-IAH161 return to service?
        The exact model and slot match the record, module status is healthy, and every configured input agrees with its approved field or simulated value.
