      Honeywell CC-TPIX11-51306544-175
      Honeywell CC-TPIX11-51306544-175
      Honeywell CC-TPIX11-51306544-175
      Honeywell CC-TPIX11-51306544-175
      Honeywell CC-TPIX11-51306544-175
      Honeywell CC-TPIX11-51306544-175
      Product image is representative; revision or series may vary. Contact us to request a specific version.

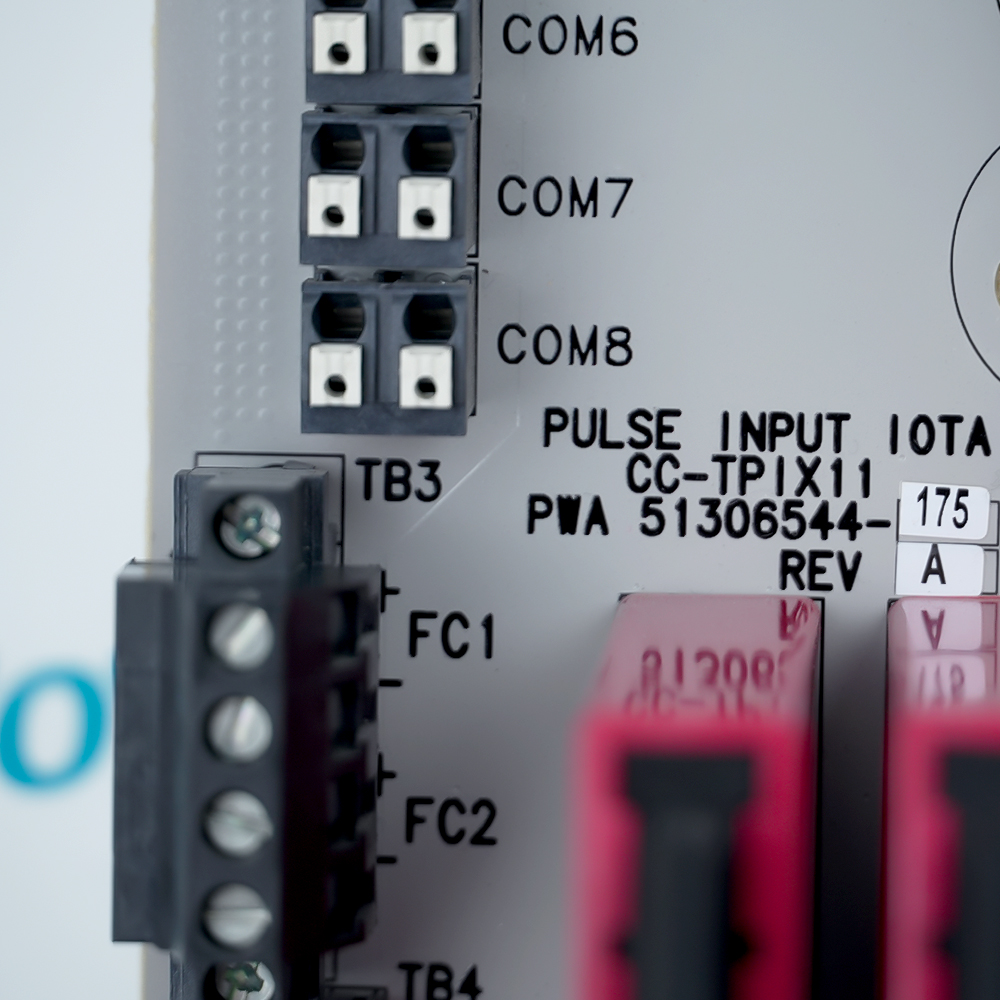

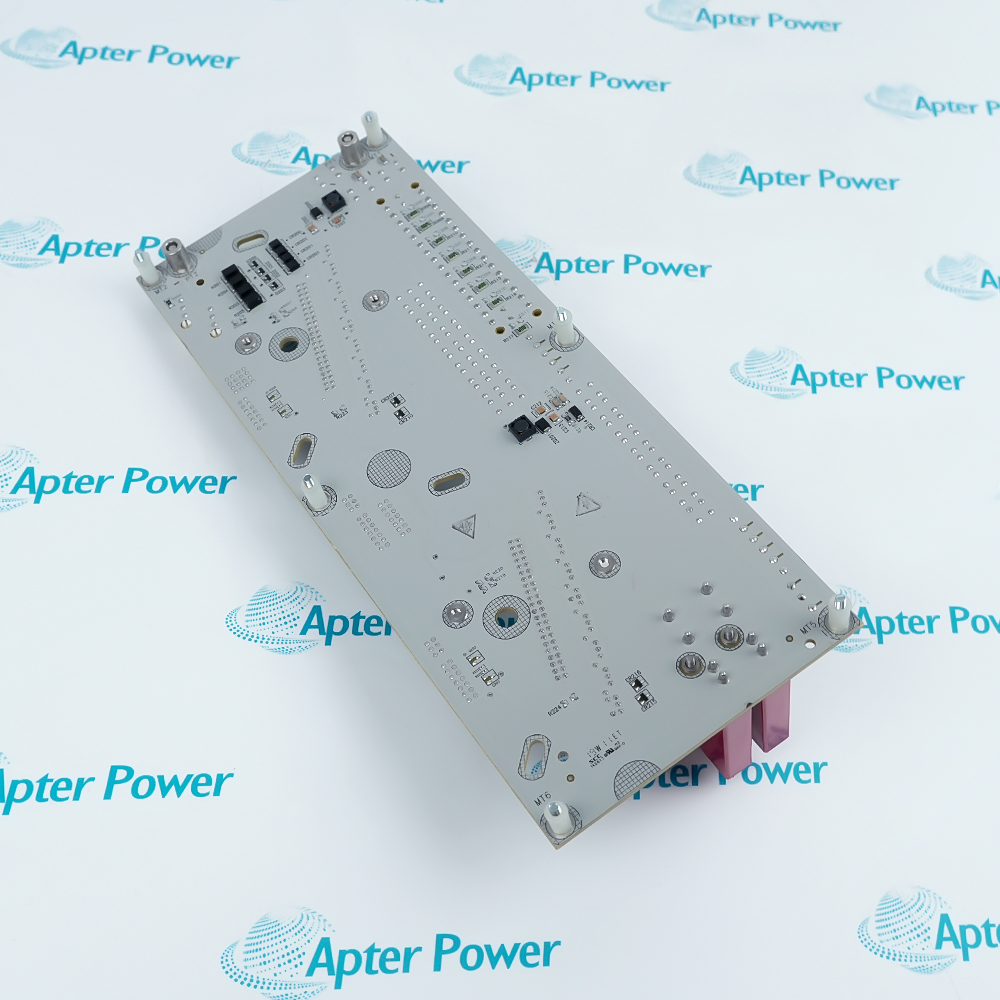

      CC-TPIX11-51306544-175

      Pulse Input IOTA
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Honeywell CC-TPIX11-51306544-175 is a redundant 12-inch I/O termination assembly for the Series C pulse input module. It terminates single- or dual-pulse field channels and the documented fast cut-off relay connections used by the pulse input function.

      Ask our team:

      Get a quick price for： CC-TPIX11-51306544-175
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CC-TPIX11-51306544-175

      Technical specifications for CC-TPIX11-51306544-175

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        51306544-175
      • Estimated shipping dimensions:
        29.4x12x8cm
      • Weight:
        0.55 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • IOTA model:
        CC-TPIX11
      • IOTA role:
        Redundant pulse-input termination assembly
      • Form:
        12-inch redundant IOTA
      • Input capacity:
        8 single or 4 dual-pulse channels
      • Output capacity:
        2 fast cut-off outputs
      • Input type:
        High-impedance differential voltage
      • Input isolation:
        Optical, 1000 VDC
      • Single-channel frequency:
        0 to 100 kHz
      • Dual-pulse frequency:
        0 to 10 kHz
      • Frequency accuracy:
        +/-0.001% of reading from 0.5 Hz to 100 kHz
      • Input voltage:
        0 to 35 VDC
      • Input edge:
        Configurable rising or falling
      • Channel impedance:
        Greater than 70 kOhm
      • Field excitation:
        Internal 24 VDC or external 5 to 30 VDC
      • Channel functions:
        Frequency, accumulated value, high/low pulse width and period
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell CC-TPIX11-51306544-175 is a redundant 12-inch I/O termination assembly for the Series C pulse input module. It terminates single- or dual-pulse field channels and the documented fast cut-off relay connections used by the pulse input function.
      • Eight single or four dual-pulse inputs
      • High-accuracy frequency and period measurement
      • Per-channel isolated or bussed configuration
      • Two fast cut-off relay outputs

      Use the IOTA with the documented Series C pulse input electronics and the approved TB1-TB4 wiring arrangement for metering, totalization, pulse proving and fast cut-off service.

      Important Notice: Confirm the full CC-TPIX11-51306544-175 marking, single/dual channel allocation, excitation source, edge selection and relay wiring before commissioning.

      CC-TPIX11-51306544-175 Manuals & Downloads
      CC-TPIX11-51306544-175 Technical Reference (PDF)CC-TPIX11-51306544-175 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Custody-transfer pulse input
      Processes high-accuracy single or dual-pulse field signals used by the documented MeterSuite application.
      Rate and totalization
      Provides pulse frequency, period and accumulated-value measurements to the Series C control strategy.
      Fast dosing cut-off
      Uses the two documented outputs to stop a dosing operation when its configured threshold is reached.
      Pulse-integrity monitoring
      Supports ISO 6551 dual-pulse fidelity and pulse-proving arrangements through the approved terminal wiring.
      Read the applicable Honeywell instructions before work. Verify Honeywell CC-TPIX11-51306544-175 and the installed system configuration before commissioning.
      1
      Verify the complete CC-TPIX11-51306544-175 marking and 12-inch redundant IOTA position.
      2
      De-energize field excitation and the associated Series C I/O assembly before wiring work.
      3
      Record every TB1-TB4 conductor, shield, jumper and fast cut-off relay connection.
      4
      Confirm whether each channel is single pulse or one half of an approved dual-pulse pair.
      5
      Set isolated or bussed operation and the excitation source exactly as documented.
      6
      Keep the applied input within the 0 to 35 VDC and configured frequency limits.
      7
      Verify rising- or falling-edge selection and both trip-point settings before enabling the strategy.
      8
      Test frequency, accumulated value, pulse proving, diagnostics and both cut-off outputs before release.

      Technical notes

      Technical notes

      Configure channel mode, input edge, excitation and isolated-or-bussed operation from the approved Series C design record. Verify field wiring, pulse frequency, channel diagnostics and both fast cut-off outputs before release.

      FAQS

      • How many pulse channels can CC-TPIX11-51306544-175 terminate?
        The pulse input design supports eight single channels or four dual-pulse channels, including mixed approved combinations.
      • What frequency limits apply to CC-TPIX11-51306544-175 in single and dual-pulse service?
        Single channels are specified from 0 to 100 kHz, while a dual-pulse channel is specified from 0 to 10 kHz.
      • Which input electrical arrangement is documented for CC-TPIX11-51306544-175?
        The inputs are high-impedance differential-voltage channels with 1000 VDC optical isolation and greater than 70 kOhm input impedance.
      • Can the active input edge be selected on CC-TPIX11-51306544-175?
        Yes. Each configured pulse channel can use a rising edge, which is the default, or a falling edge.
      • How is field-sensor excitation supplied by CC-TPIX11-51306544-175?
        The power connection supports internal 24 VDC operation or an external user-supplied excitation source from 5 to 30 VDC.
      • What does the CC-TPIX11-51306544-175 fast cut-off function do?
        Two documented outputs support fast cut-off action so a dosing operation can be stopped when its threshold is reached.
      • Which measured values does CC-TPIX11-51306544-175 provide to the control strategy?
        The channel function can provide frequency, accumulated value, high and low pulse width, and period.
      • What must pass before CC-TPIX11-51306544-175 commissioning release?
        Verify the selected single/dual allocation, excitation, edge, input range, pulse proving, diagnostics and operation of both cut-off outputs.
