Technical specifications for 51401286-100
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51401286-100
-
Estimated shipping dimensions:36.9x36.5x1.5cm
-
Weight:0.98 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Board type:EPDG
-
EPDG I/O pairing:EPDG or EPDGP I/O board
-
EPDG monitor:Noninterlaced
-
EPDG additional interface:Cartridge Disk
-
EPDG minimum software:210M1
-
PDG-mode pairing:PDG I/O board; interlaced monitor
-
PDG-mode minimum software:200
-
R500 position:Slot 4 front
Information
Overview
Manuals
Common Applications
Product Precautions

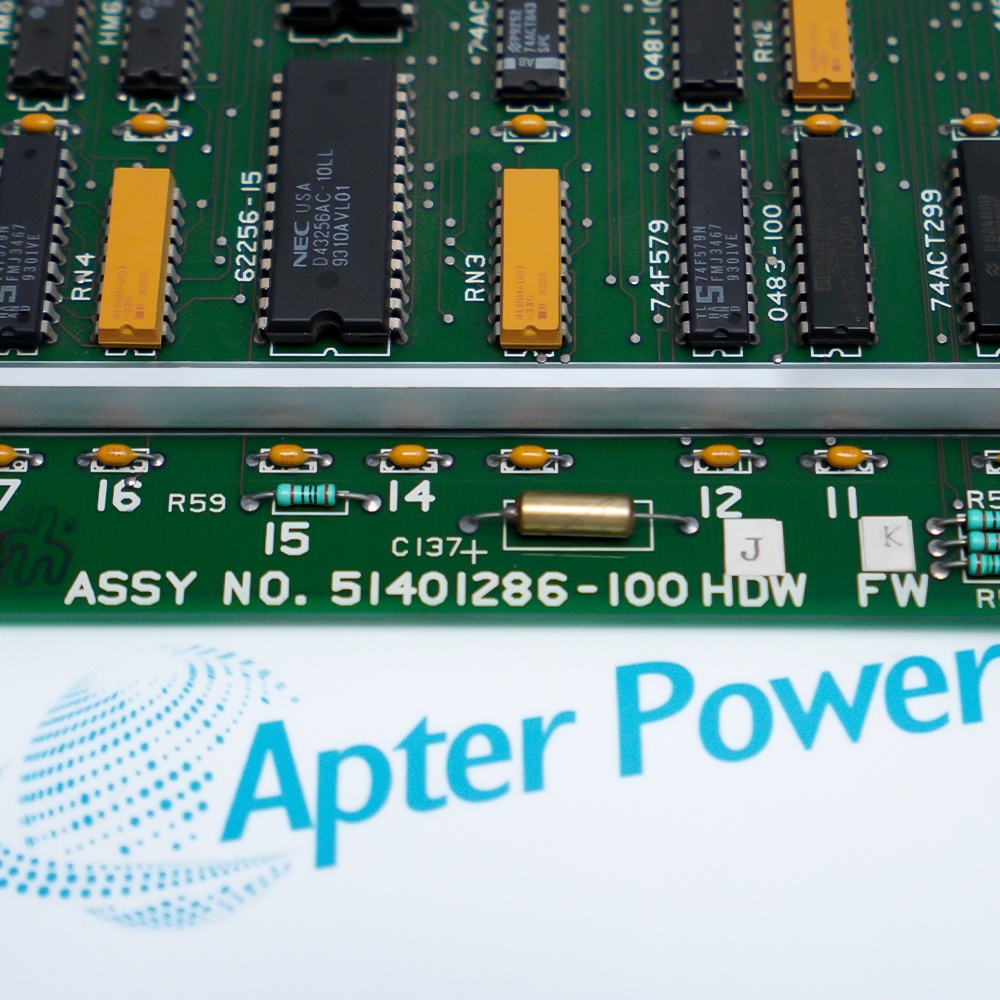

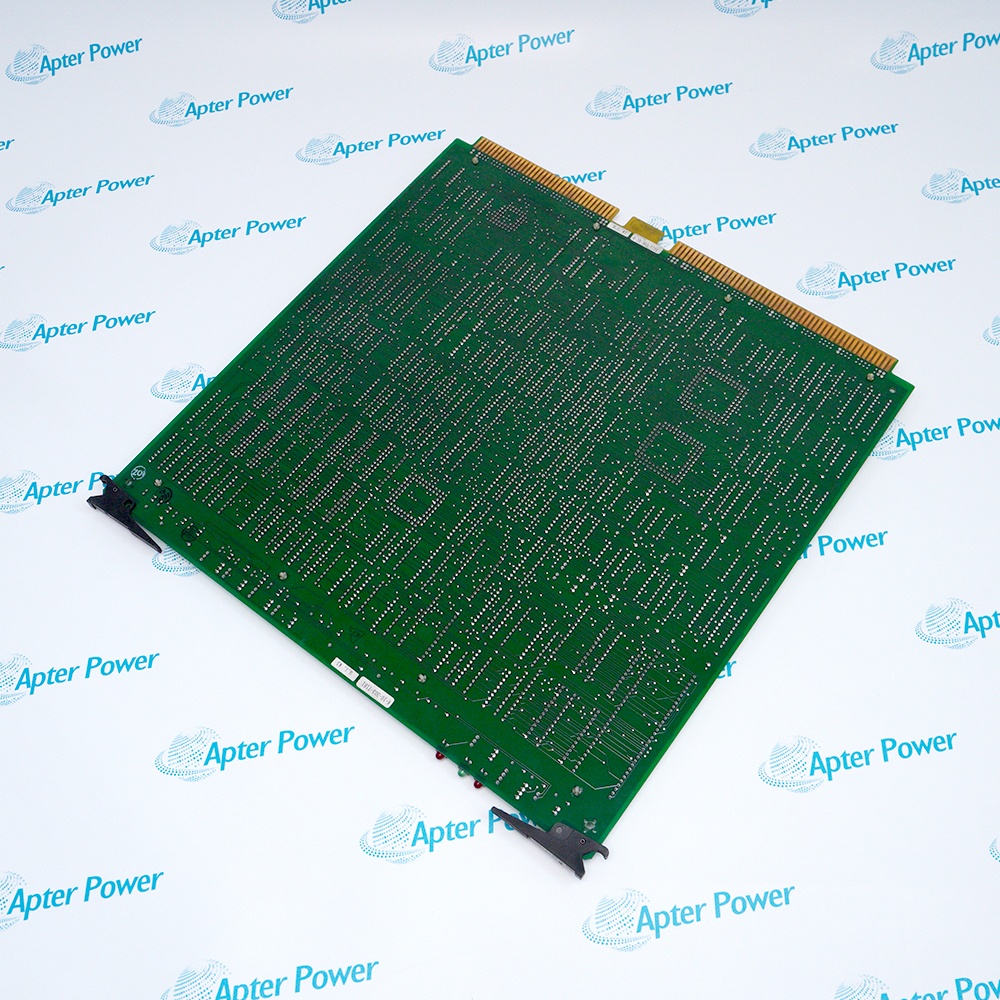

Honeywell 51401286-100 provides the EPDG display-generation function in compatible Universal Station module assemblies, with rear-board and monitor pairing defining the active operating mode.
- EPDG display-generator function
- EPDG or EPDGP rear I/O pairing
- Noninterlaced monitor path
- Cartridge Disk interface
The same board can run in PDG mode with a PDG I/O board and interlaced monitor, so the complete front-board, rear-board, display and software combination must be retained.
Important Notice: Confirm the 51401286-100 marking, front-slot position, rear I/O board, monitor type and software release before replacement.
Honeywell 51401286-100 Manuals & Downloads
Honeywell 51401286-100 Official Technical Reference (PDF)Honeywell 51401286-100 Installation & Commissioning Guide (PDF)
The official technical reference preserves selected Honeywell source pages for exact-model identification and verified data; the separate Installation & Commissioning Guide organizes identity control, interface checks, channel testing and acceptance records.
Universal Station display service
Maintains display generation in the assigned Universal Station module.
Five-slot module maintenance
Supports controlled service of a five-slot assembly containing the EPDG position.
R500 ten-slot maintenance
Restores the front-slot-4 arrangement with the matching rear I/O board.
Display fault isolation
Uses board, I/O-card and processor-path indicators to localize failures.
Apply these controls specifically to Honeywell 51401286-100 before isolation, replacement, reconnection and final release.
1
Remove module power before installing or removing any board.
2
Confirm the 51401286-100 marking before replacing the EPDG board.
3
Match the rear EPDG or EPDGP I/O board to the noninterlaced monitor arrangement.
4
Do not place an I/O paddle board in an incorrect slot.
5
Retain the required software release for the selected operating mode.
6
Inspect the EPDG and I/O-card mating path before reseating hardware.
7
Use SELF TST/ERR, PASS MOD TEST and BUS TRAN ERR to direct fault isolation.
8
Prove display and Cartridge Disk functions before handover.
Alternative Names
51401286 100 51401286-100
Technical notes
Record the Universal Station configuration, front-slot position, rear I/O board, monitor type and software release before removing the board. After installation, confirm the display path, Cartridge Disk interface and SELF TST/ERR, PASS MOD TEST and BUS TRAN ERR indications.
FAQ View All FAQ
-
What board type is Honeywell 51401286-100?Honeywell 51401286-100 is the EPDG Enhanced Peripheral Display Generator board.
-
Which I/O boards support the EPDG mode of Honeywell 51401286-100?EPDG mode uses an EPDG or EPDGP I/O board with a noninterlaced monitor.
-
What interface is included with Honeywell 51401286-100 in EPDG operation?The EPDG arrangement includes a Cartridge Disk interface.
-
Which minimum software release applies to Honeywell 51401286-100 in EPDG mode?The minimum software release for the EPDG configuration is 210M1.
-
Can Honeywell 51401286-100 operate with a PDG I/O board?Yes. With a PDG I/O board and interlaced monitor, the board operates as a PDG and requires software release 200 or later.
-
Where is Honeywell 51401286-100 placed in the R500 Universal Station configuration?The EPDG board is installed in front slot 4 with the applicable I/O board at the rear.
-
What isolation step is mandatory before handling Honeywell 51401286-100?Remove module power before installing or removing the board or any I/O paddle board.
-
Which indicators guide troubleshooting of Honeywell 51401286-100?SELF TST/ERR, PASS MOD TEST and BUS TRAN ERR distinguish board, I/O-card and processor-path conditions.
