Technical specifications for MU-TSDM02
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51303932-277
-
Estimated shipping dimensions:15.1x12x8cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Serial channel:1 galvanically isolated
-
Interface:EIA-485 multidrop
-
Points per FTA:1 to 8
-
Points per processor:1 to 16
-
Common-mode withstand:250 Vac rms; +/-250 Vdc
-
Dielectric strength:1500 Vac rms; +/-1500 Vdc
Information
Overview
Manuals
Common Applications
Product Precautions

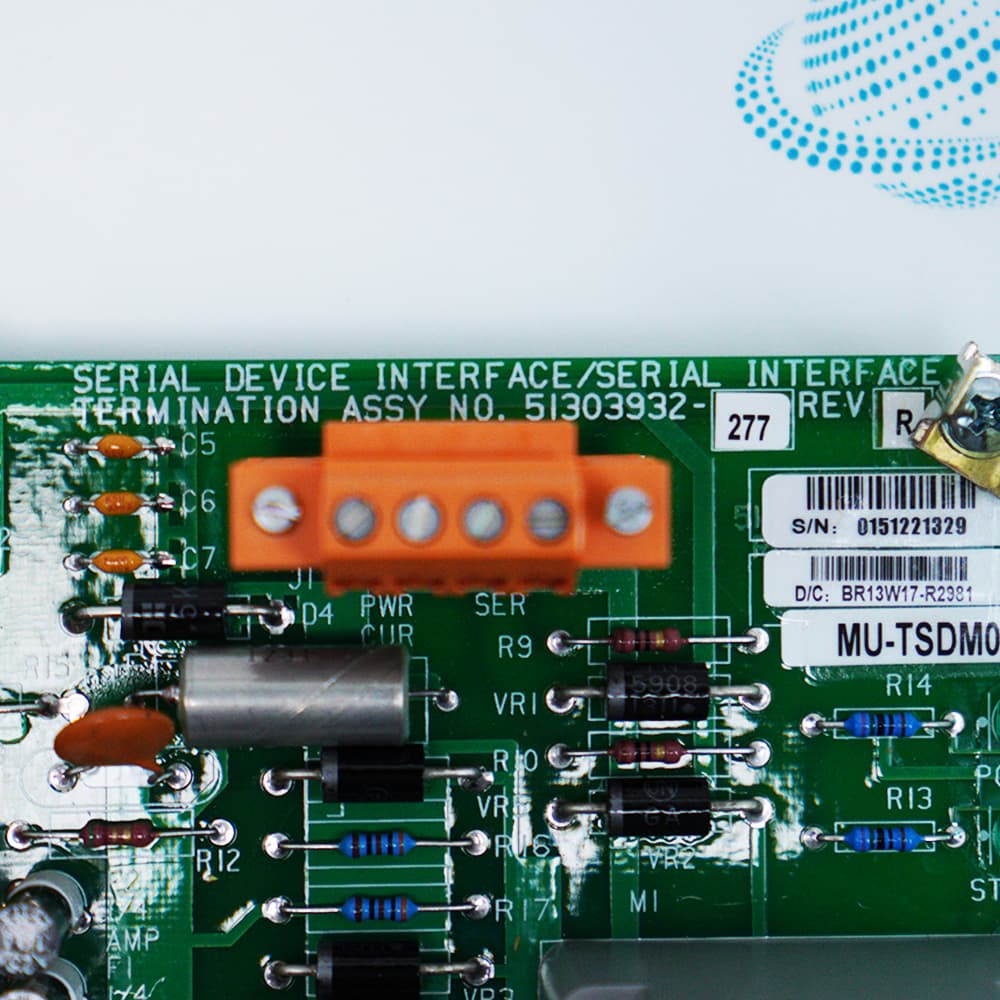

Honeywell MU-TSDM02 is a Manual/Auto Station Serial Device Interface FTA. It connects station data to a TPS SDI processor over an isolated EIA-485 multidrop channel.
- Interfaces manual/auto stations
- Uses a galvanically isolated serial channel
- Supports EIA-485 multidrop communication
- Maps station data into the SDI processor
MU-TSDM02 installs with MU-PSDX02 SDI processor, Manual/auto stations, Shielded EIA-485 cable, Serial interface power arrangement in an engineered TPS Process Manager I/O configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this manual/auto station serial device interface fta.
Important Notice: Confirm the complete MU-TSDM02 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power MU-TSDM02 Manuals and Guides
Apter Power MU-TSDM02 Product Technical Reference PDFApter Power MU-TSDM02 Installation and Verification PDFThe first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Operator manual/auto stationsInterfaces manual/auto stations
Local setpoint panelsUses a galvanically isolated serial channel
Packaged-unit operator controlsSupports EIA-485 multidrop communication
Legacy station communication repairMaps station data into the SDI processor
Read the applicable Honeywell installation instructions before work. Verify MU-TSDM02 and the installed TPS Process Manager I/O configuration.
1Verify the complete MU-TSDM02 marking and the assigned TPS Process Manager I/O position before field work.
2Isolate the applicable power, network and field energy before disconnecting MU-TSDM02.
3Use ESD controls and protect the keyed connectors of MU-TSDM02 during handling.
4Record the installed wiring, jumpers, node or channel assignment before replacement.
5Confirm MU-PSDX02 SDI processor and Manual/auto stations against the approved system configuration.
6Restore MU-TSDM02 under controlled conditions and review the product-specific diagnostics.
7Complete a functional test for operator manual/auto stations before production release.
Technical notes
Maintain EIA-485 polarity, shielding and end-of-line termination, then verify every station address and bidirectional data transfer.
FAQ View All FAQ
-
Which MU-PSDX02 SDI processor identity must be verified before fitting the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA?Match the complete MU-TSDM02 marking, assigned TPS Process Manager I/O position and installed MU-PSDX02 SDI processor before work.
-
How should Manual/auto stations be isolated before disconnecting the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA?Place the affected process in its approved maintenance state, isolate applicable energy and prove Manual/auto stations safe before disconnection.
-
What as-found wiring record is required for the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA in Operator manual/auto stations?Record terminal identity, polarity, shields, jumpers, cable tags and the as-found diagnostic state for MU-TSDM02.
-
Which TPS Process Manager I/O configuration must be checked when commissioning the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA?Verify the assigned channel, slot, node or interface and compare it with the approved TPS Process Manager I/O configuration before enabling MU-TSDM02.
-
How can the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA be function-tested for Local setpoint panels without disturbing the process?Use a controlled stimulus or limited command, observe the expected system indication and confirm the intended response while normal interlocks remain effective.
-
Which diagnostics should be reviewed if the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA stops performing its assigned system function?Check seating, the matched MU-PSDX02 SDI processor, the condition of Manual/auto stations and the model-specific diagnostics before replacing more hardware.
-
Can the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA used for Packaged-unit operator controls be transferred to another TPS Process Manager I/O position without engineering review?No. Confirm the hardware execution, connector scheme and approved TPS Process Manager I/O configuration before transferring MU-TSDM02 to a different duty.
-
What evidence should be retained after the MU-TSDM02 Manual/Auto Station Serial Device Interface FTA returns to Legacy station communication repair service?Retain the physical identification, as-left wiring or configuration, final diagnostics and controlled functional-test result for MU-TSDM02.
