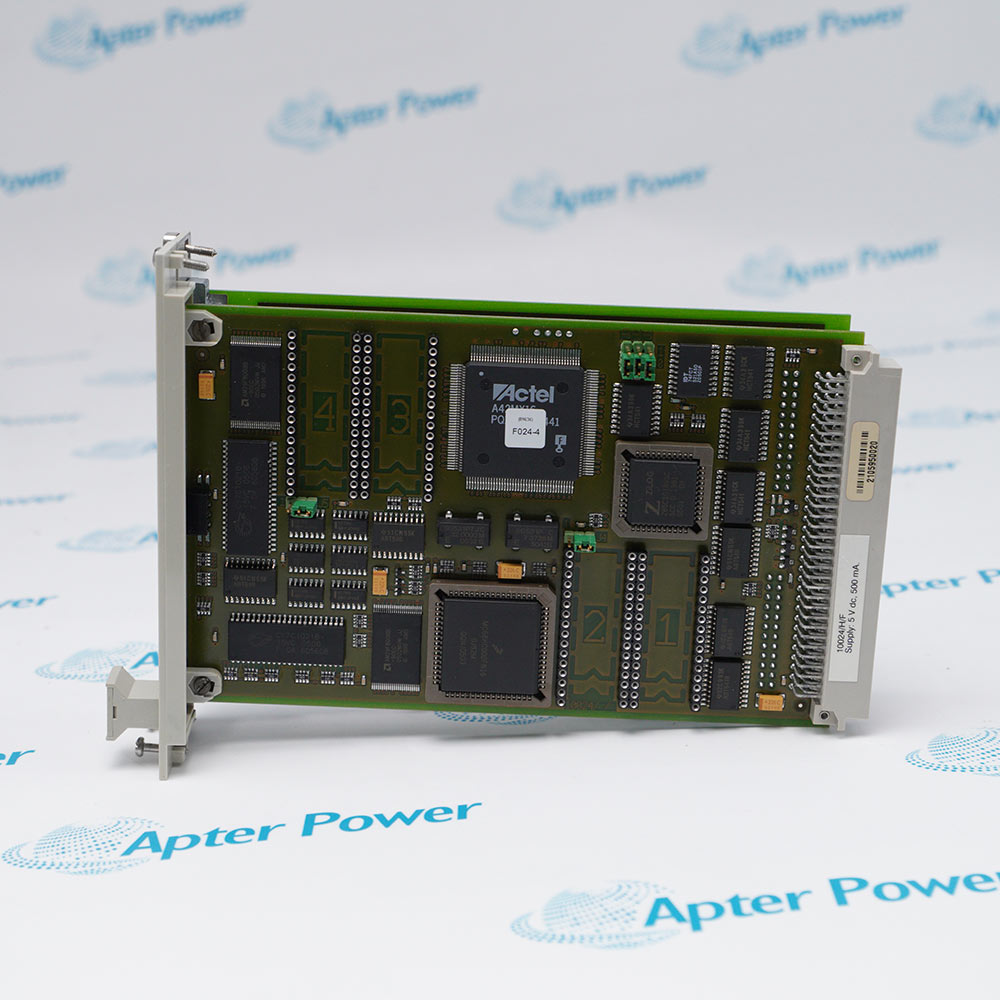

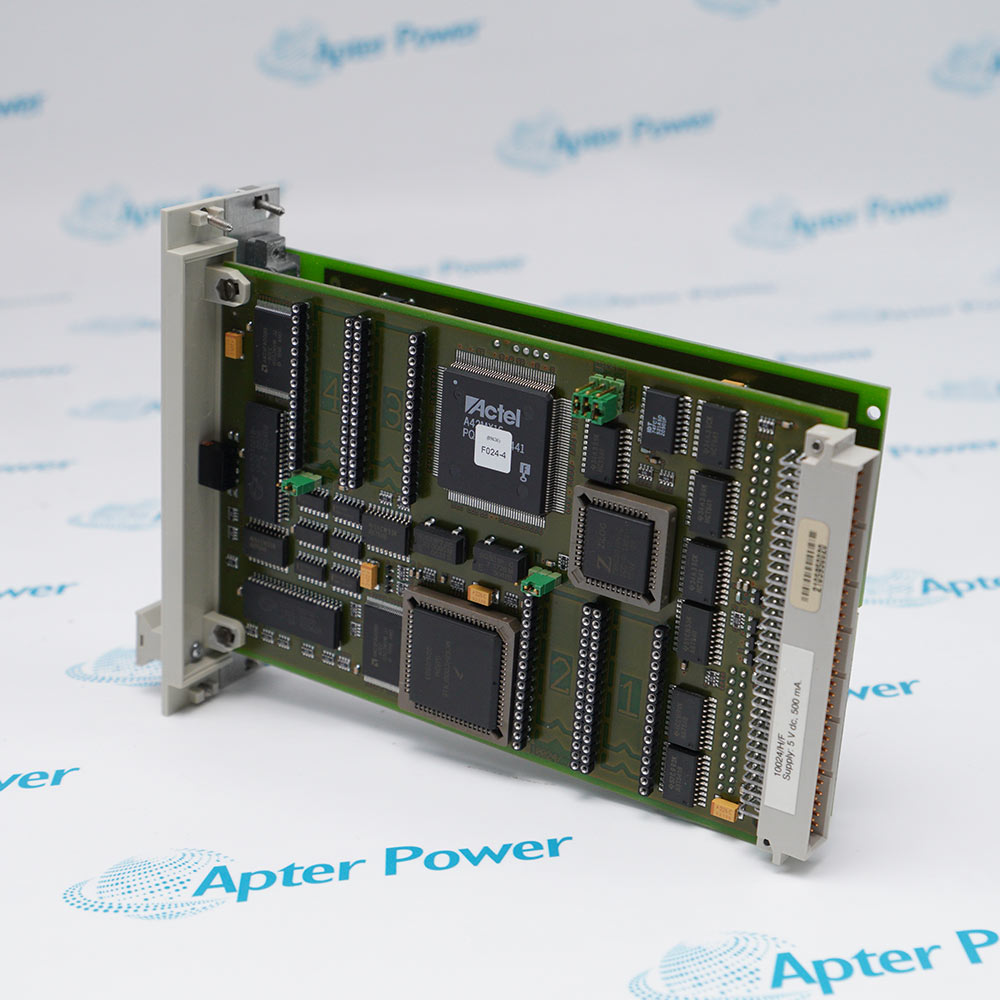

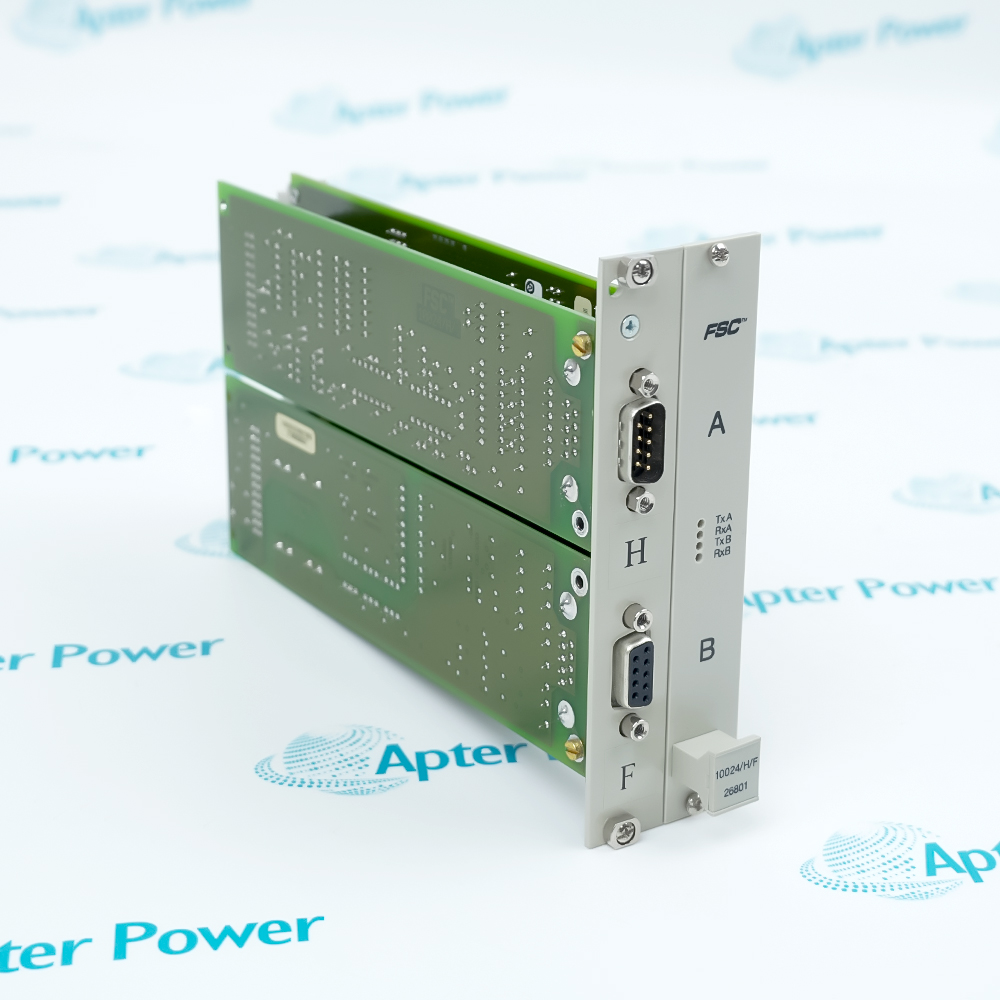

10024/H/F is a Honeywell Fail Safe Controller enhanced communication module identified in Honeywell's official FSC system-hints material as an enhanced COM module with an internal communication processor and RS-232 interface.
- Honeywell
- Fail Safe Controller (FSC)
- Enhanced COM module
- Internal CP plus RS-232
Within an FSC node, the module provides the documented serial communication path between the safety-controller architecture and the connected RS-232 equipment, subject to the exact FSC cabinet, cable, software, and application configuration.
Important Notice: Use the complete 10024/H/F code and verify the physical nameplate and current Honeywell documentation before installation or replacement.
Apter Power 10024/H/F Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Honeywell information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
Honeywell Fail Safe Controller
Maintains the documented serial communication and FSC migration control role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Honeywell documentation and host-equipment instructions before use. Verify 10024/H/F from the physical nameplate.
Check 1

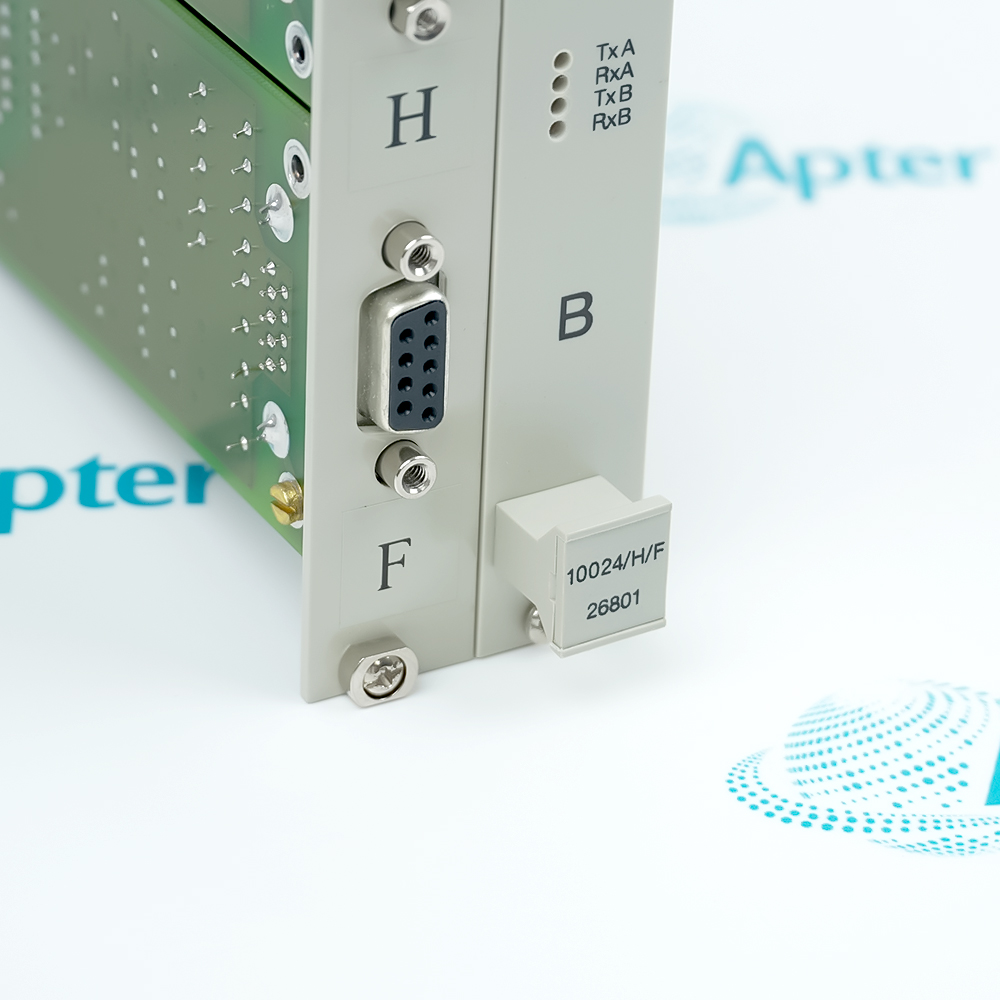

Match every character of 10024/H/F to the physical nameplate before work.
Check 2
Use the exact Honeywell manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
