Technical specifications for 52100
-
Manufacturer:HIMA
-
Product Category:DCS Systems
-
Spare Part Number:52100
-
Estimated shipping dimensions:5.1x20.3x15.2cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Module function:Time delay element
-
Time functions:1
-
Safety capability:SIL 3
-
Redundant application:1oo2 or 2oo3 for SIL 4 applications
-
Hardware revision:20
-
System architecture:Planar4
-
Rack format:19 inch
-
Rack capacity:21 slots
Information
Overview
Manuals
Common Applications
Product Precautions

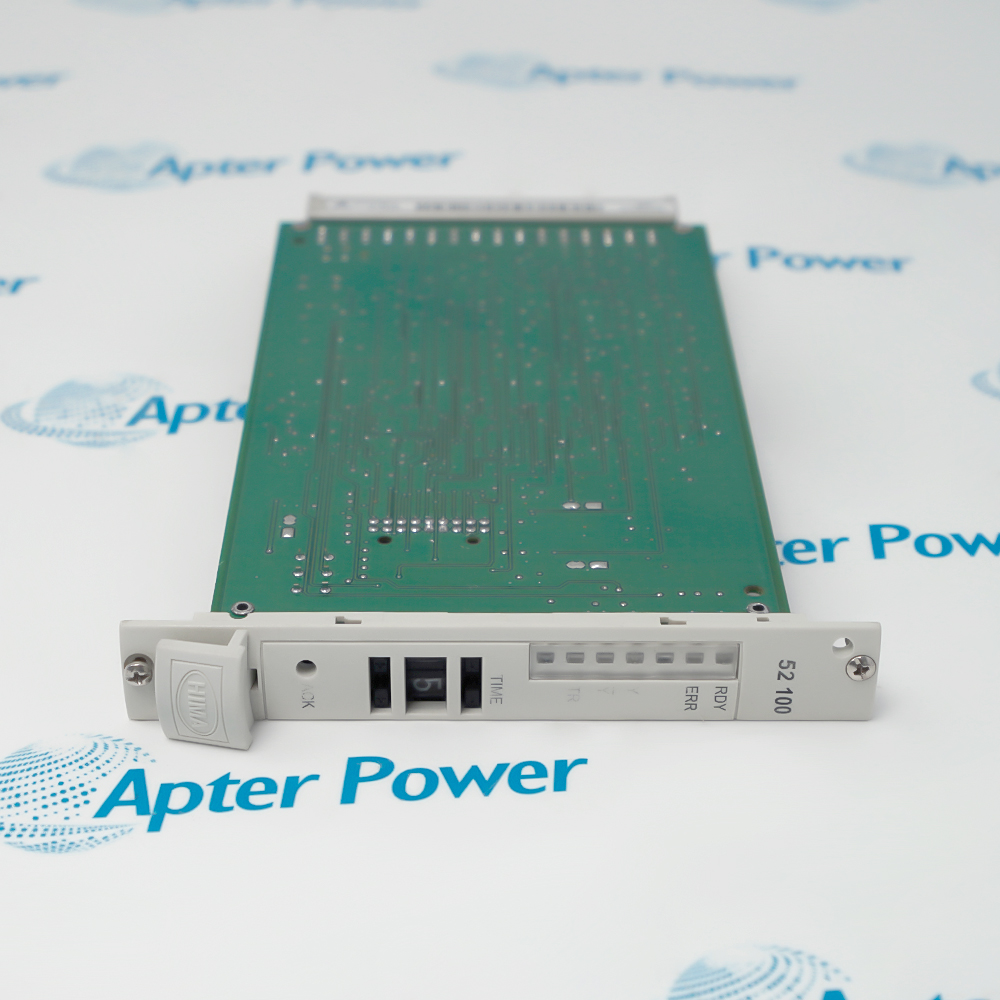

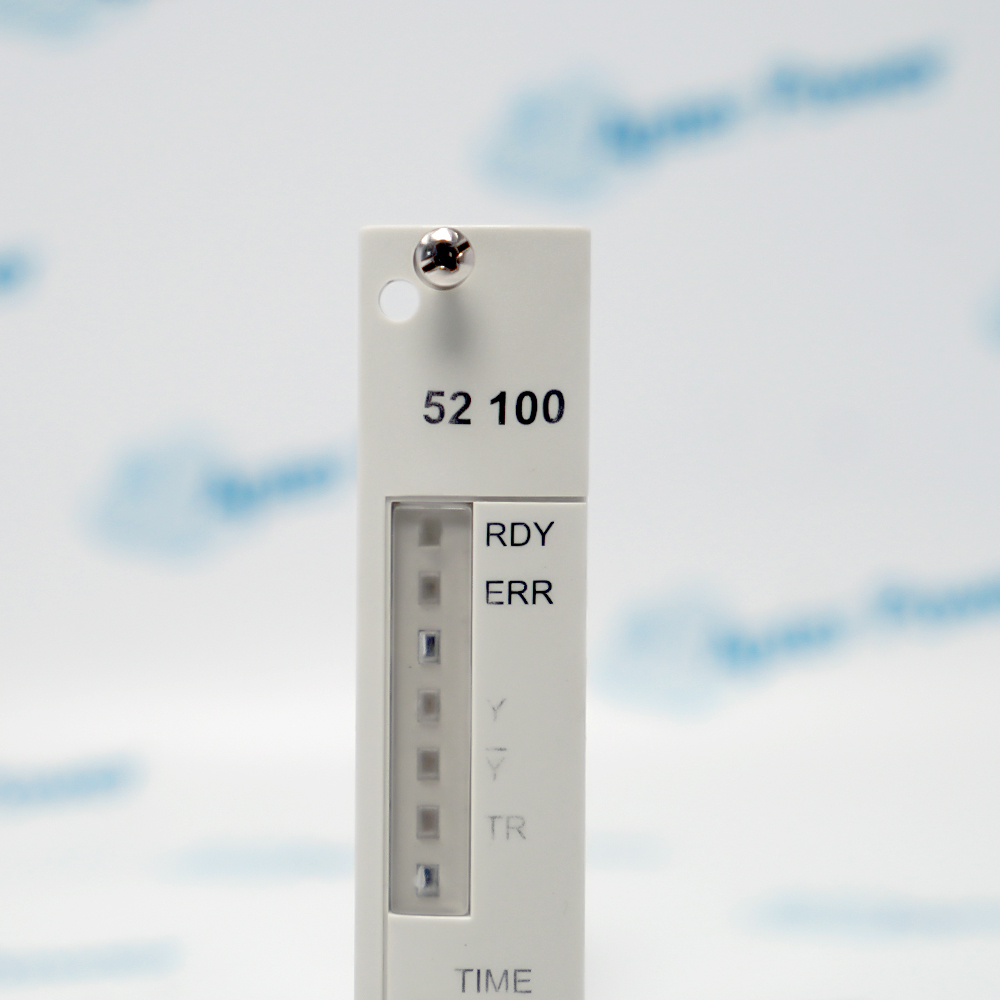

HIMA 52100 is a Planar4 safety-related time delay element. It applies a defined timing function inside Planar4 shutdown and protection logic.
- Provides one configurable time-delay function in a Planar4 logic system
- Implements safety-related timing within the approved module architecture
- Can participate in redundant 1oo2 or 2oo3 arrangements
- Fits the established 19-inch Planar4 rack platform
52100 installs with Planar4 19-inch rack, approved Planar4 logic modules, safety application wiring, proof-test and maintenance records in an engineered HIMA Planar4 Safety System configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this planar4 time delay element.
Important Notice: Confirm the complete 52100 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power 52100 Manuals and Guides
Apter Power 52100 Product Technical Reference PDFApter Power 52100 Installation and Verification PDFThe first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Delayed shutdown command logicProvides one configurable time-delay function in a Planar4 logic system
Timed process permissive sequenceImplements safety-related timing within the approved module architecture
Redundant safety timing channelCan participate in redundant 1oo2 or 2oo3 arrangements
Planar4 legacy safety-system maintenanceFits the established 19-inch Planar4 rack platform
Read the applicable HIMA installation instructions before work. Verify 52100 and the installed HIMA Planar4 Safety System configuration.
1Verify the complete 52100 marking and hardware revision before removal.
2Place the protected plant and Planar4 logic in the approved maintenance state.
3Record the as-found delay setting, slot and connected safety function.
4Isolate the rack and field energy required by the Planar4 maintenance procedure.
5Use ESD controls and inspect rack contacts before inserting the module.
6Restore only the approved timing configuration for the assigned safety function.
7Measure the actual operate and reset timing during the proof test.
8Document the final trip path and authorization before returning service.
Technical notes
Confirm the installed hardware revision and documented delay function, preserve the safety logic arrangement, then proof-test timing and final trip behavior before restoring the protected process.
FAQ View All FAQ
-
Can 52100 be replaced by a similar family model without engineering review?No. The complete model, electrical or pneumatic execution, companion hardware and approved system configuration must match the installed duty.
-
What evidence should be retained after 52100 returns to service?Retain the full 52100 identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result.
-
Which installed hardware must be matched before using 52100?Match 52100 to Planar4 19-inch rack, approved Planar4 logic modules and the complete physical marking; do not transfer a configuration from an adjacent model.
-
How should engineers isolate 52100 before replacement?Place the associated process function in its approved maintenance state and isolate the power, signal or pneumatic energy connected to Planar4 19-inch rack.
-
What connection information should be recorded before removing 52100?Record every terminal, cable, channel, group and companion-component assignment associated with 52100 before any conductor or connector is moved.
-
Which configuration must be restored after installing 52100?Restore only the approved HIMA Planar4 Safety System configuration for the original position, including the model-specific channel, network, timing or pressure settings.
-
How should 52100 be commissioned for Delayed shutdown command logic?Apply a controlled input, output or operating condition and verify the expected provides one configurable time-delay function in a planar4 logic system response together with the product-specific diagnostics.
-
Which diagnostics should be checked after replacing 52100?Review the applicable power, communication, channel and fault indications for 52100, then confirm that no unexpected alarm or bypass remains active.
