Technical specifications for IC698CPE010
-
Manufacturer:General Electric
-
Product Category:PLC Systems
-
Spare Part Number:IC698CPE010
-
Estimated shipping dimensions:4x18.3x29.1cm
-
Weight:0.62 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Processor:300 MHz Celeron
-
Battery-backed user memory:10 MB
-
Nonvolatile flash user memory:10 MB
-
Configurable %W memory:Up to 4 MB
-
Discrete references:32 Kbits each for %I and %Q
-
Analog references:Up to 32 Kwords each for %AI and %AQ
-
Program blocks:Up to 512; 128 KB maximum per block
-
Ethernet:Two switched 10/100BASE-T ports
-
Serial interfaces:Isolated RS-485, RS-232 and station manager
-
Operating temperature:0 to 50 °C without fan; 0 to 60 °C with fan tray
Information
Overview
Manuals
Common Applications
Product Precautions

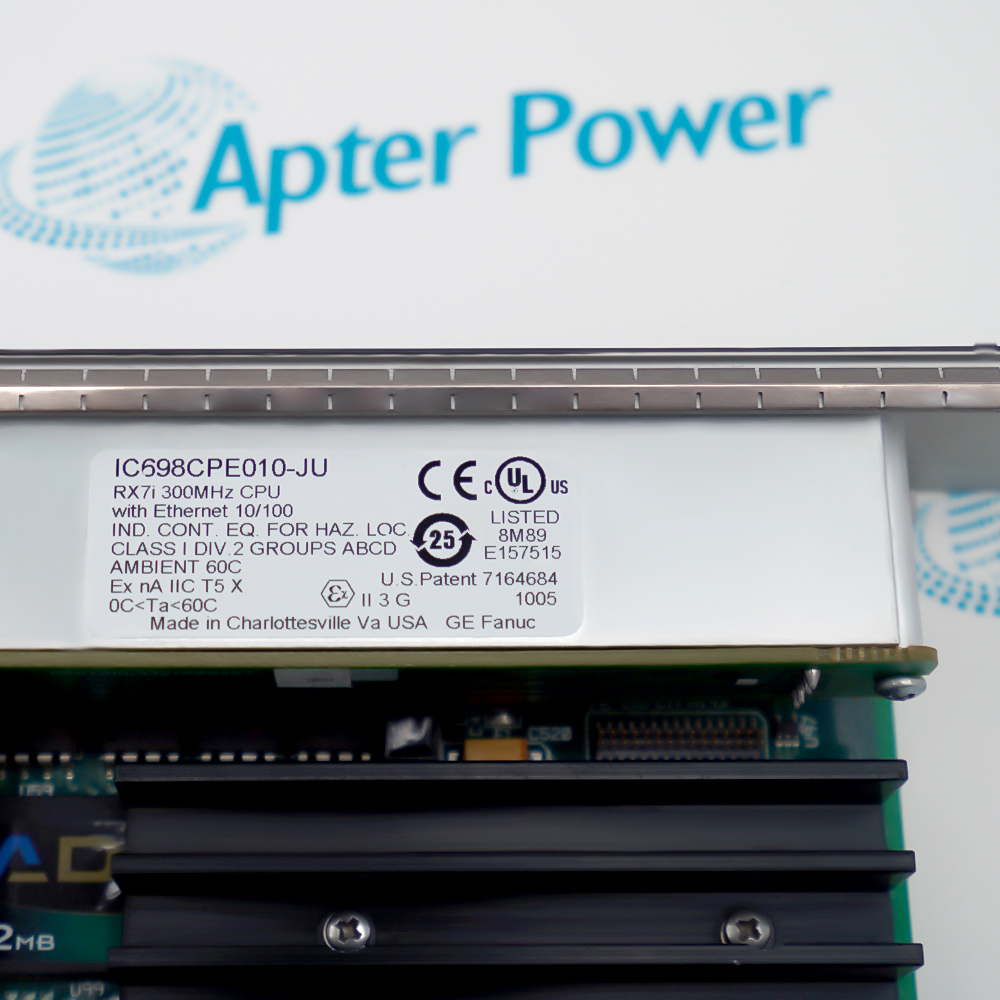

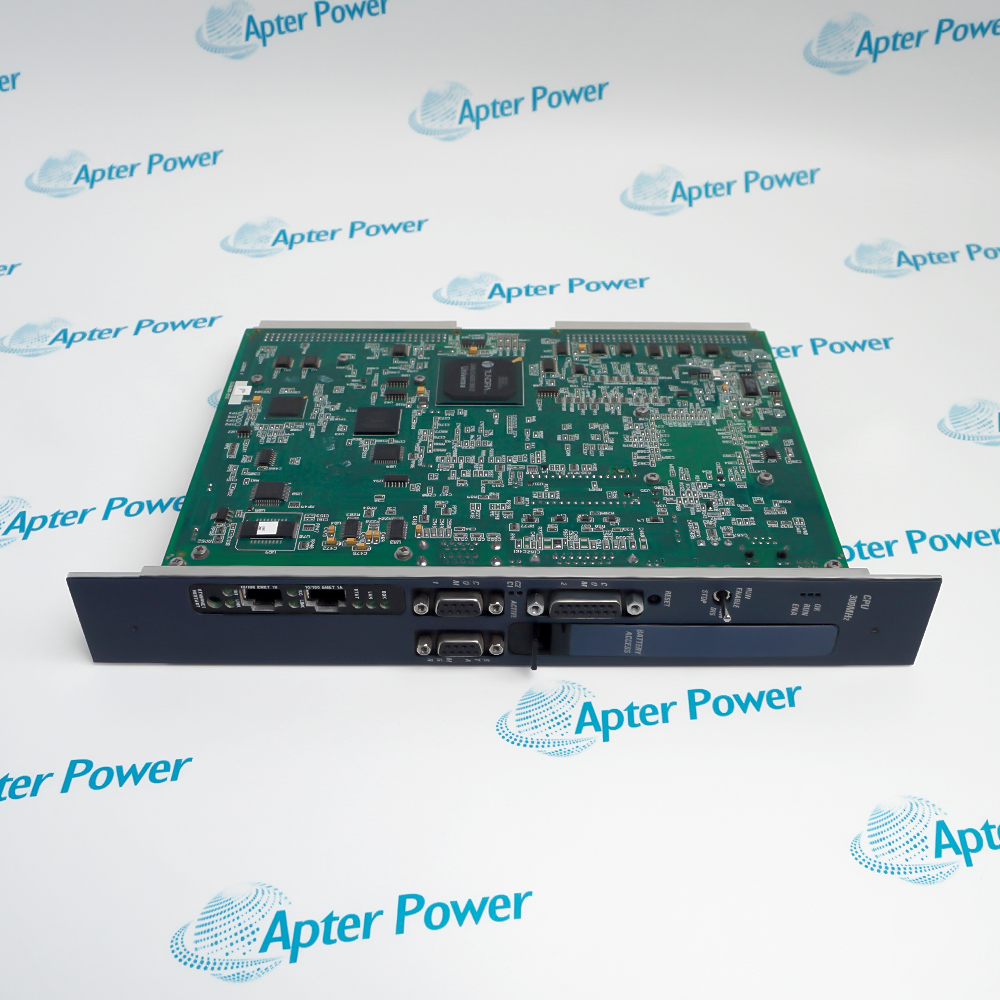

GE IC698CPE010 is a 300 MHz PACSystems RX7i CPU with 10 MB of battery-backed user memory, 10 MB of nonvolatile flash memory and integrated Ethernet and serial communications. It executes RX7i control logic and coordinates supported Series 90-70 I/O and VME modules.
- 300 MHz RX7i controller execution platform
- 10 MB battery-backed RAM plus 10 MB flash memory
- Two integrated switched 10/100 Ethernet ports
- Supports Series 90-70 I/O and VME modules
Record the IC698CPE010 firmware, rack slot, Ethernet settings, serial-port assignments and application checksum before replacement. Restore the approved hardware configuration and prove I/O, communications and control logic before releasing the RX7i system.
Important Notice: Verify IC698CPE010 from the physical marking and current manufacturer documentation before installation or configuration.
Apter Power IC698CPE010 Manuals and Guides
Apter Power IC698CPE010 Product Technical ReferenceApter Power IC698CPE010 Installation and Verification GuideImportant Notice: Use these model-specific records together with the current manufacturer publication and the installed-system documentation.
RX7i machine control
Executes deterministic logic and coordinates local or networked I/O in an RX7i rack.
Legacy Series 90-70 migration
Retains support for documented Series 90-70 I/O and VME modules in a PACSystems controller.
Industrial Ethernet integration
Uses SRTP, EGD and Modbus TCP services through the integrated switched ports.
Supervisory and serial connectivity
Supports isolated serial communication, station management and time synchronization.
Read the applicable GE instructions before work. Verify IC698CPE010 and the installed system configuration.
1
Verify IC698CPE010, firmware revision and rack-slot assignment before work.
2
Back up the application, hardware configuration, reference memory and Ethernet settings.
3
Place the controlled process in the approved safe state before stopping the CPU.
4
Use a fan tray when the ambient operating temperature can exceed 50 °C.
5
Record both Ethernet-port connections, IP parameters and switch path before removal.
6
Record RS-485, RS-232 and station-manager assignments and cable shielding.
7
Confirm battery condition before relying on battery-backed user memory.
8
Prove I/O, EGD, SRTP, Modbus TCP, serial links and control logic before release.
Technical notes
Record the IC698CPE010 firmware, rack slot, Ethernet settings, serial-port assignments and application checksum before replacement. Restore the approved hardware configuration and prove I/O, communications and control logic before releasing the RX7i system.
FAQ View All FAQ
-
What processor is used by GE IC698CPE010?IC698CPE010 uses a 300 MHz Celeron processor.
-
How much user memory does GE IC698CPE010 provide?It provides 10 MB of battery-backed user RAM and 10 MB of nonvolatile flash user memory.
-
How many Ethernet ports are built into GE IC698CPE010?The CPU provides two switched RJ45 ports supporting 10BASE-T and 100BASE-TX.
-
Which Ethernet services are documented for GE IC698CPE010?The official information lists SRTP, Ethernet Global Data and Modbus TCP server/client services.
-
Which programming languages are supported by GE IC698CPE010?The RX7i CPU documentation lists ladder diagram, structured text, function block diagram and C blocks.
-
Can GE IC698CPE010 operate at 60 °C?Yes, but the published 0 to 60 °C range requires the documented fan tray; without it the upper limit is 50 °C.
-
Does GE IC698CPE010 support Series 90-70 I/O?Yes. The RX7i CPU supports documented Series 90-70 I/O and VME modules subject to configuration and firmware requirements.
-
What should be verified after replacing GE IC698CPE010?Verify firmware, application checksum, reference memory, Ethernet and serial settings, I/O health and the controlled process test.
