Which base converter must be paired with GE IC697ALG440?

IC697ALG440 operates with the IC697ALG230 high-level analog input base converter.

How many current inputs does GE IC697ALG440 add?

It adds sixteen current-input channels to the matched analog subsystem.

Which current ranges can GE IC697ALG440 accept?

The documented ranges are 4 to 20 mA, 0 to 20 mA and -4 to +20 mA.

Where is A/D conversion performed for GE IC697ALG440?

Conversion and PLC data transfer are handled by the companion IC697ALG230 base module.

What isolation boundary applies to GE IC697ALG440?

The subsystem provides 1500 V isolation between field inputs and logic.

How is GE IC697ALG440 configured?

Channel range and operation are set through the Series 90-70 programming software or handheld programmer.

What indicates an open loop on GE IC697ALG440 in 4 to 20 mA mode?

The subsystem reports an underrange condition for a current below the documented open-wire threshold.

Which commissioning test is appropriate for GE IC697ALG440?

Inject traceable current values at representative points and compare all configured PLC readings and diagnostics.

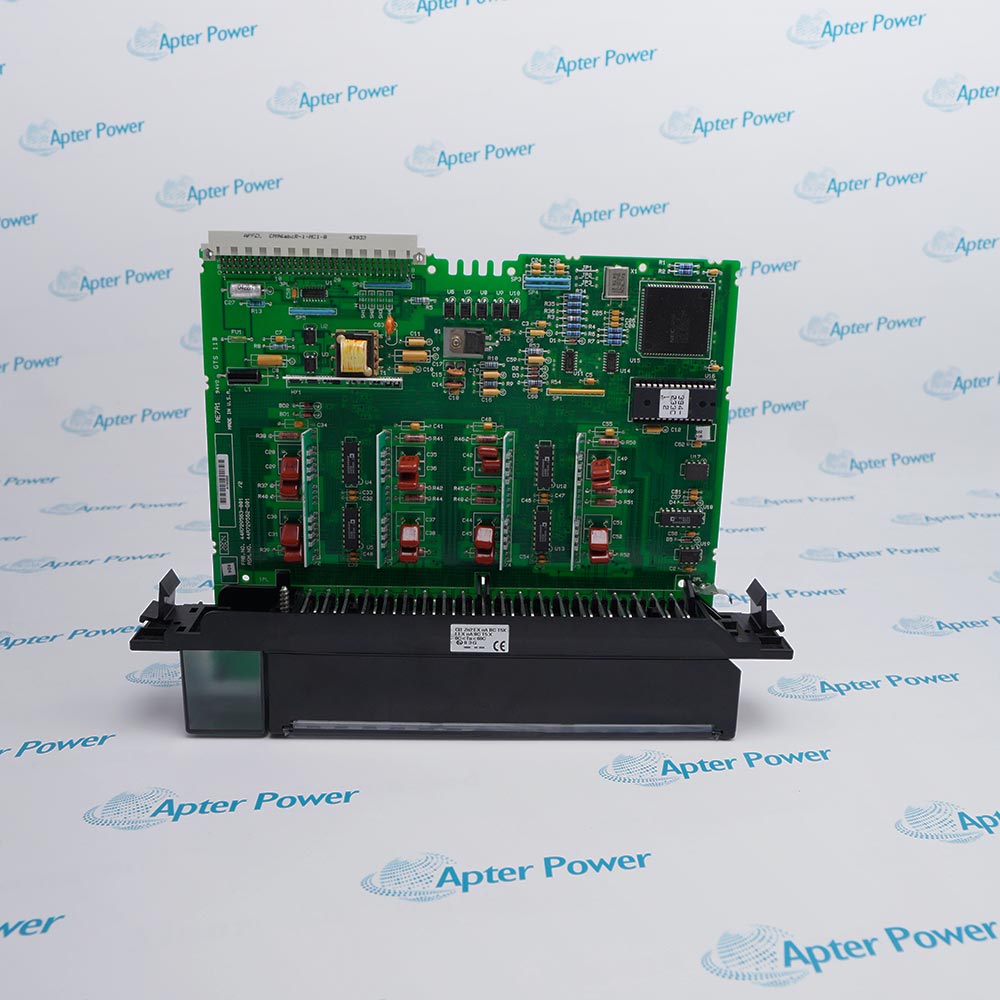

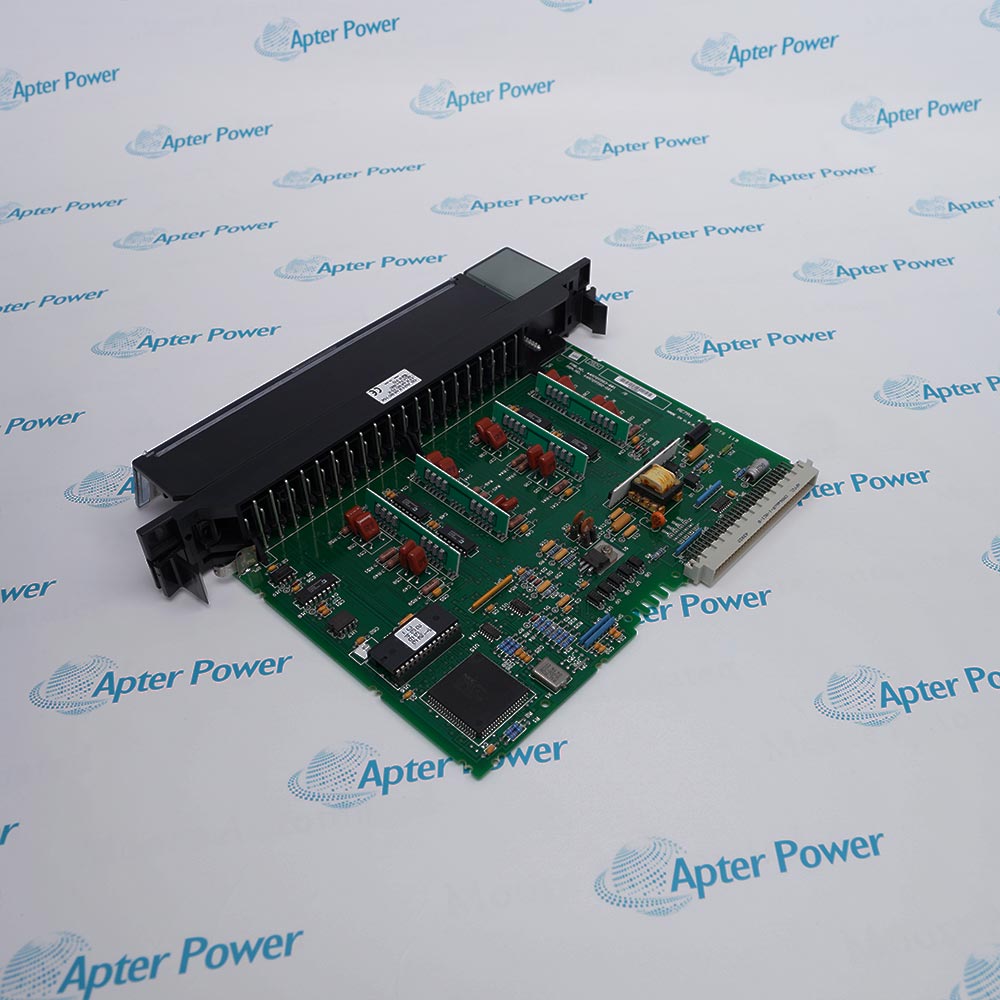

IC697ALG440

Name: IC697ALG440
Brand: General Electric
SKU: IC697ALG440

16-Channel Current Expander Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

GE IC697ALG440 is the current-input expander used with an IC697ALG230 base converter in a Series 90-70 high-level analog input subsystem.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for IC697ALG440

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for IC697ALG440

Manufacturer:

General Electric
Product Category:

PLC Systems
Spare Part Number:

IC697ALG440
Estimated shipping dimensions:

4x22x29.3cm
Weight:

0.66 kg
Tariff Code:

8537101190
Counliy of origin:

USA
System family:

Series 90-70
Module role:

Current expander
Input channels:

16
Supported input ranges:

4 to 20 mA; 0 to 20 mA; -4 to +20 mA
Companion base converter:

IC697ALG230
Isolation:

1500 V between field and logic
Common-mode voltage:

200 V between any two inputs
Configuration:

Windows programming software or handheld programmer

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

IC697ALG440 extends the matched converter assembly with sixteen current-input channels while the base module performs A/D conversion and PLC data transfer.

Adds sixteen current-input points to the high-level analog subsystem.
Shares conversion and data handling with the IC697ALG230 base module.
Supports three current ranges selected through software configuration.
Provides open-wire fault behavior for 4 to 20 mA operation.

IC697ALG440 should remain matched to its documented rack position, field interface and controller configuration through replacement and commissioning.

Important Notice: Record the complete IC697ALG440 identity, terminal assignments and channel response before removal, then prove the restored function before release.

GE IC697ALG440 Manuals & Downloads

GE IC697ALG440 Official Technical Reference Excerpt (PDF)GE IC697ALG440 Installation & Commissioning Guide (PDF)

The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.

Process current acquisition

Brings transmitter loops into a Series 90-70 rack.

Multi-channel monitoring

Expands a base converter for dense analog measurement.

Loop maintenance

Supports channel-level diagnosis and controlled calibration checks.

Legacy PLC renewal

Restores the documented current-input expansion position.

Before installing GE IC697ALG440, confirm the documented system, interfaces and controlled configuration.

Confirm IC697ALG440 and its assigned IC697ALG230 base module.

Place every affected current loop in the approved maintenance state.

Record range selection and scaling for all used channels.

Isolate field sources before removing terminal wiring.

Preserve shield, common and channel assignments exactly.

Check the expander cable and base-module connection for damage.

Inject controlled current points across each configured range.

Review PLC values and open-wire diagnostics before release.

Technical notes

Record the complete IC697ALG440 identity, terminal assignments and channel response before removal, then prove the restored function before release.

FAQ View All FAQ

Which base converter must be paired with GE IC697ALG440?

IC697ALG440 operates with the IC697ALG230 high-level analog input base converter.
How many current inputs does GE IC697ALG440 add?

It adds sixteen current-input channels to the matched analog subsystem.
Which current ranges can GE IC697ALG440 accept?

The documented ranges are 4 to 20 mA, 0 to 20 mA and -4 to +20 mA.
Where is A/D conversion performed for GE IC697ALG440?

Conversion and PLC data transfer are handled by the companion IC697ALG230 base module.

What isolation boundary applies to GE IC697ALG440?

The subsystem provides 1500 V isolation between field inputs and logic.
How is GE IC697ALG440 configured?

Channel range and operation are set through the Series 90-70 programming software or handheld programmer.
What indicates an open loop on GE IC697ALG440 in 4 to 20 mA mode?

The subsystem reports an underrange condition for a current below the documented open-wire threshold.
Which commissioning test is appropriate for GE IC697ALG440?

Inject traceable current values at representative points and compare all configured PLC readings and diagnostics.
