Technical specifications for IC200UEX211
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IC200UEX211
-
Estimated shipping dimensions:15x9x7.5cm
-
Weight:0.56 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Number of I/O Points:28
-
Number of Input Points:16
-
Input Type:24 VDC Inputs
-
Number of Output Points:12
-
User Power for Sensors:200mA maximum
-
Power Supply Voltage:120/240 VAC
-
Maximum Resistive Relay Load Rating:2A at 240 VAC or 24 VDC
Information
Overview
Manuals
Need More Info
- IC200UEX211 Discrete Expansion Module
- Provides additional discrete I/O channels to expand system capacity
- Features built-in protection for safe operation in industrial environments.

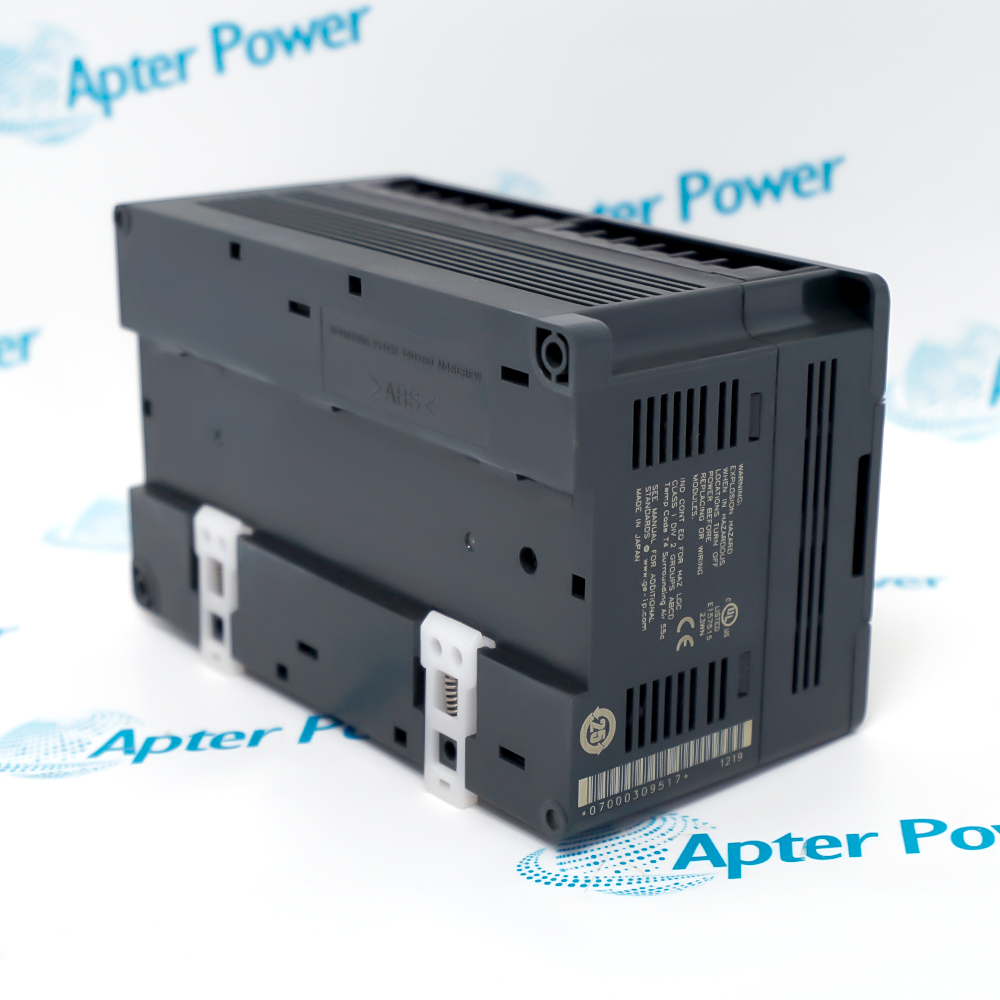

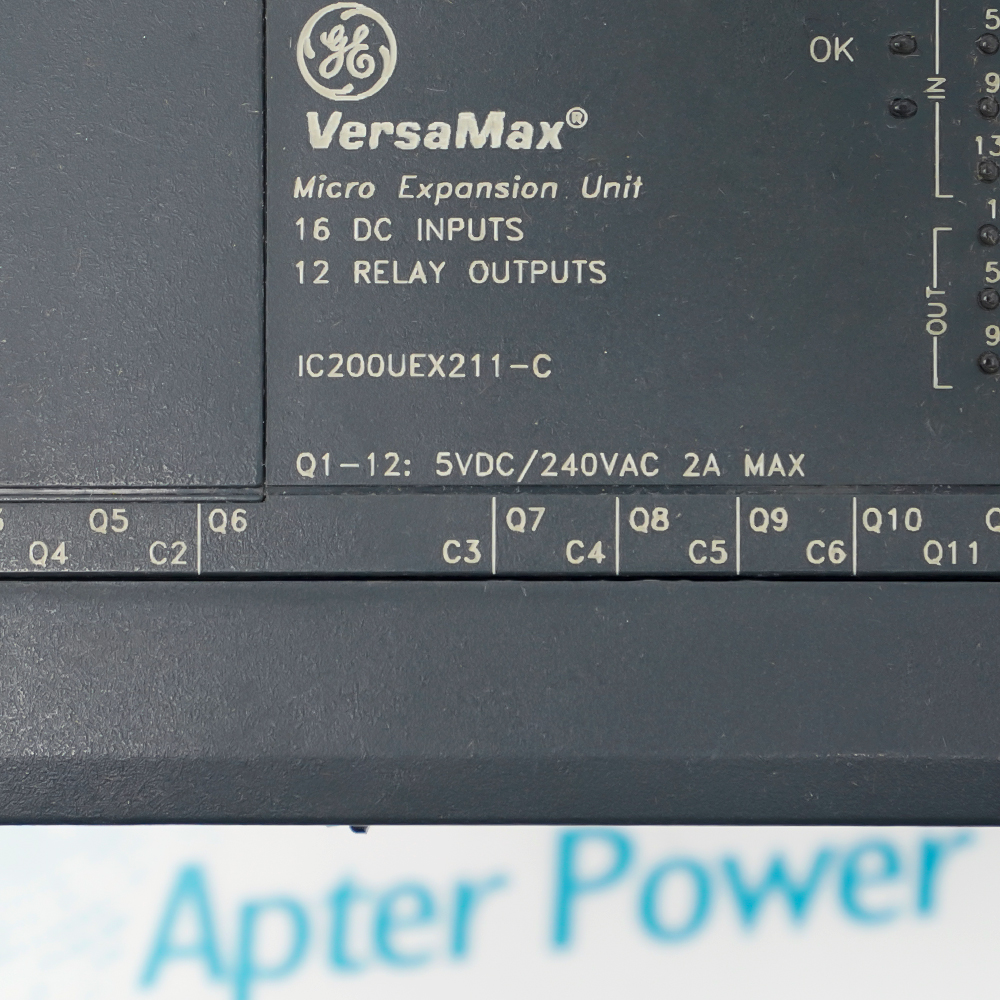

The IC200UEX211 is a discrete expansion module by GE Fanuc Emerson, designed for the VersaMax Micro series. This module incorporates 28 I/O points, comprising 16 inputs configured for 24 VDC and 12 outputs based on relay technology. It efficiently expands the capabilities of compatible control systems, allowing for enhanced connectivity.
Connection of sensors is supported, with a maximum available user power of 200 mA. The module operates within a power supply voltage range of 120 to 240 VAC, ensuring compatibility with various industrial applications. Furthermore, it is capable of managing a maximum resistive relay load rating of 2 A, suitable for both 240 VAC and 24 VDC operations.
The physical dimensions of the IC200UEX211 measure 150 mm in width, 90 mm in height, and 76 mm in depth. This compact design aids in the module’s integration into existing setups, providing a practical solution for discrete I/O requirements.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IC200UEX211 Discrete Expansion Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is IC200UEX211?IC200UEX211 is a Discrete Expansion Module
-
What are the basic specifications of the IC200UEX211 Discrete Expansion Module?It is a discrete I/O expansion module designed to extend the number of digital input and output points in a modular control system.
-
What type of signals does the IC200UEX211 support?It supports 24 V DC discrete input and output signals for connecting sensors, switches, relays, and actuators.
-
What is the rated operating voltage of the IC200UEX211?The module operates at a nominal 24 V DC with standard industrial tolerance for stable performance.
-
How is the IC200UEX211 installed in a system?It is mounted as an expansion unit connected to a compatible base module to increase total I/O capacity.
-
Is the IC200UEX211 suitable for industrial environments?Yes, it is designed for industrial use with resistance to electrical noise and typical factory temperature conditions.
