What is the exact system role of IC200MDL740?

It is a VersaMax sixteen-point 12/24 VDC positive-logic output module rated 0.5 A per point.

Which host, rack or carrier is required for IC200MDL740?

Use it on the approved VersaMax I/O carrier with the configured CPU or supported network interface.

What wiring or connector checks apply to IC200MDL740?

Preserve the carrier supply, common and point conductors and verify positive-logic polarity before energization.

How is IC200MDL740 configured for service?

Restore the existing VersaMax hardware configuration and point references for the module's carrier position.

Which diagnostics should be reviewed for IC200MDL740?

Review station recognition, module status, output commands and the actual response of every connected load.

What must be preserved when replacing IC200MDL740?

Preserve the module catalog number, carrier, station address, point map, wiring record and PLC project version.

How should IC200MDL740 be commissioned after installation?

Start with field effects controlled, prove each point, then run the approved sequence test.

What model-specific limitation must be checked for IC200MDL740?

The module requires a carrier for field termination; the module alone does not provide a complete wired I/O assembly.

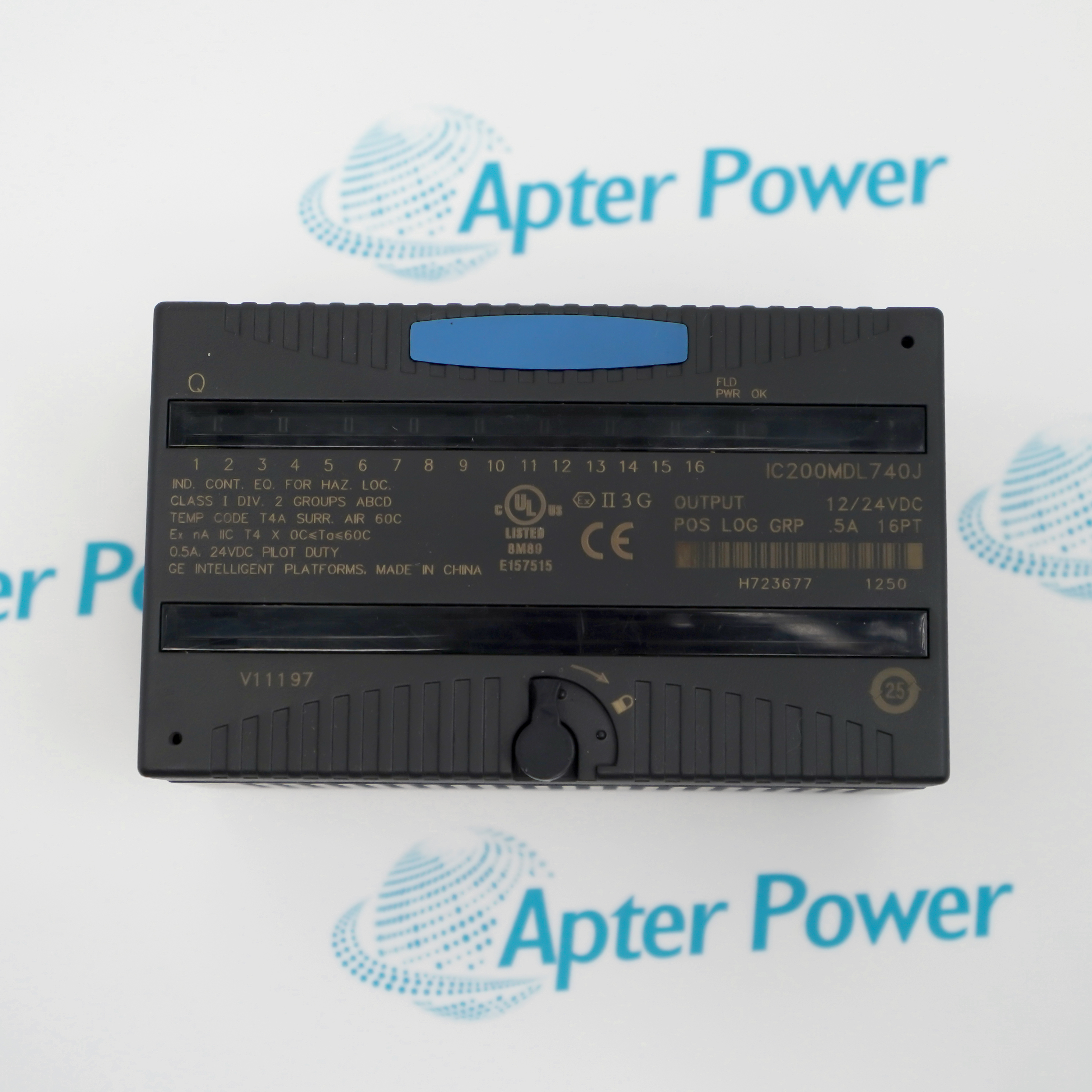

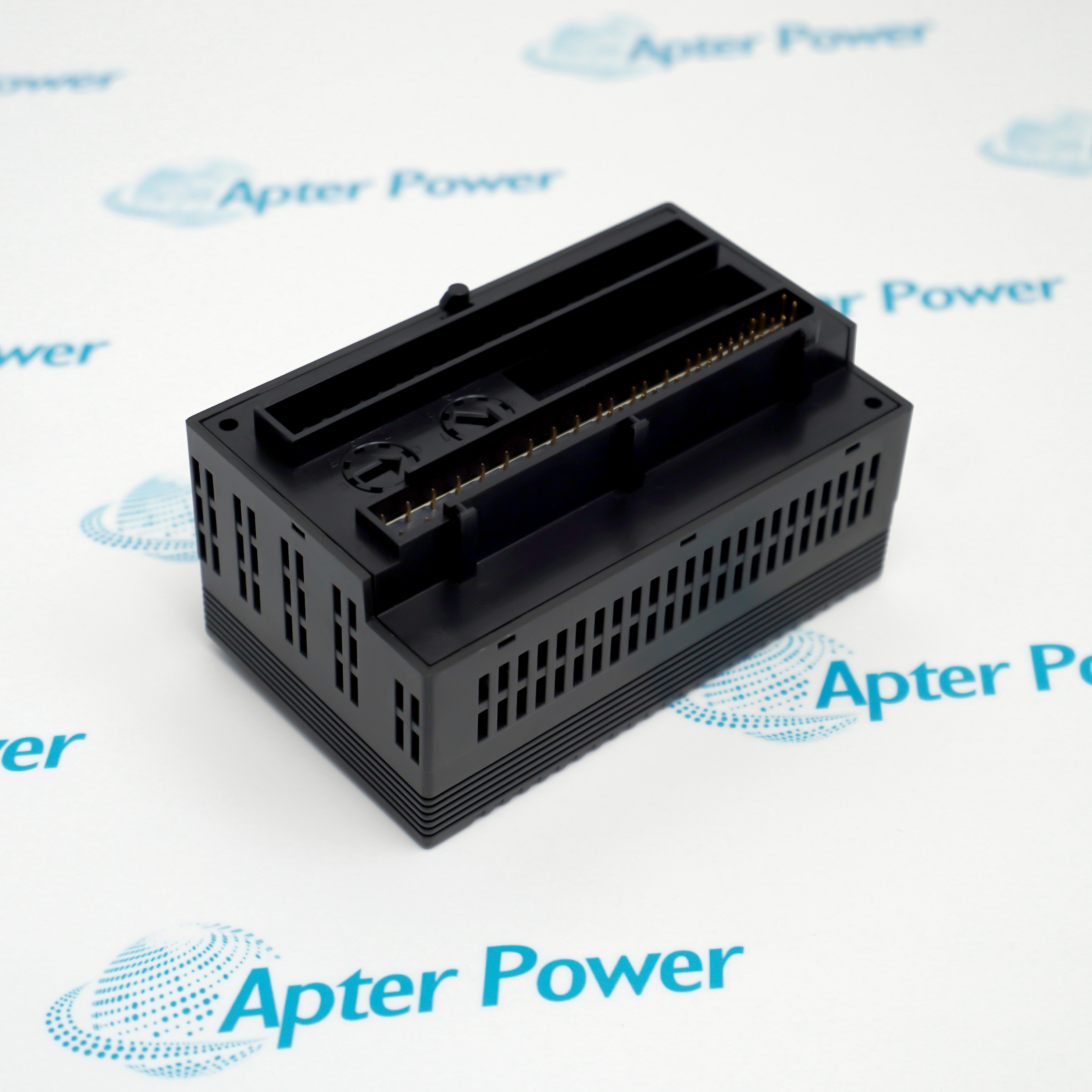

IC200MDL740

Name: IC200MDL740
Brand: General Electric
SKU: IC200MDL740

VersaMax 12/24 VDC Positive-logic Output Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

GE IC200MDL740 is a VersaMax 16-point positive-logic DC output module. It switches 12/24 VDC field loads through a compatible VersaMax I/O carrier and controller or network interface.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for IC200MDL740

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for IC200MDL740

Manufacturer:

General Electric
Product Category:

PLC Systems
Spare Part Number:

IC200MDL740
Tariff Code:

8537101190
Counliy of origin:

USA
Product family:

VersaMax
Output type:

12/24 VDC positive logic
Output points:

16
Output current:

0.5 A per point
Carrier requirement:

VersaMax I/O carrier

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

IC200MDL740 provides sixteen positive-logic DC output points in the modular VersaMax I/O platform.

Provides sixteen 12/24 VDC positive-logic outputs
Supports 0.5 A per output point
Uses a separate VersaMax carrier for field termination
Integrates with modular local or distributed VersaMax I/O

The module requires a compatible VersaMax I/O carrier for field termination and operates under a VersaMax CPU or supported network-interface configuration. Commissioning preserves the exact carrier position, supply grouping and controller point map.

Important Notice: Confirm IC200MDL740, the VersaMax CPU or network interface, carrier catalog number and position, 16-point map, positive-logic field supply, common wiring, load current, controller configuration and controlled point test before service.

Apter Power IC200MDL740 Manuals and Guides

The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

Compact machine output control

Switches documented DC actuators from a modular VersaMax station.

Distributed I/O replacement

Restores a sixteen-point positive output position under a compatible network interface.

Packaging-line sequencing

Provides discrete commands to interposing devices within a configured VersaMax controller.

Legacy VersaMax maintenance

Supports like-for-like output-module service while the carrier wiring remains documented.

Read the applicable GE installation instructions before work. Verify IC200MDL740, the installed host system and all configured field interfaces before isolation, wiring or commissioning.

Confirm IC200MDL740 and the exact VersaMax carrier position.

Isolate field and station power before removing the module.

Record every output, supply and common conductor on the carrier.

Verify that the project requires positive-logic 12/24 VDC outputs.

Inspect carrier contacts and latches under ESD-safe conditions.

Keep every connected load within the documented 0.5 A point rating.

Restore the PLC or network-interface point map without changing addresses.

Test all sixteen outputs under controlled conditions and review station diagnostics.

Technical notes

Seat IC200MDL740 on the project-approved VersaMax carrier with field power isolated, then restore the documented positive-logic point and common wiring. Confirm carrier latching, supply polarity, controller recognition and point-by-point load operation before automatic control.

FAQ View All FAQ

What is the exact system role of IC200MDL740?

It is a VersaMax sixteen-point 12/24 VDC positive-logic output module rated 0.5 A per point.
Which host, rack or carrier is required for IC200MDL740?

Use it on the approved VersaMax I/O carrier with the configured CPU or supported network interface.
What wiring or connector checks apply to IC200MDL740?

Preserve the carrier supply, common and point conductors and verify positive-logic polarity before energization.
How is IC200MDL740 configured for service?

Restore the existing VersaMax hardware configuration and point references for the module's carrier position.

Which diagnostics should be reviewed for IC200MDL740?

Review station recognition, module status, output commands and the actual response of every connected load.
What must be preserved when replacing IC200MDL740?

Preserve the module catalog number, carrier, station address, point map, wiring record and PLC project version.
How should IC200MDL740 be commissioned after installation?

Start with field effects controlled, prove each point, then run the approved sequence test.
What model-specific limitation must be checked for IC200MDL740?

The module requires a carrier for field termination; the module alone does not provide a complete wired I/O assembly.
