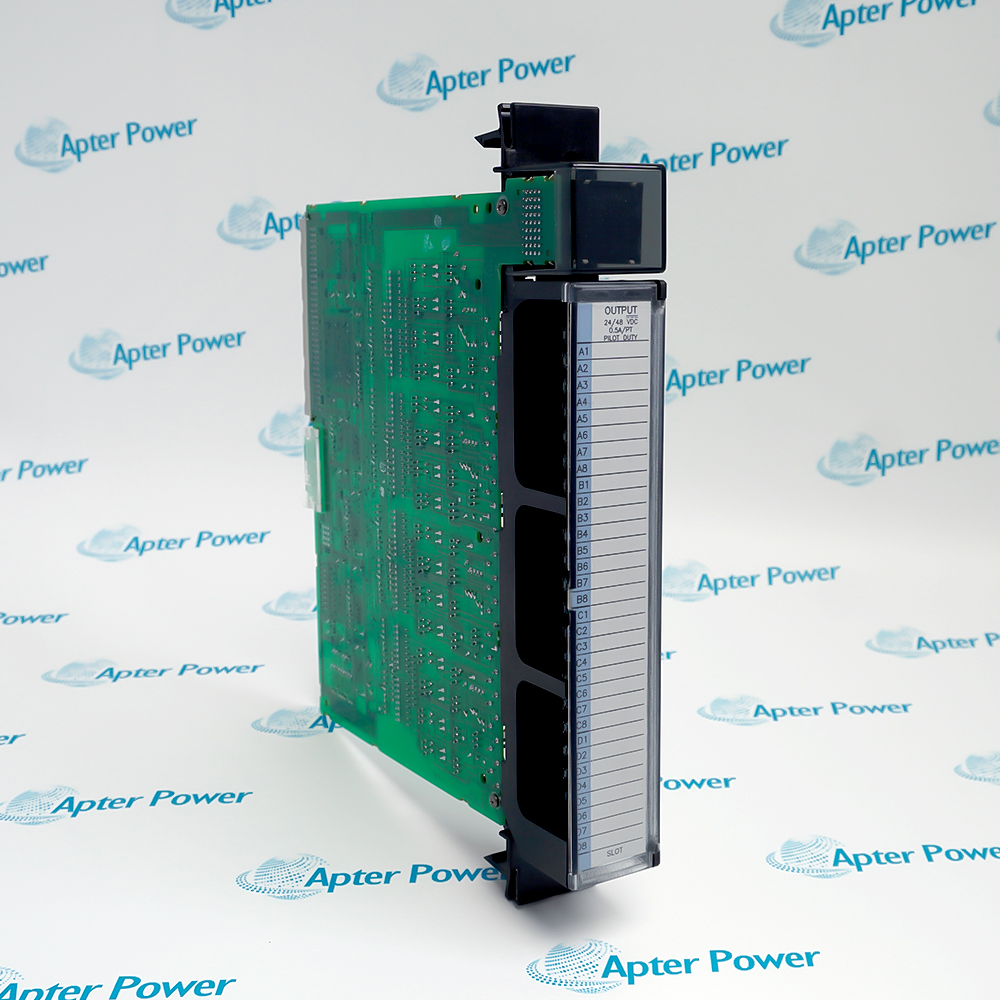

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for IC697MDL750
For more information on how your data is processed and stored by Apterpower please read our privacy policy
-
Match the complete marking
Include the complete IC697MDL750 marking and all series or revision details shown on the item. Match the offered hardware with the installed configuration before accepting the quotation.
-
Check the offered item before ordering
Request available label and connector photos. Have your maintenance team compare the offered IC697MDL750 with the installed equipment and applicable GE documentation.
Technical specifications for IC697MDL750
-
Manufacturer:General Electric
-
Product Category:PLC Systems
-
Spare Part Number:IC697MDL750
-
Weight:0.58 kg
-
Tariff Code:8537101190
-
Nominal load voltage:24 or 48 VDC
-
Output voltage range:20 to 60 VDC
-
Output count:32, four groups of eight
-
Maximum point current:0.5 A continuous
-
Maximum group current:2 A continuous
-
Inrush current:10 A maximum for 20 ms
-
Maximum on-state drop:1 V
-
Maximum off-state leakage:1 mA
-
On response time:1 ms maximum
-
Off response time:1 ms maximum
-
5 V backplane current:0.25 A
-
Internal fuses:None
Information
Overview
Downloads
Applications / Compatibility
Product Precautions
- GE IC697MDL750 combines grouped DC load switching with short-duration inrush capability, allowing the engineer to balance individual load demand, group heating and the configured response to PLC operating conditions.
Output supply range: 20 to 60 VDC; 24/48 VDC nominal
Load limits: 0.5 A per point and 2 A per eight-point group
Switching: 1 ms maximum on and off response
Load limits: 0.5 A per point and 2 A per eight-point group
Switching: 1 ms maximum on and off response

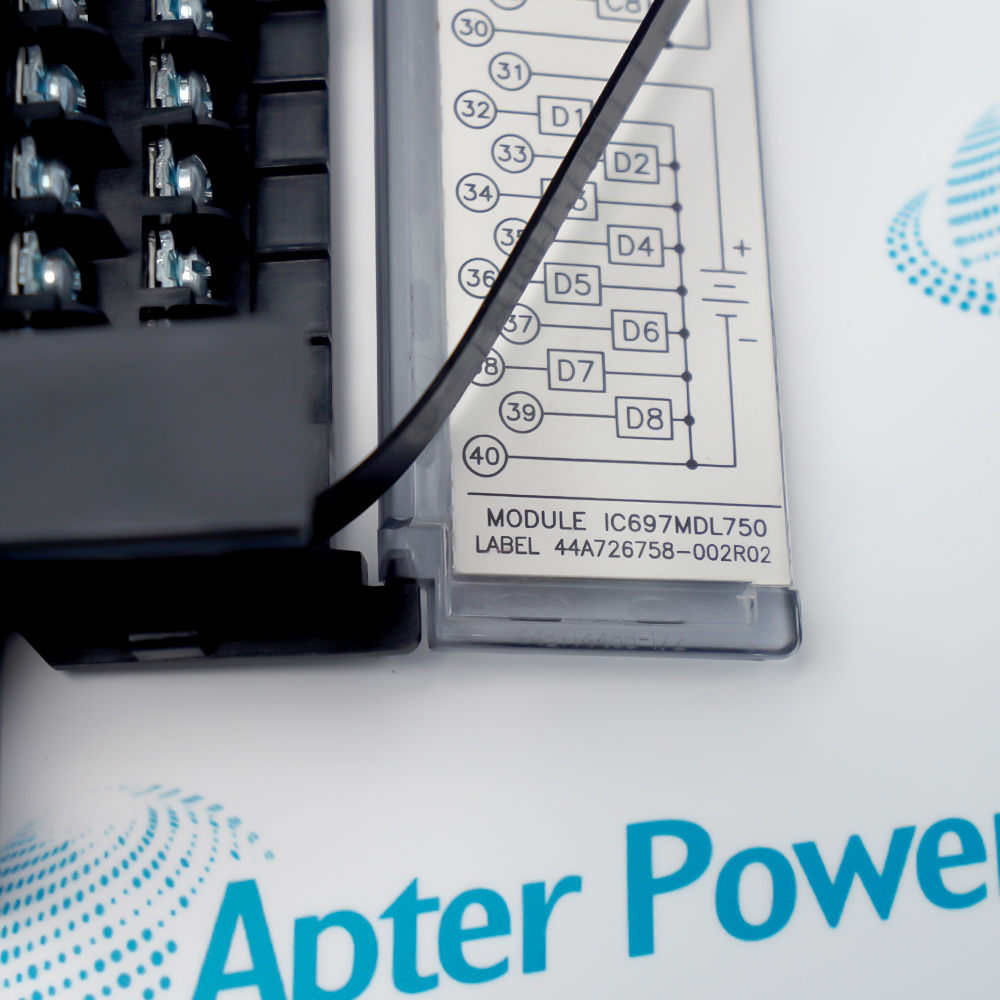

The module drives DC load circuits through four isolated groups. Each group requires its own external supply connection because the group power terminals are not internally linked. The per-point limit does not permit all eight outputs in a group to carry 0.5 A continuously at the same time.
Each output can conduct up to 10 A for 20 ms as a transient inrush condition. Repetitive switching must also satisfy the load duty-cycle guidance and the 2 A group thermal limit. The output voltage drop is 1 V maximum, and off-state leakage is 1 mA maximum, both of which matter when matching the connected load.
The module has no internal fuses; external point protection is required where the circuit design calls for it. Software configuration selects output references and the applicable hold-last-state or turn-off fault response. Point LEDs indicate logic-side state, so commissioning must also verify the actual load and the configured response to a controlled fault.
Each output can conduct up to 10 A for 20 ms as a transient inrush condition. Repetitive switching must also satisfy the load duty-cycle guidance and the 2 A group thermal limit. The output voltage drop is 1 V maximum, and off-state leakage is 1 mA maximum, both of which matter when matching the connected load.
The module has no internal fuses; external point protection is required where the circuit design calls for it. Software configuration selects output references and the applicable hold-last-state or turn-off fault response. Point LEDs indicate logic-side state, so commissioning must also verify the actual load and the configured response to a controlled fault.
Controller platform reference: GE Series 90-70 discrete outputs. Check load current, group totals and configured fault response.
GE Fanuc 24/48 VDC Output Module, GFK-0085G, in GFK-0600F provides the manufacturer reference for IC697MDL750 and its applicable system arrangement. The separate installation guide covers DC group circuits, load budgets, external protection, inrush checks and output fault-response testing.
IC697MDL750 Official Technical Reference Excerpt
GE Fanuc 24/48 VDC Output Module, GFK-0085G, in GFK-0600F provides the manufacturer reference for IC697MDL750 and its applicable system arrangement. PDF · 6 pages.IC697MDL750 Installation & Verification Guide
Apter Power guide covering DC group circuits, load budgets, external protection, inrush checks and output fault-response testing. PDF · 5 pages.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: The PLC backplane supplies module logic while external DC sources energize the output groups and their loads. Field wiring, external fuses and load devices are separate parts of the installation.
Application scope: The following load uses are subject to point current, group current, inrush duration and leakage limits. Evaluate the complete circuit before selecting protection and fault behavior.
Application scope: The following load uses are subject to point current, group current, inrush duration and leakage limits. Evaluate the complete circuit before selecting protection and fault behavior.
Solenoid control
Switch compatible DC solenoids after checking steady current, inrush and required off-state release.Motor-starter commands
Drive suitable DC starter interfaces within the output and group limits; this is not direct motor-power switching.Indicator circuits
Operate DC indicators while assessing cold-start inrush and the permitted repetitive duty.Defined output fallback
Implement the application-selected hold or turn-off behavior and verify its effect on connected equipment.
Prepare GE IC697MDL750 for its configured installation using these checks.
Budget group current
Add the simultaneous load currents in each eight-point group.
Check surge duration
Keep inrush and repetitive duty within the applicable output limits.
Provide external protection
Do not assume internal fuses protect the field outputs.
Separate DC groups
Restore correct supply polarity and the intended group boundaries.
Verify off-state release
Check the connected load with the maximum leakage characteristic in mind.
Test fallback behavior
Prove the configured hold or off response in an approved maintenance state.
Alternative Names
IC697MDL750
GE IC697MDL750
Technical notes
Continuous versus inrush: Continuous load limits and short transient capability must both be satisfied.
Protection: The module contains no internal fuses; evaluate external protection for each required circuit.
Fault response: Select and test the applicable hold-last-state or turn-off behavior through the PLC configuration.
FAQ View All FAQ
-
Can all eight IC697MDL750 outputs in one group carry 0.5 A together?No. Each point is limited to 0.5 A, but the combined continuous current of an eight-point group must remain at or below 2 A.
-
Does IC697MDL750 include replaceable internal group fuses?No. The module has no internal fuses. Where required, provide suitable external point protection coordinated with the load and the manufacturer guidance.
-
How long can IC697MDL750 carry a 10 A surge?The maximum inrush specification is 10 A for 20 ms. Repetition depends on the load and duty cycle; it must not be treated as a sustained output rating.
-
What DC supply range is acceptable for IC697MDL750 loads?The output voltage range is 20 to 60 VDC, with 24 or 48 VDC nominal operation. Allow for wiring losses and the module on-state voltage drop when evaluating the load voltage.
-
Can IC697MDL750 retain an output state after a configured fault?The selectable responses include maintaining the existing state or turning outputs off for the applicable operating or default conditions. Verify the actual application configuration before commissioning.
-
Why can a sensitive load still see current when IC697MDL750 is off?Off-state leakage can be as high as 1 mA. Check whether the load reliably releases at that leakage level rather than relying only on the PLC command state.
-
How quickly does IC697MDL750 respond to an output command?Specified on and off response times are each 1 ms maximum at the module. Total system response also includes the PLC program and I/O update timing.
-
Are IC697MDL750 group supply terminals internally linked?No. The four output groups are isolated from one another, and each group requires its own field supply connection. Preserve the approved grouping and polarity.
