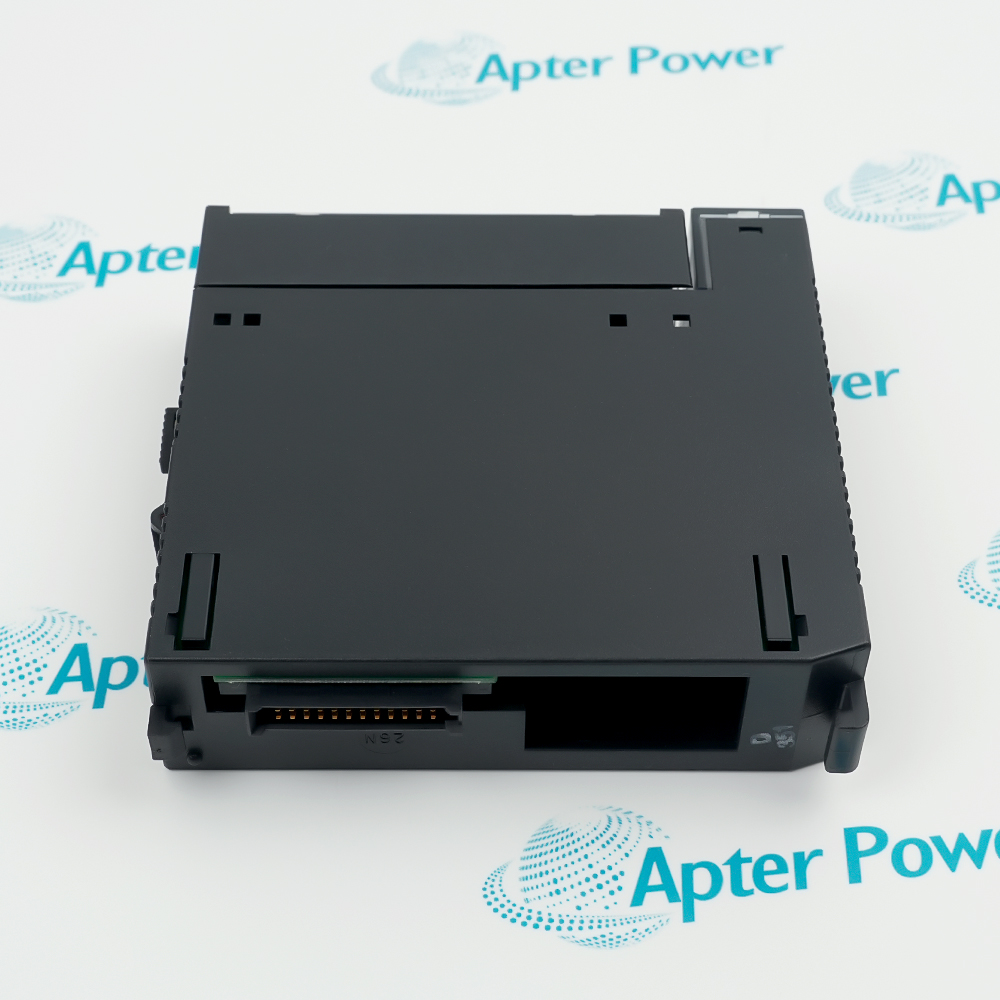

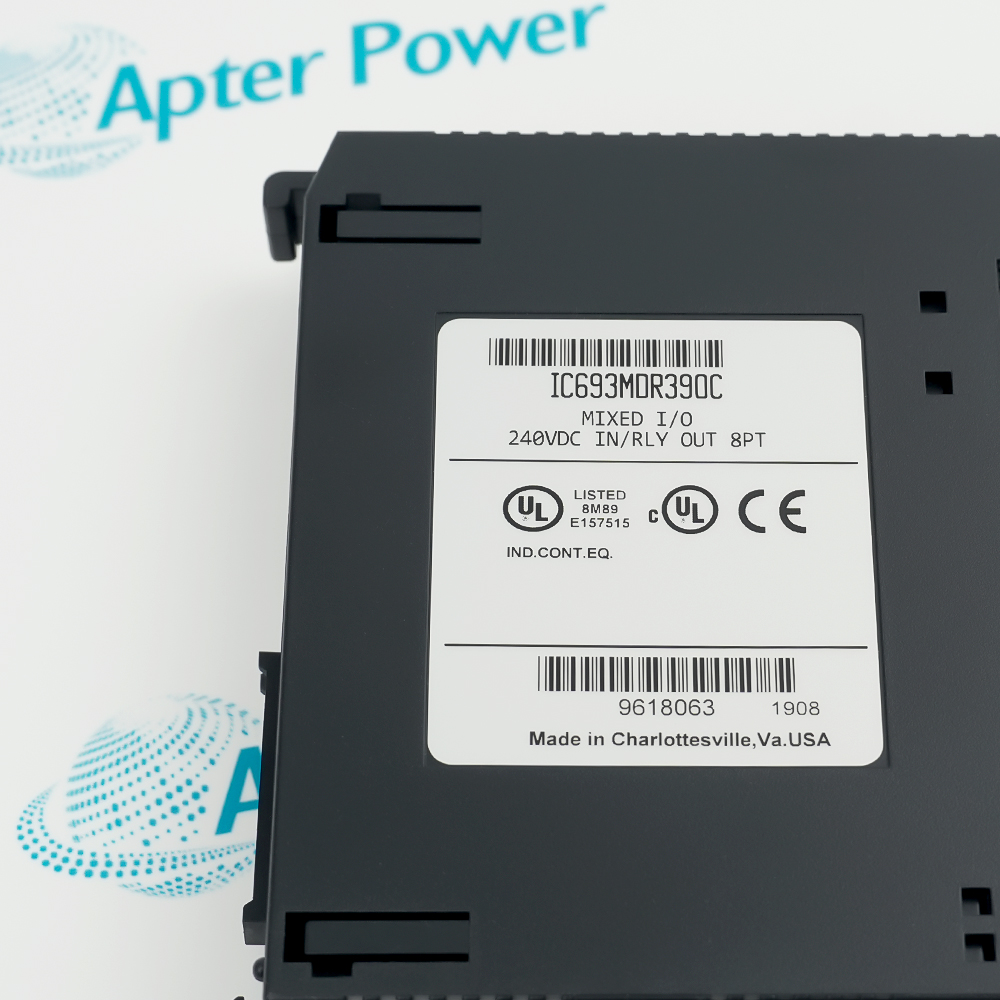

      IC693MDR390

      Combination Discrete input
      In Stock

      Product Describe：

      Combination Discrete input
      80 mA when all
      IO are active; 70 mA
      With all output energized

      Ask our team:

      Get a quick price for： IC693MDR390
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Revisions FAQ More Details

      Technical specifications for IC693MDR390

      Technical specifications for IC693MDR390

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        IC693MDR390
      • Estimated shipping dimensions:
        3.6x13x13.5cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input Rated Voltage:
        24 Volts DC
      • Inputs per Module:
        8
      • No of output channels:
        Eight (8) Normally Open (N.O.) contact outputs
      • Output Rated Voltage:
        24 VDC, 120/240 VAC
      • Nominal input voltage:
        24 VDC
      • Output Operating Voltage:
        5 to 30 Volts DC, 5 to 250 Volts AC, 50/60 Hz
      • Input current:
        7.5 mA at rated voltage
      • Outputs per Module:
        8
      • Output operating voltage range:
        5-30 VDC; 5-250 VAC
      • Maximum Load per output:
        2 Amps
      • Output nominal voltage:
        24 VDC; 120/240 VAC
      • Maximum Load per common:
        4 Amps
      • Maximum load:
        2 A, maximum
      • Input On and Off response time:
        7 ms
      • Output On and Off response time:
        15 ms
      • Backplane current draw:
        80 mA when all IO are active
      Ask for Quote

      Information

      Information

      Overview Manuals Main features and applications
      The IC693MDR39 is a Series 90-30, 24 VDC discrete combination I/O module. This module is formerly produced by GE Fanuc, now acquired by Emerson Automation. It features eight (8) discrete input channels in a single group that is designed to accept an input voltage signal range of -30 to 32 VDC and input current of 7.5 mA at rated voltage.
        • 24 Volt DC Input
        • Relay Output
        • 8 Inputs/8 Outputs
      The IC693MDR390 is a Series 90-30 Programmable Logic Controller (PLC) platform component module that functions as a combination of discrete input and output modules. This module features Eight (8) discrete input channels that are designed to accept input signal voltage ranges of -30 to +30 VDC with rated or nominal voltage of 24 VDC while the typical input current is 7.5 mA at rated voltage.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IC693MDR390 Combination Discrete input Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Status indication: The top of the module is equipped with two rows of green LED indicator lights, which are used to display the ON/OFF status of each input and output point in real time. Compatibility: Can be installed in any 5-slot or 10 slot backplane I/O slot of Series 90-30. Typical use: Used to connect input devices such as buttons, travel switches, proximity sensors, and control output loads such as motor starters, solenoid valves, and indicator lights. Installation note: The operating power supply of the on-site equipment needs to be provided by the user themselves, and the module does not have a fuse inside.

      Revisions

      Revisions

      Revision Part #

      Also known as

      IC693MDR390B
      IC693MDR390-B, Series B, Rev B
      Get Parts Quote
      IC693MDR390C
      IC693MDR390-C, Series C, Rev C
      Get Parts Quote
      IC693MDR390D
      IC693MDR390-D, Series D, Rev D
      Get Parts Quote

      FAQS

      • What is the voltage rating?
        Inputs are 24V DC; outputs can switch 5 to 30V DC or 5 to 250V AC. How many inputs/outputs? It has 8 DC inputs (1 group) and 8 N.O. Relay outputs (2 groups of 4).
      • What are the power requirements?
        The module requires 5V from the backplane (80mA max) and 24V DC user power for inputs.
      • Does it have fuses?
        No, the module does not have internal fuses.
      • Is it compatible with all 90-30 racks?
        Yes, it can be installed in any I/O slot of a 5 or 10-slot baseplate.
      • How many input and output channels does the IC693MDR390 have?
        The IC693MDR390 has Eight (8) discrete inputs and Eight (8) Normally Open (N.O.) contact outputs.
      • What is the backplane current consumption of the IC693MDR390?
        The IC693MDR390’s backplane current consumptions are 80 mA when all IO are active and 70 mA with all output energized.
      • Does the IC693MDR390 supports installation to a baseplate with embedded CPU?
        Yes. The IC693MDR390 supports all types of Series 90-30 baseplate and CPUs.
