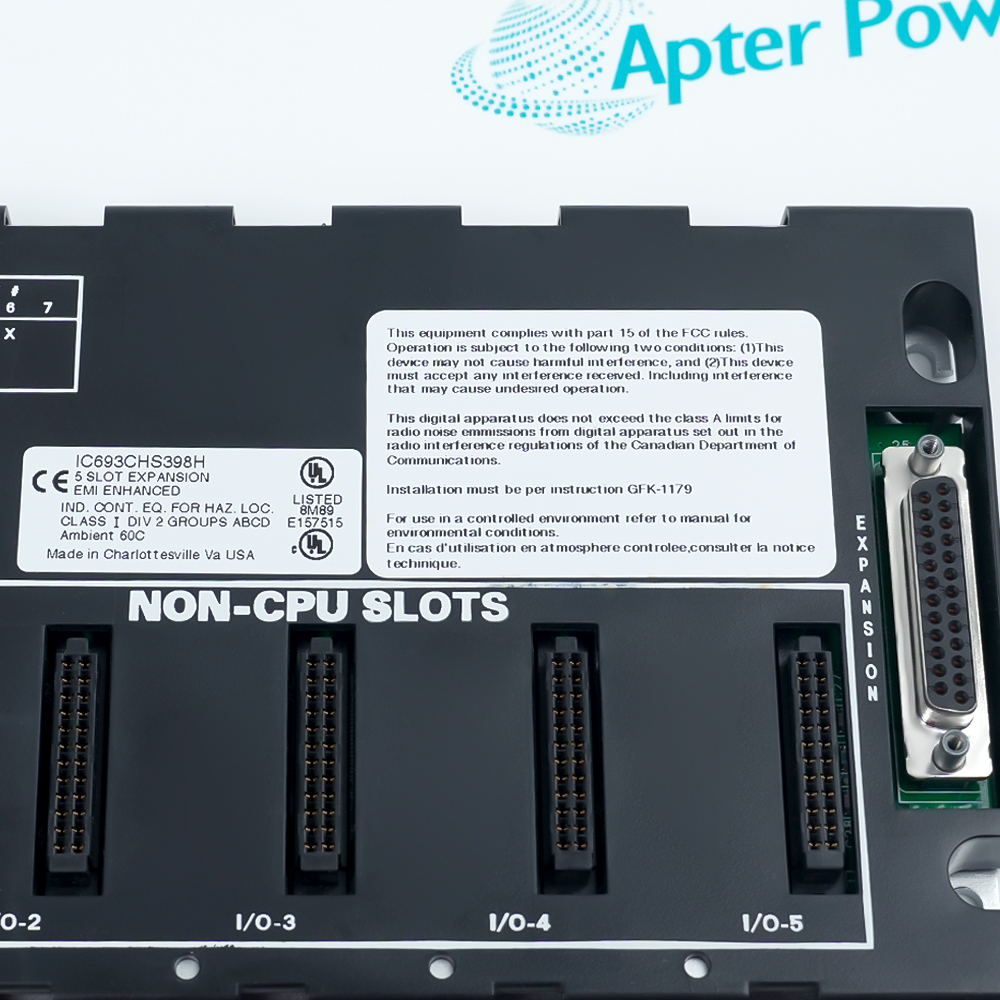

Technical specifications for IC693CHS398
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IC693CHS398
-
Estimated shipping dimensions:26.4x13x1.8cm
-
Weight:0.56 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
No. of slots, total:Six (6)
-
No. of I/O slots:Five (5)
-
No. of Power supply slots:One (1)
-
Number of Slots:5
-
Rack address setting:via DIP switch settings
-
Number of CPUs Supported:1
-
Expansion slot:25-pin D-shell female connector
-
Current load:170 mA
-
Bus voltage:+5VDC
Information
Overview
Manuals
Core functionality
Technical limitations
The IC693CHS397 is a 5-slot expansion baseplate from the Series 90-30 Programmable Logic Controller (PLC) platform. Formerly manufactured by GE Fanuc, now under Emerson Automation, this baseplate mainly features Five (5) I/O slots, One (1) Power Supply slot, and One (1) expansion port.
- Versatile
- Wide Range of Functions
- Simple Relay Replacement to Sophisticated Mid-Range Automation
- Discrete and Analog I/O Modules
- Innovative Architecture and Modular Design
- Expand your System as your Company Grows
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IC693CHS398 I/O Expansion baseplate Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Slot configuration: Provides 5 slots (numbered 2 and above) for installing I/O modules or option modules, and there is also a dedicated slot on the left for installing power modules.
System connection: Equipped with a 25 pin D-type female I/O bus expansion connector, used to connect to the CPU main board or other expansion boards through cables.
Cascade capability:
When used in conjunction with CPU 331/340/341, the system can support up to 4 expansion boards.
When paired with CPU 350 or higher versions, up to 7 expansion boards can be supported.
Cannot work independently: must be connected to the main system containing the CPU, and the maximum cable distance from the main motherboard cannot exceed 15 meters (50 feet).
Module support restrictions: Some intelligent modules (such as PCM, CMM, ADC, and BEM330) must be installed on the CPU main board and cannot be installed on such expansion boards.
Revisions
Revision Part #
Also known as
FAQ View All FAQ
-
How many I/O slots does the IC693CHS398 have?The IC693CHS398 has Five (5) I/O slots.
-
What is the load current of the IC693CHS398?The IC693CHS398 has load current of 170 mA @ 5VDC.
-
What are compatible CPUs that can utilize the IC693CHS398 baseplate?Compatible CPUs are CPU 331, 340, 341, 350 or higher.
-
How many I/O slots does the IC693CHS398 have?The IC693CHS398 is a 5 I/O slots.
-
What is the appropriate total cable distance when interconnecting expansion baseplates?Maximum allowable total cable distance is 50 feet or 15 meters.
-
Does the require a power supply?Yes, a power supply module is required to operate the IC693CHS398.
