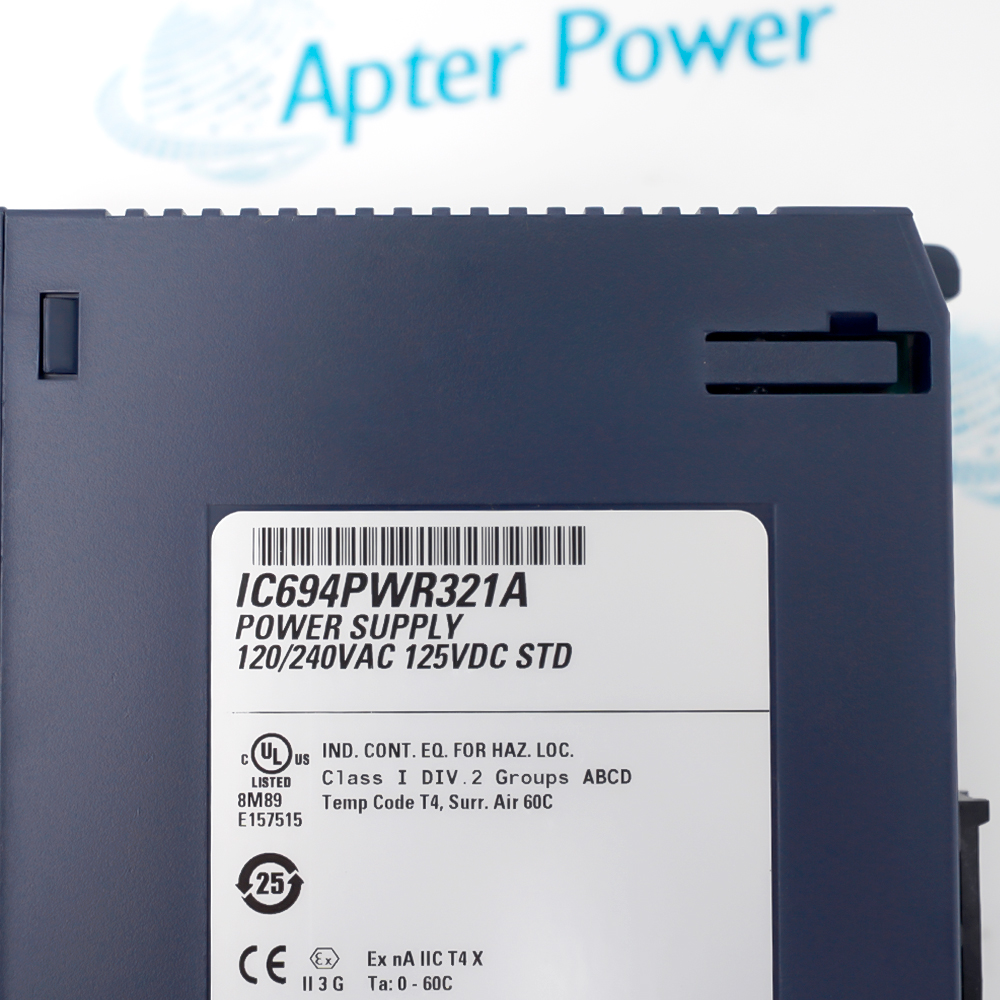

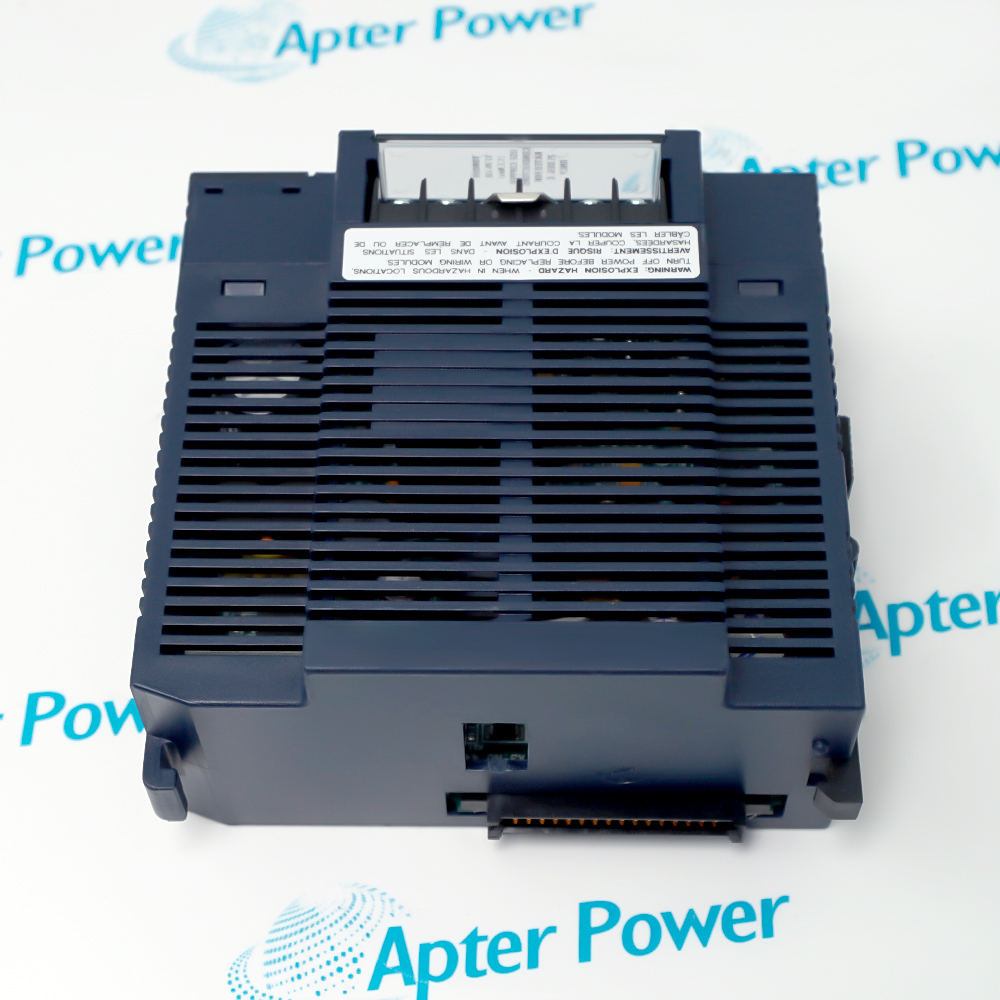

General Electric IC694PWR321 is an evidence-bounded RX3i thirty-watt serial-expansion power supply. Emerson's official RX3i documentation identifies IC694PWR321 as a 30 W supply for serial expansion racks with 120/240 VAC or 125 VDC nominal input.
- Exact model: IC694PWR321
- Supply capacity: 30 W
- Nominal input: 120/240 VAC or 125 VDC
- Input range: 85-264 VAC or 100-300 VDC
System role: It supplies the documented RX3i serial-expansion backplane from an 85-264 VAC or 100-300 VDC input source. Only facts stated by the cited manufacturer sources are published; sibling, predecessor and successor data are not transferred. Architecture boundary: Documented outputs are +5 VDC, relay +24 VDC and isolated +24 VDC; battery backup and the serial port are unavailable when used in an expansion backplane. Exact revision, firmware, host, connector and field-wiring details must be checked against the physical unit and approved project documentation. For maintenance, replacement or migration work, verify the complete nameplate, companion hardware, wiring, configuration and commissioning procedure before returning equipment to service. Origin, HS code, dimensions and logistics weight remain unpublished without exact manufacturer model-level evidence.
Important Notice: Verify the IC694PWR321 nameplate, input source, rack type, output load budget, grounding and expansion-backplane limitations before use.
Apter Power IC694PWR321 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited General Electric official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current General Electric documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for General Electric IC694PWR321.
System documentationProvides a source-traceable boundary for the documented host, I/O, communication or termination role.
Commissioning reviewGuides identity, companion-hardware, wiring and controlled functional checks before return to service.
Migration assessmentSeparates exact-model facts from suffix, sibling, predecessor, successor and family-level information.
Read and follow the exact General Electric documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the IC694PWR321 nameplate, input source, rack type, output load budget, grounding and expansion-backplane limitations before use.
2Do not confuse IC694PWR321 with high-capacity PWR330/PWR331 or IC695 universal-backplane supplies. Verify rack and load budget.
3De-energize the equipment and follow the site's approved electrical and process-safety procedure before disturbing hardware or wiring.
4Back up controller, network, I/O and configuration data before replacement, migration or firmware work.
5Verify every companion module, cable, connector, termination and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model, suffix or successor.
7Perform a documented functional test and confirm diagnostics, alarms and fail-state behavior after work.
8Origin, HS code, dimensions and logistics weight remain unpublished without exact manufacturer model-level evidence.
