Get a quick price for IC694MDL645D
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for IC694MDL645D
-
Manufacturer:General Electric
-
Product Category:PLC Systems
-
Spare Part Number:IC694MDL645D
-
Estimated shipping dimensions:3.5x13.2x13.5cm
-
Weight:0.36 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Verified base model:IC694MDL645
-
Input count and logic:16 point, positive/negative logic
-
Input response time:7 ms on; 7 ms off
-
Supply voltage and operating range:24 VDC; 20-30 VDC
-
ON-state voltage threshold:Above 11.5 V
-
Backplane current consumption:80 mA at 5 VDC and 125 mA at 24 VDC
-
Revision verification:Verify exact physical revision
Information
Overview
Manuals
Common Applications
Product Precautions

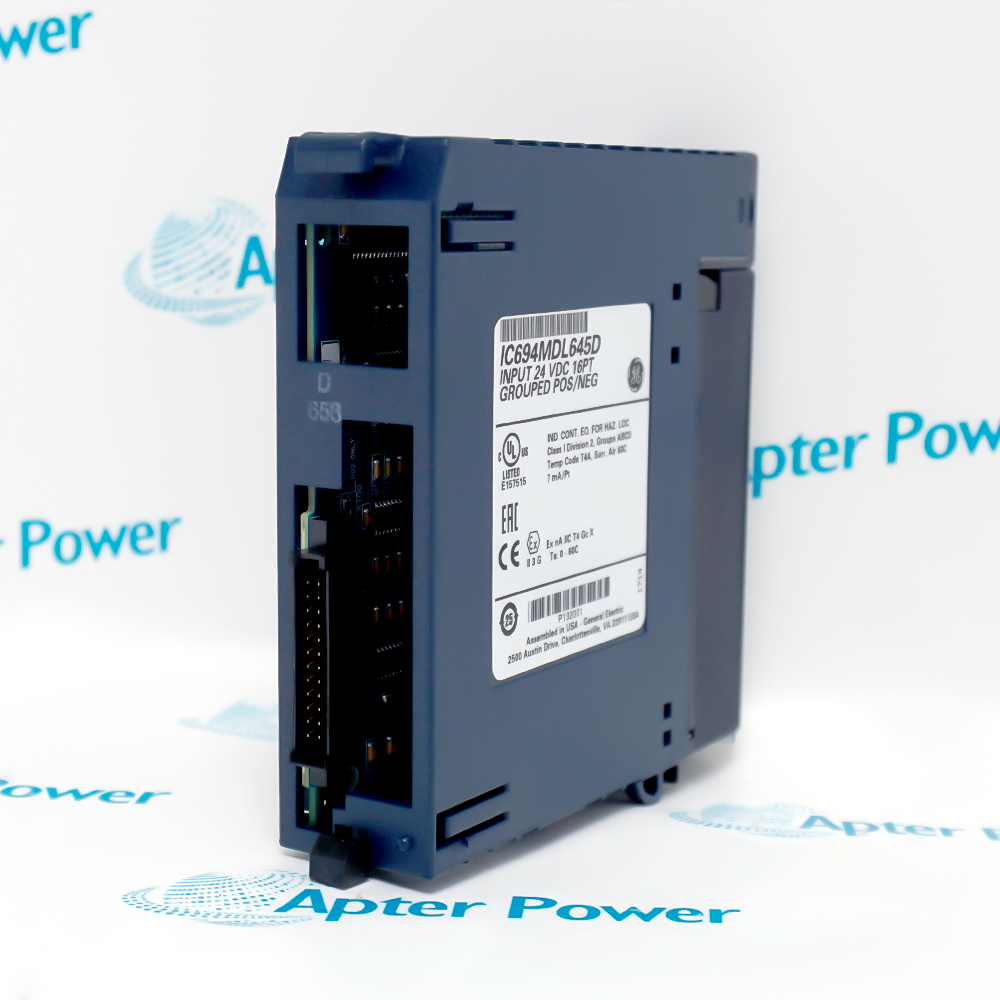

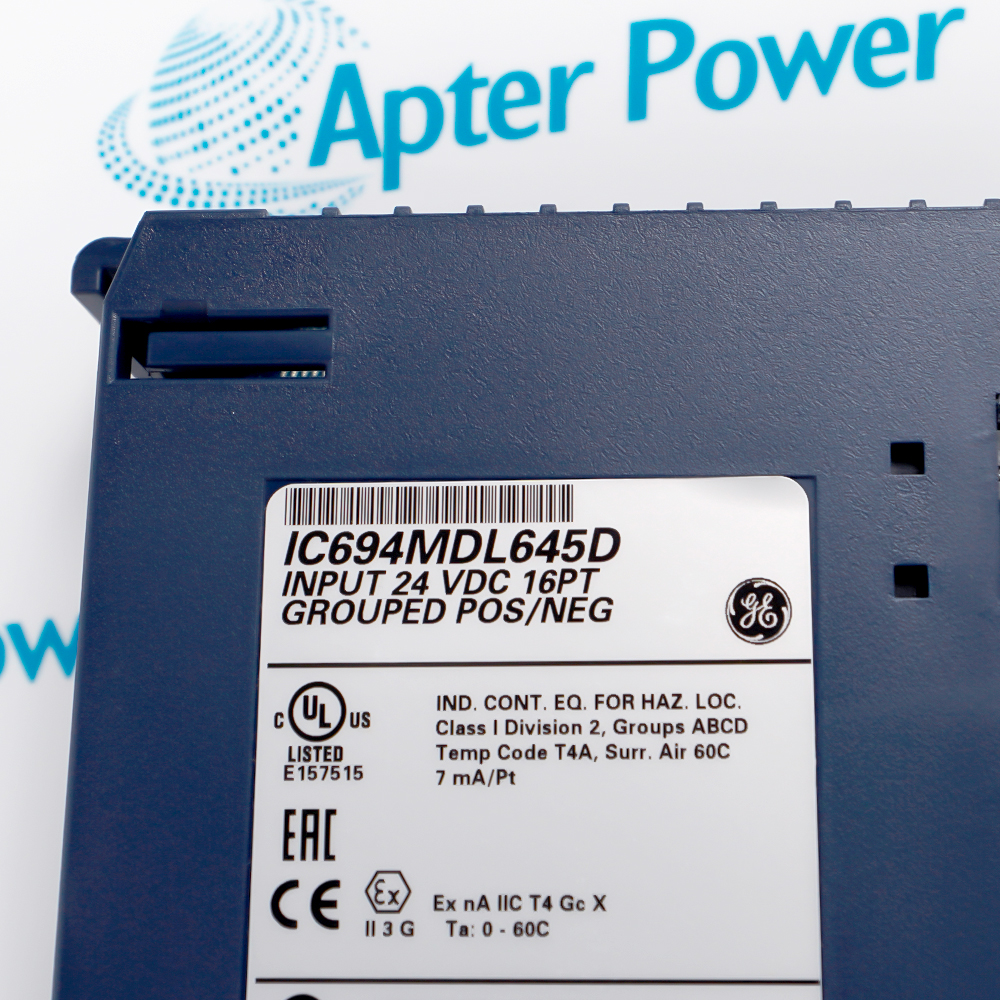

General Electric IC694MDL645D is an evidence-bounded RX3i 24 VDC sixteen-point input module revision. Emerson's exact product page verifies IC694MDL645 as a 24 VDC, sixteen-point positive/negative-logic input module. The requested D suffix is retained as a physical revision gate.
- Requested full label: IC694MDL645D
- Verified base model: IC694MDL645
- Inputs: 16 point, positive/negative logic
- Input timing: 7 ms on; 7 ms off
System role: The verified base module provides sixteen 24 VDC discrete input points in PACSystems RX3i rack-based I/O. Only facts stated by the cited manufacturer sources are published; sibling, predecessor and successor data are not transferred. Architecture boundary: The official base listing states 7 ms on and 7 ms off, 20-30 VDC range, on above 11.5 V, and backplane consumption of 80 mA at 5 VDC plus 125 mA at 24 VDC. Exact revision, firmware, host, connector and field-wiring details must be checked against the physical unit and approved project documentation. For maintenance, replacement or migration work, verify the complete nameplate, companion hardware, wiring, configuration and commissioning procedure before returning equipment to service. Origin, HS code, dimensions and logistics weight remain unpublished without exact manufacturer model-level evidence.
Important Notice: Verify the IC694MDL645D suffix, terminal block, 24 VDC field supply, approvals and project configuration before use.
