      Emerson A6110
      Emerson A6110
      Emerson A6110
      Emerson A6110
      Emerson A6110
      Emerson A6110
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      A6110

      Shaft Vibration Monitor
      In Stock
      Ships by Tuesday, October 6
      Fast Shipping Available

      Product Describe：

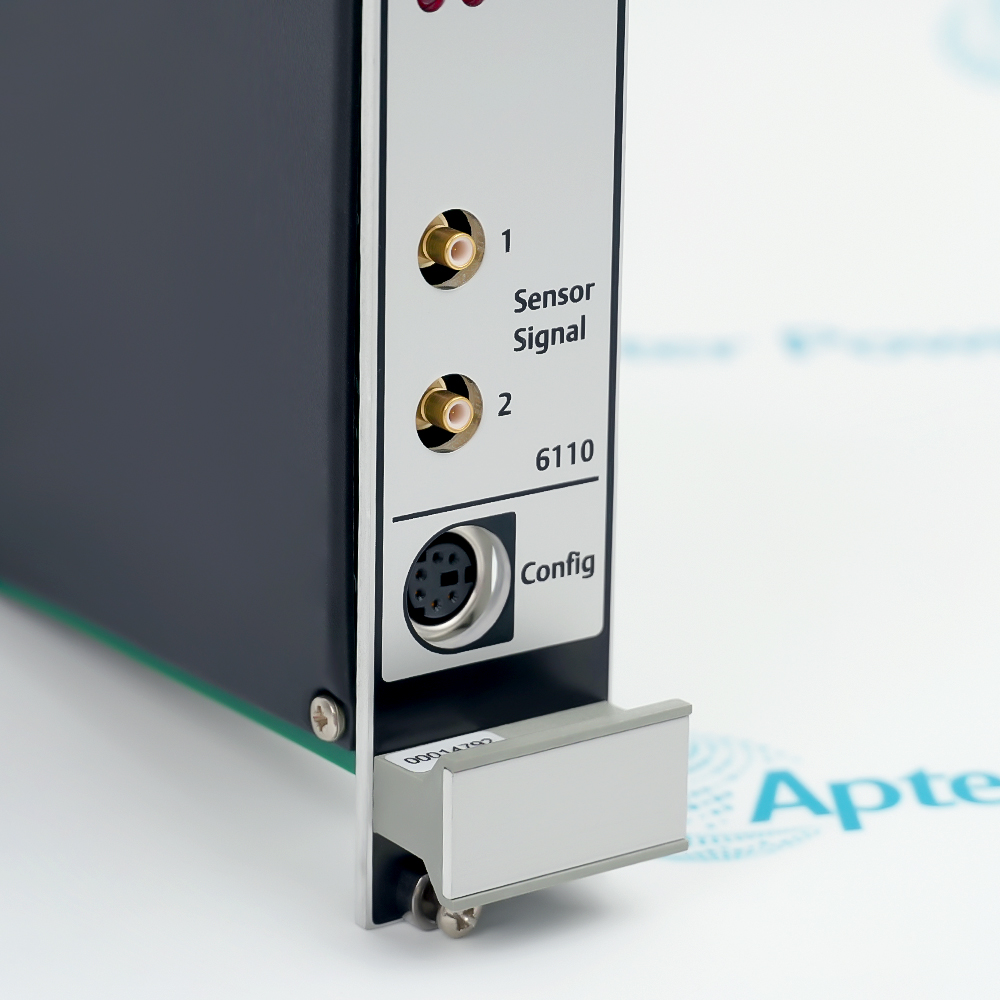

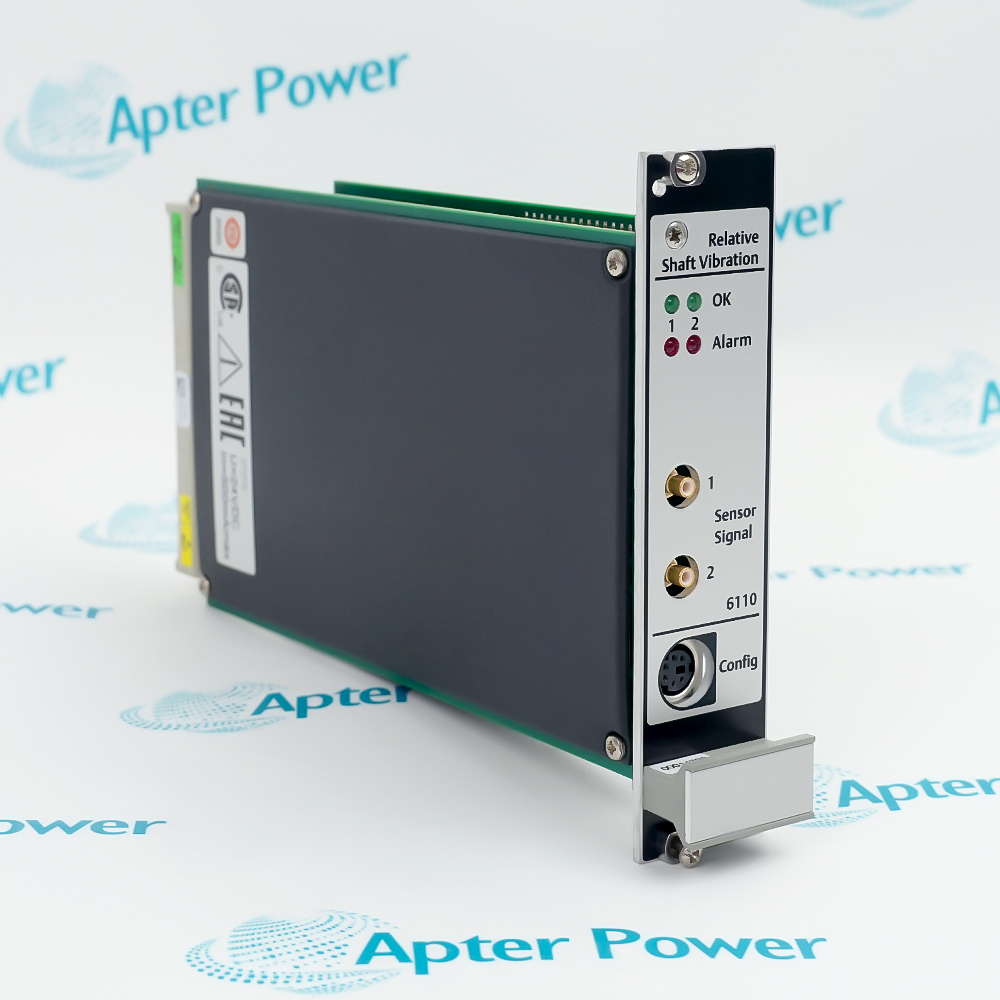

      Emerson A6110 is a dual-channel shaft relative vibration monitor for AMS 6500 Classic protection systems. It conditions two eddy-current measurement channels and provides relay, analog and buffered outputs for machinery protection.

      Ask our team:

      Get a quick price for： A6110
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for A6110

      Technical specifications for A6110

      • Manufacturer:
        Emerson
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        A6110
      • Estimated shipping dimensions:
        24x17x6.5cm
      • Weight:
        0.46 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Monitored variable:
        Shaft relative vibration
      • Channels:
        2
      • Compatible sensors:
        PR6422, PR6423, PR6424, PR6425 with CON drivers
      • Measurement range:
        0–400 mV to 0–8000 mV
      • Analog outputs:
        0/4–20 mA and 0–10 V
      • Buffered output band:
        0.1–16 kHz
      • Gap output accuracy:
        ±1%
      • Operating temperature:
        0–65 °C
      • Power:
        Maximum 6 W at 24 VDC
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Emerson A6110 is a dual-channel shaft relative vibration monitor for AMS 6500 Classic protection systems. It conditions two eddy-current measurement channels and provides relay, analog and buffered outputs for machinery protection.
      • Protects two independent relative-vibration channels
      • Accepts documented PR642x eddy-current sensor systems
      • Provides current, voltage and buffered outputs
      • Supports configurable alarm delay and relay logic

      Record both channel scales, sensor types, alert delays and relay voting before replacing A6110. After installation, verify gap voltage, vibration response, 0/4–20 mA outputs and every enabled alarm path with a controlled test.

      Important Notice: Verify A6110 from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power Emerson A6110 Manuals and Guides
      Apter Power Emerson A6110 Product Technical ReferenceApter Power Emerson A6110 Installation and Verification Guide

      Important Notice: Use these model-specific records together with the current manufacturer publication and the installed-system documentation.

      Turbine shaft vibration protection
      Monitors radial shaft motion on two configured channels.
      Compressor rotor monitoring
      Provides relative-vibration indication and alarm outputs.
      Pump train protection
      Connects compatible eddy-current probes to the AMS 6500 rack.
      Retrofit channel replacement
      Restores an existing A6110 channel while preserving configured ranges and voting.
      Read the applicable Emerson instructions before work. Verify A6110 and the installed system configuration.
      1
      Verify A6110 and both installed channel assignments.
      2
      Place every affected protection function in the approved maintenance state.
      3
      Record probe type, scale, alert delay and relay logic before removal.
      4
      Measure and label both signal, common and shield connections.
      5
      Use ESD controls when handling the monitor and rack connectors.
      6
      Do not alter range or voting while performing a like-for-like replacement.
      7
      Confirm gap voltage and analog output scaling after startup.
      8
      Inject a controlled vibration signal and prove alarms, relays and buffered outputs.

      Technical notes

      Technical notes

      Record both channel scales, sensor types, alert delays and relay voting before replacing A6110. After installation, verify gap voltage, vibration response, 0/4–20 mA outputs and every enabled alarm path with a controlled test.

      FAQS

      • Which measurement does Emerson A6110 protect?
        A6110 is the dual-channel monitor for shaft relative vibration.
      • Which probes can feed Emerson A6110?
        The official card reference lists PR6422, PR6423, PR6424 and PR6425 systems with their corresponding CON drivers.
      • What measurement spans can Emerson A6110 be configured for?
        The documented span extends from 0–400 mV at the smallest setting to 0–8000 mV at the largest.
      • Which retransmission outputs are available from Emerson A6110?
        The monitor supports 0/4–20 mA and 0–10 V outputs, plus buffered sensor signals.
      • What frequency band is available at the Emerson A6110 buffered output?
        The rear buffered output is specified for 0.1–16 kHz.
      • How accurate is the Emerson A6110 DC gap output?
        The official reference states ±1% accuracy.
      • How much power should be reserved for Emerson A6110?
        Allow up to 6 W from the 24 VDC rack supply.
      • What commissioning test is appropriate for Emerson A6110?
        Verify both gap voltages, inject a traceable dynamic signal through each channel and prove display, analog output, alert delay and relay action.
