Technical specifications for 5X00419G01
-
Manufacturer:Emerson
-
Product Category:DCS Systems
-
Spare Part Number:5X00419G01
-
Estimated shipping dimensions:12.1x5.2x16.6cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Interface:Ethernet Link Controller
-
Channels:1
-
Companion insert:1X00569H01
-
System role:Ethernet communication interface for an Ovation integration path
-
Physical termination:Matched connector arrangement is provided by the companion insert
Information
Overview
Manuals
Common Applications
Product Precautions

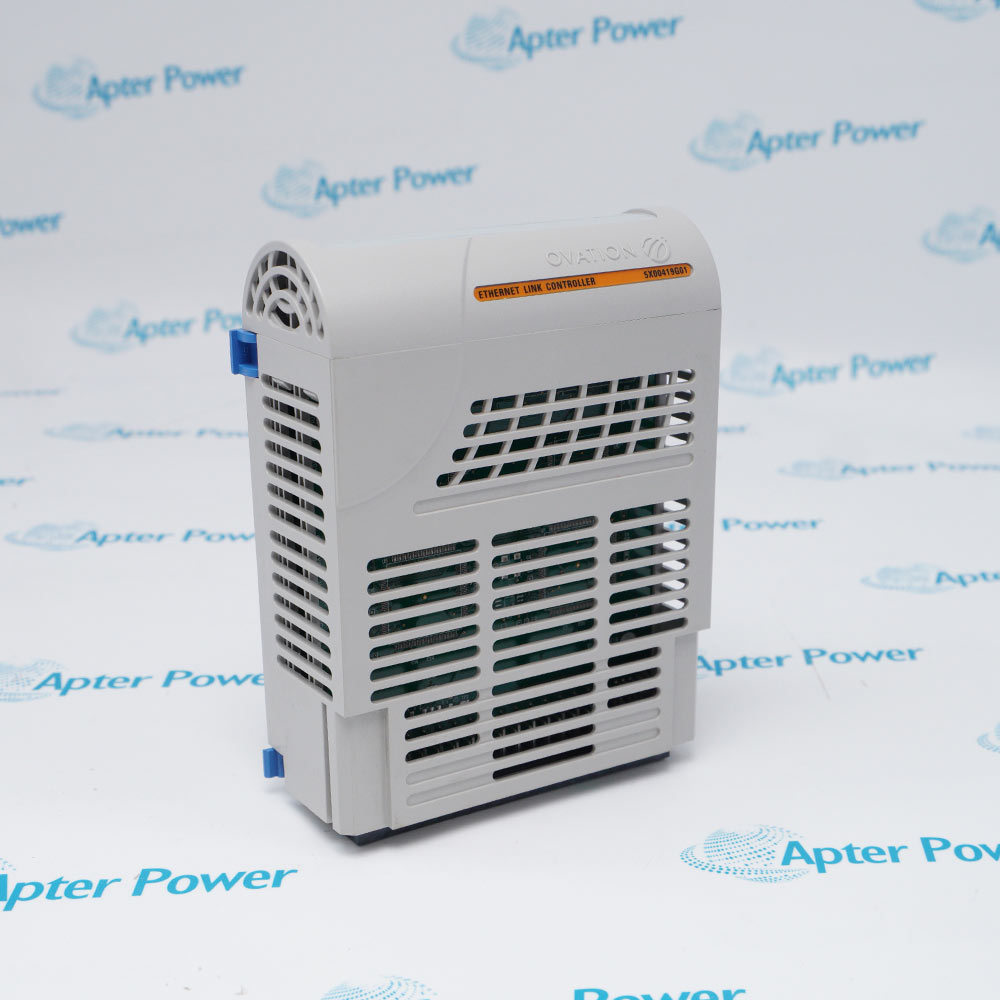

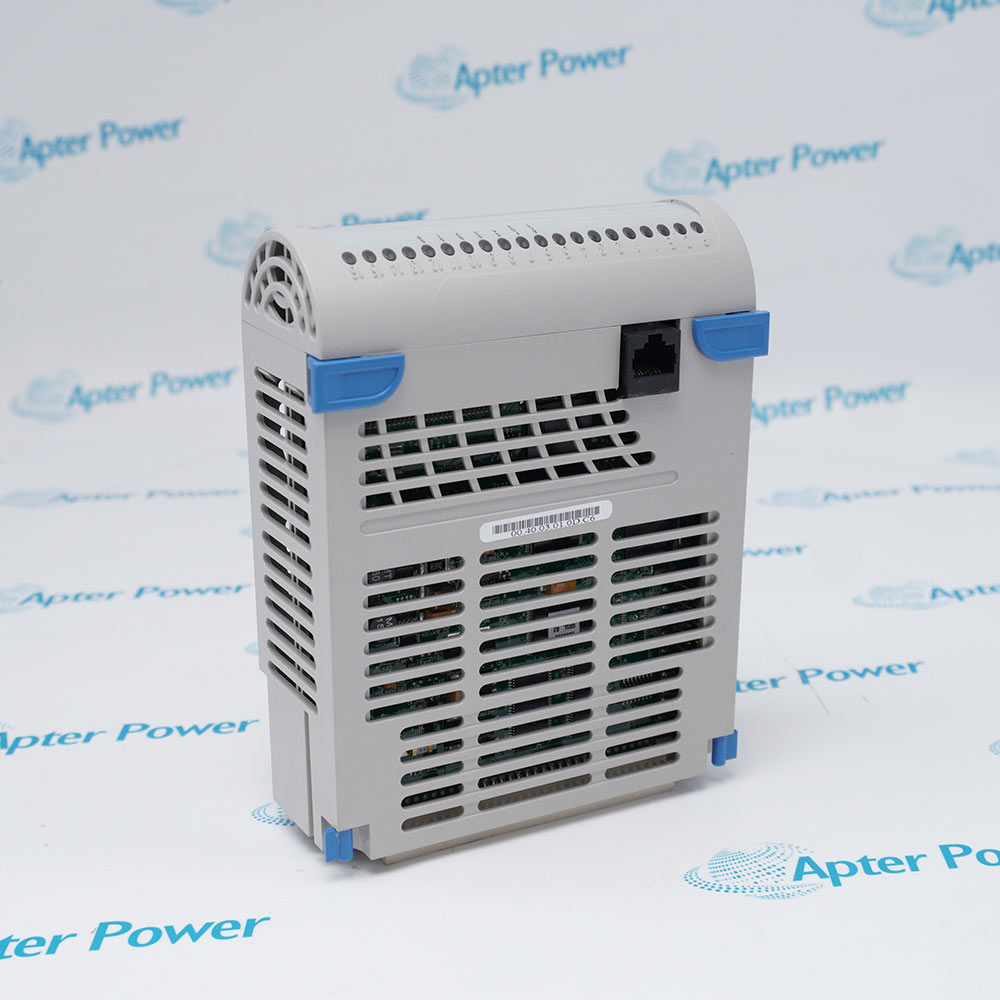

Westinghouse 5X00419G01 is the Ovation Ethernet Link Controller electronics module used with the matched cavity insert for one network-interface channel.
- Provides one interface channel for the documented ethernet link controller module function.
- Handles Ovation Ethernet communication through the specified Ovation I/O subsystem.
- Works with 1X00569H01 Ethernet Link Controller cavity insert.
- The electronics module and companion insert form the documented Ethernet Link Controller hardware pair.
The ethernet link controller module belongs in the controlled Ovation I/O subsystem and works with 1X00569H01 Ethernet Link Controller cavity insert. Its field connection, companion hardware and project configuration must be reviewed together before the channel is returned to service.
Important Notice: Use 5X00419G01 only with 1X00569H01 Ethernet Link Controller cavity insert; verify the field interface and controlled configuration before energizing the subsystem.
Westinghouse 5X00419G01 Manuals & Downloads
Westinghouse 5X00419G01 Technical Reference (PDF)Westinghouse 5X00419G01 Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Installed-base maintenance
Restores the documented ethernet link controller module position without changing the approved system architecture.
Loop or channel service
Supports verification of Ovation Ethernet communication at the assigned control-system channel.
Planned replacement
Provides an exact-identity replacement path when 1X00569H01 Ethernet Link Controller cavity insert and the field interface have been confirmed.
Commissioning support
Allows the responsible engineer to prove wiring, configuration, status and response for one interface channel.
Before installing Westinghouse 5X00419G01, confirm the documented system, interfaces and controlled configuration.
1
Match the complete 5X00419G01 marking to the work order and installed position before removal.
2
Confirm 1X00569H01 Ethernet Link Controller cavity insert before making or breaking any field connection.
3
Keep the assigned Ovation Ethernet communication within the documented subsystem and range.
4
Record terminal designations, polarity, common and shield treatment before disconnecting conductors.
5
Inspect module seating, connector keying, terminal condition and strain relief before power is restored.
6
Restore the controlled channel configuration, range selection and alarm or timeout behavior after installation.
7
Check local indicators and controller diagnostics for internal, communication or channel faults during commissioning.
8
Prove the intended response across one interface channel and record the acceptance result before release.
Technical notes
Use 5X00419G01 only with 1X00569H01 Ethernet Link Controller cavity insert; verify the field interface and controlled configuration before energizing the subsystem.
FAQ View All FAQ
-
What communication function is performed by Westinghouse 5X00419G01?The electronics module provides an Ovation Ethernet Link Controller interface.
-
How many interface channels are present on Westinghouse 5X00419G01?The documented Ethernet Link Controller arrangement contains one communication channel.
-
Which cavity insert belongs with Westinghouse 5X00419G01?The matching physical-interface insert is 1X00569H01.
-
What does the 1X00569H01 insert contribute to Westinghouse 5X00419G01?It supplies the matched connector arrangement that completes the Ethernet Link Controller hardware pair.
-
Can Westinghouse 5X00419G01 be installed without checking its companion insert?No. The electronics and 1X00569H01 termination hardware must be treated as one documented interface assembly.
-
Where does Westinghouse 5X00419G01 sit in an Ovation integration path?It provides the Ethernet communication link used to connect the Ovation hardware to the assigned external integration channel.
-
What physical inspection is required for Westinghouse 5X00419G01 connectors?Confirm the single-channel connector path is fully engaged with the matched insert and that no alternate cavity-insert pinout has been substituted.
-
How should Westinghouse 5X00419G01 be functionally accepted?Verify the paired 1X00569H01 hardware, establish the intended Ethernet link and confirm stable data exchange on the single configured channel.
