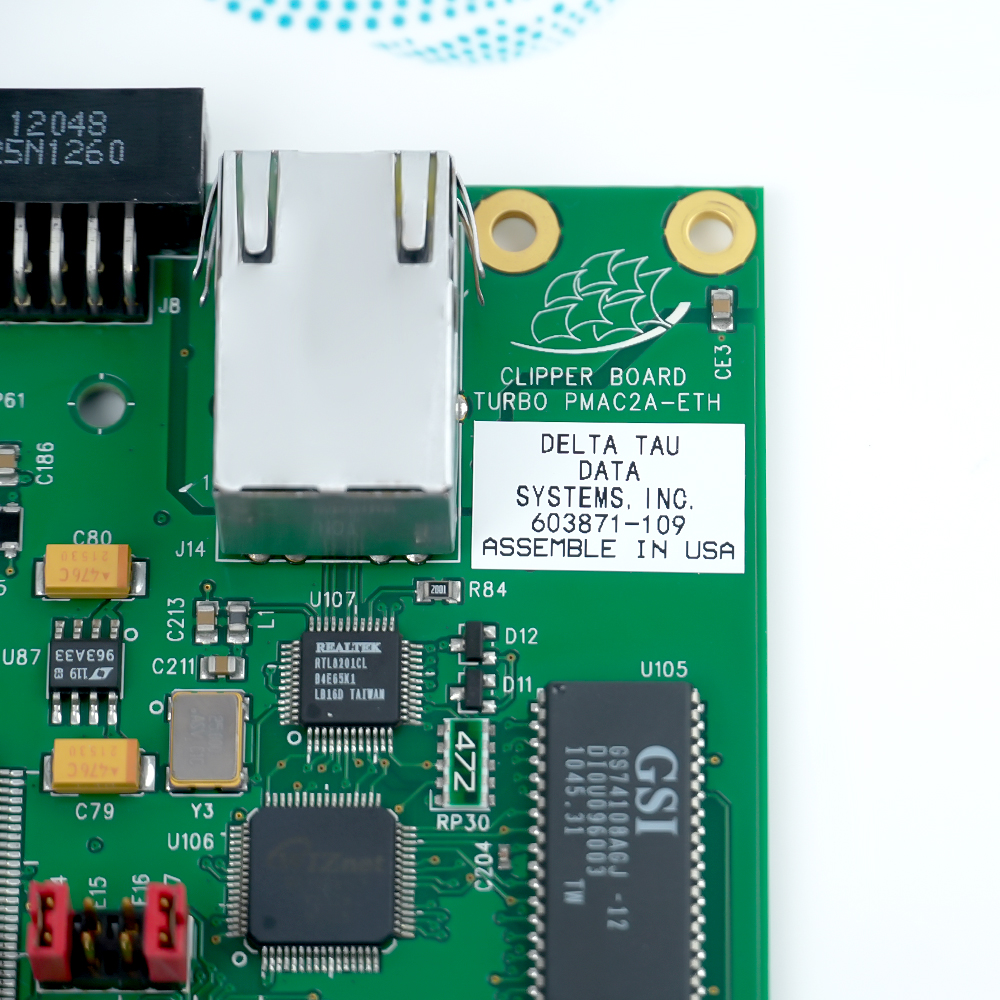

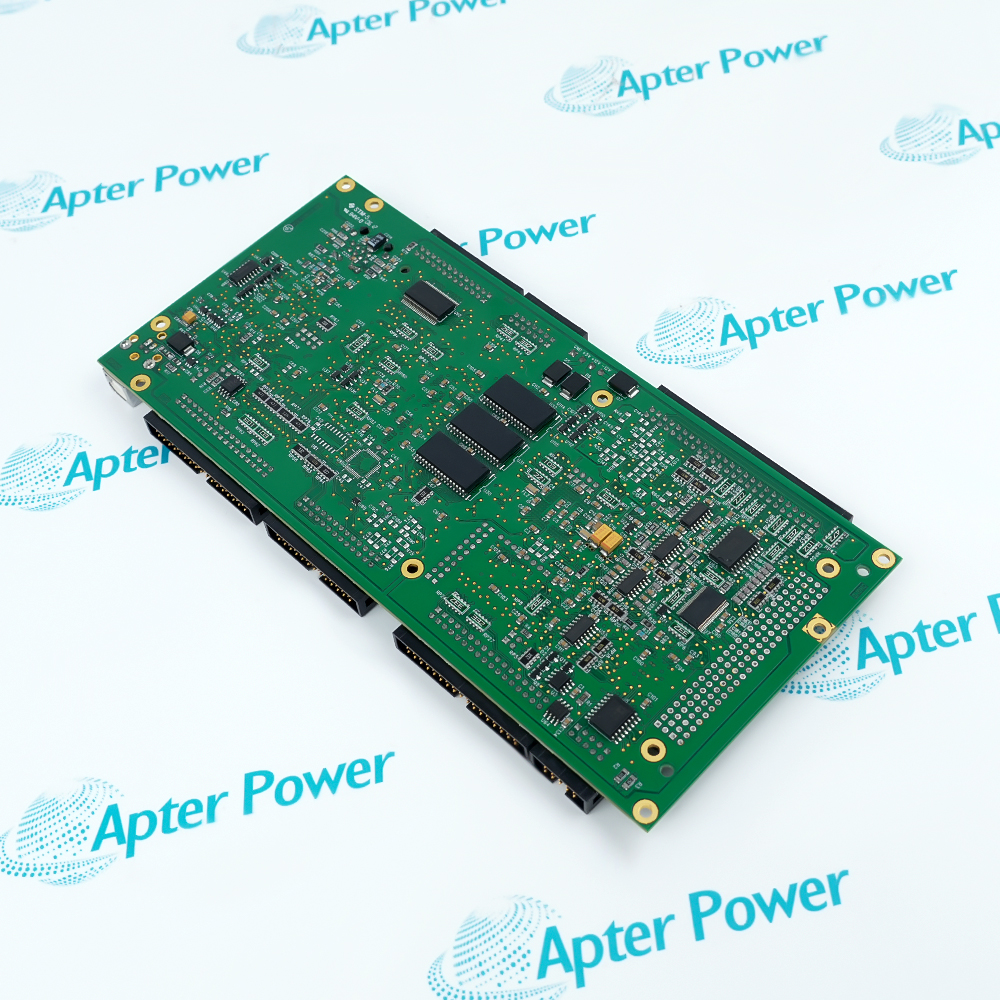

Delta Electronics PMAC2A-ETH 603871-109 is an evidence-bounded Turbo PMAC Clipper PMAC2A-Eth-Lite multi-axis motion controller requested assembly. The supplied Delta Tau manuals identify the Turbo PMAC Clipper as the Turbo PMAC2-Eth-Lite and cover board family 4xx-603871-xAxx / base part 603871. The requested 603871-109 suffix is published as a configuration-verification label because the supplied manufacturer manuals do not decode that exact suffix.
- Exact requested label: PMAC2A-ETH 603871-109
- Product class: Turbo PMAC Clipper PMAC2A-Eth-Lite multi-axis motion controller requested assembly
- Documented product: Turbo PMAC Clipper / Turbo PMAC2-Eth-Lite
- Documented board family: 4xx-603871-xAxx; base part 603871
System role: The documented base controller provides a Turbo PMAC2 CPU, at least four servo or stepper axes, Ethernet, USB and RS-232 communications, motor-interface circuitry and onboard digital I/O. Only facts stated by the cited Delta Tau / OMRON material are published; sibling, successor and third-party data are not transferred. Architecture boundary: Use the exact installed board revision, option population, firmware, power arrangement, axis interfaces, feedback devices and I/O wiring documented for the machine. Do not assign the 80 MHz or 240 MHz CPU option, SRAM/flash option, dual-port RAM, analog input, Modbus or accessory population from the 603871-109 label alone; inspect the board and option code. Before installation or replacement, verify the complete physical label, host equipment, companion hardware, wiring and approved commissioning procedure. Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
Important Notice: Verify the complete Delta Electronics PMAC2A-ETH 603871-109 physical label and installed-system documentation before use.
Apter Power PMAC2A-ETH 603871-109 Configuration Verification Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited OMRON and supplied Delta Tau evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current OMRON / Delta Tau documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for Delta Electronics PMAC2A-ETH 603871-109.
System documentationProvides a source-traceable boundary for the documented Delta Tau Turbo PMAC Clipper / Turbo PMAC2-Eth-Lite motion-control architecture configuration.
Commissioning reviewGuides identity, companion-hardware, wiring and controlled functional checks before return to service.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Read and follow the exact Delta Tau / OMRON documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the complete Delta Electronics PMAC2A-ETH 603871-109 label, revision and installed-system documentation before use.
2Do not assign the 80 MHz or 240 MHz CPU option, SRAM/flash option, dual-port RAM, analog input, Modbus or accessory population from the 603871-109 label alone; inspect the board and option code.
3De-energize the equipment and follow the site's approved electrical and process-safety procedure before disturbing hardware or wiring.
4Back up controller, drive, network and configuration data before replacement, migration or firmware work.
5Verify every companion module, cable, connector, termination and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented functional test and confirm diagnostics, alarms and fail-state behavior after work.
8Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
