      3500/42E 285691-01

      Proximitor/Seismic Monitor

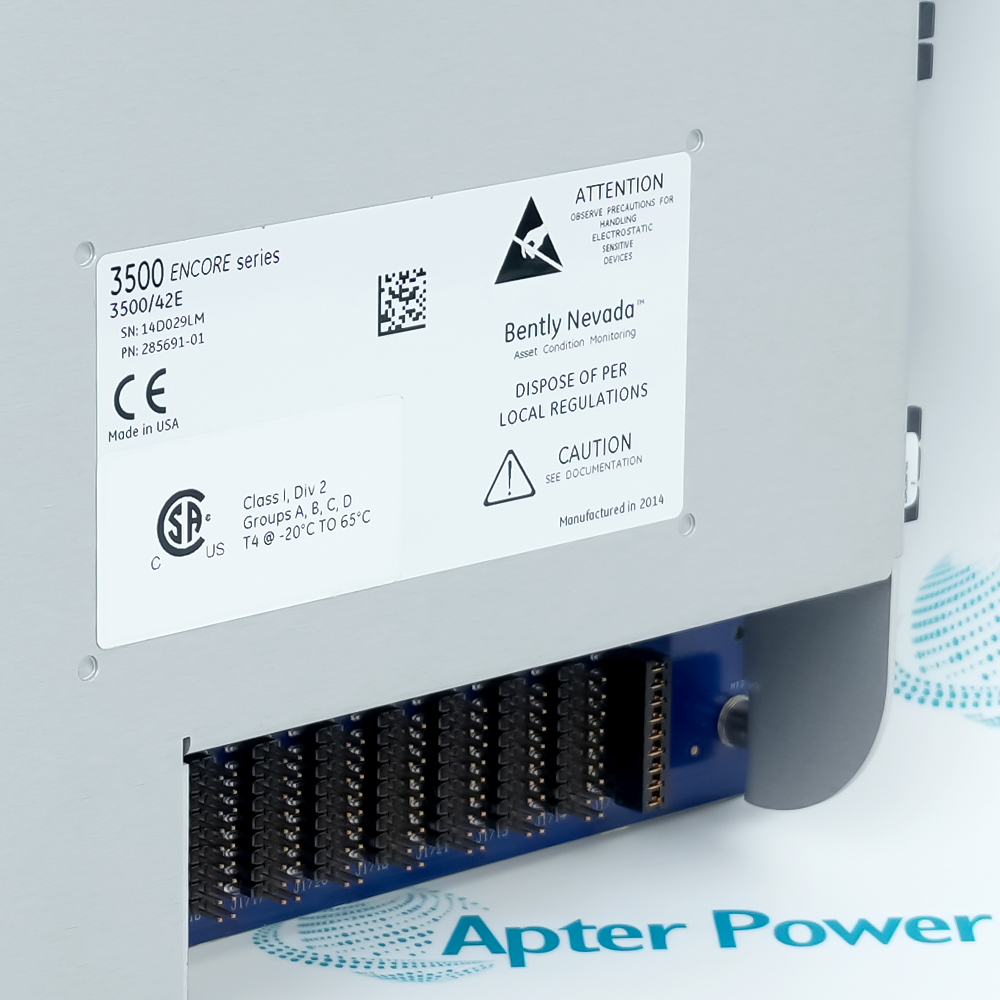

      Bently Nevada 3500/42E 285691-01
      Bently Nevada 3500/42E 285691-01
      Bently Nevada 3500/42E 285691-01
      Bently Nevada 3500/42E 285691-01
      Bently Nevada 3500/42E 285691-01
      Bently Nevada 3500/42E 285691-01
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      3500/42E Proximitor/Seismic Monitor
      Four-channel Monitor
      High-fidelity Signal Conditioning
      Humidity:95% RH, non-condensing
      CE, CSA, ATEX, IECEx

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 3500/42E 285691-01
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 3500/42E 285691-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        3500/42E 285691-01
      • Estimated shipping dimensions:
        24.13x2.44x24.21cm
      • Weight:
        0.91 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Number of Channels:
        4 Independent Channels
      • Sensitivity Range:
        0.4 to 20 V/mm
      • Frequency Response:
        0.5 Hz to 30 kHz
      • Operating Temp:
        -30°C to +65°C
      • Input Impedance:
        10 kΩ
      • Power Consumption:
        7.7 Watts (Typical)
      • Signal Conditioning Accuracy:
        ±0.33% of full-scale (at 25°C)
      • Buffered Impedance:
        550 Ω
      • Storage Temp:
        -40°C 至 +85°C (-40°F 至 +185°F)
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The 3500/42E 285691-01 is an enhanced four-channel proximity/vibration monitoring module in the Bently Nevada 3500 series mechanical protection system.
        • Radial Vibration
        • Thrust Position
        • Differential Expansion
      The 3500/42E Vibration Monitor is a 4-channel monitor that accepts input from proximity and seismic transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms.The 3500/42E 285691-01 represents the latest hardware iteration of the 4-channel Proximitor and Seismic Monitor within the Bently Nevada 3500 System. This highly integrated module is engineered to accept and process raw inputs from both proximity and seismic transducers. Beyond conditioning signals to provide critical measurements such as radial vibration, thrust position, and differential expansion, the 285691-01 hardware architecture offers enhanced signal linearity and superior stability in high electromagnetic interference (EMI) environments. By continuously comparing conditioned signals with user-programmable alarm setpoints, it delivers millisecond-level machinery protection responses via the 3500 rack’s backplane logic.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Bently Nevada 3500/42E 285691-01 Proximitor/Seismic Monitor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Oil & Gas
      Monitoring shaft vibration of LNG centrifugal compressors to prevent seal damage.

      Thermal Power
      Monitoring thrust position of ultra-supercritical steam turbines to prevent catastrophic contact.

      Nuclear Power
      Used for condition monitoring and protection of main coolant pumps and emergency diesel generators.

      Water Treatment
      Monitoring casing vibration of large multi-stage feedwater pumps to prevent premature bearing failure.

      Pulp & Paper
      Monitoring bearing vibration of high-speed paper machine dryers and vacuum pumps.

      Pharmaceutical
      Monitoring rotating components of large freeze-dryer vacuum pumps and cleanroom HVAC systems.

       When using the 3500/42E 285691-01, the critical focus should be on hardware-software alignment and signal integrity. Ensure the rear I/O module matches the transducer type (Proximity or Seismic) configured in the software, and precisely set the installation gap voltage to maintain operation within the linear range. Additionally, always switch the respective channels to Bypass mode before hot-swapping or maintenance, and routinely verify signal quality via the buffered outputs to prevent false alarms or interlock trips caused by loose wiring or electromagnetic interference.
