106M1081-01

Universal AC Power Input Module
In Stock

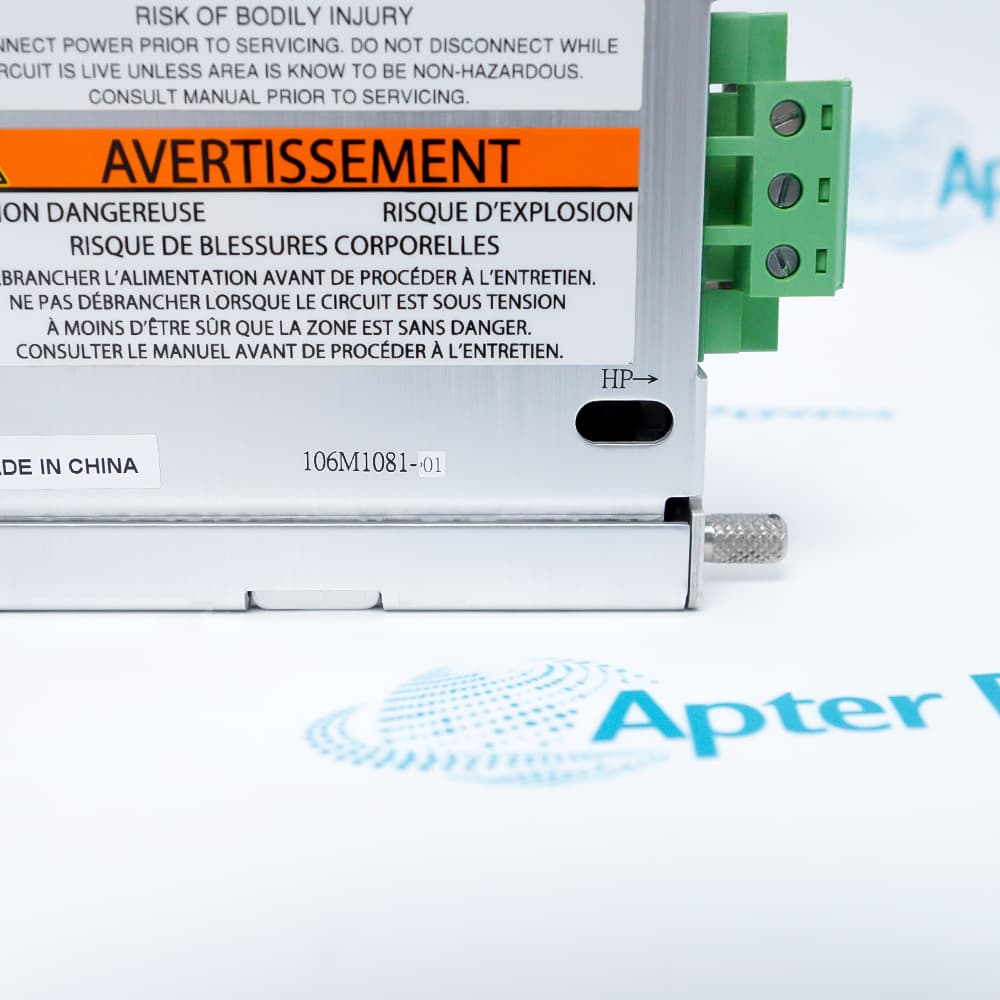

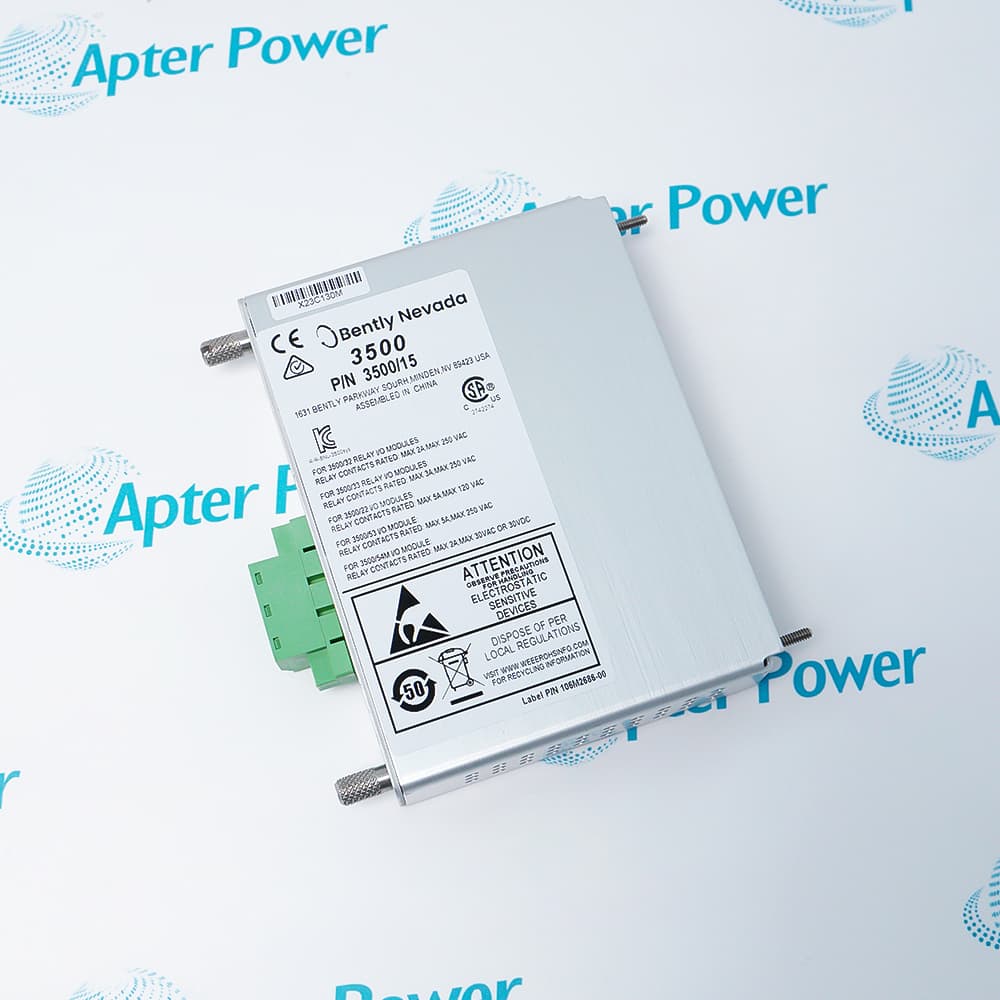

Bently Nevada 106M1081-01
Bently Nevada 106M1081-01
Bently Nevada 106M1081-01
Bently Nevada 106M1081-01
Bently Nevada 106M1081-01
Bently Nevada 106M1081-01
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Universal AC Power Input Module
Front-access Module
Redundant Power Configuration
Wide-range Input
EMI/RFI Filtering
Critical Machinery
Protection Component
Get a quick price for 106M1081-01
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 106M1081-01

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    106M1081-01
  • Estimated shipping dimensions:
    2.5x12x12cm
  • Weight:
    0.32 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Enclosure Type:
    IP20
  • Input Voltage:
    88 to 140 Vdc
  • Input Frequency:
    47 to 63 Hz
  • Operating temperature:
    -30 °C to +65 °C
  • Storage temperature:
    -40 °C to +85 °C
  • Humidity:
    95%, non-condensing
  • Isolation Voltage:
    2200 Vdc

Information

Overview Manuals Common Applications Product Precautions
The 106M1081-01 is a universal power input module designed specifically for the 3500 Series mechanical protection system. This module features a high-reliability design, and its main function is to convert external AC or DC power into the stable voltage required by the system, ensuring continuous and stable operation of the vibration monitoring equipment.
    • Universal AC Power
    • High Voltage DC Power
    • Legacy Compatibility for 3500/15 series
The Bently Nevada 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one. Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed. The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. Specifically, the 106M1081-01 is the Universal AC version of this supply, operating within an 85 to 264 Vac range.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Bently Nevada 106M1081-01 Universal AC Power Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Natural Gas Transmission
Powering vibration monitoring for gas turbines in pipeline compressor stations to ensure stable long-distance gas transport.

Thermal Power Plants
Powering axial displacement and proximity monitoring for steam turbines to prevent catastrophic contact between moving and stationary parts.

Steel & Metallurgy
Monitoring blast furnace blowers to ensure continuous high-pressure air supply required for iron smelting.

Crude Oil Refining
Monitoring critical multi-stage centrifugal pumps in hydrocracking units to prevent fires caused by bearing failure.

LNG Processing
Protecting cryogenic compressors that operate at ultra-low temperatures and are extremely sensitive to mechanical vibration.

Nuclear Power Industry
Protecting Reactor Coolant Pumps (RCPs), critical cooling components requiring extreme power supply reliability.

 Ensure the module is installed in the designated slots on the far left of the rack and matched with the 106M1079-01 rear input module. In a redundant configuration, take advantage of its hot-swappable capability for seamless maintenance. It is critical to regularly monitor the front panel LED status (e.g., Supply OK) and ensure the input voltage remains stable within the 85-264 Vac range to prevent monitoring disruptions caused by overheating or power fluctuations.

FAQ View All FAQ

  • What is the Bently Nevada 106M1081-01?
    It is the Universal AC Power Supply Module for the 3500/15 system, a half-height module that powers the entire rack.
  • Where should the 106M1081-01 be installed?
    It must be installed in the designated slots on the far left side of the 3500 rack.
  • Is the 106M1081-01 hot-swappable?
    Yes, you can remove or insert it without disrupting rack operation, provided a second power supply is active.
  • Does the 106M1081-01 require any software configuration?
    No, it is a hardware-based, plug-and-play module, though its status can be monitored via 3500 Configuration Software.
  • Can one 106M1081-01 power a full 3500 rack?
    Yes, a single 106M1081-01 has enough capacity to power a fully loaded 14-slot rack.
