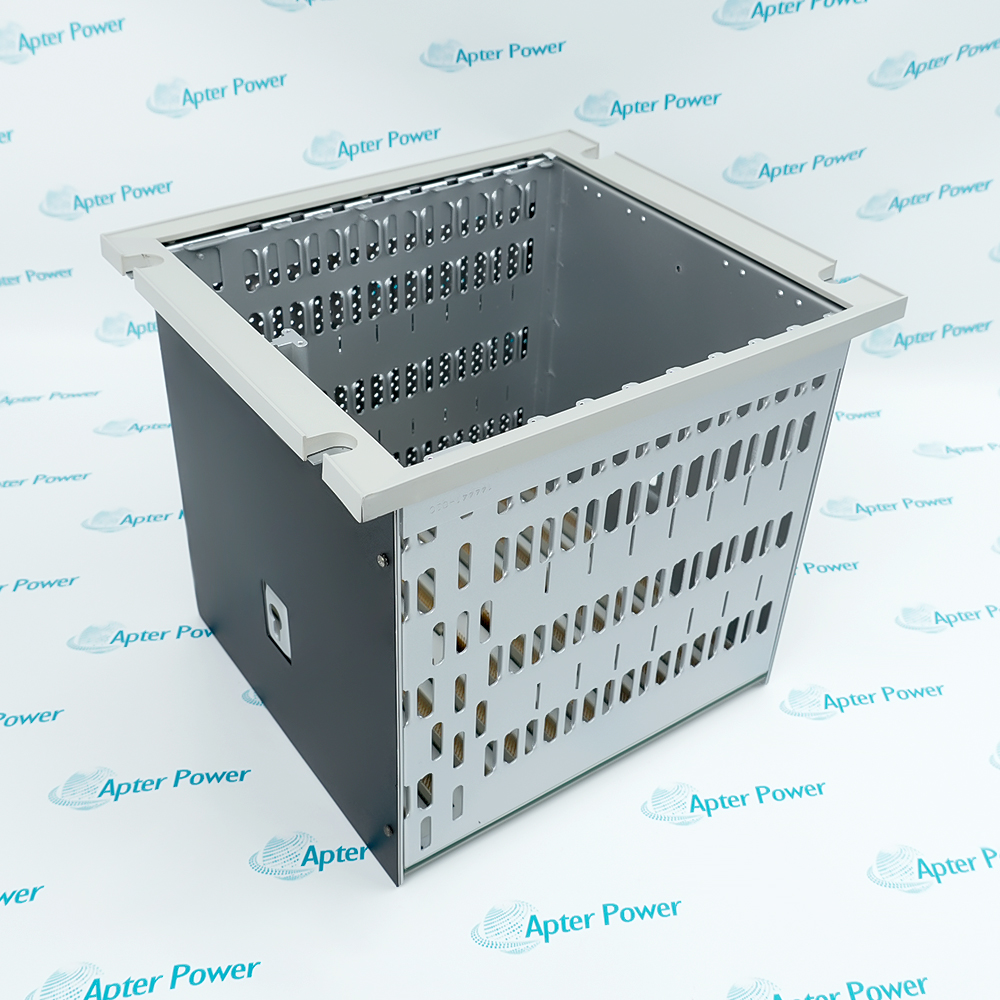

The 3500/05-02-05-00-00-00 is a 12-inch system mini-rack specifically constructed to house, secure, and interconnect various 3500 monitor modules and power supplies. Serving as the physical foundation and electrical hub of the continuous monitoring hardware architecture, this rack not only provides a centralized mounting space for all front-end vibration, displacement, Keyphasor, and temperature sensor signal processing units, but also delivers an integrated physical backplane for high-speed internal communication and power distribution among these modules.
7 standard monitoring slots
Heavy metal frame structure
Employs a high-bandwidth proprietary digital communication bus
This model features a 12-inch Rack Mount configuration intended for space-constrained environments. Utilizing the included standard rack adapter panel, engineering personnel can easily secure the chassis horizontally onto standard 19-inch EIA instrument cabinet rails. This setup ensures robust structural integrity while optimizing space utilization within control rooms or field enclosures. Under this hardware architecture, the wiring layout and maintenance access of the entire system utilize a classic layout of front-insertion modules and rear-positioned terminals.
This means that all sensor input cables, relay output lines, and machinery protection interlock loops route from the rear of the cabinet into the I/O Terminal Modules corresponding to each monitor. This front-to-back physical topology achieves effective electrical isolation between high and low-power signals to minimize Electromagnetic Interference (EMI).
Furthermore, it allows maintenance personnel to perform hot-swapping module replacements and status inspections from the front of the cabinet while independently conducting loop testing and troubleshooting from the rear. This approach significantly enhances the long-term maintainability and high availability of critical rotating machinery protection systems in industrial fields.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/05-02-05-00-00-00 System Rack Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used on offshore drilling platforms and onshore production plants to monitor the mechanical condition of water injection pumps, crude oil export pumps, and large gas compressor packages, preventing catastrophic equipment failures in harsh environments.
Petrochemical & Refining
Deployed in critical process sections such as catalytic cracking and ethylene plants to provide continuous vibration monitoring and safety interlock trip protection for cracked gas compressors, high-power centrifugal blowers, and high-pressure metering pumps.
Thermal Power
Installed in turbine halls and boiler rooms of coal-fired or gas-fired power plants to monitor bearing vibration, axial displacement, and rotor eccentricity of steam turbine-generator sets, boiler feedwater pumps, induced draft fans, and coal pulverizers.
Nuclear Power
Applied within the conventional island area of nuclear power plants to conduct 24/7 machinery protection and condition monitoring for non-safety-critical yet mission-critical machinery like main steam turbines, main feedwater pumps, and cooling water circulation pumps.
Iron & Steel Industry
Provides heavy vibration and shock monitoring in ironmaking, steelmaking, and blast furnace sections for blast furnace blowers, sintering exhaust fans, large oxygen compressors, and driving gearboxes of hot/cold rolling mills.
When using this system rack, the 12-inch mini-chassis must be rigidly secured to a standard 19-inch rack via the adapter panel, leaving sufficient rear clearance to accommodate the depth and bend radius of the I/O modules.
Due to the proprietary backplane bus design, the 3500 power supplies and the Rack Interface Module (RIM) must permanently occupy the far-left slots, leaving the remaining 7 slots open for any combination of monitor modules while strictly adhering to hot-swapping electrical procedures.
Additionally, for deployments in general-purpose safe areas without agency approvals (-00 configuration), the chassis must be installed inside an instrument enclosure that meets the required temperature (-30°C to +65°C) and humidity (under 95% non-condensing) parameters.
At the same time, when executing rear terminations, you must ensure that all channel cable shields are reliably grounded at a single end—either at the rack or the system side—to eliminate electrical noise and field electromagnetic interference.
Serving as the physical foundation and electrical interconnection backplane of the entire continuous monitoring architecture, this model is primarily responsible for providing centralized mounting space, internal communication bus interconnection, and power distribution paths for various front-end vibration, displacement, and Keyphasor sensor signal processing units. In terms of specific space allocation and slot configuration, this mini-rack provides a total of 7 standard available module slots, excluding the dedicated slots for the power supply module and the Rack Interface Module (RIM). Specifically, the dedicated area at the front-left is reserved for installing single or redundant 3500 power supply modules, while the adjacent specific position is designated to house the Rack Interface Module (RIM). The remaining 7 slots can be flexibly populated with a combination of modules such as the 3500/42M Proximitor/Seismic Monitor, the 3500/25 Keyphasor Module, or the 3500/32 Relay Module, with the printed circuit backplane at the rear of the rack managing digital bus communication and I/O signal routing among all installed modules.

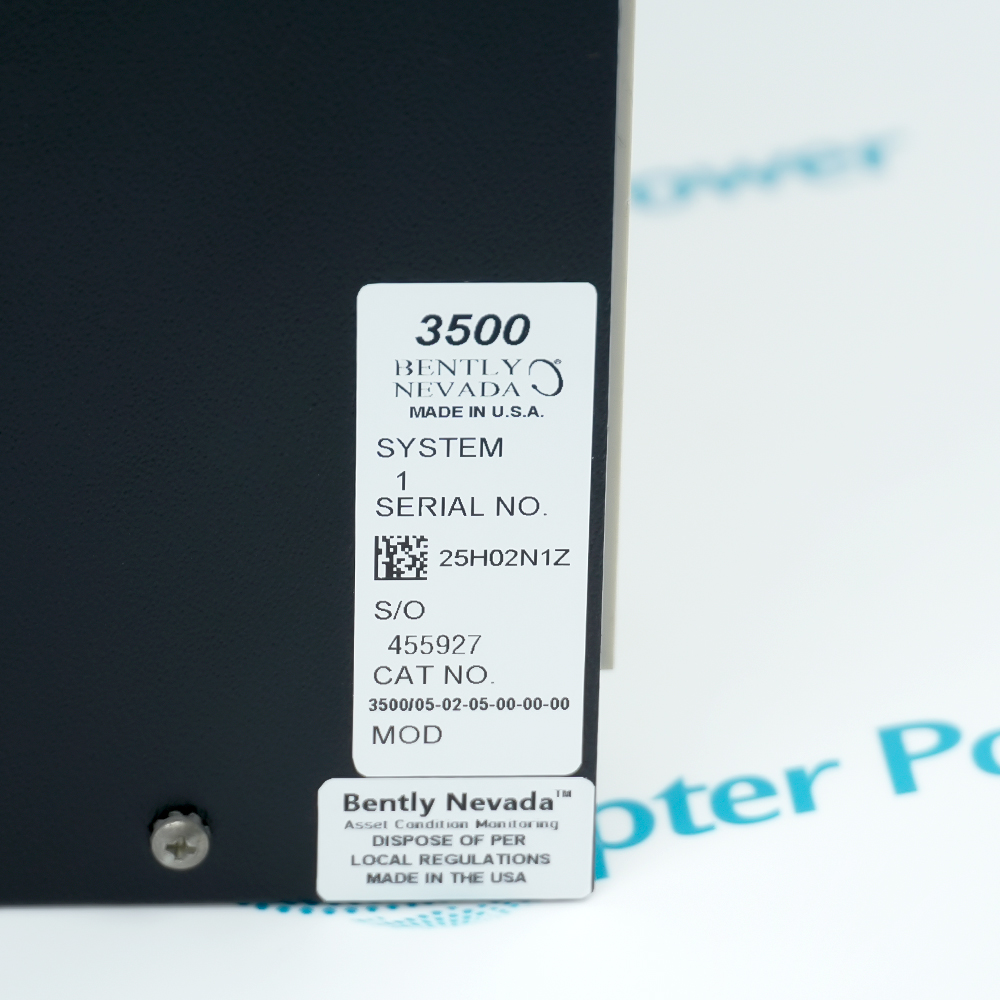

It is a 12-inch Mini-Rack (7 module slots) for the Bently Nevada 3500 Machinery Protection System, configured for rack mounting with no agency approvals.
What is the core function of 3500/05-02-05-00-00-00?
It serves as the physical carrier for the monitoring system, providing slots, backplane power, and communication channels for monitors, power supplies, and the Rack Interface Module (RIM).
How do you use a product like 3500/05-02-05-00-00-00?
Install it into a standard instrument panel or cabinet, insert the power supply and monitor modules, and connect sensor cables to collect and process machinery vibration data.
Can 3500/05-02-05-00-00-00 operate independently?
No. It is only an empty rack. It must be configured with a Power Supply (3500/15), a Rack Interface Module (3500/22M), and at least one monitor module to function.
How do you reserve installation space for 3500/05-02-05-00-00-00?
In addition to its physical dimensions, sufficient clearance must be left at the front and rear for module insertion/removal, rear terminal wiring, and cooling airflow.
