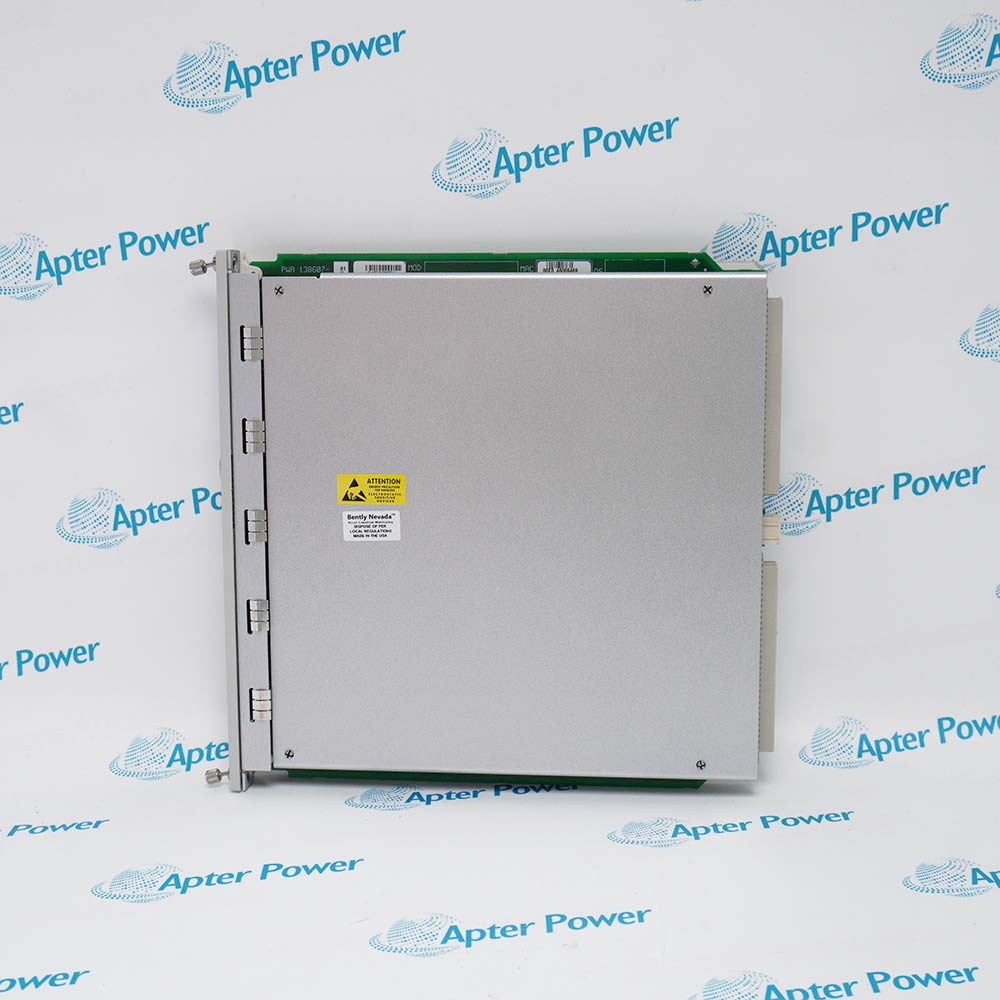

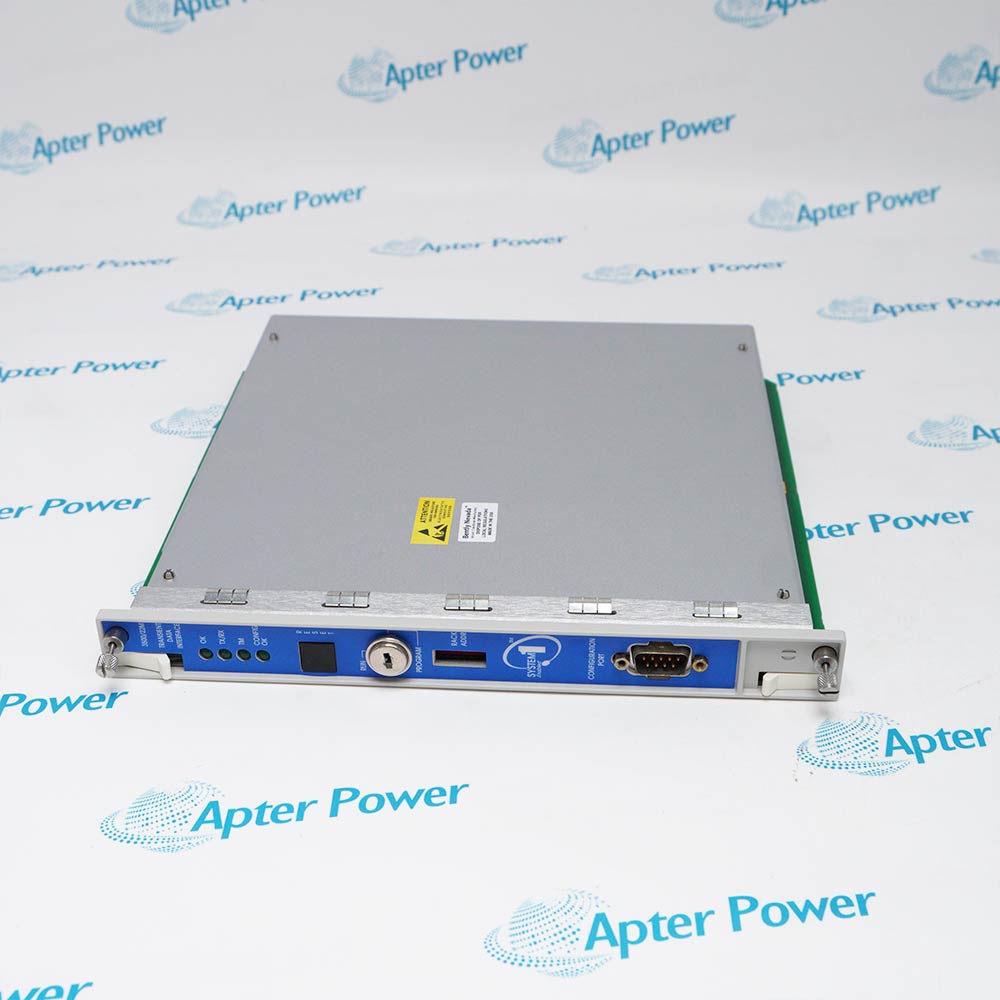

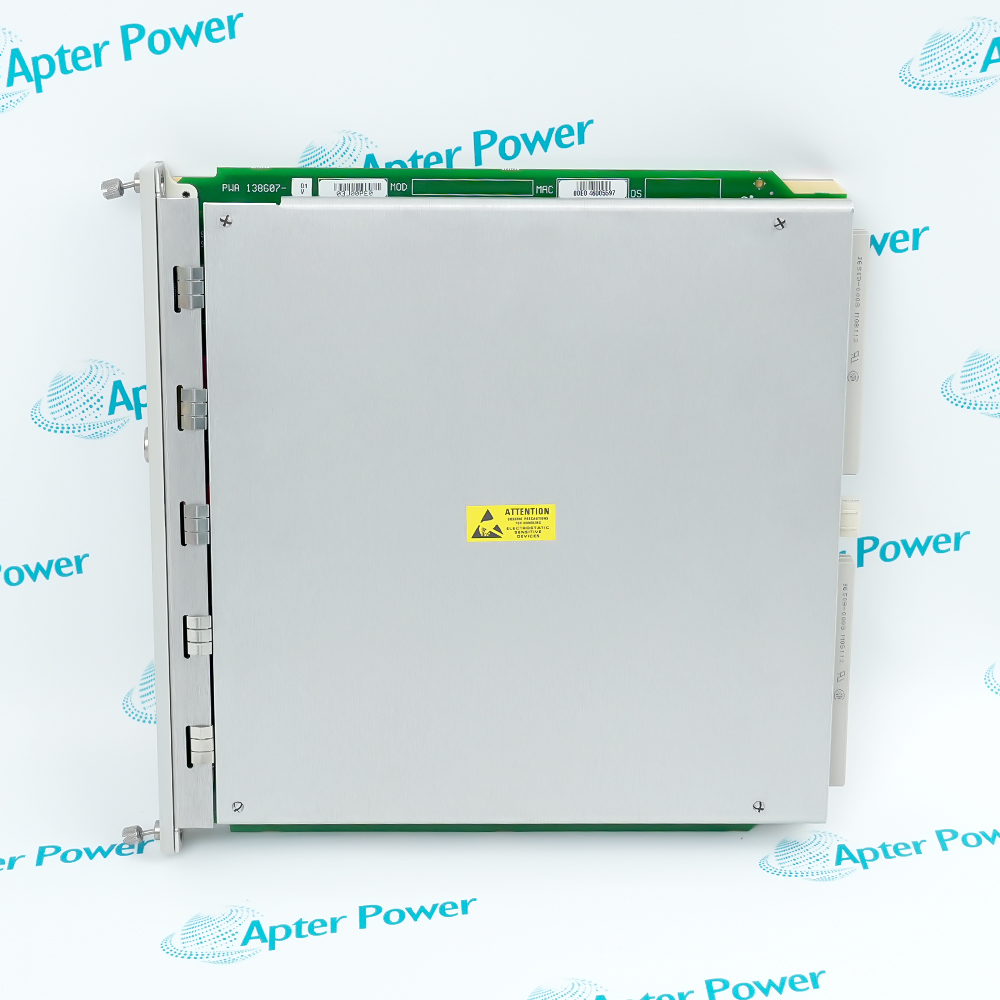

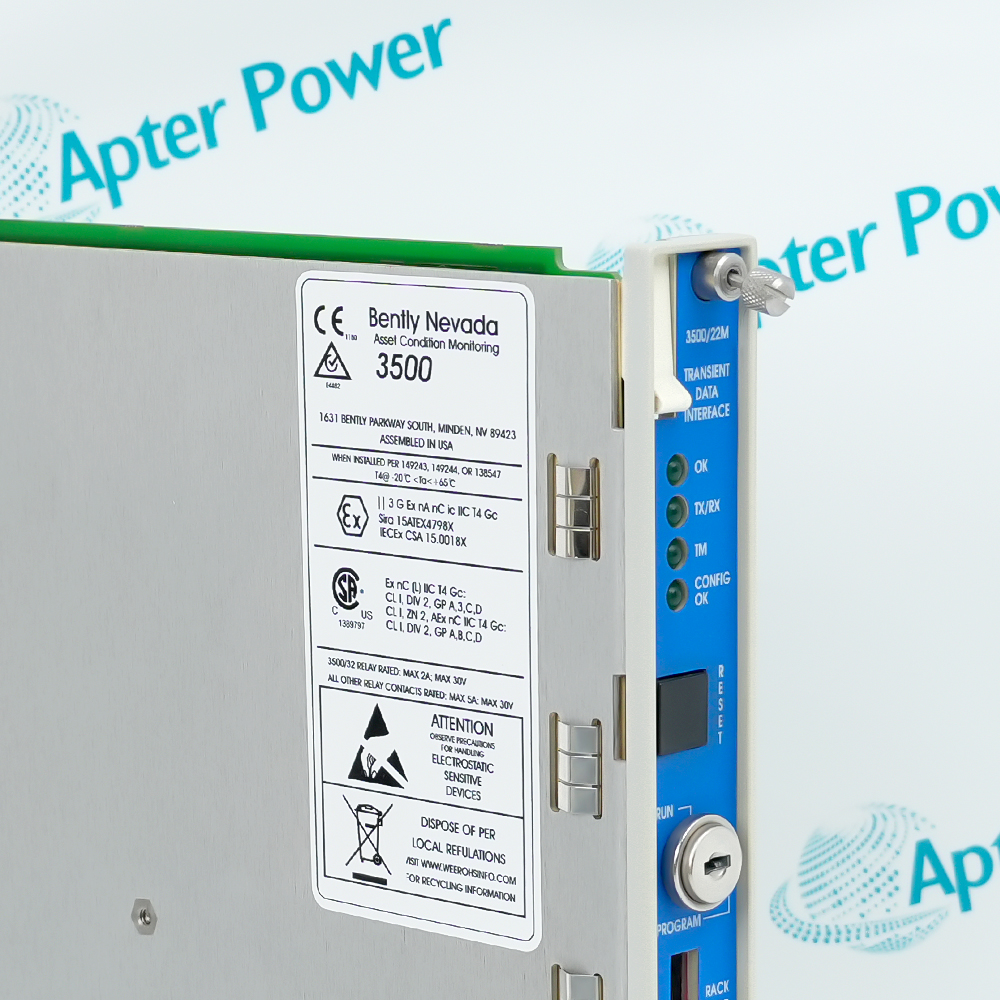

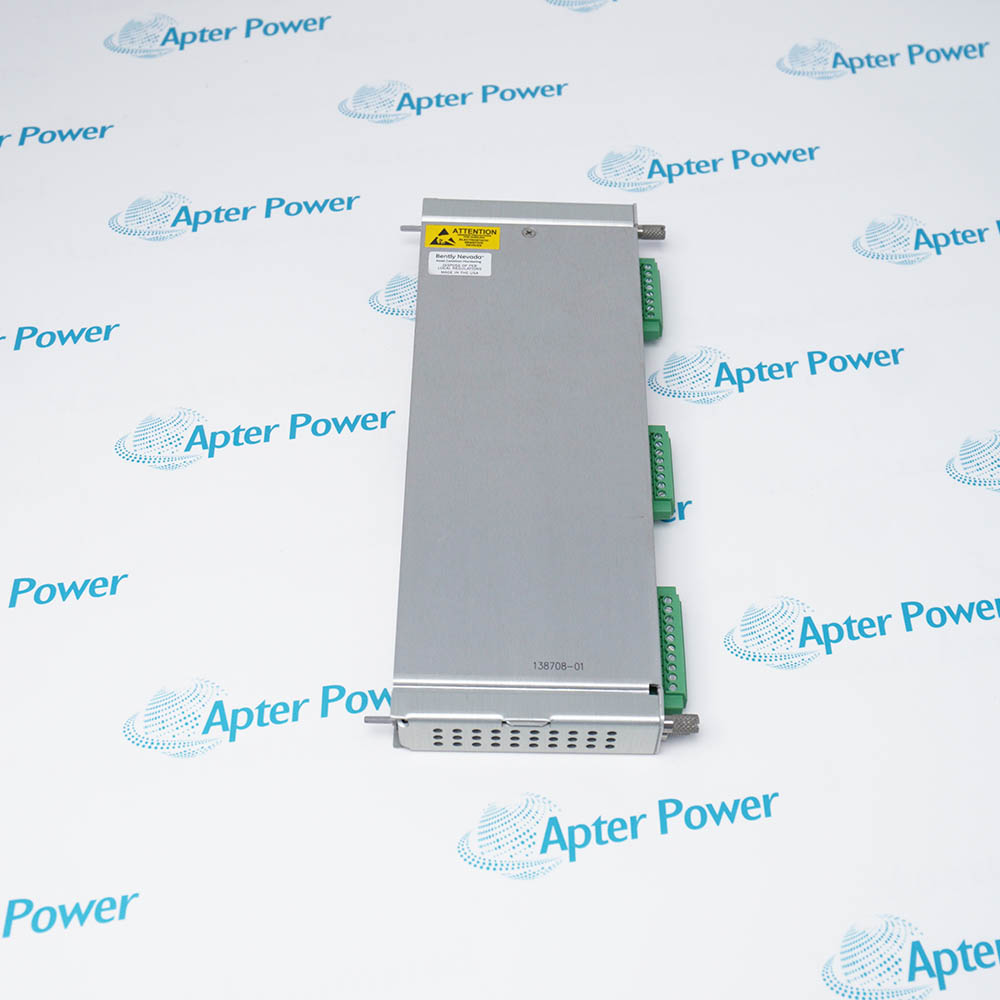

The 3500/22M 138607-01 is a high-performance Transient Data Interface (TDI) module belonging to the 3500 series of machine condition monitoring systems. It is an enhanced version of the Array Interface Module (RIM) and is primarily used to collect initialization and transient data for condition monitoring, analysis, and fault diagnosis of rotating machinery.
TMR Architecture Compatibility
Seamless Diagnostic Integration
Sequence of Events (SOE) Logging
The Bently Nevada 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/22M 138607-01 Transient Data Interface Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Extraction
Installed on water injection and export pumps on offshore platforms to monitor equipment health in real-time via remote data transmission.
Nuclear Power Plants
Monitoring main feedwater pumps and coolant pumps. The high-reliability communication interface ensures the stable operation of critical nuclear pump sets.
Steel & Metallurgy
Monitoring blast furnace blowers. These high-speed machines require TDI for high-speed data acquisition to mitigate surge risks.
Wastewater Treatment
Monitoring the mechanical health of large aeration blowers to prevent biological treatment system failure due to unexpected downtime.
Petrochemical Industry
Monitoring reciprocating compressors in hydrocracking units to identify faults such as valve failure or piston rod breakage.
When using the 3500/22M 138607-01 TDI, ensure it is securely installed and locked in Slot 1 (adjacent to the power supply), and it must be paired with its corresponding rear I/O module for communication. During configuration, strictly match the version of the Rack Configuration Software, and regularly monitor the OK LED status via Ethernet to ensure automatic data capture during transient events (e.g., startup/coast-down). Additionally, carefully manage Modbus register mapping to maintain data consistency with DCS systems.
It is the main circuit board part number for the 3500/22M TDI module, typically installed in the first slot of the 3500 rack (next to the power supply).
How to use 3500/22M 138607-01 for communication?
Ethernet or USB ports on its associated I/O module, supporting Bently proprietary protocols and Modbus.
What configuration methods are supported by 3500/22M 138607-01?
It is configured using the 3500 Rack Configuration Software to set node addresses, communication protocols, and I/O mapping.
How is 3500/22M 138607-01 applied in TMR systems?
It is compatible with TMR racks and can handle synchronized data from redundant monitoring modules.
