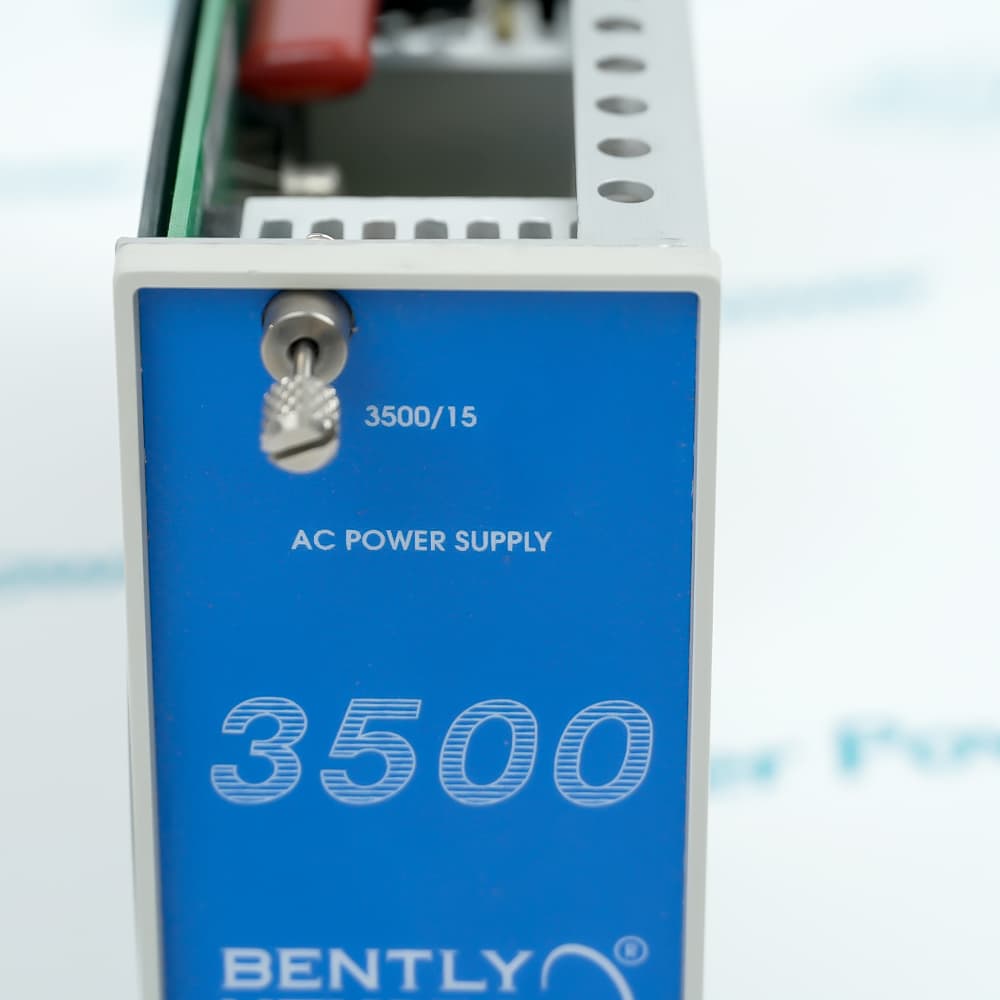

The 3500/15 127610-01 is a general-purpose AC power module for the 3500 series mechanical protection systems. Mounted as a half-height module on the left side of the rack, it supports redundant configurations and converts 85-264Vac input voltage to the required system voltage, ensuring uninterrupted operation of industrial monitoring systems.
Universal AC Power Supply
Wide-Range AC Input Voltage
Regulated DC Output Voltages
The3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack.The 3500 rack can contain one or two power supplies with any combinations of AC and DC.Either supply can power a full rack. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply,and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one. Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/15 127610-01 AC Power Supply Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Pulp & Paper
Provides 24/7 power distribution to mechanical fatigue monitoring and trip closed-loop control modules for grouped continuous dryer drum rolling bearings and high-speed rewinder drive assemblies in high-speed papermaking drying sections.
Pharmaceutical Industry
Deployed in central control rooms to deliver stable power for the axial displacement and critical interlocking protection systems of centrifugal compressor trains and hydrogen recycle compressors.
Thermal Power
Provides redundant power to the complete 3500 system inside control cabinets, ensuring continuous online vibration monitoring for large steam turbine-generators and boiler feedwater pumps.
Metallurgy & Steel Industry
Delivers anti-electrical-interference, dual-line mutual backup power to mechanical protection frames of blast furnace axial blowers and large main-drive gearboxes in hot rolling mills.
Nuclear Power
Deployed within the conventional island to provide high-safety-standard redundant power for the condition monitoring systems of steam turbines, main condensate pumps, and nuclear-grade auxiliary rotating machinery.
When operating the 3500/15 127610-01 Universal AC Power Supply Module, it must be installed strictly in the designated slots on the far-left side of the rack, ensuring the lower slot acts as primary and the upper as backup in a redundant setup. Never remove a module during single-supply operation, live hot-swapping is permissible only under a active dual-supply redundant state without disrupting the system. Furthermore, it must be paired with the correct rear Power Input Module (PIM), and the upstream AC line must be equipped with an independent circuit breaker to prevent latching protection triggered by severe transient overloads.

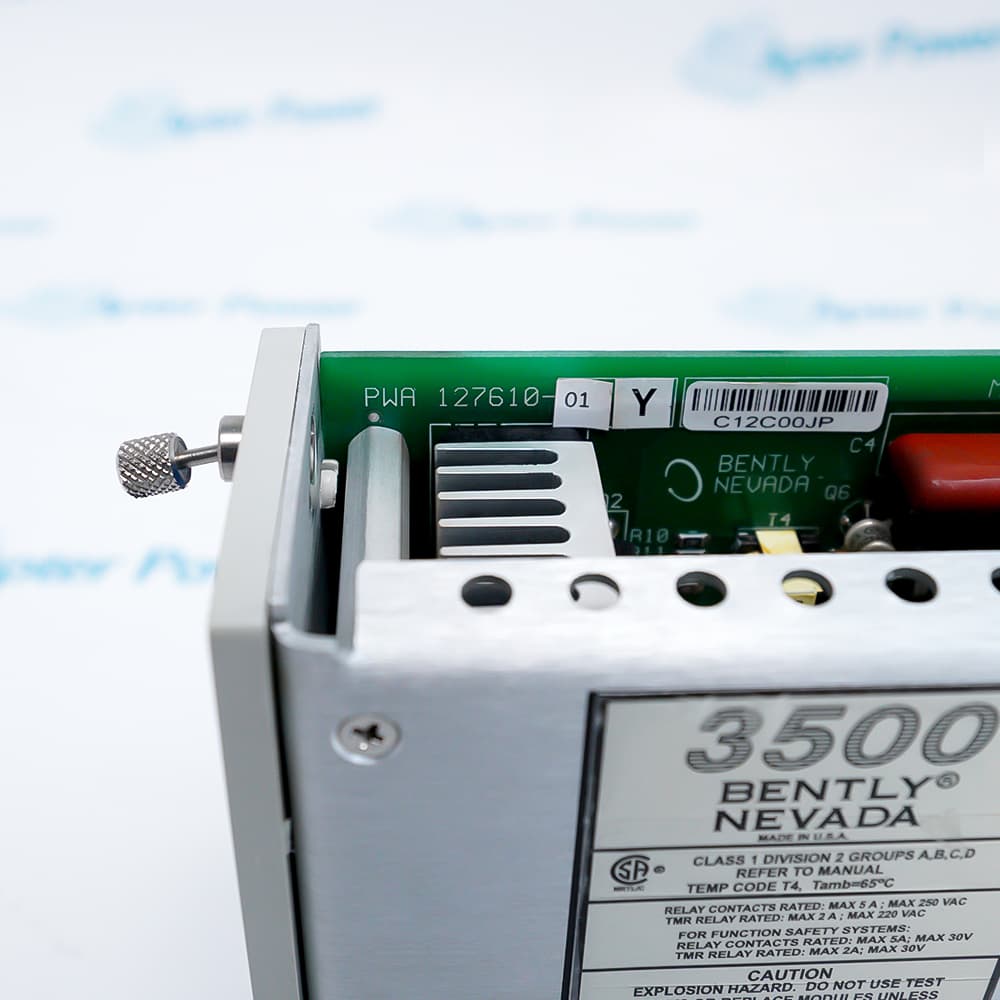

It is a half-height, Universal AC Power Supply Module (printed wiring assembly) manufactured by Bently Nevada, designed to provide low-voltage DC power to the 3500 Machinery Protection System rack.
Where can the 3500/15 127610-01 be installed in the rack?
Due to physical rail restrictions, it must strictly be inserted into the dedicated slots on the far-left side of the 3500 system rack.
What is the Universal AC characteristic of 3500/15 127610-01?
It refers to its wide-range input voltage adaptability, allowing it to natively accept standard industrial AC grid power worldwide (typically 85V AC to 264V AC).
What is the primary function of 3500/15 127610-01?
It is responsible for efficiently converting external high-voltage AC input into regulated, low-voltage internal DC power required by the 3500 backplane and monitoring modules.
Can a single 3500/15 127610-01 module power a fully loaded rack?
Yes, the power output capacity of a single module is completely sufficient to sustain the stable operation of a fully loaded 3500 system rack.
