Technical specifications for 3500/05-02-04-00-00-01
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:3500/05-02-04-00-00-01
-
Estimated shipping dimensions:48.2x26.5x26.5cm
-
Weight:6.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product Family:3500 machinery monitoring system
-
Rack Execution:12-inch mini-rack
-
Available Module Slots:7
-
Mounting Format:Panel mount, mini-rack
-
Panel Attachment:Clamps supplied with the rack
-
I/O and Wiring Access:Rear of rack
-
Power Supply Location:Dedicated far-left rack positions
-
Rack Interface Location:Dedicated far-left rack position
-
System Role:Mounts modules and power supplies; supports module communication and power distribution
-
Agency Approval Option:00 = None
-
Reserved Option:00 = None
-
European Compliance Option:01 = CE
-
Configuration Software:3500/01 Version 2.70 or later for mini-rack
-
EIA Installation Accessory:144863-01 19-inch EIA adapter panel required when using mini-rack in an EIA rack
-
System Display Restriction:3500/93 A01 system face-mount option is incompatible with mini-rack
-
Internal Barrier Earthing:If internal barriers are installed, 3500/04-01 earthing module requires a dedicated rack position
-
Bulkhead Format:Not available for mini-rack
Information
Overview
Manuals
Common Applications
Product Precautions

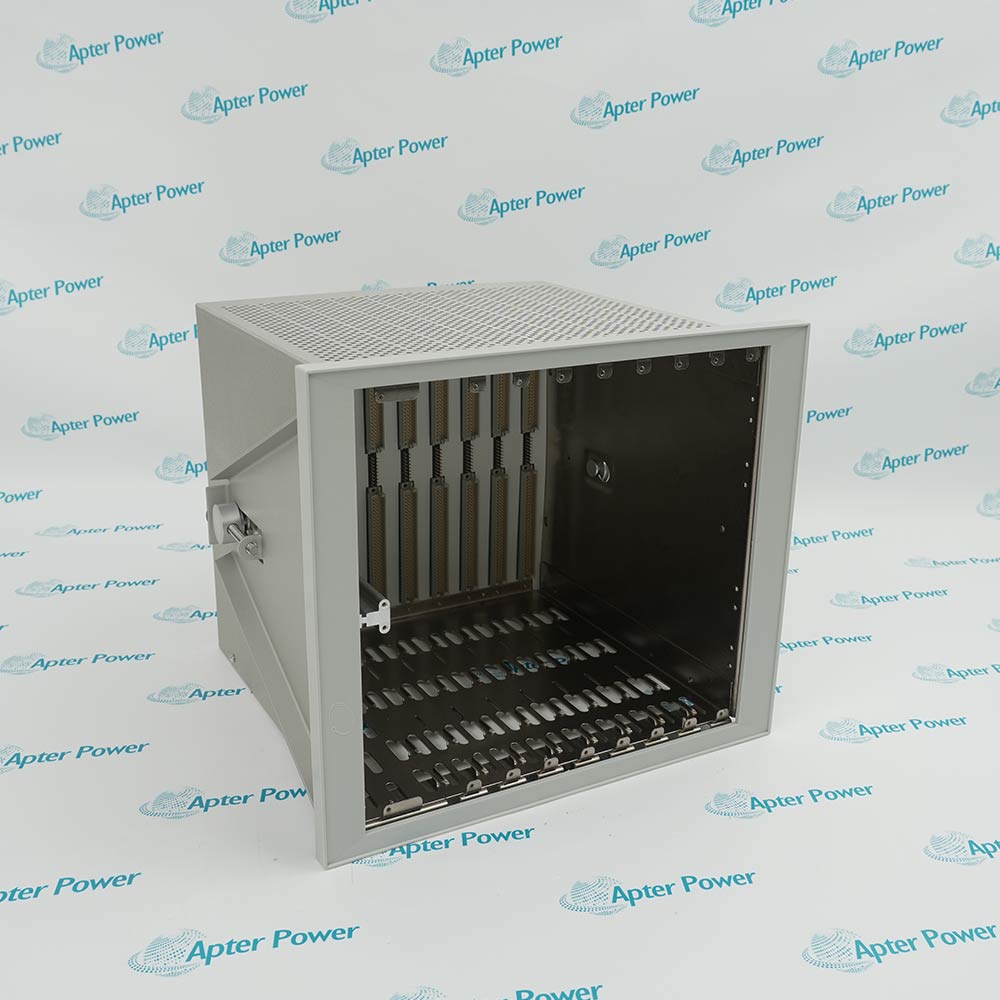

Bently Nevada 3500/05-02-04-00-00-01 is a seven-slot 3500 System mini-rack that mounts monitoring modules and power supplies in compact panel installations. The rack supports module communication and distributes power across the installed monitoring assembly.
- Rack Execution: 12-inch mini-rack.
- Available Module Slots: 7.
- Mounting Format: Panel mount, mini-rack.
- Complete configuration: 3500/05-02-04-00-00-01 identifies this system mini-rack.
The rack arrangement should keep the two power-supply positions and the rack-interface position at the far left, with monitoring modules placed in the remaining slots. Check panel clamping, protective earth, rear I/O access and module communication before commissioning.
Important Notice: The 00 agency code specifies no agency approval; the separate 01 European-compliance code specifies CE. Internal barriers are not selected by the reserved 00 field, and any barrier installation requires its own earthing and slot review.
Bently Nevada 3500/05-02-04-00-00-01 Manuals & Downloads
Bently Nevada 3500/05-02-04-00-00-01 Technical Reference (PDF)Bently Nevada 3500/05-02-04-00-00-01 Installation & Commissioning Guide (PDF)
The technical reference explains the mini-rack option codes, module positions and engineering restrictions. The installation guide covers panel attachment, rear I/O access, slot allocation, software checks and system acceptance.
Compact monitoring cabinets
Mount a seven-position 3500 monitoring assembly in a panel cutout with rear service access.
Panel-integrated protection systems
Bring power, rack interface and selected monitoring modules into the documented mini-rack arrangement.
3500 rack replacement
Restore the recorded slot map, module identities and rear I/O connections during a planned rack change.
Mini-rack engineering reviews
Check software version, display mounting and any internal-barrier earthing before configuring the assembly.
Plan Bently Nevada 3500/05-02-04-00-00-01 as a panel-mounted mini-rack with seven monitor positions and rear I/O access.
1
Confirm the 02 rack-size and 04 panel-mount selections before preparing the cabinet opening.
2

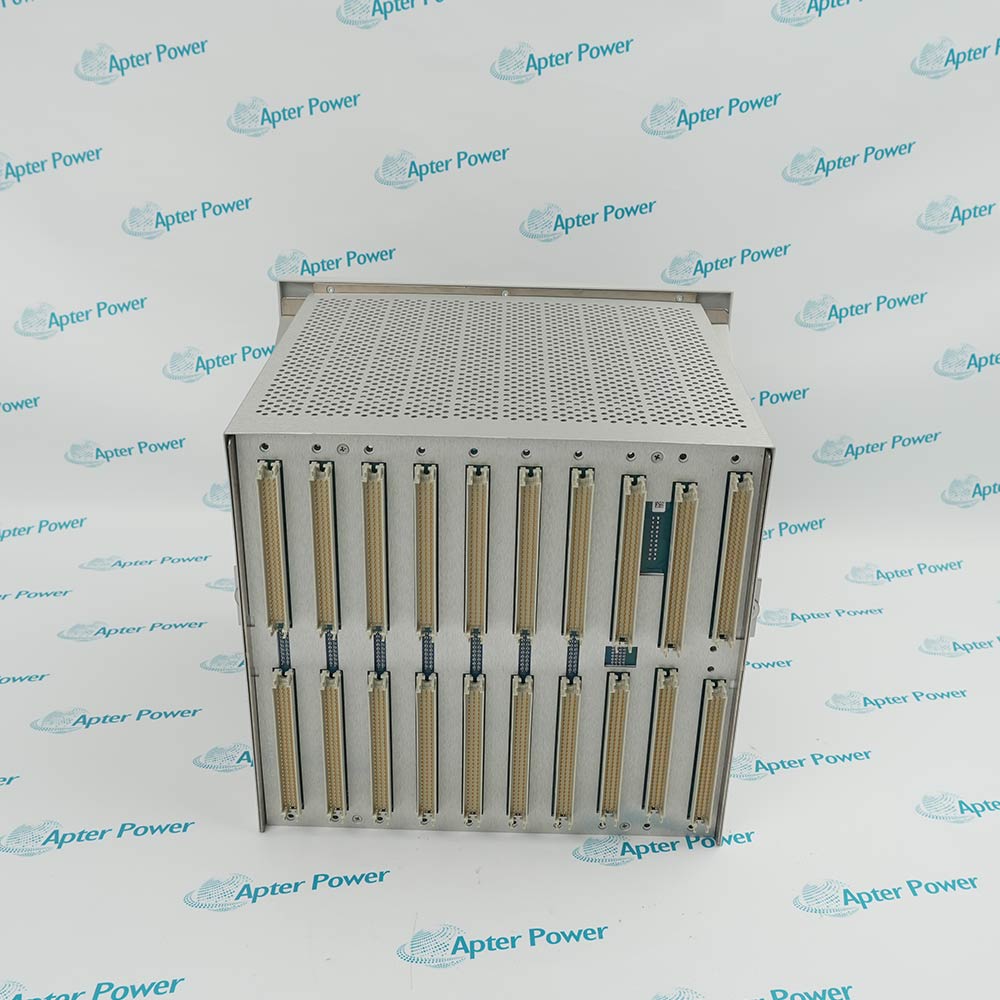

Keep rear access to wiring and I/O modules; this execution is not a front-access bulkhead rack.
3
Reserve the far-left positions for the power supplies and rack interface module.
4
Count seven available monitor positions and review the actual module allocation before transfer.
5
Use 3500/01 configuration software Version 2.70 or later with the mini-rack.
6
Do not fit the incompatible 3500/93 A01 system face-mount display arrangement.
7
If internal barriers are installed, provide the required 3500/04-01 IS earthing module and its dedicated position.
8
Treat the 00 agency option and 01 CE option separately; do not inherit a hazardous-area approval from another rack.
Technical notes
3500/05-02-04-00-00-01 should be matched by its complete identifier, installed position and mating components. Before this system mini-rack returns to service, inspect its mechanical fit and connections and confirm normal operation at the actual monitoring point.
FAQ View All FAQ
-
Which system is 3500/05-02-04-00-00-01 associated with?Product Family is 3500 machinery monitoring system.
-
How is the rack execution specified for 3500/05-02-04-00-00-01?Rack Execution is 12-inch mini-rack.
-
How is the available module slots specified for 3500/05-02-04-00-00-01?Available Module Slots is 7.
-
How is 3500/05-02-04-00-00-01 mounted?Mounting Format is Panel mount, mini-rack.
-
How is the panel attachment specified for 3500/05-02-04-00-00-01?Panel Attachment is Clamps supplied with the rack.
-
How is the i/o and wiring access specified for 3500/05-02-04-00-00-01?I/O and Wiring Access is Rear of rack.
-
How should the installation position for 3500/05-02-04-00-00-01 be selected?Match the complete identifier, rack position, mating assembly and mechanical fit before fastening the item in place.
-
What confirms a successful installation of 3500/05-02-04-00-00-01?Confirm secure mounting, correct connector or cover engagement and normal rack or channel operation after installation.
