      330400-01-05

      TRANSDUCER
      In Stock

      Product Describe：

      SERIES 330400
      ACCELEROMETER ACCELERATION
      1/4-28 UNF INTEGRAL STUD MOUNTING THREAD
      10.2 MV/M/S^2 SENSITIVITY
      490 M/S^2 PEAK ACCELERATION

      Ask our team:

      Get a quick price for： 330400-01-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for 330400-01-05

      Technical specifications for 330400-01-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330400-01-05
      • Estimated shipping dimensions:
        6x2.5x2.5cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Mounting Thread:
        ¼-28 UNF integral stud
      • Agency Approval:
        Multiple approvals (CSA, ATEX,IECEx,)
      • Sensitivity:
        2.5 mV/m/s² (25 mV/g) ±5%
      • Amplitude Linearity:
        ±1% to 735 m/s² (75 g) peak
      • Acceleration range:
        490 m/s2 (50 g)
      • Frequency response:
        10Hz to 15 kHz (± 3 dB)
      • Excitation voltage:
        -24 ± 0.5 Vdc
      • Material:
        316L stainless steel shell
      • Working temperature:
        -55 ° C to+121 ° C
      Ask for Quote

      Information

      Information

      Overview Manuals Monitoring scenario

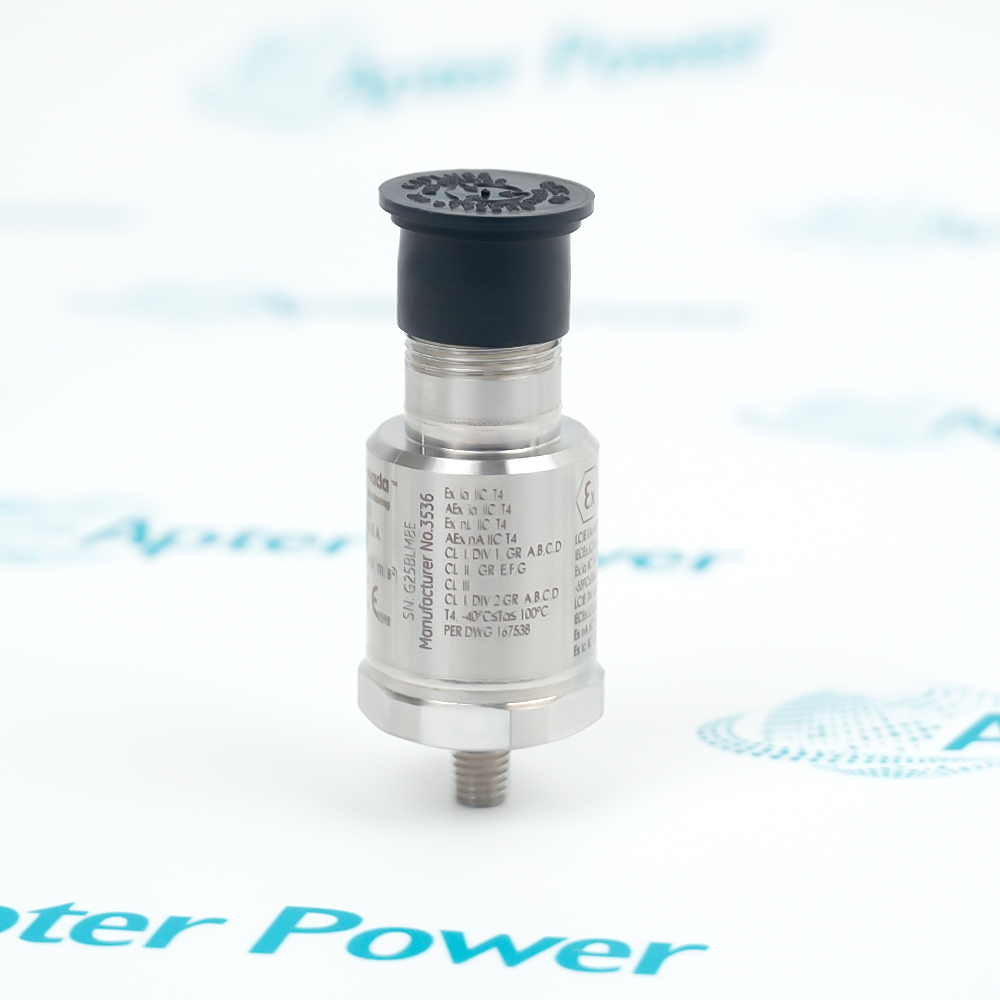

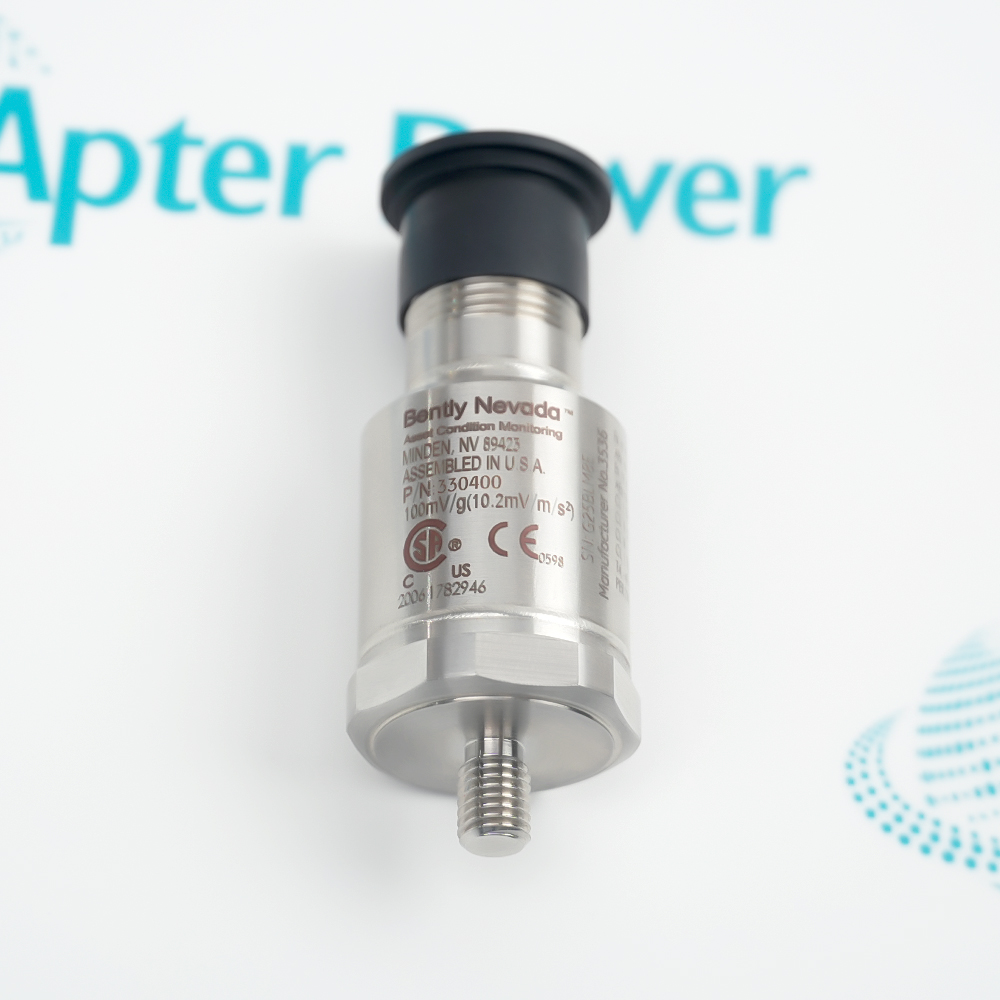

      The Bently Nevada 330400-01-05 is a 3-wire, -24 Vdc powered accelerometer designed for critical machinery casing measurements (e.g., gear mesh).
        • Frequency Response of 10 Hz to 15 kHz or 30Hz to 10 kHz
        • Transverse Sensitivity Less than 5% of Axial
        • Amplitude of Resonant Peak 20 dB Maximum
      These accelerometers are intended for critical machineryapplications where casing acceleration measurements arerequired, such as gear mesh monitoring. The 330400 isdesigned to address the requirements of AmericanPetroleum Institute Standard 670 for accelerometers. Itprovides an amplitude range of 50 g peak and a sensitivity of100 mV/g. The 330425 is identical except it provides a largeramplitude range (75 g peak) and a sensitivity of 25 mV/g.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Bently Nevada 330400-01-05 TRANSDUCER Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Roller Bearing Condition Monitoring: Monitor the high-frequency vibration generated during the initial stage of bearing damage to prevent unplanned equipment shutdown. Casing Acceleration: Installed on the machine casing, it is used to measure rotating or reciprocating machinery that cannot be directly observed through eddy current probes. Application compliant with API 670 standard: used as a standard configuration in critical mechanical protection systems that require compliance with the American Petroleum Institute (API) 670 standard

      FAQS

      • What is 330400-01-05?
        330400-01-05 is TRANSDUCER
      • What is the 330400-01-05 sensitivity?
        The accelerometer has a sensitivity of 100 mV/g (10.2 mV/m/s23)±5%.
      • What approvals does the 330400-01-05
        This suffix indicates multiple agency approvals, including CSA, ATEX, and IECEx.
      • What is the 330400-01-05 mounting type?
        It features a 1/4-28 UNF integral stud.
      • What is the 330400-01-05 power requirement?
        It is a 3-wire transducer requiring -24 Vdc power supply.
      • What is the 330400-01-05 frequency range?
        It operates over a 10 Hz to 15 kHz frequency span.
