      330909-00-60-10-01-05

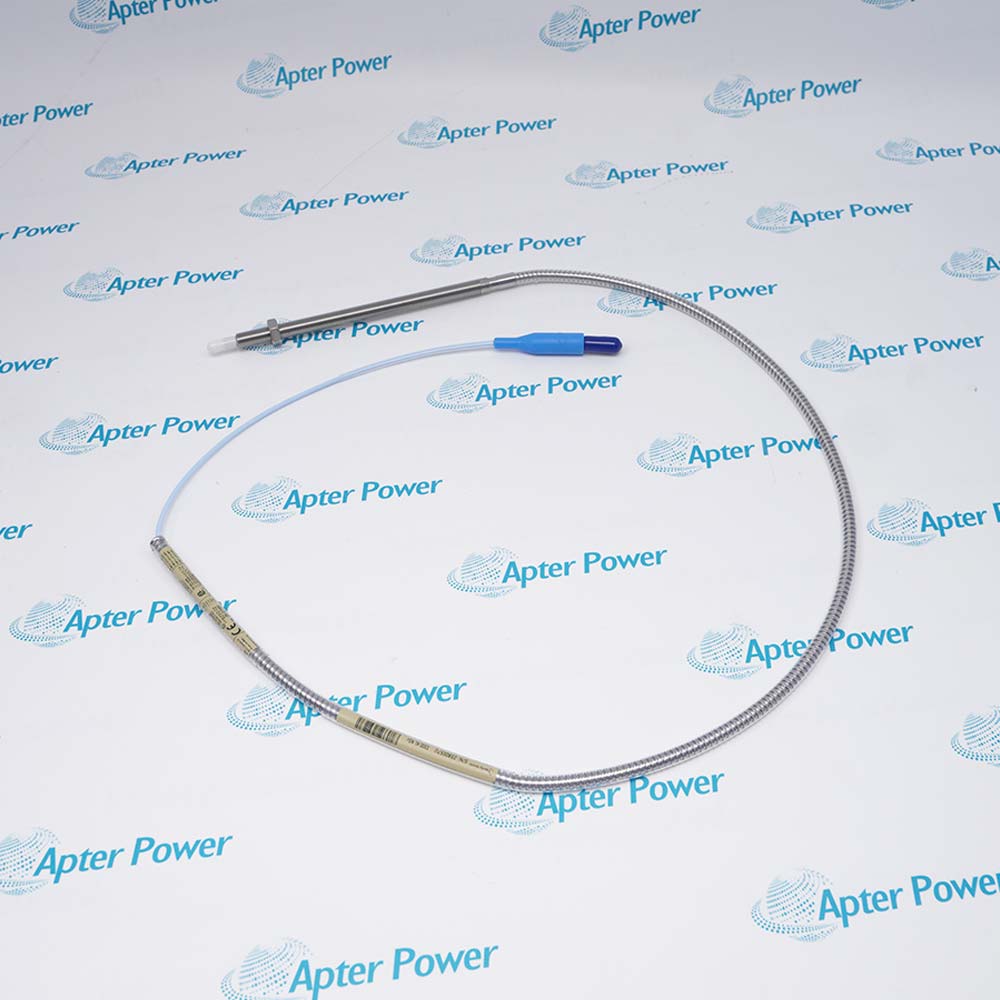

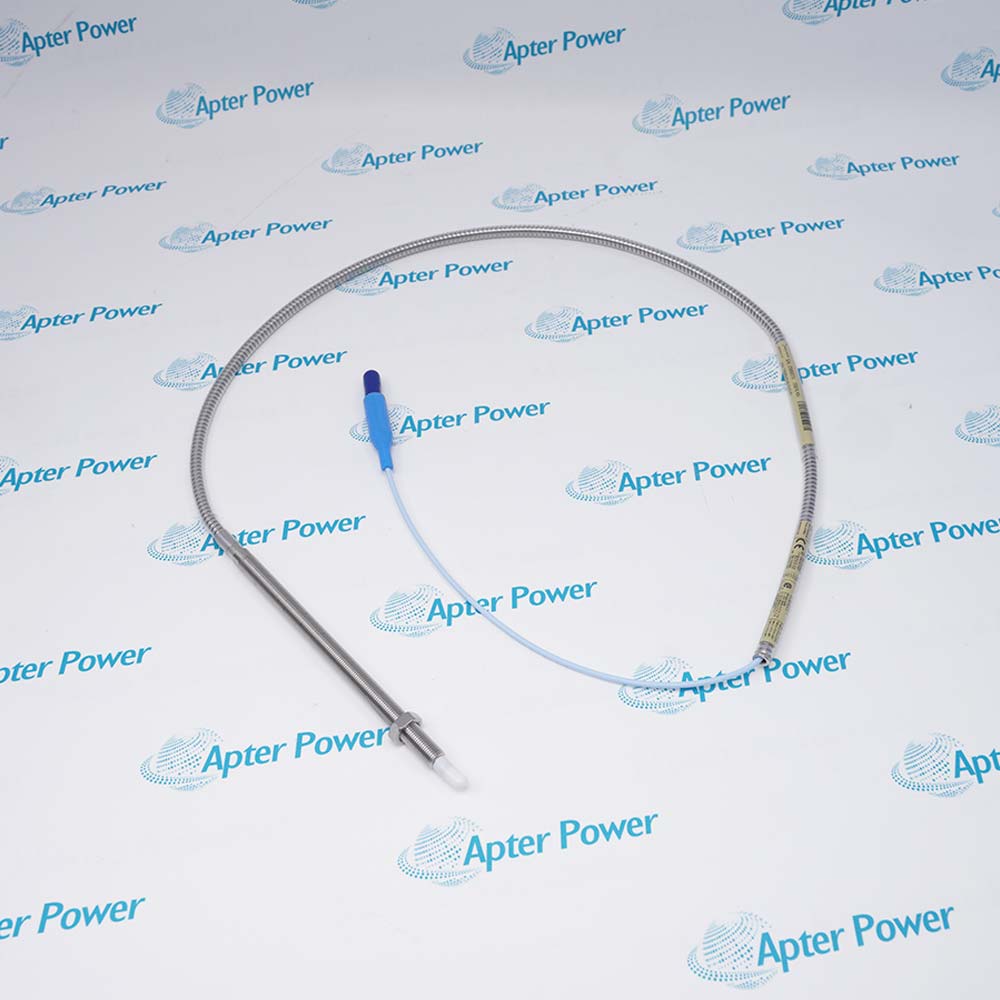

      3300 XL NSv Armored Proximity Probe
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Bently Nevada 330909-00-60-10-01-05 is an armored 3300 XL NSv proximity probe. It senses shaft displacement in confined installations and supplies the probe signal to a matched NSv Proximitor Sensor.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330909-00-60-10-01-05
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330909-00-60-10-01-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330909-00-60-10-01-05
      • Estimated shipping dimensions:
        1.5x1.2x110cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        Armored
      • Thread:
        3/8-24 UNF
      • Unthreaded length:
        0.0 in
      • Case length:
        6.0 in
      • Total probe length:
        1.0 m
      • Connector option:
        Miniature coaxial ClickLoc with protector
      • Probe-cable type:
        Standard cable
      • Approval option:
        Multiple approvals
      • Probe-tip diameter:
        5.26 mm maximum
      • System linear range:
        1.5 mm (60 mils)
      • Approximate linear-range limits:
        0.25 to 1.75 mm
      • Approximate output span:
        -1 to -13 V DC
      • Recommended gap:
        1.0 mm (40 mils)
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Scale-factor tolerance:
        +12.5% / -20%
      • Deviation from straight line:
        Less than +/-0.06 mm
      • Proximitor Sensor supply:
        -17.5 to -26 V DC
      • Proximitor Sensor current:
        12 mA maximum
      • Proximitor Sensor output resistance:
        50 ohm
      • Field-wiring conductor range:
        0.2 to 1.5 mm2
      • Maximum field-wiring length:
        305 m
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      3300 XL NSv Armored Proximity Probe provides the documented interface for its installed Bently Nevada 3300 XL NSv Proximity Transducer System system.
      • Uses armored construction for protected probe-lead routing
      • Fits a 3/8-24 UNF threaded mounting position
      • Uses a protected ClickLoc coaxial connection
      • Supports confined radial-vibration and axial-position installations

      330909-00-60-10-01-05 measures shaft-to-bearing relative displacement where the compact NSv probe geometry is required and sends the eddy-current signal to a matched NSv Proximitor Sensor. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 330909-00-60-10-01-05.

      Important Notice: Confirm the complete 330909-00-60-10-01-05 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 330909-00-60-10-01-05 Manuals and Guides
      Apter Power 330909-00-60-10-01-05 Product Technical Reference PDF330909-00-60-10-01-05 Engineering Installation and Verification Workbook
      The first document organizes model-specific technical identity and engineering data. The second provides a separate field workflow for installation, connection checks and commissioning records.
      Confined radial shaft-vibration measurement3300 XL NSv Proximitor Sensor supports the engineered 330909-00-60-10-01-05 arrangement.
      Axial position monitoringMatched NSv extension cable when required supports the engineered 330909-00-60-10-01-05 arrangement.
      Small-shaft proximity measurementValidated target material supports the engineered 330909-00-60-10-01-05 arrangement.
      NSv probe-loop replacementCompatible Bently Nevada monitor channel supports the engineered 330909-00-60-10-01-05 arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330909-00-60-10-01-05 and the installed-system configuration.
      1Verify the complete 330909-00-60-10-01-05 marking, armor and 6.0 in case before probe removal.
      2Place the monitored machine and protection channel in the approved maintenance state.
      3Protect the compact NSv probe tip and the 3/8-24 UNF thread during handling.
      4Route the 1.0 m armored lead without kinks, crushing or unsupported tensile load.
      5Keep the protected ClickLoc interface clean and fully secured.
      6Confirm the installed NSv Proximitor Sensor and total system length before energization.
      7Set the static gap inside the documented NSv linear region.
      8Verify polarity, vibration response and alarm action before returning the channel to protection service.

      Technical notes

      Match 330909-00-60-10-01-05 to the documented NSv system length and Proximitor Sensor. Preserve the protected ClickLoc connection, set the static gap in the NSv linear region, and prove channel polarity and response before service release.

      FAQ View All FAQ

      • What is 330909-00-60-10-01-05?
        It is an armored 3300 XL NSv proximity probe with a compact sensing tip for confined installations.
      • Which mechanical code is supplied by 330909-00-60-10-01-05?
        The order number specifies 3/8-24 UNF mounting, 0.0 in unthreaded length and a 6.0 in case.
      • Which cable and connector are supplied with 330909-00-60-10-01-05?
        It has a 1.0 m standard probe lead and a miniature ClickLoc coaxial connector with protector.
      • Which Proximitor Sensor matches 330909-00-60-10-01-05?
        Use the Bently Nevada 3300 XL NSv Proximitor Sensor configured for the approved total system length.
      • What linear range applies to 330909-00-60-10-01-05?
        The NSv system datasheet specifies a 1.5 mm linear range, approximately 0.25 to 1.75 mm from the target.
      • How should 330909-00-60-10-01-05 be gapped?
        Set the probe inside the documented linear region; the recommended NSv gap is about 1.0 mm.
      • How should the armored lead of 330909-00-60-10-01-05 be routed?
        Avoid sharp bends, crushing and tensile loads, and secure the armor so it cannot rub against rotating or hot surfaces.
      • What must be verified after replacing 330909-00-60-10-01-05?
        Verify model, Proximitor Sensor, total system length, static gap, polarity, vibration response and alarm action.
