      Bently Nevada 330103-00-16-10-02-05
      Bently Nevada 330103-00-16-10-02-05
      Bently Nevada 330103-00-16-10-02-05
      Bently Nevada 330103-00-16-10-02-05
      Bently Nevada 330103-00-16-10-02-05
      Bently Nevada 330103-00-16-10-02-05
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-16-10-02-05

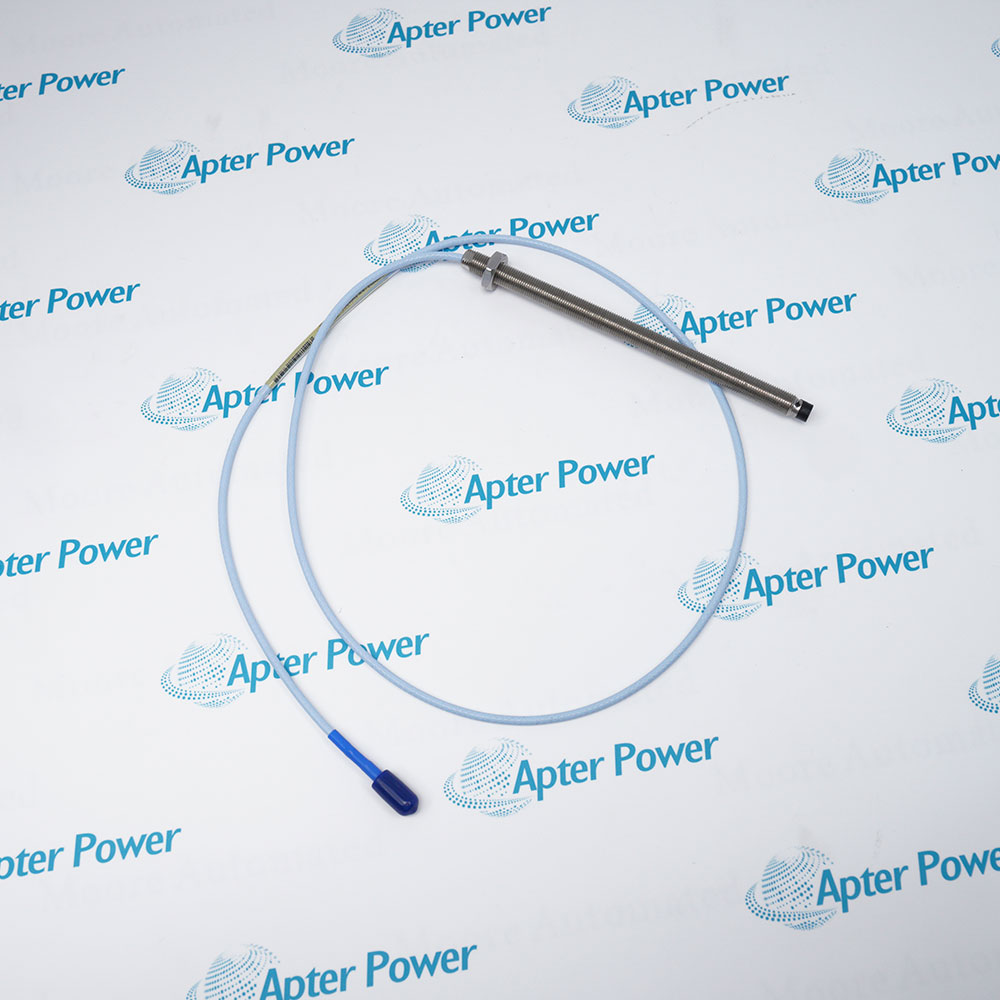

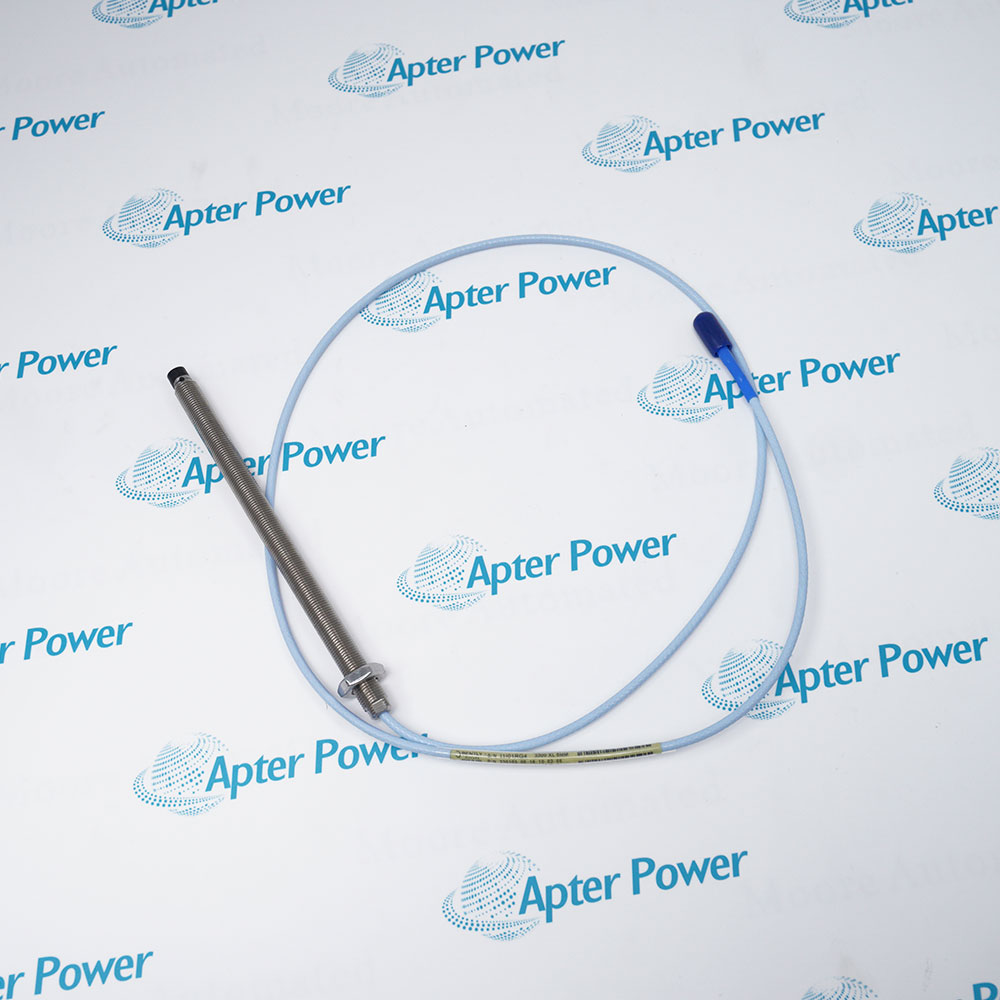

      3300 XL 8 mm Metric Proximity Probe
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330103-00-16-10-02-05 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330103-00-16-10-02-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-16-10-02-05

      Technical specifications for 330103-00-16-10-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-16-10-02-05
      • Estimated shipping dimensions:
        1.8x1.5x112cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe series:
        3300 XL 8 mm
      • Probe body thread:
        M10 x 1
      • Probe armor:
        Without armor
      • Unthreaded length:
        0 mm
      • Overall case length:
        160 mm
      • Total probe length:
        1.0 m
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Cable type:
        Standard 75 Ohm triaxial
      • Cable insulation:
        FEP
      • Agency approval option:
        CSA, ATEX and IECEx
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Probe case material:
        AISI 303 or 304 stainless steel
      • Nominal probe DC resistance:
        7.59 +/- 0.50 Ohm
      • Probe case-to-lead tensile rating:
        330 N maximum
      • Lead-to-extension connector tensile rating:
        270 N maximum
      • Minimum cable bend radius:
        25.4 mm
      • Maximum forward-mount torque:
        33.9 N m
      • Recommended forward-mount torque:
        11.2 N m
      • Standard probe temperature:
        -52 to +177 degC
      • Matched-system linear range:
        2 mm
      • Matched-system incremental scale factor:
        7.87 V/mm nominal
      • Matched-system frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-16-10-02-05 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.
      • Detects shaft-to-bearing relative position without mechanical contact
      • Forms the sensing element of a matched 3300 XL 8 mm transducer system
      • Carries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      • Hazardous-area machinery monitoring with a 160 mm metric case

      330103-00-16-10-02-05 installs with 3300 XL 8 mm Proximitor Sensor, matched 3300 XL extension cable when required, AISI 4140 steel target, compatible Bently Nevada monitor channel in an engineered 3300 XL 8 mm Proximity Transducer System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 8 mm metric proximity probe.

      Important Notice: Confirm the complete 330103-00-16-10-02-05 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 330103-00-16-10-02-05 Manuals and Guides
      Apter Power 330103-00-16-10-02-05 Product Technical Reference PDFBently Nevada 330103-00-16-10-02-05 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Radial shaft-vibration measurementDetects shaft-to-bearing relative position without mechanical contact
      Axial position and thrust monitoringForms the sensing element of a matched 3300 XL 8 mm transducer system
      Machine shaft centerline observationCarries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      Hazardous-area machinery monitoring with a 160 mm metric caseHazardous-area machinery monitoring with a 160 mm metric case
      Read the applicable Bently Nevada installation instructions before work. Verify 330103-00-16-10-02-05 and the installed 3300 XL 8 mm Proximity Transducer System configuration.
      1Verify the complete 330103-00-16-10-02-05 approval marking before hazardous-area work.
      2Follow the applicable CSA, ATEX or IECEx installation drawing and site permit procedure.
      3De-energize associated monitor and barrier circuits before opening the probe connection.
      4Confirm the 160 mm case length and insertion depth maintain safe shaft clearance.
      5Route the 1.0 m FEP lead through the approved cable path without violating bend radius.
      6Maintain shield, grounding and barrier connections exactly as documented for the loop.
      7Set probe gap and verify stable bias before enabling the machinery-protection channel.
      8Complete controlled signal and alarm tests, then close the hazardous-area inspection record.

      Technical notes

      Technical notes

      Verify the hazardous-area installation drawing, associated barriers and 160 mm mounting geometry before connecting the probe. Preserve the approved grounding, cable routing and entity arrangement while commissioning the 1.0 m system.

      FAQS

      • Which approvals are selected by the 05 suffix of 330103-00-16-10-02-05?
        Approval option 05 identifies CSA, ATEX and IECEx approvals for the specified probe execution.
      • What must be checked before installing 330103-00-16-10-02-05 in a hazardous area?
        Verify the complete approval marking, zone or division, installation drawing, associated apparatus and site wiring practice.
      • What are the physical ordering lengths of 330103-00-16-10-02-05?
        It has 0 mm unthreaded length, a 160 mm overall metric case and a 1.0 m total probe length.
      • Does 330103-00-16-10-02-05 use FluidLoc cable?
        No. Connector option 02 specifies standard cable; FluidLoc is selected by connector options 11 or 12.
      • How should 330103-00-16-10-02-05 be wired through a barrier?
        Use the applicable Bently Nevada installation drawing and approved barrier arrangement, preserving polarity, shield and grounding requirements.
      • What mechanical risk increases with the 160 mm case of 330103-00-16-10-02-05?
        Incorrect insertion depth can contact the shaft, while excessive engagement can bind the thread; verify the mounting drawing before energization.
      • How is 330103-00-16-10-02-05 validated after hazardous-area maintenance?
        Confirm enclosure integrity, connector security, barrier wiring, stable bias, measured response and documented alarm operation.
      • Can approval option 00 replace 330103-00-16-10-02-05?
        Do not substitute an unapproved execution where the installation requires the CSA, ATEX or IECEx marking represented by suffix 05.
