Technical specifications for 330905-00-03-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330905-00-03-10-02-00
-
Estimated shipping dimensions:1.8x1.6x112cm
-
Weight:0.04 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Reference Document:3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R
-
Probe Family:3300 NSv proximity probe
-
Mounting Form:Standard mount
-
Probe Thread:M10X1
-
Armor:Without armor
-
Unthreaded Length:0 mm
-
Overall Case Length:30 mm
-
Total Probe Length:1.0 m (39 in)
-
Connector and Cable:Miniature coaxial ClickLoc connector; standard cable
-
Agency Approval Option:00 = Not required
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 304 stainless steel
-
Probe Cable:75 ohm coaxial, FEP insulated
-
Connector Material:Gold-plated brass
-
Probe Lead Tensile Strength:220 N (50 lb), maximum rated
-
M10X1 Case Torque:33.9 N m maximum; 11.3 N m recommended
-
First Three Threads Torque:22.6 N m maximum; 7.5 N m recommended
-
Connector Torque:Finger tight recommended; 0.56 N m maximum
-
Minimum Bend Radius:25.4 mm (1.0 in)
-
Maximum Thread Engagement:15 mm for M10X1
-
Probe Operating Temperature:-52 to +177 deg C
-
Probe Storage Temperature:-52 to +177 deg C
-
Pressure Seal:Viton O-ring; probes are not pressure tested before shipment
Information
Overview
Manuals
Common Applications
Product Precautions

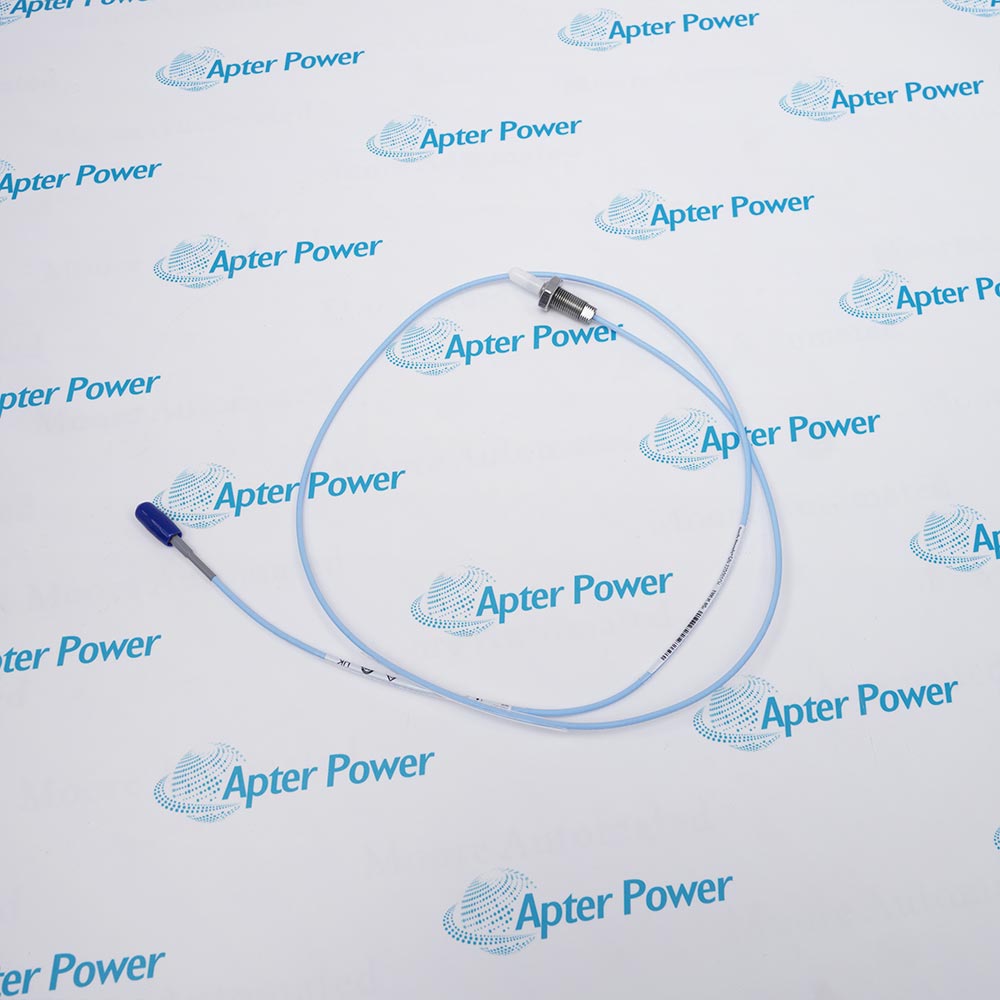

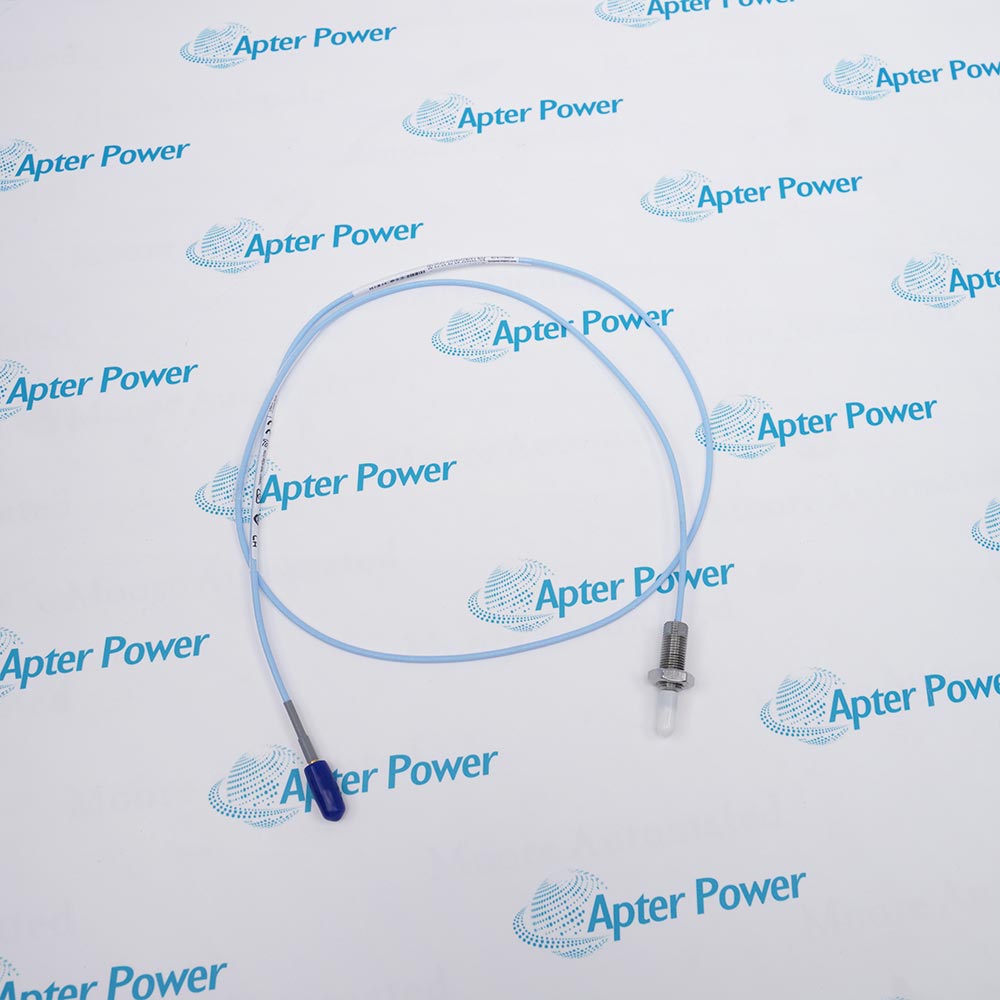

Bently Nevada 330905-00-03-10-02-00 is a proximity probe from the 3300 NSv proximity probe family. Its complete length, case, cable and approval options define the probe configuration used at the machine measurement point.
- Probe Family: 3300 NSv proximity probe.
- Mounting Form: Standard mount.
- Probe Thread: M10X1.
- Armor: Without armor.
Mounting position, thread engagement, connector condition and cable routing all affect the completed measurement chain. After installation, confirm the static gap or sensor output and compare the dynamic signal with the expected machine response.
Important Notice: Confirm the complete NSv system length, target material, gap, extension cable and Proximitor Sensor before commissioning; the probe ordering code alone does not define the complete transducer response.
Bently Nevada 330905-00-03-10-02-00 Manuals & Downloads
Bently Nevada 330905-00-03-10-02-00 Technical Reference (PDF)Bently Nevada 330905-00-03-10-02-00 Installation & Commissioning Guide (PDF)
The technical reference explains the exact ordering code, probe construction, mechanical limits, NSv system role and supported applications. The installation guide covers identity checks, M10X1 mounting, cable routing, ClickLoc protection, gap commissioning and final acceptance.
Compressor radial vibration
Observe small shafts where tight counterbore or side-view clearance limits larger probes.
Axial position monitoring
Measure thrust position on a suitable flat target in a documented NSv transducer chain.
Tachometer and zero speed
Provide a non-contacting proximity input for speed-related monitoring where the target geometry is suitable.
Phase reference measurement
Supply a Keyphasor phase-reference signal from an approved rotating target arrangement.
Apply these checks to the exact Bently Nevada 330905-00-03-10-02-00 probe, its compact M10X1 case and the complete installed NSv transducer chain.
1
Match all six ordering fields before installation; a different case, cable, connector or approval code is a different execution.
2
Confirm that the mounting arrangement suits the 0 mm unthreaded section and 30 mm overall M10X1 case.
3
Limit M10X1 thread engagement to 15 mm and use the published case-torque boundary.
4
Treat connector torque separately: finger tight is recommended and 0.56 N m is the published maximum.
5
Maintain at least the 25.4 mm cable bend radius and do not load the 1.0 m probe lead during routing.
6
Protect the ClickLoc connection against liquid entry because option 02 does not include the connector protector.
7
Review pressure-seal duty and process media; the probe is not pressure tested before shipment.
8
Confirm target, gap, extension cable and the matching NSv Proximitor before accepting the measurement response.
Technical notes
330905-00-03-10-02-00 should be matched by its complete identifier, installed position and mating components. Before this proximity probe returns to service, inspect its mechanical fit and connections and confirm normal operation at the actual monitoring point.
FAQ View All FAQ
-
Which system is 330905-00-03-10-02-00 associated with?Probe Family is 3300 NSv proximity probe.
-
How is 330905-00-03-10-02-00 mounted?Mounting Form is Standard mount.
-
What thread detail applies to 330905-00-03-10-02-00?Probe Thread is M10X1.
-
What construction detail applies to 330905-00-03-10-02-00?Armor is Without armor.
-
What length detail applies to 330905-00-03-10-02-00?Unthreaded Length is 0 mm.
-
What connection detail applies to 330905-00-03-10-02-00?Connector and Cable is Miniature coaxial ClickLoc connector; standard cable.
-
What should be inspected before installing 330905-00-03-10-02-00?Inspect the sensing tip, case, thread, connector and cable, and confirm that the mounting position is clean and mechanically sound.
-
How should 330905-00-03-10-02-00 be checked after installation?Verify the static position or gap, secure cable routing and a stable signal that agrees with the expected machine response.
