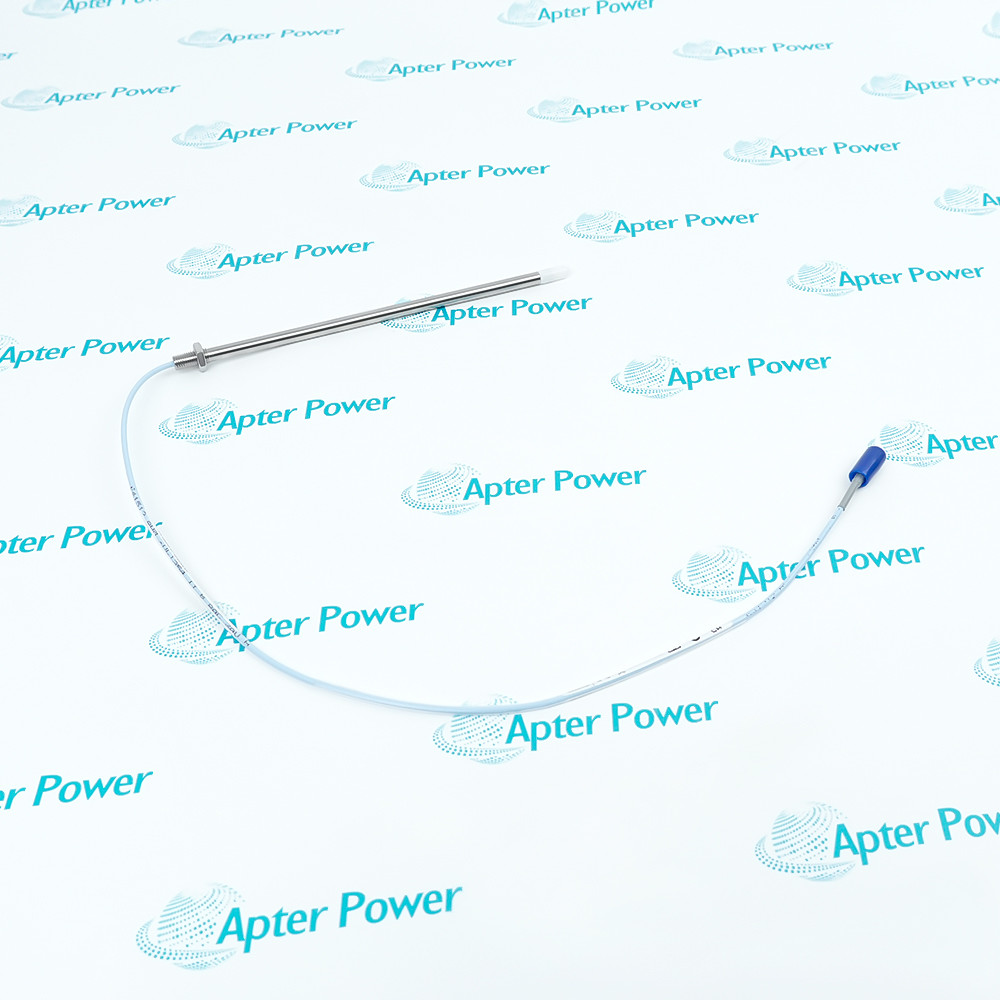

Get a quick price for 330903-17-19-05-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy

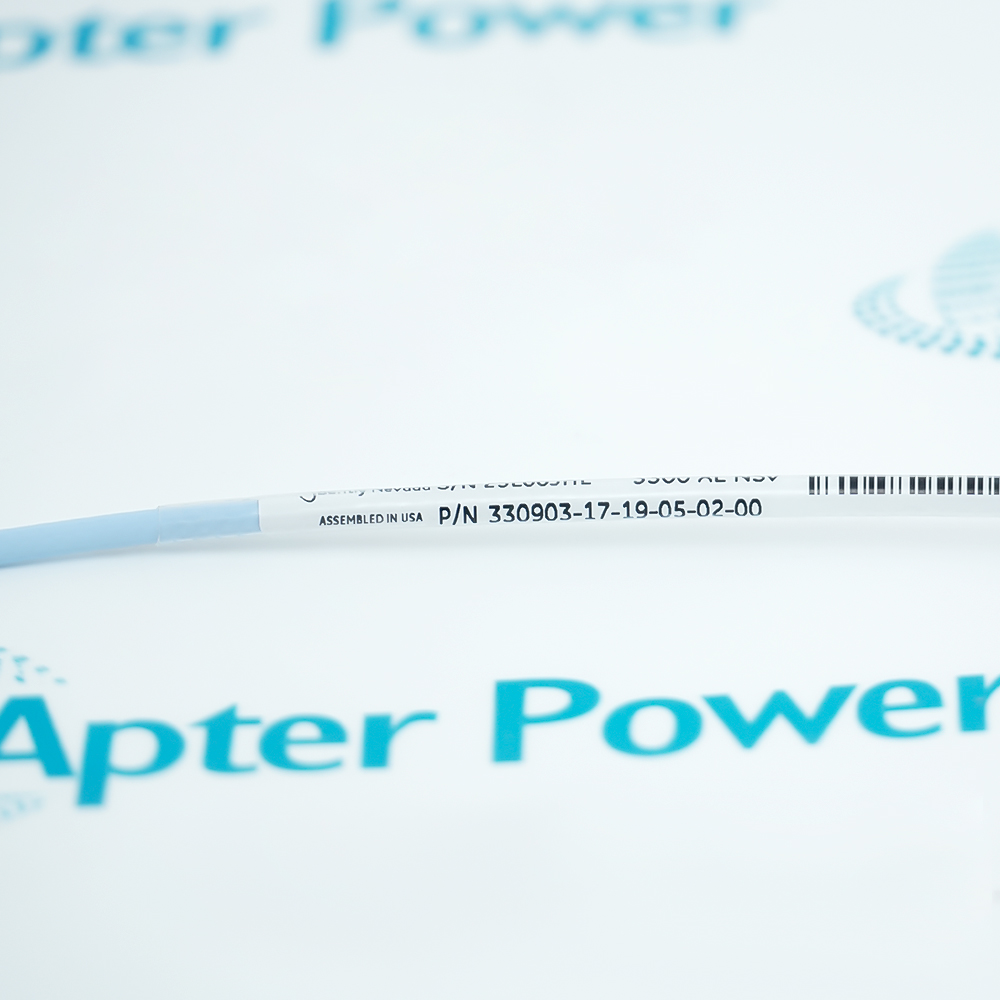

Technical specifications for 330903-17-19-05-02-00
-
Manufacturer:Bently Nevada
-
Product Category:DCS Systems
-
Spare Part Number:330903-17-19-05-02-00
-
Estimated shipping dimensions:1.3x1.1x65cm
-
Weight:0.04 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Unthreaded Length Option:170 mm
-
Overall Case Length Option:190 mm
-
Total Length Option:0.5 meter
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
-
Operating Temperature:-52°C to +177°C
-
Probe Case Material:AISI 304 stainless steel (SST)
-
Agency Approval Option:Not required
-
Linear Range:1.5 mm (60 mils), from 0.25 to 1.75 mm
-
Scale Factor:7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor
-
Probe Case Material:AISI 303 or 304 Stainless Steel
-
Maximum Cable Tensile Strength:220 N (50 lbf) to probe tip
-
Interference Resistance:Excellent RFI and EMI resistance
Information
Overview
Manuals
Common Applications
Product Precautions
The 330903-17-19-05-02-00 is a specific engineering configuration of the Bently Nevada 3300 NSv eddy current proximity sensor probe, designed for particularly compact spaces. This product belongs to the 3300 NSv proximity sensor system and is specifically designed to monitor small to medium-sized rotating machinery, small-diameter shaft equipment, or blind spots inside machinery where traditional 8mm probes cannot be inserted, using non-contact eddy current principles to achieve precise monitoring of shaft vibration, axial displacement, and rotational speed.
- Axial (thrust) position measurements
- Phase reference (Keyphasor signals)
- Tachometer and zero speed measurements
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330903-17-19-05-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Small Centrifugal Compressor Manufacturing
Used in small gas compressors with slender shafts to monitor micro radial vibration and orbital analysis inside bearing housings.
Gearbox and Transmission Machinery Industry
Performs non-contact measurement of axial float and bearing wear on high-speed pinion shafts within tight gear-mesh housings.
Micro-Turbine & Distributed Power Generation
Monitors shafting operational stability in small turbine units of distributed biomass power or waste heat recovery systems.
Petroleum Refining & Gas Processing
Monitors compressor conditions with a long lifespan in sour and acid process gases utilizing its excellent chemical-resistant case materials.
Air Separation and Refrigeration Industry
Implements vibration sampling on turbo-expander shafts through cold boxes or extra-long mounting holes by providing superior installation flexibility.
Plastics and Rubber Molding Machinery
Monitors static wear of internal high-pressure rotating bearings in small-to-medium extruders without interference from outer cast-iron sleeves due to the narrow magnetic field.
When using the 330903-17-19-05-02-00 narrow side-view probe, you must strictly ensure that the total electrical length of the system combined with this 0.5-meter probe (typically a 5-meter or 7-meter system) matches precisely to avoid severe measurement errors.
Since this model features an extremely long 170mm unthreaded length and lacks armored protection, special care must be taken during pass-through installation to prevent the non-threaded metal casing from bending or suffering severe scratches, while avoiding direct contact between the flexible cable and sharp mechanical edges.
Furthermore, although NSv technology provides excellent lateral immunity, the linear scale factor must still be re-verified in the field using a calibrator when dealing with extremely small targets under 9.5mm in diameter or when operating adjacent to large areas of irregular non-magnetic metals.
Since this model features an extremely long 170mm unthreaded length and lacks armored protection, special care must be taken during pass-through installation to prevent the non-threaded metal casing from bending or suffering severe scratches, while avoiding direct contact between the flexible cable and sharp mechanical edges.
Furthermore, although NSv technology provides excellent lateral immunity, the linear scale factor must still be re-verified in the field using a calibrator when dealing with extremely small targets under 9.5mm in diameter or when operating adjacent to large areas of irregular non-magnetic metals.
Alternative Names
330903 17 19 05 02 00
3309O3-17-19-O5-O2-OO
330903-I7-I9-05-02-00
33O9O3-I7-I9-O5-O2-OO
330903-17-19-05-01-00
330903-17-19-05-02-05
330903-17-19-05-02-CN
330903-17-19-10-02-00
330903-17-19-50-02-00
330903-17-19-70-02-00
330903-17-19-70-02-05
330903-17-19-70-01-05
Technical notes
As a metric-level eddy current proximity probe built for highly confined spaces, the 330903-17-19-05-02-00 is a core component of the classic 3300 NSv monitoring system, featuring a 1.7-inch unthreaded length, a 1.9-inch stainless steel case (M8 x 1 thread specification), and a 0.5-meter standard unarmored coaxial cable. During system operation, the transducer utilizes a non-contact eddy current sensing mechanism to deliver an analog output voltage directly proportional to the gap distance between the probe tip and the observed conductive metal surface. It provides a nominal scale factor of 7.87 V/mm over its 1.5 mm (60 mils) linear range, enabling the real-time acquisition of both static displacement and dynamic shaft vibration values.
FAQ View All FAQ
-
What kind of product is 330903-17-19-05-02-00?It is a 3300 NSv series eddy current proximity transducer probe manufactured by Bently Nevada, specially designed for non-contact displacement and vibration monitoring of industrial rotating machinery in confined spaces.
-
How do I use the 330903-17-19-05-02-00?It is typically threaded into a machine bearing housing or internal mounting bracket with the probe tip facing the rotating shaft metal surface, and connected via its coaxial cable to an extension cable and a 3300 NSv Proximitor sensor.
-
What cable and connector configuration is selected for 330903-17-19-05-02-00?For 330903-17-19-05-02-00, the configuration is a 0.5-meter standard coaxial cable without armor, terminating in a Miniature coaxial ClickLoc connector with a protector.
-
What temperature can 330903-17-19-05-02-00 withstand?The operating temperature for both the probe and its attached cable is very wide, rated from -34 °C to +177 °C.
-
What is the initial gap voltage typically adjusted to during the installation of 330903-17-19-05-02-00?For standard radial vibration monitoring applications, it is officially recommended to adjust the initial installation gap voltage to the linear midpoint within the range of -9 Vdc to -10 Vdc when the machine is at rest.
