Technical specifications for 330903-00-06-05-02-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330903-00-06-05-02-05
-
Estimated shipping dimensions:1.3x1.1x65cm
-
Weight:0.04 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Family:3300 XL NSv
-
Mounting Thread:M8 x 1
-
Armor Execution:Without armor
-
Unthreaded Length Option:AA00 = 0 mm; fully threaded
-
Overall Case Length Option:BB06 = 60 mm
-
Total Probe Length:CC05 = 0.5 m
-
Connector and Cable:DD02 = miniature coaxial ClickLoc, standard cable
-
Included Connector Protector:Not included by DD02
-
Approval Selection:EE05 = Multiple Approvals; verify supplied marking
-
Nominal Probe DC Resistance:4.0 +/-0.5 ohm; center to outer conductor
-
Standard Probe Cable:75 ohm coaxial; FEP insulated
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 304 stainless steel
-
Recommended Case Torque:5.1 N m; M8 forward mounting
-
Maximum Case Torque:7.3 N m; M8 forward mounting
-
Matched NSv System Length:5 m or 7 m; including selected extension
-
Maximum Thread Engagement:12 mm; matching internal fit class
-
Minimum Cable Bend Radius:25.4 mm
-
Maximum Connector Torque:0.56 N m
-
ClickLoc Connector Practice:Finger tight
-
Standard Probe Temperature:-52 to +177 deg C; operating and storage
-
Matched System Linear Range:1.5 mm; approximately 0.25 to 1.75 mm
-
Radial Vibration Gap Setting:1.0 mm; recommended gap
-
Nominal System Scale Factor:7.87 V/mm (200 mV/mil)
-
System Frequency Response:0 to 10 kHz; +0 / -3 dB typical
-
Companion Proximitor Output Resistance:50 ohm
-
Companion Proximitor Maximum Current:12 mA
-
Companion Proximitor Operating Temperature:-52 to +100 deg C
-
Companion Proximitor Storage Temperature:-52 to +105 deg C
Information
Overview
Manuals
Common Applications
Product Precautions

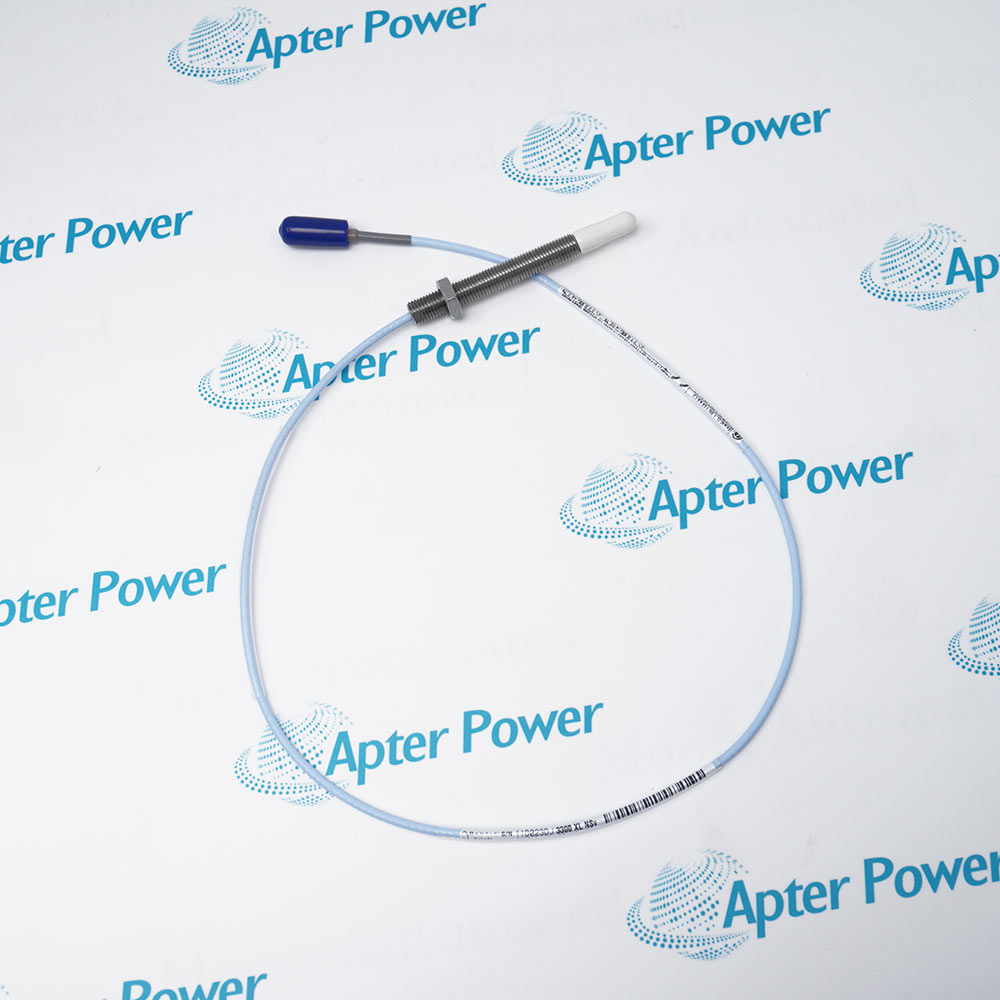

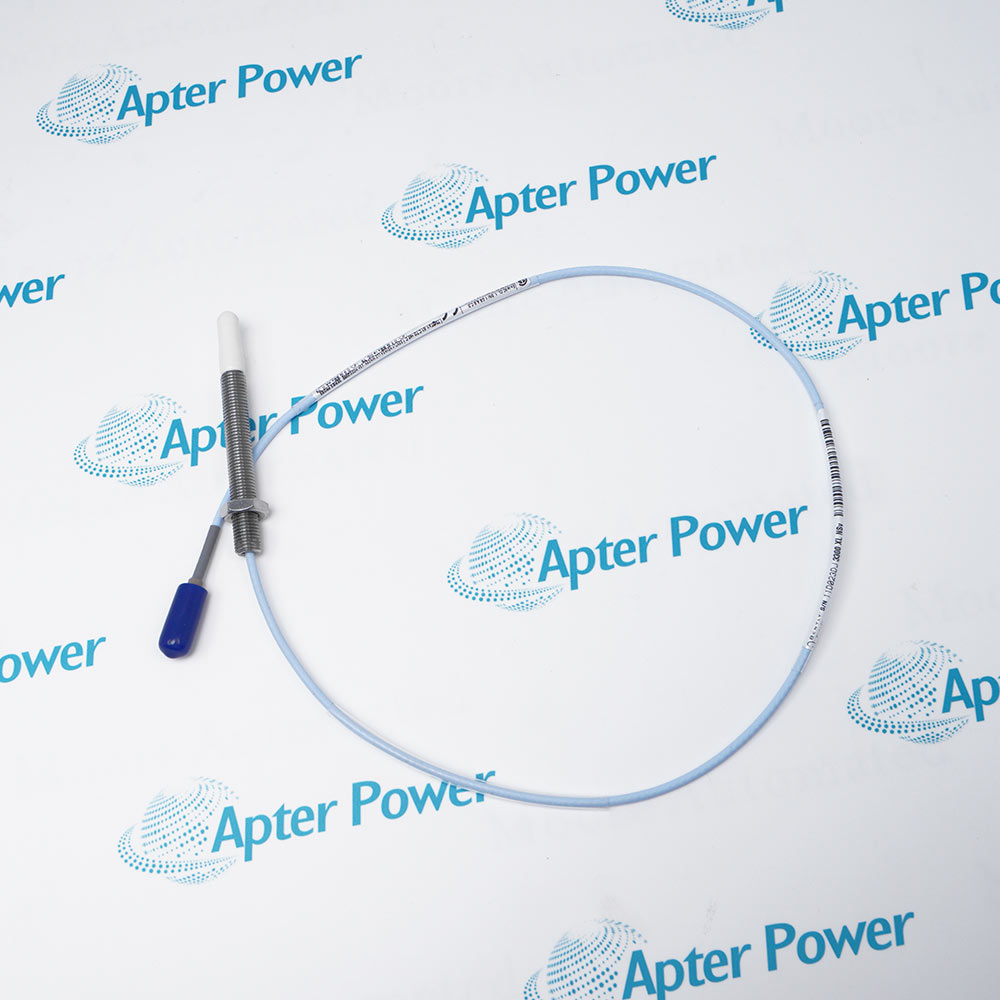

Bently Nevada 330903-00-06-05-02-05 is an unarmored M8 x 1 proximity probe with a 0.5 m standard lead for the 3300 XL NSv system. Its ClickLoc connection and selected NSv extension feed a matching 5 m or 7 m Proximitor for shaft vibration and position measurements.
- M8 x 1 fully threaded execution with an unarmored standard lead.
- A 0.5 m probe and selected NSv extension establish the 5 m or 7 m electrical length.
- The M8 mounting torque and engagement limits differ from larger metric probe cases.
- DD02 connection and EE05 approval selection remain separate configuration checks.
The probe responds to the conductive target without physical contact, while the NSv Proximitor produces the conditioned gap signal. This execution combines a compact M8 interface, a short standard lead and the Multiple Approvals ordering selection. The selected extension, target geometry and supplied approval marking must be reviewed for the application.
Important Notice: Retain AA00 / BB06 and the full EE05 suffix. Do not apply M10 case-torque limits to the M8 thread, or assume that Multiple Approvals authorizes every hazardous-area circuit.
Bently Nevada 330903-00-06-05-02-05 Manuals & Downloads
Bently Nevada 330903-00-06-05-02-05 Technical Reference (PDF)Bently Nevada 330903-00-06-05-02-05 Installation & Commissioning Guide (PDF)
The technical reference explains probe construction, electrical-length choices and system performance. The installation guide covers mounting, connection checks, gap setting and channel acceptance.
M8 machine interfaces
Install where the machine provides the corresponding M8 x 1 mounting fit and reviewed engagement.
Compact target geometry
Use the NSv response data when evaluating restricted targets and counterbores in small-machine installations.
Shaft motion channels
Connect the selected probe, NSv extension and matching conditioner for a calibrated vibration channel.
Static gap monitoring
Supply a non-contact position signal to the configured monitor after target and gap verification.
Bently Nevada 330903-00-06-05-02-05 checks emphasize the M8 mounting limits, unarmored lead and EE05 approval selection.
1
Verify the M8 x 1 internal fit and keep engagement within 12 mm; investigate binding without forcing the probe.
2
Use the M8 case limits of 5.1 N m recommended and 7.3 N m maximum; do not substitute M10 torque values.
3
Select a 4.5 m NSv extension for a 5 m system or a 6.5 m extension for a 7 m system with this 0.5 m probe.
4
Support the unarmored lead away from sharp edges and crushing; maintain the minimum 25.4 mm bend radius.
5
Use finger-tight ClickLoc joints within the 0.56 N m maximum and protect the connector because DD02 supplies no protector.
6
Review the EE05 component marking and installed circuit requirements before approving the application.
7
Check shaft diameter, target calibration and adjacent-probe spacing; use the NSv recommended 1.0 mm gap under applicable conditions.
8
Separate the isolated 4.0 +/-0.5 ohm probe check from channel testing; evaluate probe and conditioner temperatures individually.
Technical notes
The M8 case uses 5.1 N m recommended and 7.3 N m maximum torque, with maximum thread engagement of 12 mm. Match the 0.5 m probe to a 4.5 m or 6.5 m NSv extension. EE05 selects Multiple Approvals; evaluate the actual supplied marking and circuit.
FAQ View All FAQ
-
Which torque limit applies to the M8 case of 330903-00-06-05-02-05?Use 5.1 N m recommended and 7.3 N m maximum case torque. These are the M8 forward-mount values; the higher M10 limits do not apply to this execution.
-
How far may the thread of 330903-00-06-05-02-05 engage the mounting hole?The maximum M8 x 1 thread engagement is 12 mm with a matching internal fit class. Greater engagement can cause binding and must be reviewed before installation.
-
What does EE05 mean on 330903-00-06-05-02-05?EE05 is the Multiple Approvals ordering selection. Check the actual supplied marking, certificate conditions and installed circuit; the suffix alone is not a statement that every hazardous location is covered.
-
Which standard-lead connection is selected on 330903-00-06-05-02-05?DD02 specifies standard cable with a miniature coaxial ClickLoc connector and no included protector. It does not select FluidLoc cable. Protect the joint according to the installed environment.
-
How is the electrical length completed for 330903-00-06-05-02-05?The 0.5 m probe requires a 4.5 m NSv extension for a 5 m channel or a 6.5 m extension for a 7 m channel. Match the sum to the Proximitor label.
-
How should resistance be checked on 330903-00-06-05-02-05?Disconnect the probe under the machine procedure and measure center-to-outer resistance. The 0.5 m probe reference is 4.0 +/-0.5 ohm; then verify the assembled channel separately.
-
Why must nearby probes be considered when placing 330903-00-06-05-02-05?Probe cross-talk depends on shaft size and spacing. For radial vibration, the documented minimum tip separation is 23 mm; the standard X-Y shaft minimum is 30 mm, or 20 mm with a 23 mm axial offset.
-
Does the probe temperature limit of 330903-00-06-05-02-05 also cover its conditioner?The probe operates and stores at -52 to +177 deg C. The Proximitor operates to +100 deg C and stores to +105 deg C. These are separate component limits, and sustained probe exposure below -34 deg C also requires pressure-seal assessment.
