Technical specifications for 330195-02-12-05-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330195-02-12-05-05
-
Estimated shipping dimensions:1.3x1.2x69cm
-
Weight:0.04 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Total Length Option:0.5 meter (1.6 feet)
-
Agency Approval Option:CSA, ATEX, IECEx approvals
-
Unthreaded Length:12 mm
-
Sensitivity:7.87 V/mm (200 mV/mil)
-
Linear Range:2.0 mm (80 mils)
-
Linear Range Begin:Approximately 0.25 mm (10 mils) from probe tip
-
System Input Voltage:-24 Vdc nominal
-
Probe DC Resistance:5.0 Ω to 11.0 Ω
-
Extension Cable Impedance:75 Ω nominal
-
Probe Tip Diameter:8.0 mm (0.31 in)
-
Cable Diameter:2.54 mm (0.100 in)
-
Minimum Cable Bend Radius:25.4 mm (1.0 in)
-
Maximum Tightening Torque:13.6 N⋅m (120 in⋅lbf)
Information
Overview
Manuals
Common Applications
Product Precautions

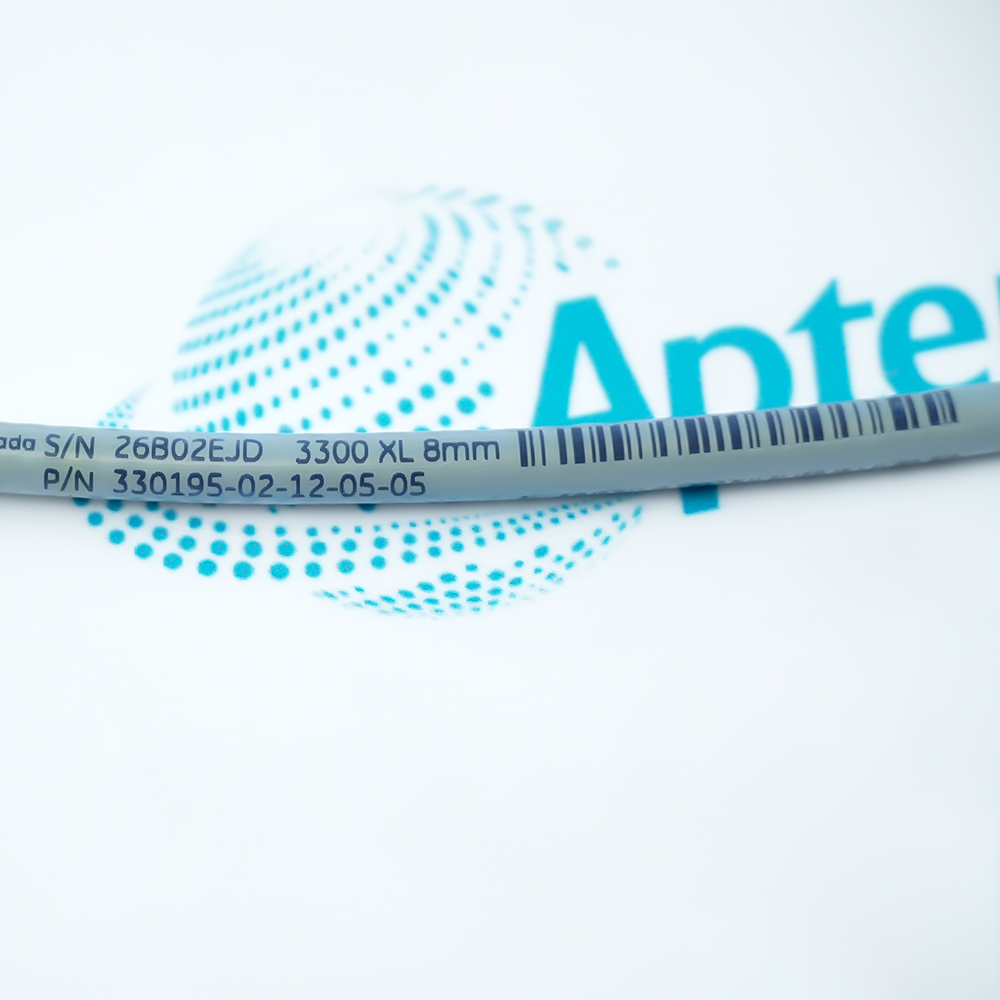

The 330195-02-12-05-05 is a high-precision, reverse-mounted eddy current displacement sensor belonging to the 3300 XL 8 mm series. This system is specifically designed for industrial rotating machinery, accurately converting distance and vibration into voltage signals, and is a core component for condition monitoring and fault prevention.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330195-02-12-05-05 ETR Reverse Mount Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used on offshore platform gas compressors and pipeline transmission pumps to monitor shaft vibration, preventing catastrophic mechanical failures.
Petrochemical & Refining
Installed on high-speed centrifugal pumps and turbines to measure axial displacement, ensuring the stability of critical chemical refining processes.
Thermal Power
Applied to large steam turbines and boiler feed pumps for continuous vibration monitoring and Keyphasor speed reference.
Nuclear Power
Used on secondary-side cooling pumps and turbine generators to provide reliable shaft position data under strict safety regulations.
Hydroelectric Power
Monitors the radial runout and thrust position of large vertical hydro-turbine shafts to optimize bearing alignment.
Steel & Metallurgy
Installed on blast furnace blowers and oxygen compressors to prevent unplanned shutdowns of high-temperature ventilation systems.
When operating the 330195-02-12-05-05 probe, you must precisely adjust the initial gap voltage within the linear range using a multimeter, protect the cable and connectors by maintaining a minimum bend radius of 25.4 mm with proper oil sealing, and ensure a secure and vibration-resistant mounting by strictly adhering to the 13.6 N·m maximum torque to prevent mechanical loosening or thread damage.
Alternative Names
330195 02 12 05 05
330195-02-12-05-CN
330195-02-12-05-BR
33O195-O2-12-O5-O5
330I95-02-I2-05-05
33OI95-O2-I2-O5-O5
330195-02-12-05-05
330195-02-12-10-05
330195-02-12-15-05
330195-02-12-20-05
330195-02-12-50-05
330195-02-12-90-05
Technical notes
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. Specifically, this 330195-02-12-05-05 model features an 8mm reverse-mount probe with 3/8-24 UNF threads, a 12mm unthreaded length, a 0.5-meter total length, and multiple international agency approvals.
FAQ View All FAQ
-
What is 330195-02-12-05-05?It is a Bently Nevada 3300 XL 8mm reverse mount proximity probe, used to measure shaft vibration and position.
-
How does 330195-02-12-05-05 work?It uses eddy current technology to measure the gap change between the probe tip and the target metal surface without physical contact.
-
How to correctly install 330195-02-12-05-05?Thread it into the housing backward, set the proper initial gap voltage using a voltmeter, and lock it tight.
-
Why is routine maintenance important for 330195-02-12-05-05?Regular inspection prevents oil contamination on connectors and ensures early detection of mechanical wear, avoiding false alarms.
-
What external device does 330195-02-12-05-05 need to connect to?It must connect to a 3300 XL Proximitor Sensor via an extension cable, and then to a monitoring system (like Bently Nevada 3500).
