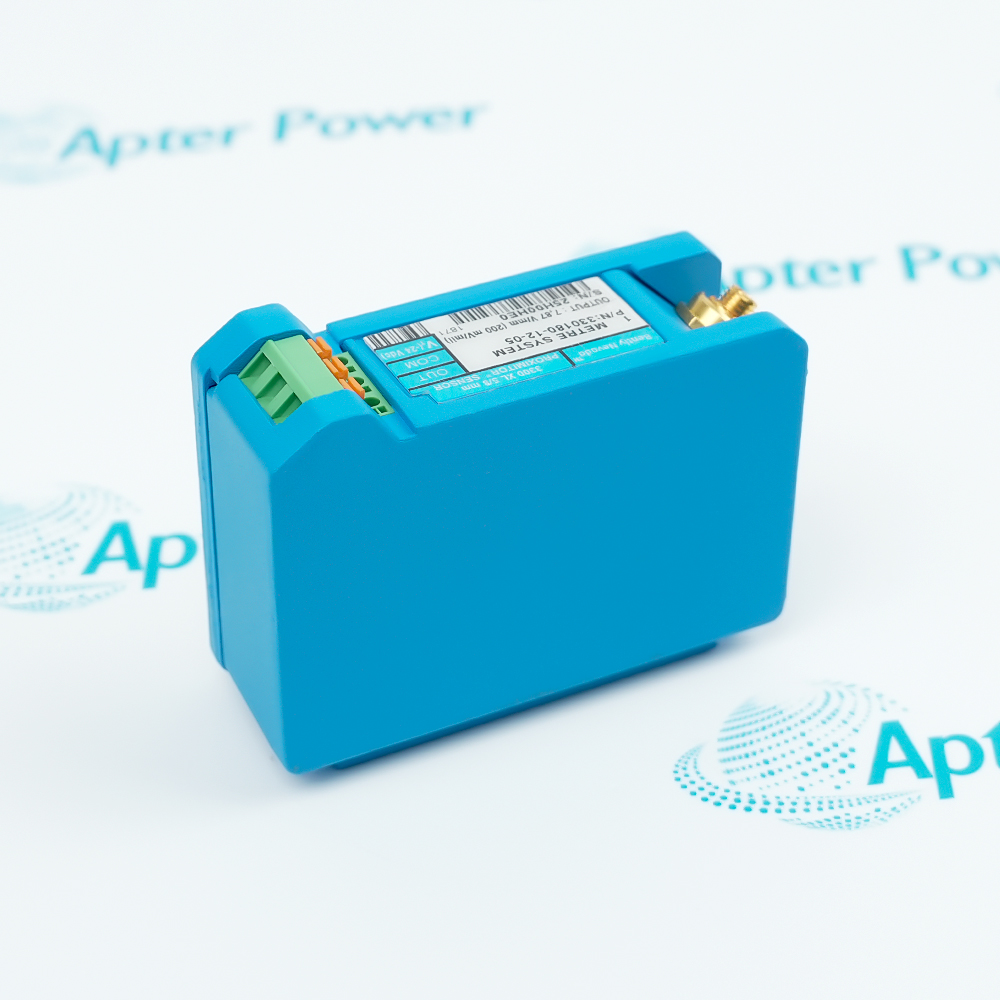

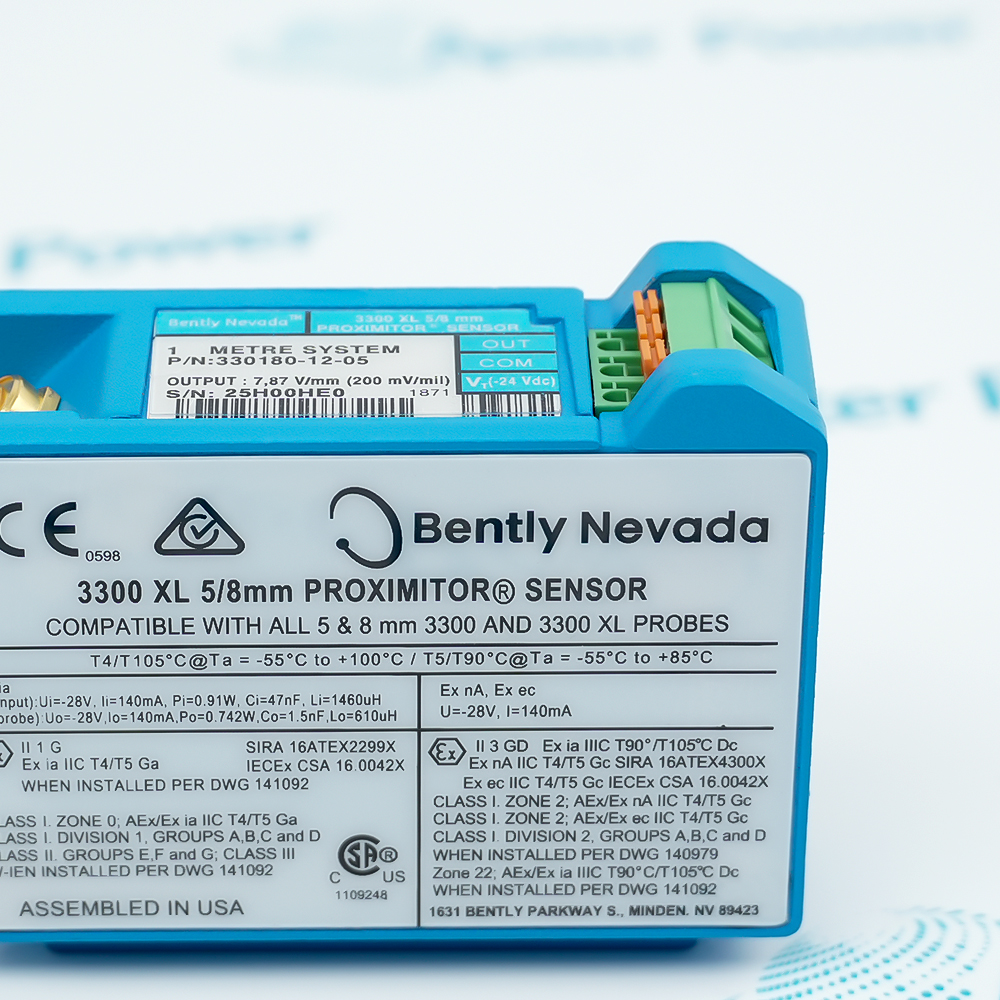

The 330180-12-05 is a Bently Nevada Proximitor sensor in the 3300 XL Proximity Transducer System series, composed of an electronic circuit, a coaxial connector, a SpringLoc terminal strip, and an isolating base to form a signal conditioning unit. Its codes represent a 3300 XL Proximitor base model (330180), a 1.0-meter total system length without mounting hardware (12), and multiple country hazardous area agency approvals including CSA, ATEX, and IECEx (05).
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers advanced performance in eddy current proximity transducer technology. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. This system configuration supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components, including the 3300 5 mm probe for applications with restricted mounting space.
The 3300 XL Proximitor Sensor incorporates physical packaging suitable for high-density DIN-rail installations or traditional panel mount configurations, sharing an identical 4-hole mounting footprint with older Proximitor Sensor designs. The mounting base provides electrical isolation, eliminating the requirement for separate isolator plates. High immunity to radio frequency interference (RFI) and electromagnetic interference (EMI) allows installation in fiberglass housings without adverse effects from nearby radio frequency signals.
This immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, reducing installation costs and complexity. The 3300 XL SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms prone to loosening.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330180-12-05 Proximitor Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Conditioning radial vibration measurement signals for natural gas compressor bearings on offshore drilling platforms.
Petrochemical and Oil Refining
Continuously monitoring the axial displacement of large centrifugal pumps in refinery hydrocracking units.
Thermal Power Generation
Conditioning shaft vibration signals for steam turbine generator sets in coal-fired or gas-fired power plants.
Nuclear Power Generation
Conditioning position monitoring signals for reactor coolant pump and main feedwater pump shafts inside nuclear islands.
Hydroelectric Power Generation
Monitoring the low-frequency radial runout of large hydro-turbine generator shafts.
Wind Power Generation
Conditioning vibration signals for main shafts and high-speed shafts in megawatt-class wind turbine gearboxes.
Before utilizing the 330180-12-05 Proximitor sensor, verify the 1.0-meter total system length constraint; the combined length of the probe and extension cable must equal exactly 1.0 meter, and mixing components of other lengths is strictly prohibited.
Check the field negative DC power supply and specific hazardous-area approval requirements. Field wiring must strictly follow the three-terminal definitions, utilizing the SpringLoc terminal strip to secure wires directly while ensuring the isolating base remains intact to prevent ground interference.
The 330180-12-05 Proximitor Sensor conditions signals within a 1.0-meter total system length to provide an output voltage directly proportional to the distance between the paired probe tip and the observed conductive surface, measuring both static position and dynamic vibration values. This component is applied for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 330108-12-05 represents a 3300 XL Proximitor Sensor
What is the main working principle of the 330103-00-16-50-12-00 model?
The 330180-12-05 Proximitor sensor supplies an RF signal to the probe, detects circuit impedance changes, and outputs a voltage proportional to distance.
What product series does the 330180-12-05 model belong to?
It belongs to the Bently Nevada 3300 XL Proximity Transducer System series.
What is the measurement range conditioned by the 330180-12-05 model?
When paired with a standard 3300 XL 8 mm probe, the linear measurement range is 2.0 mm.
