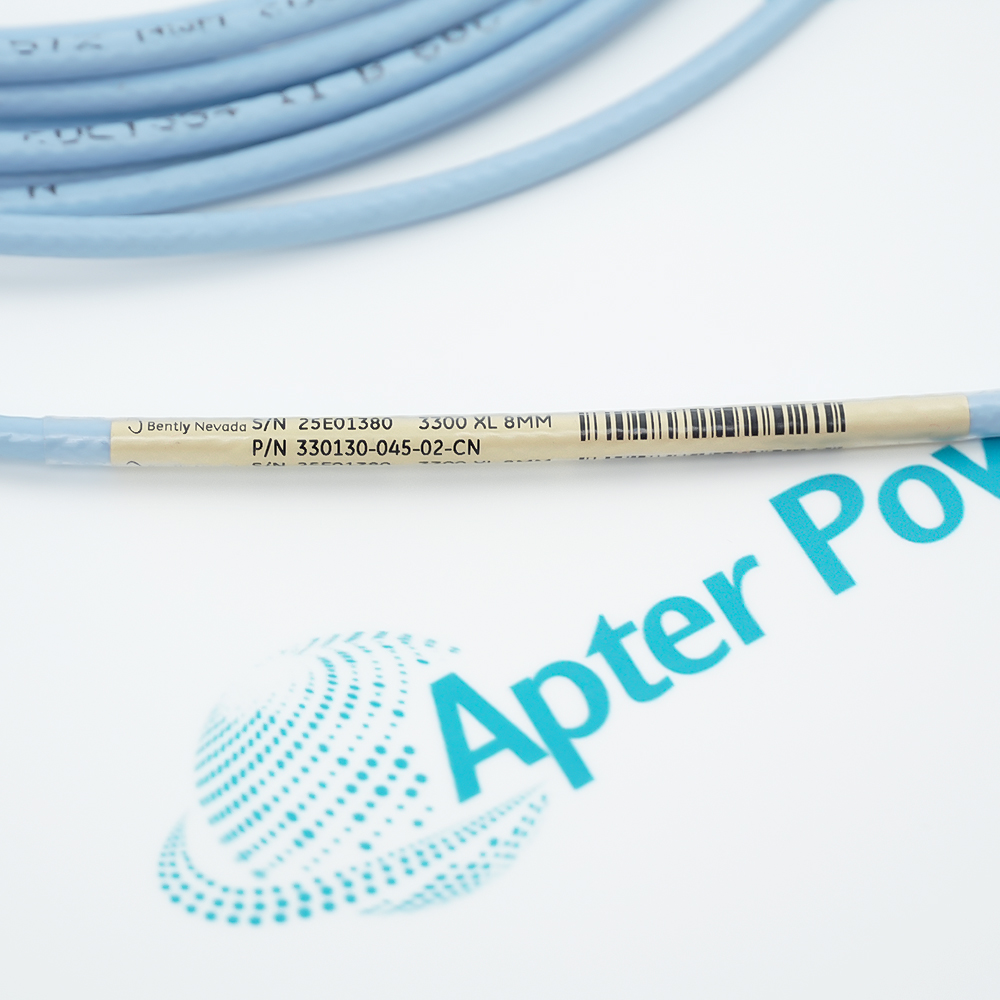

The 330130-045-02-CN is a high-performance standard extension cable specifically designed for the 3300 XL 8mm eddy current proximity transducer system. Serving as the critical link between the eddy current probe and the proximitor sensor, this cable ensures high stability for the entire monitoring system through high-precision, low-loss signal transmission.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-045-02-CN Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitors radial shaft vibration, axial thrust position, and speed to prevent catastrophic rotor-to-stator rubbing during high-load electricity generation.
Hydroelectric Power Generation
Monitors the runout of the massive main shaft and lower guide bearings to detect hydraulic unbalance or structural misalignment.
Petrochemical Refining
Measures the shaft displacement and vibration of fluid-film bearings handling volatile hydrocarbons, ensuring explosive-gas safety via its NEPSI/ATEX explosion-proof certification.
Iron and Steel Metallurgy
Tracks the thermal expansion and oil-film bearing health of large-capacity air blowers operating under severe dust and high-temperature conditions.
Wind Power Generation
Tracks mechanical displacement and vibration signatures to predict early bearing wear caused by turbulent, variable wind loads.
Nuclear Power Plants
Delivers highly accurate thrust position feedback to safeguard critical non-nuclear island rotating assets under stringent regulatory compliance.
When operating the 330130-045-02-CN extension cable, strict adherence to the specified 5-meter system length is mandatory to ensure API 670 linear range and accuracy without recalibration. During installation, maintain the minimum bend radius of 25.4 mm (1.0 inch) to prevent internal coaxial damage, and ensure the ClickLoc® connector protectors are fully sealed against oil and moisture ingress.
Lastly, route the cable through dedicated, grounded conduits away from high-voltage lines to eliminate electromagnetic interference, and strictly verify the "-CN" hazardous area certification markings before deploying in explosive environments.
The 330130-045-02-CN is a 4.5-meter armored extension cable for the Bently Nevada 3300 XL system, connecting 8mm probes to Proximitors. Featuring 75-ohm triaxial FEP insulation and a stainless steel armored jacket for crush protection, this -51°C to +177°C hardware is NEPSI intrinsically safe certified for heavy-stress, fluid-film bearing monitoring.
It is a dedicated 4.5-meter stainless steel armored extension cable belonging to the Bently Nevada 3300 XL 8mm probe system.
How to correctly connect and use products like the 330130-045-02-CN?
During usage, tightly screw and secure the low-insertion-loss coaxial connectors at both ends of the cable onto the 3300 XL probe and Proximitor sensor, ensuring the armor layer is properly grounded.
What probe length should the 330130-045-02-CN be paired with to function properly?
This 4.5-meter cable must be paired with a 0.5m probe to form a 5.0m system, or with a 1.0m probe for a 5.5m system, mixing with other lengths is strictly prohibited.
What advantages does the stainless steel armor provide to the 330130-045-02-CN?
The armored conduit provides robust physical protection, preventing abrasive wear from sharp objects, external crushing, or accidental tool damage during maintenance.
What is the minimum bend radius of the 330130-045-02-CN during installation routing?
Due to its stainless steel armor, the physical bend radius along the routing path must not be less than 31.8 mm (1.25 inches) to prevent armor latch breakage or core crushing.
