Get a quick price for 330130-040-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330130-040-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-040-02-00
-
Estimated shipping dimensions:28x27x3cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Cable Family:3300 XL standard extension cable
-
Selected Electrical Length:040 = 4.0 m
-
Cable Execution:02 = standard cable with connector protector
-
Connector Protector:Included by option 02
-
Agency Approval Option:00 = not required
-
Probe Pairing for This Cable:1 m probe + 4 m extension = 5 m system
-
Nominal Center-Conductor Resistance:1.0 +/- 0.2 ohm; 4 m extension
-
Nominal Outer-Conductor Resistance:0.26 +/- 0.05 ohm; 4 m extension
-
Cable Capacitance:69.9 pF/m typical
-
Minimum Cable Bend Radius:25.4 mm
-
Cable Impedance:75 ohm triaxial
-
Cable Insulation:Fluorinated ethylene propylene (FEP)
Information
Overview
Manuals
Common Applications
Product Precautions

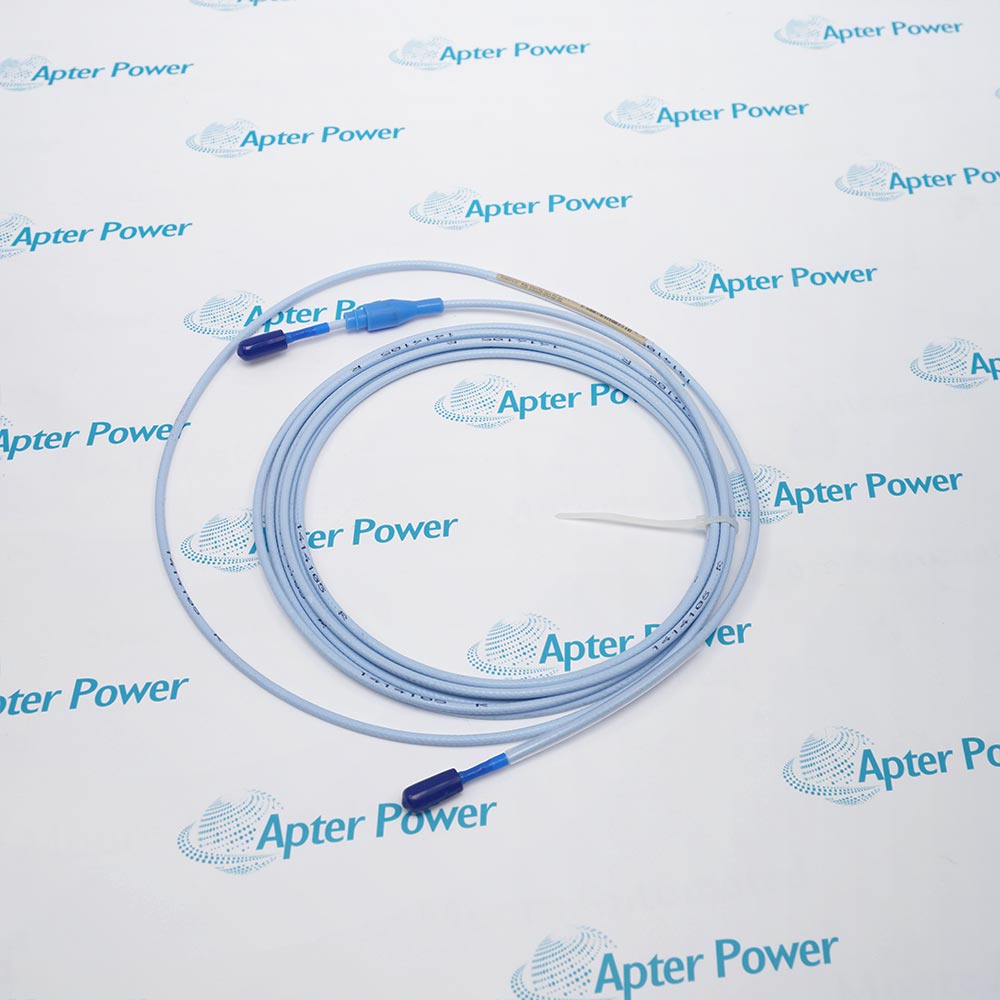

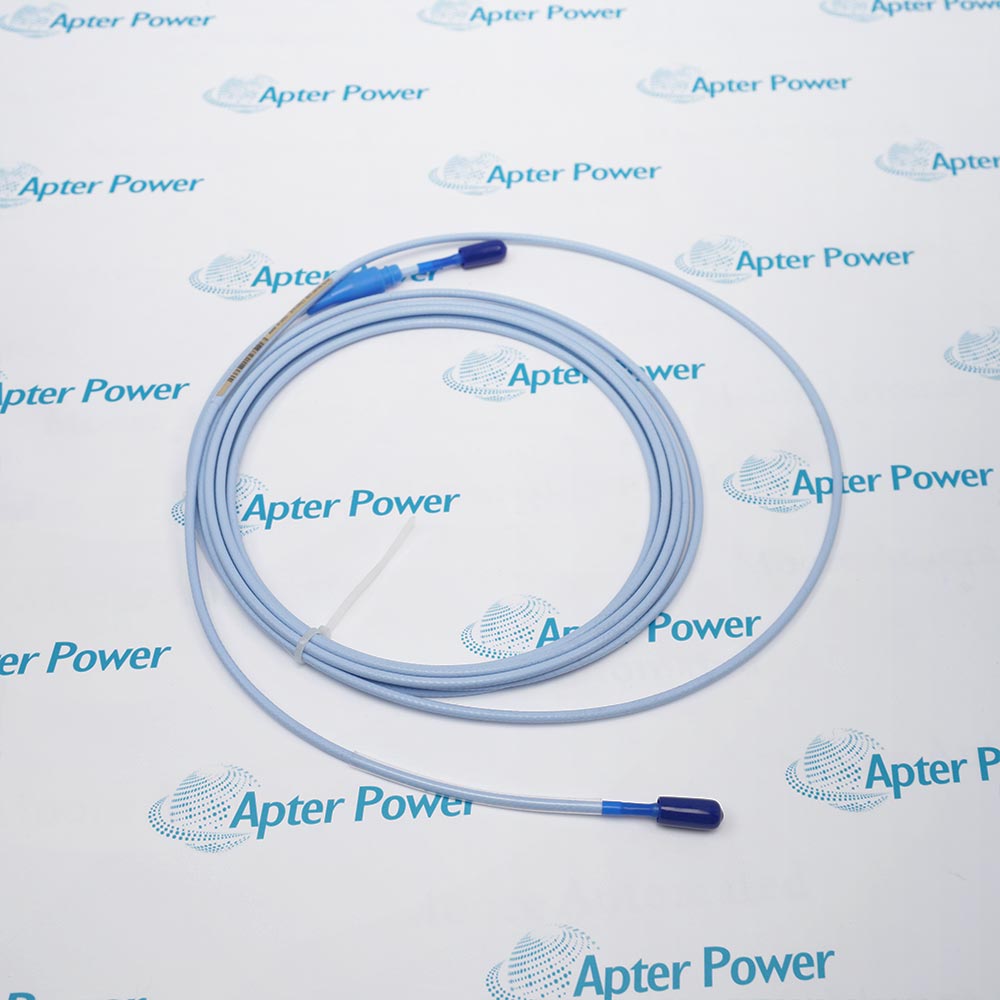

Bently Nevada 330130-040-02-00 contributes four metres of coaxial length between an XL 8 mm probe and its conditioner. With a one-metre probe, the protected ClickLoc junctions complete the selected five-metre electrical system.
- Completes a five-metre channel when paired with a one-metre probe.
- Uses the standard unarmored cable construction.
- Includes connector protectors at the service junctions through option 02.
- Retains separate core and jacket continuity checks for the four-metre cable.
The cable extends the probe connection to the Proximitor while preserving the calibrated total electrical length. Protected connectors, supported routing and correct five-metre pairing matter more than physical reach alone.
Important Notice: The final 00 does not add an agency approval. Check both connector protectors and use a one-metre probe with the matching five-metre Proximitor.
Bently Nevada 330130-040-02-00 Manuals & Downloads
Bently Nevada 330130-040-02-00 Official Technical Reference (PDF)Bently Nevada 330130-040-02-00 Installation & Commissioning Guide (PDF)
The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this extension cable. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.
Five-metre proximity channels
Join a one-metre XL 8 mm probe to the matching conditioner.
Protected service junctions
Use the supplied protectors where the probe and sensor connections require environmental protection.
Bearing vibration measurements
Carry the sensing signal for relative shaft-motion monitoring.
Cable continuity service
Check core and jacket paths separately before reconnecting the system.
Apply these checks to the exact Bently Nevada 330130-040-02-00 item before returning its monitoring path to service.
1
Confirm that a 1 m probe plus this 4 m extension equals the five-metre conditioner selection.
2
Keep the 25.4 mm minimum bend radius and support the unarmored route.
3
Install both connector protectors without trapping contamination inside the junction.
4
Join the gold ClickLoc connectors finger tight and electrically insulate the connections from ground.
5
Disconnect the cable before separate core and jacket resistance measurements.
6
Do not count monitor field wiring as part of the probe-plus-extension electrical length.
7
Apply cable and conditioner temperature limits at their respective installed locations.
8
Complete a static gap and dynamic channel check after reconnection.
Technical notes
The final 00 does not add an agency approval. Check both connector protectors and use a one-metre probe with the matching five-metre Proximitor.
FAQ View All FAQ
-
Which probe length completes 330130-040-02-00?A 1 m probe plus this 4 m extension makes the required 5 m electrical chain.
-
What does cable option 02 add to 330130-040-02-00?It selects standard cable with connector protectors; it does not add stainless-steel armor.
-
Which resistance paths are checked on 330130-040-02-00?Check center-to-center core continuity separately from outer-conductor continuity while the cable is disconnected.
-
Can spare cable be coiled tightly when routing 330130-040-02-00?No. Maintain at least the specified 25.4 mm bend radius and avoid crushing or persistent strain.
-
Does 330130-040-02-00 replace the three-conductor monitor field wire?No. It is the coaxial extension within the transducer chain; field wiring from the Proximitor to the monitor is a separate circuit.
-
What approval is selected by 330130-040-02-00?The last 00 means agency approval is not required for this order code.
-
Why must both protectors on 330130-040-02-00 be inspected?The probe-to-extension and extension-to-Proximitor junctions both depend on clean, protected ClickLoc connections.
-
What completes commissioning after fitting 330130-040-02-00?Verify the complete five-metre identity, static gap, signal continuity and expected dynamic response at the monitor.
