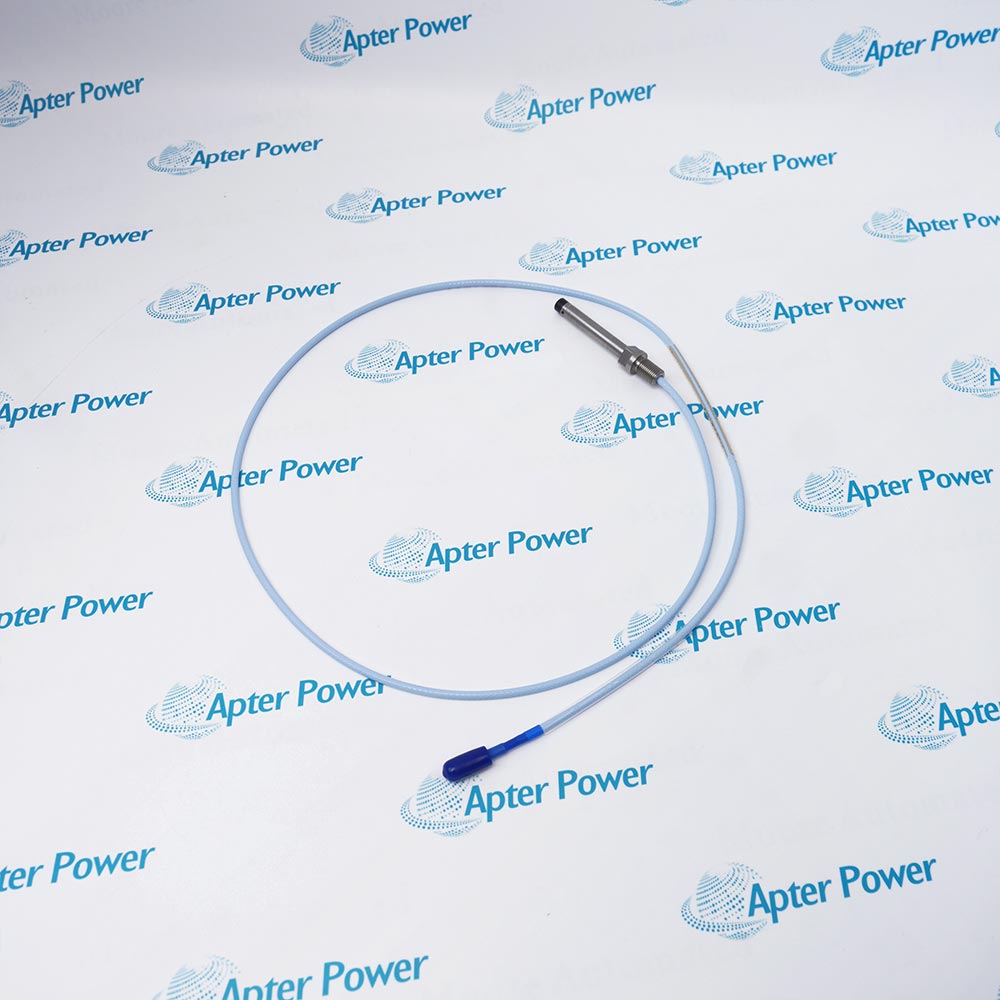

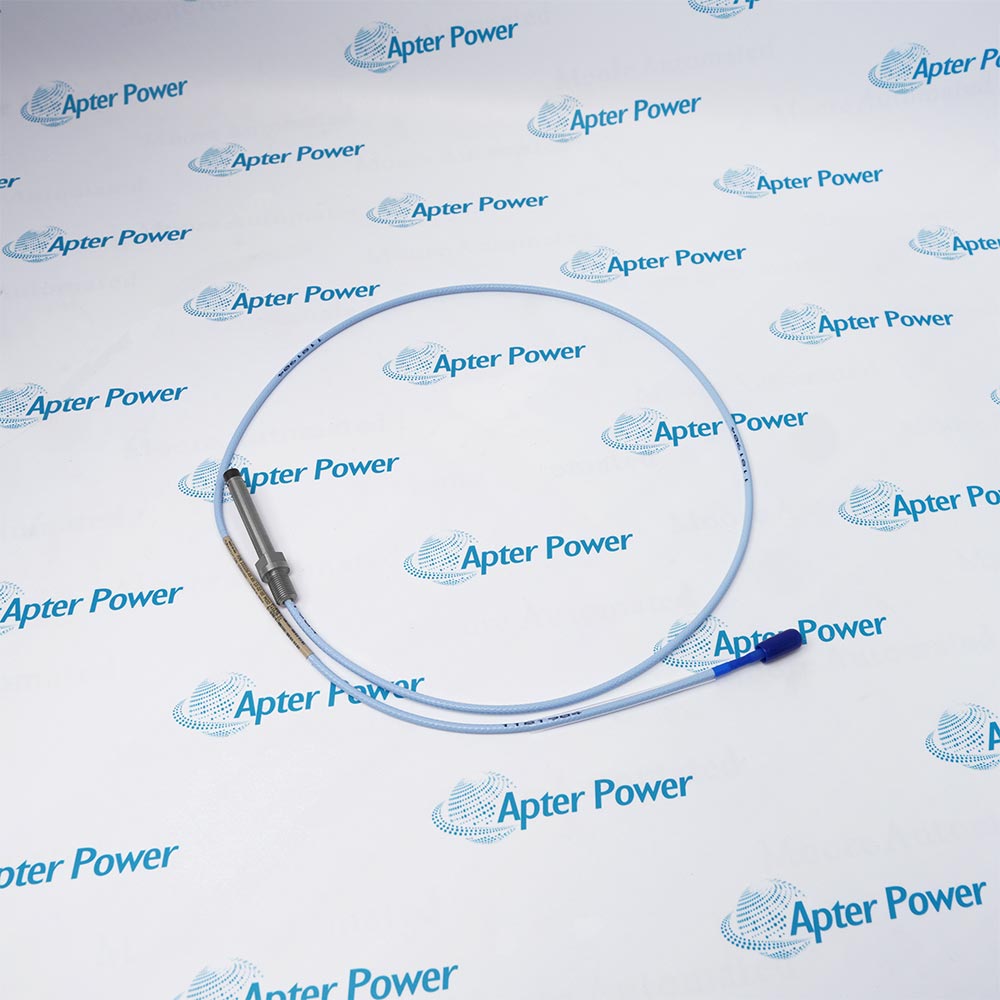

Get a quick price for 330106-XX-XX-10-02-00 MOD:145628-01
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330106-XX-XX-10-02-00 MOD:145628-01
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330106-XX-XX-10-02-00 MOD:145628-01
-
Estimated shipping dimensions:1x0.9x118cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Family:3300 XL 8 mm reverse mount
-
Base Family:330106
-
Mounting Thread:M10 x 1 family execution
-
Total Length:1.0 m from code 10
-
Connector:Miniature ClickLoc coaxial connector from code 02
-
Cable Type:Standard cable from code 02
-
Agency Option:00 = not required
-
Modification Identifier:MOD:145628-01 retained; function not decoded
-
Linear Range:2 mm (80 mil) system reference
-
Nominal Sensitivity:7.87 V/mm (200 mV/mil) system reference
-
System Rule:Match the complete probe, cable and Proximitor electrical length
Information
Overview
Manuals
Common Applications
Product Precautions
Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 adds a documented reverse-mount probe execution to the installed machinery-monitoring path.
- Uses the 330106 M10 x 1 reverse-mount probe family.
- Carries a 1.0 m standard lead with miniature ClickLoc connector.
- Retains both XX geometry fields without substituting standard dimensions.
- Preserves MOD:145628-01 as an unresolved special identifier.
The reverse-mount sleeve changes access and retention compared with a standard threaded probe. Special geometry and modification details must be verified from the supplied item record before installation.
Important Notice: Do not interpret the XX geometry or MOD:145628-01 without the controlled special drawing.
Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 Manuals & Downloads
Official 3300 XL Reverse-Mount Probe Ordering Excerpt (PDF)Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 Installation & Commissioning Guide (PDF)
The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this reverse-mount probe. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.
Reverse-mount installations
Fit a documented 330106 sleeve arrangement where rear access is part of the machine design.
Radial vibration
Measure shaft displacement through a matched 3300 XL 8 mm chain.
Restricted-access service
Use the reverse-mount construction when the probe must be installed from the back side.
Exact spares control
Retain the XX and MOD identifiers during replacement review.
Use the complete Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 identity and the applicable controlled procedure before work.
1
Verify the complete 330106-XX-XX-10-02-00 MOD:145628-01 marking before work.
2
Do not replace the XX geometry fields with the standard 05-30 catalog dimensions.
3
Confirm the actual reverse-mount sleeve and M10 x 1 interface from the item and machine drawing.
4
Keep the 1.0 m standard lead and ClickLoc joint free from strain.
5
Treat MOD:145628-01 as a controlled special identifier until its drawing is available.
6
Match the full electrical length to the installed Proximitor.
7
Set the probe gap from the matched system response.
8
Record sleeve retention, gap voltage, OK state and dynamic response before release.
Technical notes
Do not interpret the XX geometry or MOD:145628-01 without the controlled special drawing.
FAQ View All FAQ
-
What family is Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?It uses the 330106 reverse-mount 3300 XL 8 mm probe family.
-
Which mounting thread applies to Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?The 330106 family is the M10 x 1 reverse-mount execution.
-
What do the XX fields mean on Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?They are retained exactly; the selected source does not decode the special geometry.
-
What total lead length is shown by Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?Code 10 identifies a 1.0 m total lead.
-
Which connector is used by Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?Code 02 identifies a miniature ClickLoc connector with standard cable.
-
Which agency option is selected for Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?The 00 segment means approval is not required in the standard ordering table.
-
What does MOD:145628-01 mean on Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?It remains an unresolved special modification identifier and must be checked against the item record.
-
What confirms commissioning of Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01?Verify the exact sleeve arrangement, matched electrical length, installed gap, OK state and dynamic response.
