Technical specifications for 330106-05-30-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330106-05-30-10-02-00
-
Estimated shipping dimensions:20.4x22.2x3.7cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Mounting style:Reverse mount
-
Probe thread:M10 x 1
-
Unthreaded length:5 mm
-
Overall case length:30 mm
-
Total length:1.0 m
-
Connector option:Standard ClickLoc without protector
-
Agency approval:None
Information
Overview
Manuals
Common Applications
Product Precautions

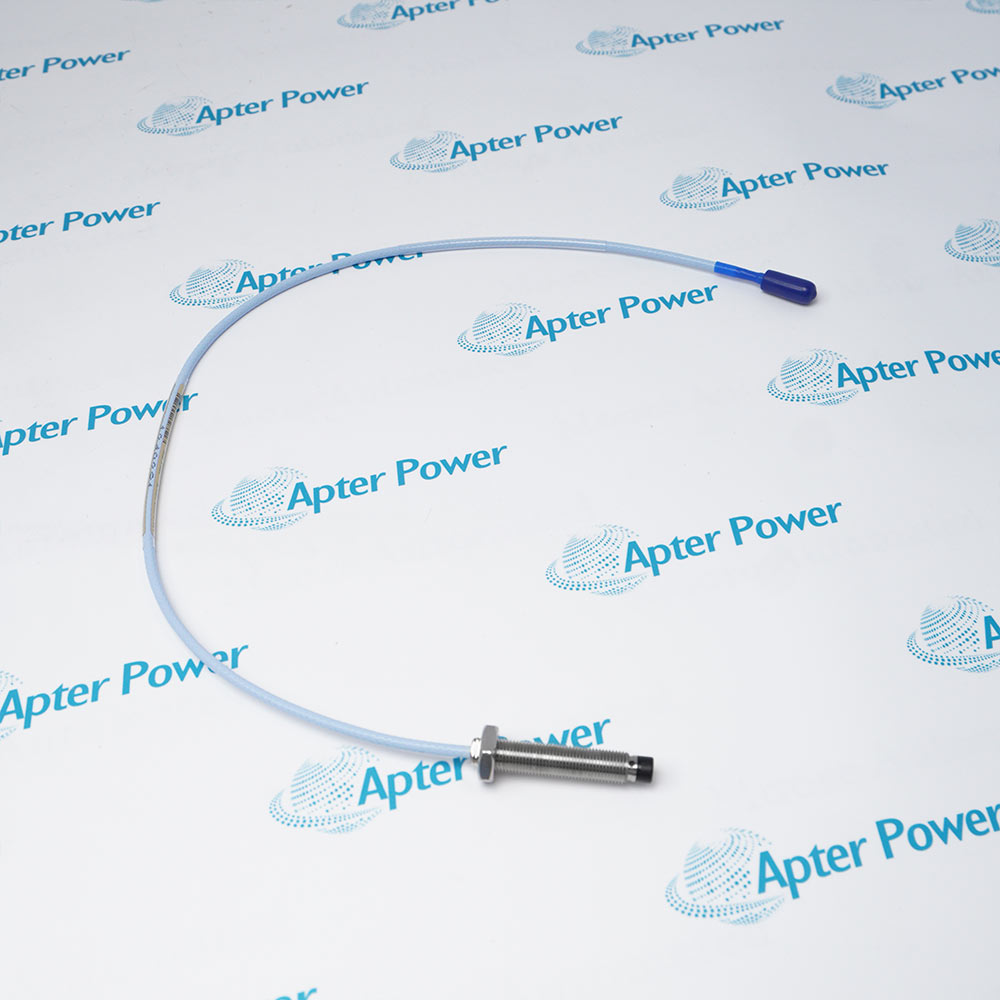

Bently Nevada 330106-05-30-10-02-00 is a reverse-mount M10 x 1 3300 XL 8 mm probe with the fixed 5 mm unthreaded and 30 mm case configuration, plus a 1.0 m total lead. It uses a standard ClickLoc connector without protector and specifies no agency approval.
- Reverse-mount M10 x 1 construction
- Fixed 5 mm by 30 mm case
- One-metre system configuration
- Standard uncapped ClickLoc connector
Mount 330106-05-30-10-02-00 from the rear of the verified metric bracket and keep the case within the reverse-mount torque limit. Use it only with the documented one-metre system arrangement and confirm target clearance before final gapping.
Important Notice: Confirm quotation scope, physical marking, included accessories and installed-system compatibility before work.
Apter Power 330106-05-30-10-02-00 Manuals and Guides
Apter Power 330106-05-30-10-02-00 Product Technical ReferenceBently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM
Important Notice: The first document is an Apter Power model-specific technical reference; the second link is the unmodified official manufacturer publication.
Metric reverse-mount bracket
Fits supported machine brackets with rear access.
Bearing vibration monitoring
Measures radial shaft motion on fluid-film bearing machines.
Position or Keyphasor channel
Supports verified static-position or phase-reference service.
Short-loop machinery installation
Uses the published one-metre probe and sensor configuration.
Read the applicable Bently Nevada documentation before work. Verify 330106-05-30-10-02-00 from the physical marking and the installed system record.
1
Verify 330106-05-30-10-02-00 from the physical marking.
2
Confirm the fixed 5 mm unthreaded and 30 mm case dimensions.
3
Keep M10 x 1 thread engagement within 15 mm.
4
Apply no more than the published 7.5 N m reverse-mount case torque.
5
Protect the option-02 connector and avoid contaminating the gold-plated contacts.
6
Do not add an extension cable to the documented one-metre system arrangement.
7
Verify target size, shaft geometry and separation before setting gap.
8
Complete polarity, frequency-response and configured monitor tests before release.
Technical notes
Mount 330106-05-30-10-02-00 from the rear of the verified metric bracket and keep the case within the reverse-mount torque limit. Use it only with the documented one-metre system arrangement and confirm target clearance before final gapping.
FAQ View All FAQ
-
What distinguishes the case of 330106-05-30-10-02-00 from a configurable forward probe?It uses the fixed reverse-mount metric geometry of 5 mm unthreaded length and 30 mm overall case.
-
How tightly may 330106-05-30-10-02-00 be secured?The reverse-mount probe case torque limit is 7.5 N m.
-
Can a standard extension cable be inserted into the one-metre 330106-05-30-10-02-00 loop?No. The manufacturer states that one-metre systems do not use an extension cable.
-
Which Proximitor length matches 330106-05-30-10-02-00?Use the documented one-metre 3300 XL 8 mm Proximitor Sensor configuration.
-
What M10 thread engagement limit applies to 330106-05-30-10-02-00?The M10 x 1 case has a published maximum engagement of 15 mm.
-
How should the uncapped connection of 330106-05-30-10-02-00 be handled?Connector option 02 has no protector, so keep both ClickLoc contacts clean, dry and capped until mating.
-
What linear measurement span is available from 330106-05-30-10-02-00?The matched system provides a published 2 mm linear range from approximately 0.25 to 2.3 mm.
-
What shaft size should be reviewed before accepting 330106-05-30-10-02-00?The standard minimum shaft diameter is 50.8 mm and 76.2 mm is recommended.
