The 330105-02-12-05-12-05 is a reverse mount proximity probe belonging to the 3300 XL 8 mm Proximity Transducer System series, primarily used for vibration and position measurements of fluid-film bearing machines to output voltage signals proportional to the distance from the probe tip to the conductive target surface.

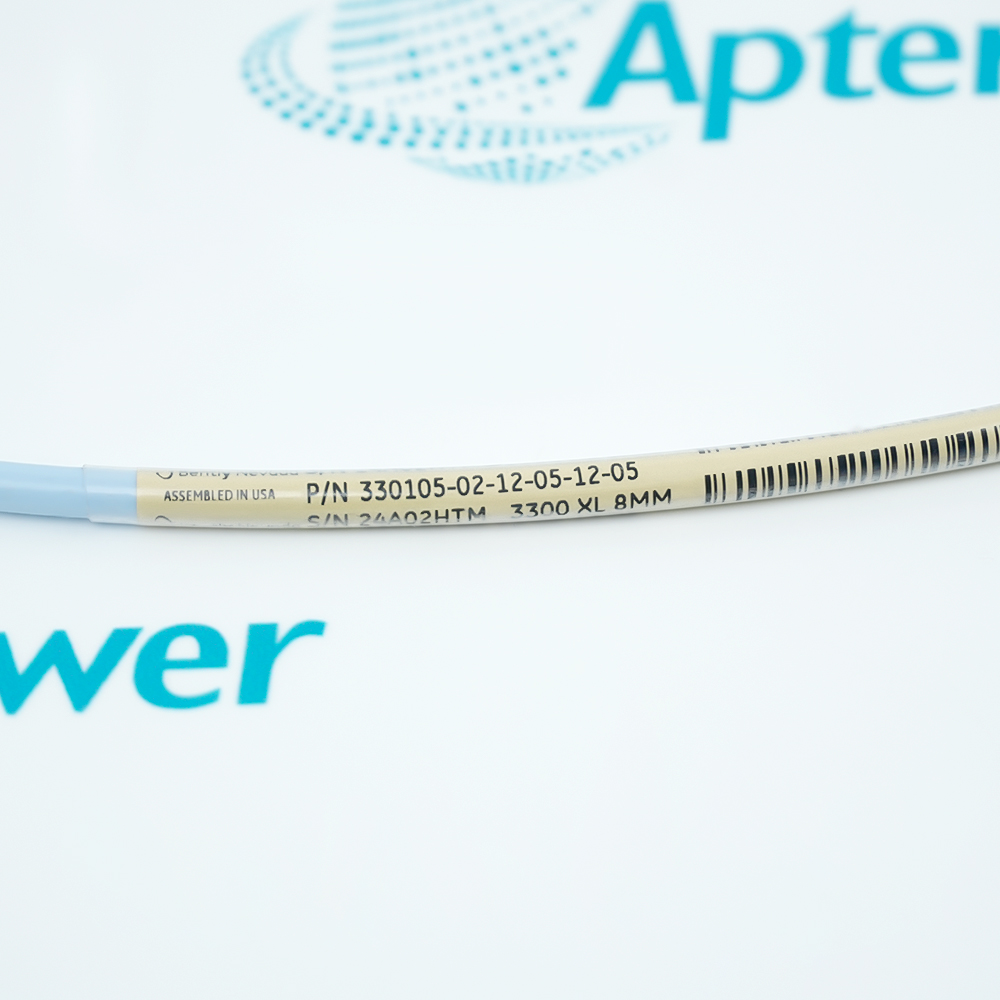

The Bently Nevada 330105-02-12-05-12-05 is a reverse mount proximity probe belonging to the 3300 XL 8 mm Proximity Transducer System series. This system delivers advanced performance in eddy current proximity transducer systems. When configured as a complete 5-meter system (by connecting the probe's 0.5-meter cable with a corresponding 4.5-meter extension cable), it fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
As part of the 3300 XL 8 mm family, this probe supports complete interchangeability with other 3300 XL probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Additionally, each component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components under applicable mounting conditions.
This specific model features 3/8-24 UNF threads, an internal FluidLoc fluid-sealing cable with a miniature ClickLoc coaxial connector, and safety certification approval codes from multiple international agencies including CSA, ATEX, and IECEx.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330105-02-12-05-12-05 Reverse Mount Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Refining
Measures centrifugal compressor shaft vibration and axial thrust position to detect rotor-to-stator contact.
Petrochemical Production
Used on high-speed ethylene compressor trains to measure radial dynamic displacement of shafts operating in volatile, high-pressure environments.
Thermal Power Generation
Monitors rotor thermal growth and shaft centerline motion on main steam turbines and boiler feed pumps.
Nuclear Power Plants
Installed on reactor coolant pumps and turbine-generator shafts to measure mechanical clearances inside the containment area.
Hydroelectric Power
Measures hydro-turbine shaft runout, bearing clearance, and alignment under water loads.
Chemical Processing
Used on corrosive fluid transfer pumps and chemical agitators to detect shaft misalignment and prevent mechanical seal failures.
This probe has a 0.5m cable and requires a 4.5m extension cable to complete the 5m total system length. Operating without the specified total length causes measurement errors. For reverse mounting, thread the probe from the outside of the machine case.
Clean the mounting sleeve before insertion. Do not exceed the specified torque on the connector. Inspect the ClickLoc connector for looseness and the cable for wear during scheduled maintenance. Operating limits for temperature, chemical exposure, and fluid pressure must remain within the specified datasheet parameters.
The 330105-02-12-05-12-05 reverse mount probe delivers a 2.0 mm linear measurement range, featuring a 3/8-24 UNF thread specification, a 1.2-inch overall case length, a 0.5-meter integral cable, and multiple hazardous area approvals, which complies fully with the API 670 Standard.
It is a Proximity Transducer manufactured by Bently Nevada.
What is the effective linear range of 330105-02-12-05-12-05?
Its effective linear measurement range is 2.0 mm.
What is the output sensitivity scale factor of 330105-02-12-05-12-05?
The system's Average Scale Factor is the standard 7.87 V/mm.
