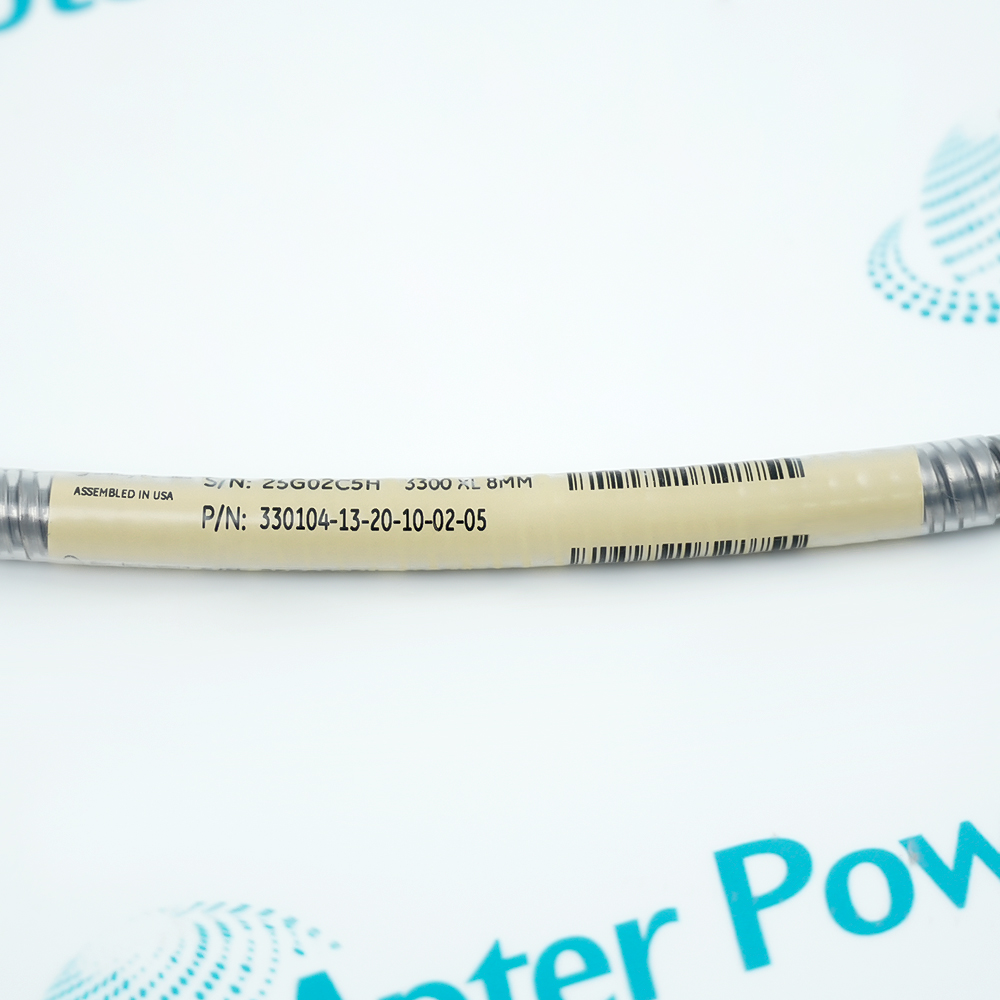

The 330104-13-20-10-02-05 is an 8 mm Proximity Probe. This non-contact instrument measures shaft vibration, axial displacement, Keyphasor speed, and eccentricity in rotating machinery like turbines, compressors, pumps, and fans.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-13-20-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
Used in large steam and gas turbine generators to monitor shaft vibration and axial displacement, preventing catastrophic friction rub between rotating and stationary components.
Oil & Gas
Employed on offshore drilling platforms and land pipelines to continuously monitor shaft tilt and speed of high-pressure water injection pumps and crude oil export pumps.
Petrochemical Industry
Monitors shaft vibration in core high-power centrifugal compressors, such as ethylene cracking gas compressors, ensuring the safety of continuous, high-risk production lines.
Metallurgical & Iron and Steel Industry
Applied in blast furnace blowers and Top Gas Recovery Turbine (TRT) units to analyze rotor centerline plots and evaluate bearing load conditions.
Mining & Mineral Processing Industry
Measures the axial float of input/output shafts in large mineral ore ball mills, crushers, and heavy-duty gearboxes.
Pipeline Transportation Industry
Performs remote condition monitoring on pipeline compressors in natural gas booster stations to protect the continuous operation of gas transmission networks.

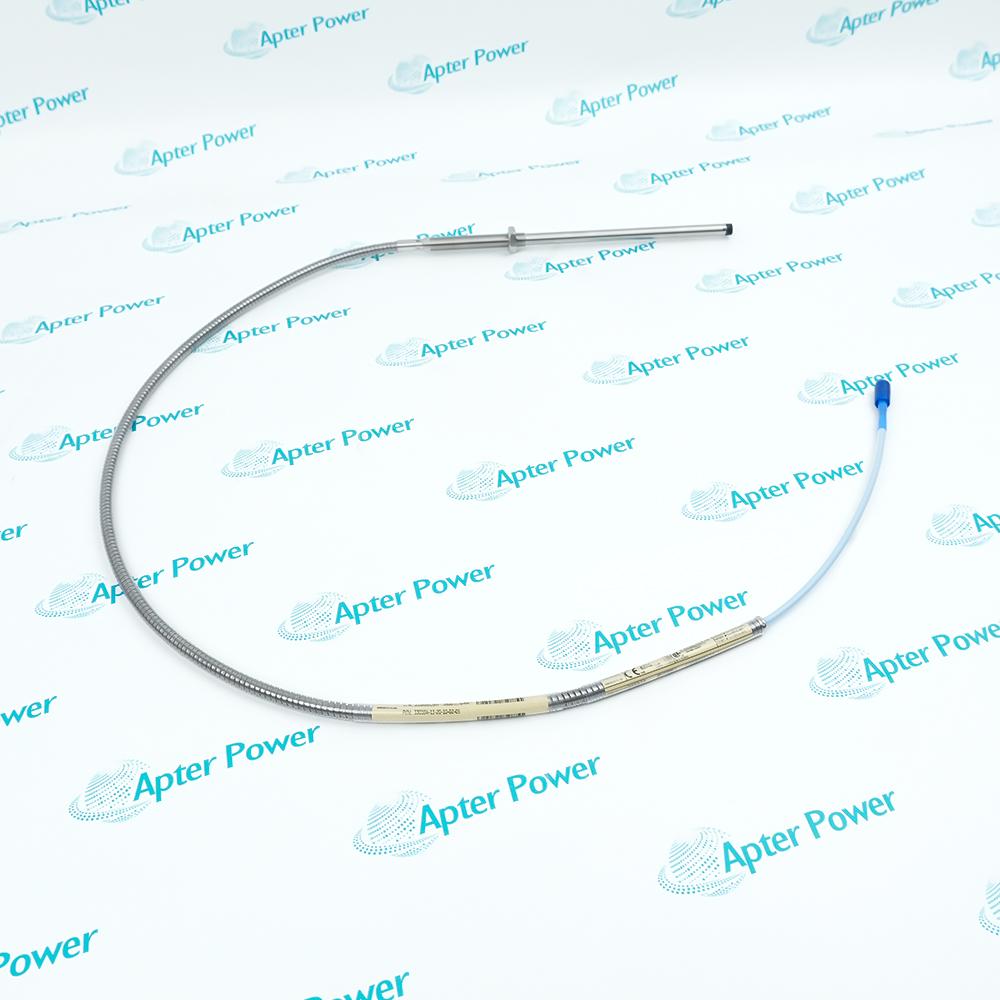

The probe includes an integral 1.0-meter cable. During actual system deployment, it must be configured with a matching 4.0-meter or 8.0-meter extension cable based on the overall specifications of the Proximitor. The system's total length must be brought to exactly 5.0 meters or 9.0 meters using cable connectors. Any mismatch in length will mismatch the inductance and capacitance parameters, leading to severe linearity measurement errors.
The standard linear range is 2.0 mm (80 mils), with a standard calibration sensitivity of 7.87 V/mm (200 mV/mil) when paired with a standard 3300 XL Proximitor. The probe tip and cable can operate continuously long-term in extreme wide-temperature environments ranging from -51 °C to +177 °C, meeting the high-temperature and oil-resistant requirements inside high-pressure bearing housings.
This is a Bently Nevada 3300 XL series 8 mm eddy current proximity transducer probe.
What are the primary applications for this type of product?
It measures shaft vibration, axial displacement, Keyphasor (speed) reference, and eccentricity on fluid-film bearing machinery such as turbines, compressors, pumps, and fans.
What complementary components are required to form a complete system with the 330104-13-20-10-02-05?
It must be paired with a 3300 XL extension cable and a 3300 XL Proximitor sensor to operate as a functional system.
