      330104-10-20-05-02-00

      3300 XL 8 mm Proximity Probe
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

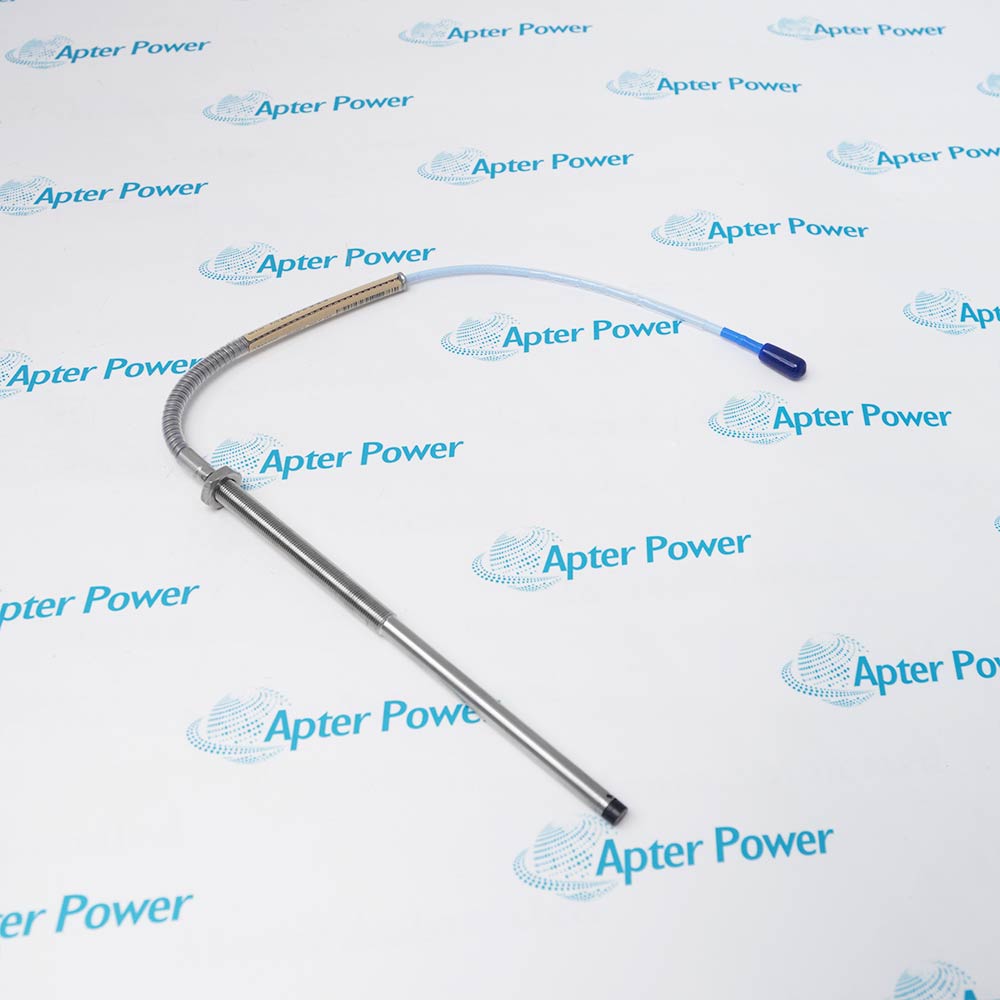

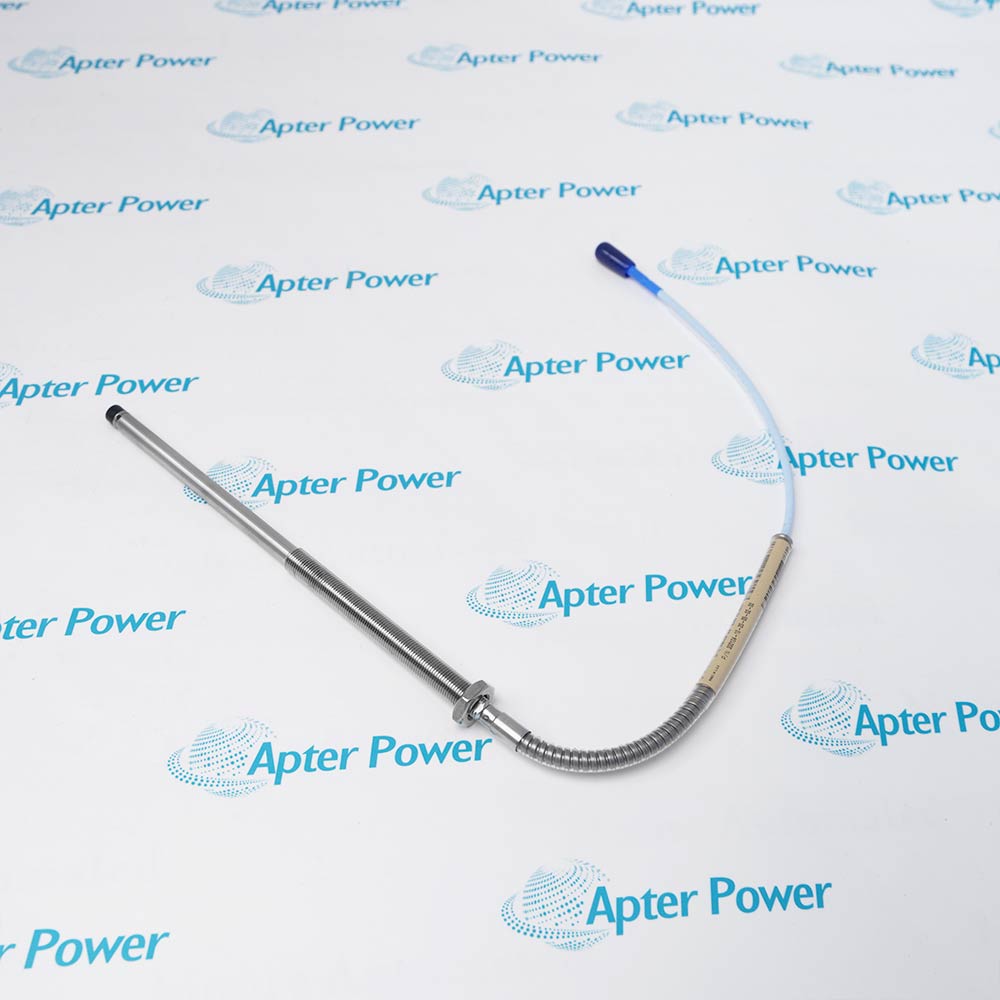

      Bently Nevada 330104-10-20-05-02-00 is a M10 x 1 armored 3300 xl 8 mm proximity probe with a 0.5 m lead and Miniature coaxial ClickLoc connection. It senses shaft-to-bearing relative displacement in a matched proximity transducer system.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330104-10-20-05-02-00
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330104-10-20-05-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330104-10-20-05-02-00
      • Estimated shipping dimensions:
        1.8x1.5x58cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        With armor
      • Mounting thread:
        M10 x 1
      • Unthreaded length:
        100 mm
      • Case length:
        200 mm
      • Total lead length:
        0.5 m
      • Connector option:
        Miniature coaxial ClickLoc
      • Approval option:
        Not required
      • Probe-tip diameter:
        8.0 mm
      • System linear range:
        2.0 mm (80 mils)
      • Recommended gap:
        1.27 mm (50 mils)
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz, +0/-3 dB
      • Probe cable impedance:
        75 ohm
      • Probe temperature:
        -52 to +177 deg C
      • Proximitor supply:
        -17.5 to -26 VDC
      • Field wiring:
        0.2 to 1.5 mm2
      • Maximum field wiring:
        305 m
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      330104-10-20-05-02-00 provides the documented armored sensing element for a matched Bently Nevada 3300 XL 8 mm Proximity Transducer System.
      • Detects shaft-to-bearing relative movement without mechanical contact
      • Forms the field sensing element of the matched eddy-current loop
      • Carries the probe signal through the specified service connection
      • Supports static-position and vibration measurements on rotating machinery

      The probe is fitted to the engineered M10 x 1 machine position and connected to the selected extension cable and Proximitor Sensor. Commissioning includes order-code, clearance, cable-route, total-system-length, static-gap and controlled response checks.

      Important Notice: Confirm 330104-10-20-05-02-00, M10 x 1 host thread, 100 mm unthreaded length, 200 mm case execution, with armor, Miniature coaxial ClickLoc, extension cable, Proximitor Sensor, total system length, target material, wiring, shielding, grounding, monitor configuration, static gap and controlled response-test results before commissioning.

      Apter Power 330104-10-20-05-02-00 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Radial shaft-vibration measurement
      Measures shaft motion relative to the bearing housing in a matched proximity loop.
      Axial position monitoring
      Provides the field sensing point for a documented thrust-position channel.
      Machine shaft centerline observation
      Supplies slow-roll and static-position information for the configured monitor.
      Probe replacement in a matched loop
      Restores the exact mechanical and cable execution without changing system identity.
      Read the applicable Bently Nevada installation instructions before work. Verify 330104-10-20-05-02-00, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 330104-10-20-05-02-00 marking, M10 x 1 thread and 200 mm case execution.
      2
      Place the monitored machine and associated protection channel in the approved maintenance state.
      3
      Protect the 8.0 mm probe tip and keep the mounting thread free from burrs and contamination.
      4
      Route the 0.5 m armored probe lead without sharp bends, crushing or tensile loading.
      5
      Keep the Miniature coaxial ClickLoc connection clean, dry and finger-tight.
      6
      Confirm the installed extension cable and Proximitor Sensor match the approved total system length.
      7
      Set the static gap within the documented linear region while maintaining target clearance.
      8
      Prove polarity, static position, dynamic response and alarm action before returning the channel to service.

      Technical notes

      Install 330104-10-20-05-02-00 in the documented M10 x 1 position and preserve the 100 mm unthreaded length, 200 mm case execution and 0.5 m lead routing. Match the probe to the approved total system length and Proximitor Sensor, set the static gap in the linear region and verify polarity and response before enabling protection logic.

      FAQ View All FAQ

      • What identity details must be checked before 330104-10-20-05-02-00 is removed?
        Confirm 330104-10-20-05-02-00, M10 x 1 host thread, 100 mm unthreaded length, 200 mm case execution, with armor, Miniature coaxial ClickLoc, extension cable, Proximitor Sensor, total system length, target material, wiring, shielding, grounding, monitor configuration, static gap and controlled response-test results before commissioning.
      • How does 330104-10-20-05-02-00 perform its documented 3300 xl 8 mm proximity probe role?
        Detects shaft-to-bearing relative movement without mechanical contact. It senses shaft-to-bearing relative displacement in a matched proximity transducer system.
      • Which Bently Nevada 3300 XL 8 mm Proximity Transducer System interfaces must be recorded for 330104-10-20-05-02-00?
        The probe is fitted to the engineered M10 x 1 machine position and connected to the selected extension cable and Proximitor Sensor. Commissioning includes order-code, clearance, cable-route, total-system-length, static-gap and controlled response checks.
      • What isolation and ESD controls apply while handling 330104-10-20-05-02-00?
        Place the monitored machine and associated protection channel in the approved maintenance state. Protect the 8.0 mm probe tip and keep the mounting thread free from burrs and contamination.
      • How should the installed configuration be restored after fitting 330104-10-20-05-02-00?
        Confirm the installed extension cable and Proximitor Sensor match the approved total system length.
      • Which diagnostic evidence confirms that 330104-10-20-05-02-00 is recognized correctly?
        Set the static gap within the documented linear region while maintaining target clearance.
      • What replacement records should be retained for 330104-10-20-05-02-00?
        Confirm the complete 330104-10-20-05-02-00 marking, M10 x 1 thread and 200 mm case execution. Keep the Miniature coaxial ClickLoc connection clean, dry and finger-tight.
      • What final acceptance test is required before 330104-10-20-05-02-00 returns to service?
        Prove polarity, static position, dynamic response and alarm action before returning the channel to service.
