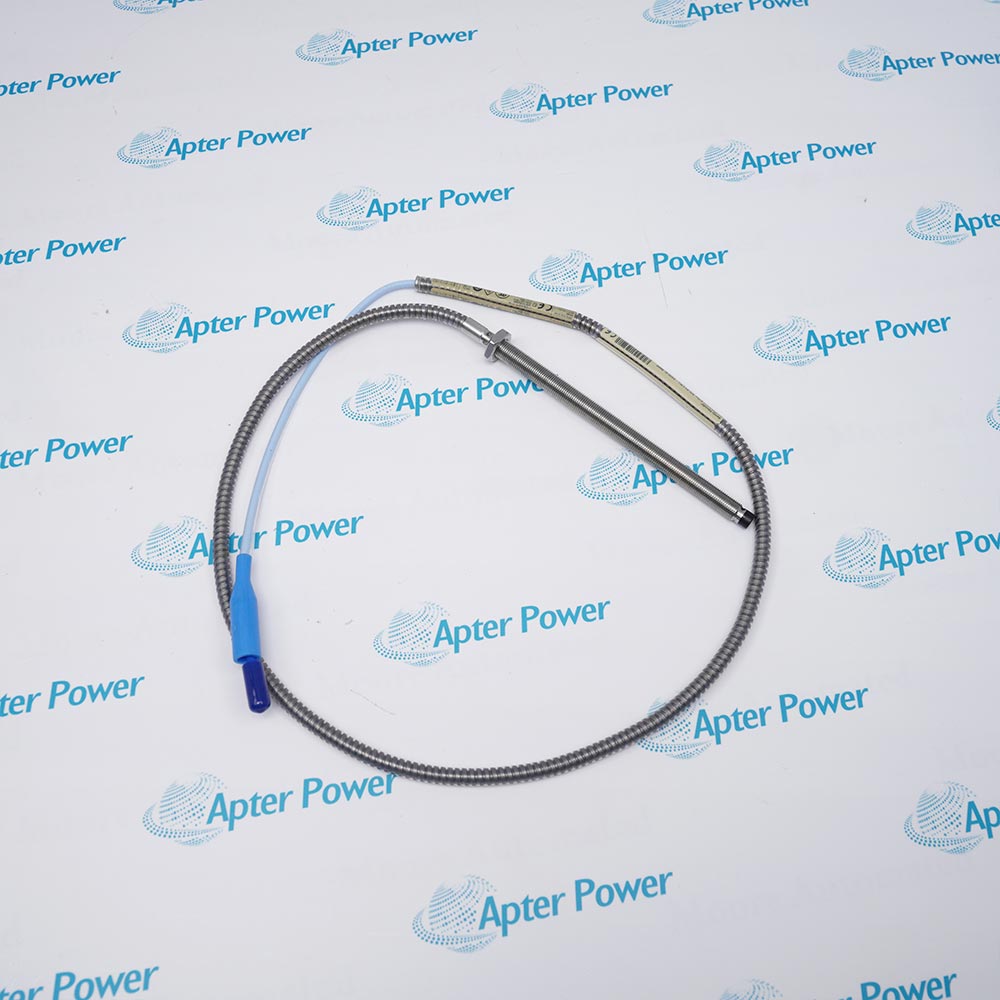

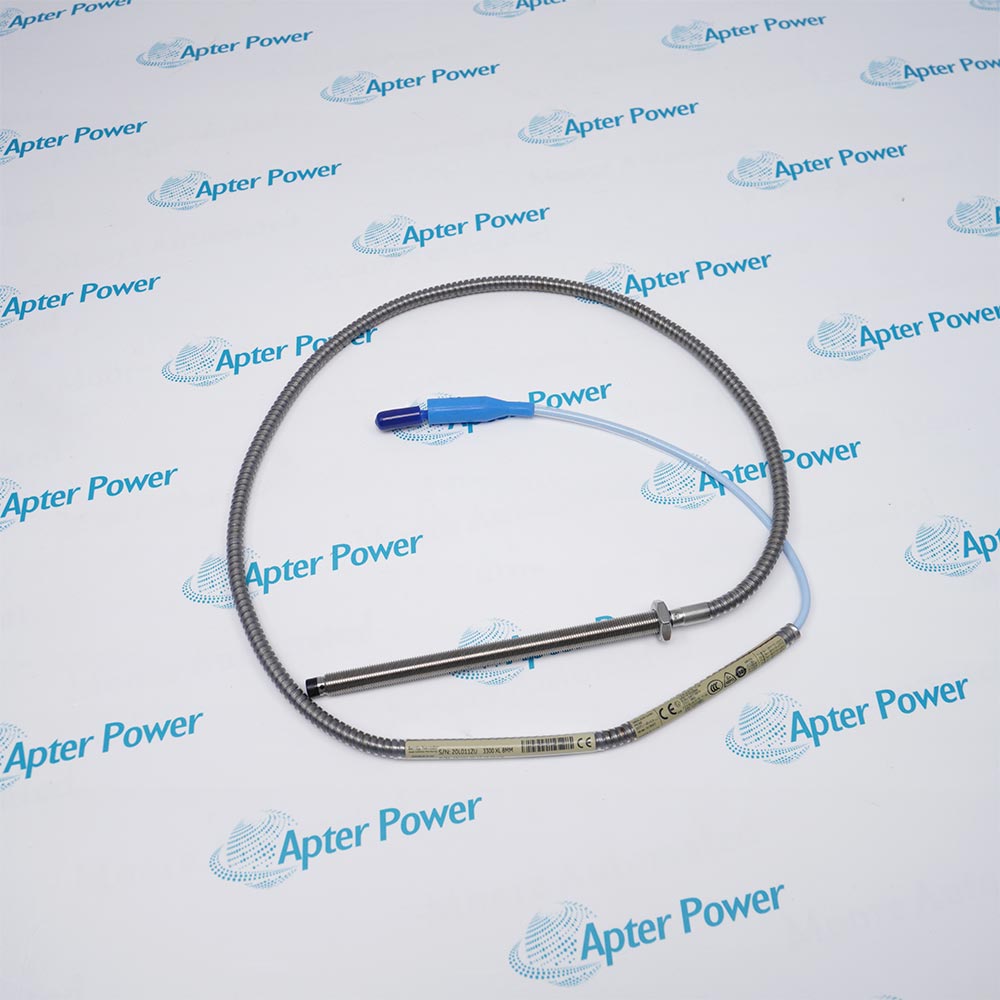

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330104-00-15-10-01-CN
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330104-00-15-10-01-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330104-00-15-10-01-CN
-
Estimated shipping dimensions:1.8x1.5x123cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Family:3300 XL 8 mm
-
Thread:M10 x 1
-
Armor:With armor
-
Unthreaded Length:0 mm
-
Overall Case Length:150 mm
-
Total Length:1.0 m
-
Connector and Cable:ClickLoc connector with protector and standard cable
-
Agency Suffix:CN retained; meaning not decoded by the selected source
-
Linear Range:2 mm (80 mil) system reference
-
Nominal Sensitivity:7.87 V/mm (200 mV/mil) system reference
-
Reference Target:AISI 4140 steel
-
System Rule:Probe plus extension cable must match the Proximitor electrical length
Information
Overview
Manuals
Common Applications
Product Precautions
Bently Nevada 330104-00-15-10-01-CN adds a documented armored proximity probe execution to the installed machinery-monitoring path.
- Uses the metric M10 x 1 3300 XL 8 mm probe family with armor.
- Combines a 0 mm unthreaded section with a 150 mm overall case.
- Provides a 1.0 m total lead with clickloc connector with protector and standard cable.
- Retains the CN suffix exactly while leaving its undocumented meaning unexpanded.
The mechanical insertion length, total electrical length and ClickLoc execution must be checked as one installed transducer chain. Commissioning verifies both static gap and dynamic channel response.
Important Notice: The CN suffix is retained exactly because the selected ordering pages do not define it.
Bently Nevada 330104-00-15-10-01-CN Manuals & Downloads
Official 3300 XL 8 mm Probe Ordering Excerpt (PDF)Bently Nevada 330104-00-15-10-01-CN Installation & Commissioning Guide (PDF)
The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this armored proximity probe. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.
Radial vibration
Observe shaft displacement at a qualified ferromagnetic target.
Axial position
Track thrust-position change at an approved machine location.
Keyphasor reference
Provide a shaft-event signal where the machine design supports timing measurement.
Condition monitoring
Feed gap and dynamic displacement signals to a compatible Bently Nevada channel.
Use the complete Bently Nevada 330104-00-15-10-01-CN identity and the applicable controlled procedure before work.
1
Verify the complete 330104-00-15-10-01-CN marking before replacing any nearby probe execution.
2
Confirm the M10 x 1 machine thread before insertion.
3
Check the 150 mm case envelope and 0 mm unthreaded section against the mounting geometry.
4
Match the 1.0 m probe lead with the extension cable and Proximitor electrical length.
5
Protect the ClickLoc joint and do not use the cable as a removal handle.
6
Keep the probe tip clear of conductive side-view interference.
7
Set the installed gap from the matched system response, not from a nearby model.
8
Record static gap, channel OK state and dynamic response before release.
Technical notes
The CN suffix is retained exactly because the selected ordering pages do not define it.
FAQ View All FAQ
-
What probe family is Bently Nevada 330104-00-15-10-01-CN?It belongs to the 3300 XL 8 mm metric probe family.
-
Which thread is used on Bently Nevada 330104-00-15-10-01-CN?The probe case uses an M10 x 1 thread.
-
Is Bently Nevada 330104-00-15-10-01-CN armored?This execution is supplied with armor.
-
What case geometry belongs to Bently Nevada 330104-00-15-10-01-CN?It has 0 mm unthreaded length and a 150 mm overall case.
-
What total lead length is selected on Bently Nevada 330104-00-15-10-01-CN?The total probe lead is 1.0 m.
-
Which connector execution is used by Bently Nevada 330104-00-15-10-01-CN?ClickLoc connector with protector and standard cable.
-
What does CN mean on Bently Nevada 330104-00-15-10-01-CN?The suffix is preserved as part of the exact identifier; the selected source does not decode it.
-
What confirms commissioning of Bently Nevada 330104-00-15-10-01-CN?Confirm the matched chain, installed gap, stable OK state and approved machine response.
