Technical specifications for 330104-00-13-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330104-00-13-10-02-00
-
Estimated shipping dimensions:2x112.5x1.8cm
-
Weight:0.16 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Transducer family:3300 XL 8 mm
-
Measurement principle:Non-contact eddy current
-
Case thread:M10 x 1
-
Lead construction:Stainless-steel armor
-
Termination:ClickLoc connector with standard cable
-
Nominal system sensitivity:7.87 V/mm (200 mV/mil)
-
Linear range:2 mm (80 mil)
-
Reference target:AISI 4140 steel
-
Approval field:No agency approval selected
-
System rule:Probe and extension cable must match the Proximitor electrical length
Information
Overview
Manuals
Common Applications
Product Precautions

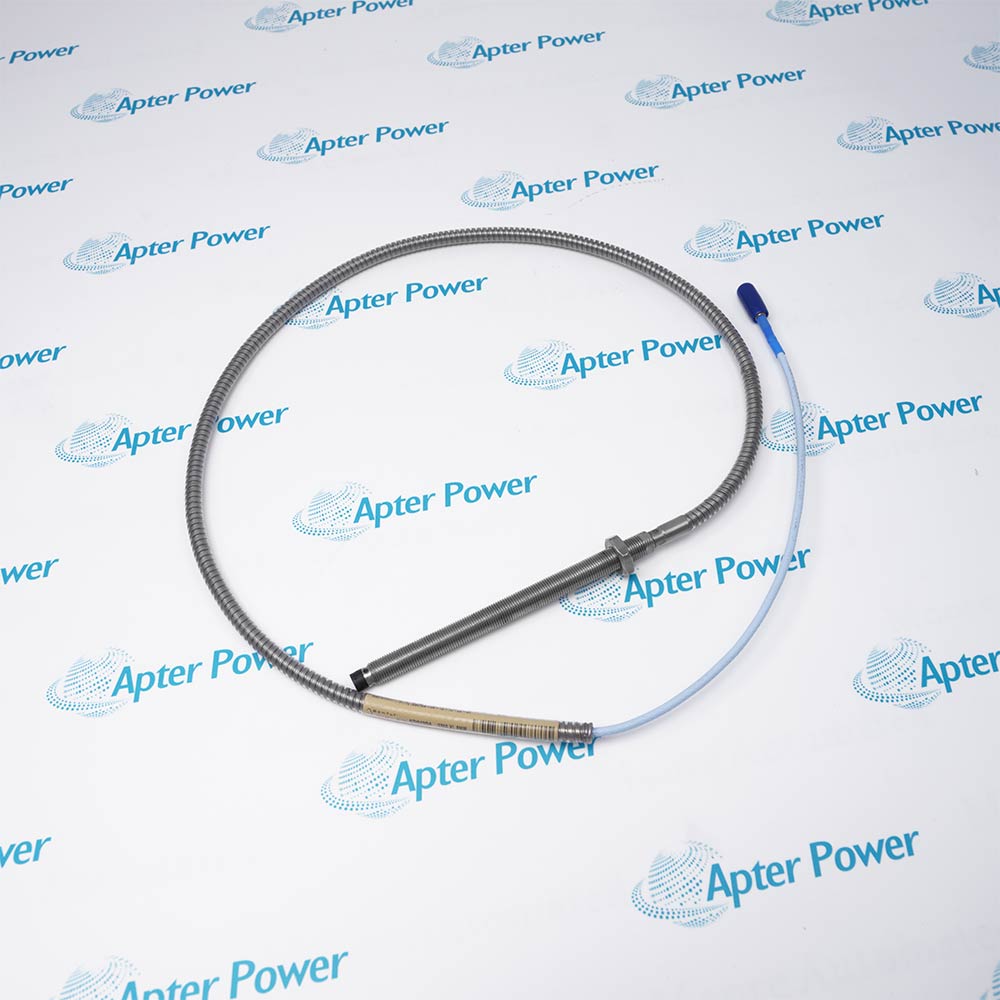

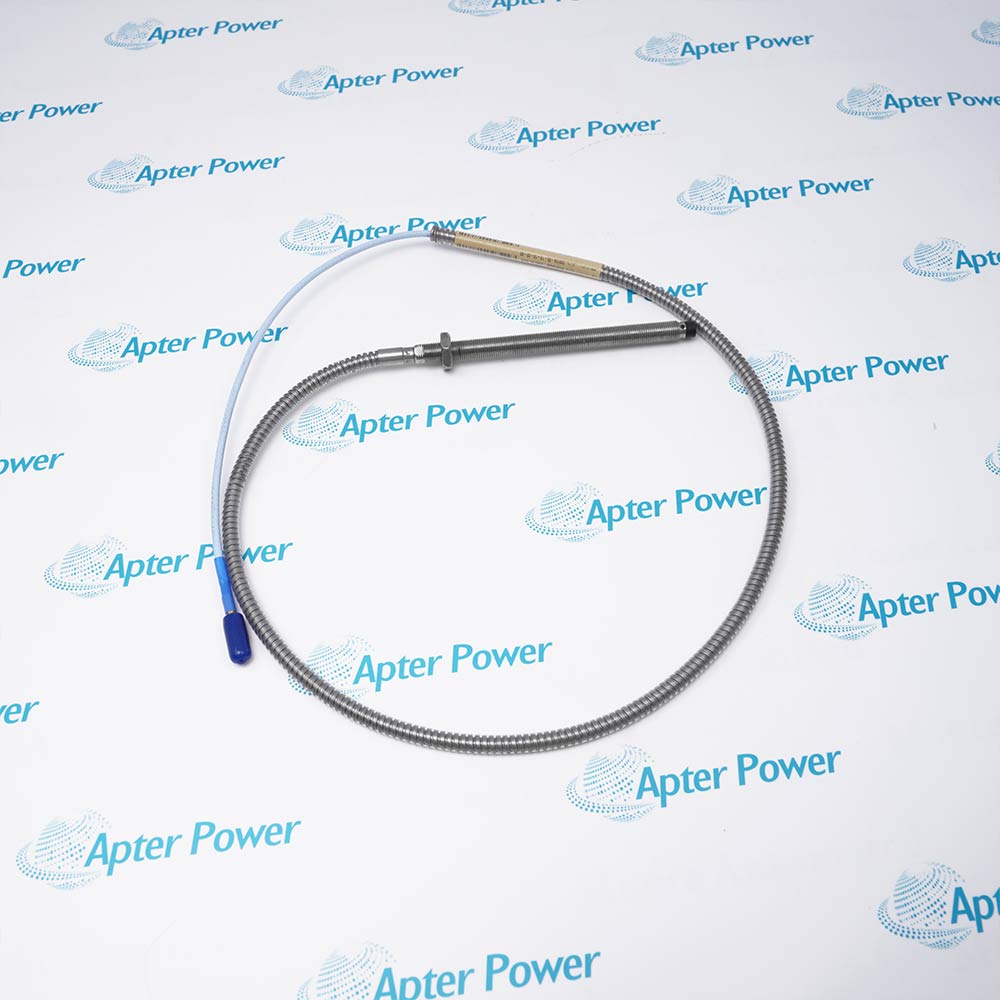

Bently Nevada 330104-00-13-10-02-00 is an armored 3300 XL 8 mm proximity probe configured for a matched shaft-monitoring chain.
- Uses the M10 x 1 probe case specified by the ordering family.
- Provides an armored lead execution with clickloc connector with standard cable.
- Belongs to the 2 mm linear-range 3300 XL 8 mm transducer system.
- The exact configuration fields select armored metric options encoded in 00-13-10-02-00.
The proximity probe is applied only within the documented system boundary. Confirm the exact installed chain, interface condition and controlled configuration before returning the channel to service.
Important Notice: Verify the complete 330104-00-13-10-02-00 identity and the applicable controlled system procedure before installation.
Bently Nevada 330104-00-13-10-02-00 Manuals & Downloads
Bently Nevada 330104-00-13-10-02-00 Technical Reference (PDF)Bently Nevada 330104-00-13-10-02-00 Installation & Commissioning Guide (PDF)
The Technical Reference is an official manufacturer excerpt selected for this exact product family. The Installation & Commissioning Guide covers identification, installation checks, functional verification and the acceptance record.
Radial vibration
Measure relative shaft vibration at an approved metallic target.
Axial position
Observe shaft-position change at a qualified mounting point.
Keyphasor reference
Provide a shaft-event signal when the installed target and monitor support it.
Condition monitoring
Supply dynamic displacement and static gap information to compatible electronics.
Before installing Bently Nevada 330104-00-13-10-02-00, verify the complete nameplate identity, the mating interface and the controlled system configuration.
1
Confirm the complete 330104-00-13-10-02-00 label before removing the installed probe.
2
Verify the M10 x 1 mounting interface and approved probe orientation.
3
Match the probe, extension cable and Proximitor electrical length.
4
Keep the coaxial joint clean, dry and free of side load.
5
Do not twist, shorten or splice the calibrated lead.
6
Maintain target material and side-view clearance required by the system.
7
Set the working gap from the matched system response and machine procedure.
8
Record gap voltage, channel OK state and dynamic response before release.
Technical notes
Verify the complete 330104-00-13-10-02-00 identity and the applicable controlled system procedure before installation.
FAQ View All FAQ
-
Which transducer family includes Bently Nevada 330104-00-13-10-02-00?It belongs to the 3300 XL 8 mm proximity transducer system.
-
Which mounting thread is used by Bently Nevada 330104-00-13-10-02-00?The probe case uses M10 x 1.
-
Is Bently Nevada 330104-00-13-10-02-00 armored?This execution is armored.
-
Which termination is supplied on Bently Nevada 330104-00-13-10-02-00?ClickLoc connector with standard cable.
-
What nominal sensitivity applies to Bently Nevada 330104-00-13-10-02-00?The matched system has a nominal 7.87 V/mm sensitivity against the stated reference target.
-
Can Bently Nevada 330104-00-13-10-02-00 be mixed with any extension cable?No. The probe and extension cable must match the Proximitor electrical length.
-
What target reference applies to Bently Nevada 330104-00-13-10-02-00?Published performance uses an AISI 4140 steel reference target.
-
What confirms commissioning of Bently Nevada 330104-00-13-10-02-00?Verify the exact chain, static gap, stable OK state and approved dynamic response.
