      Bently Nevada 330103-00-10-10-01-00
      Bently Nevada 330103-00-10-10-01-00
      Bently Nevada 330103-00-10-10-01-00
      Bently Nevada 330103-00-10-10-01-00
      Bently Nevada 330103-00-10-10-01-00
      Bently Nevada 330103-00-10-10-01-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-10-10-01-00

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

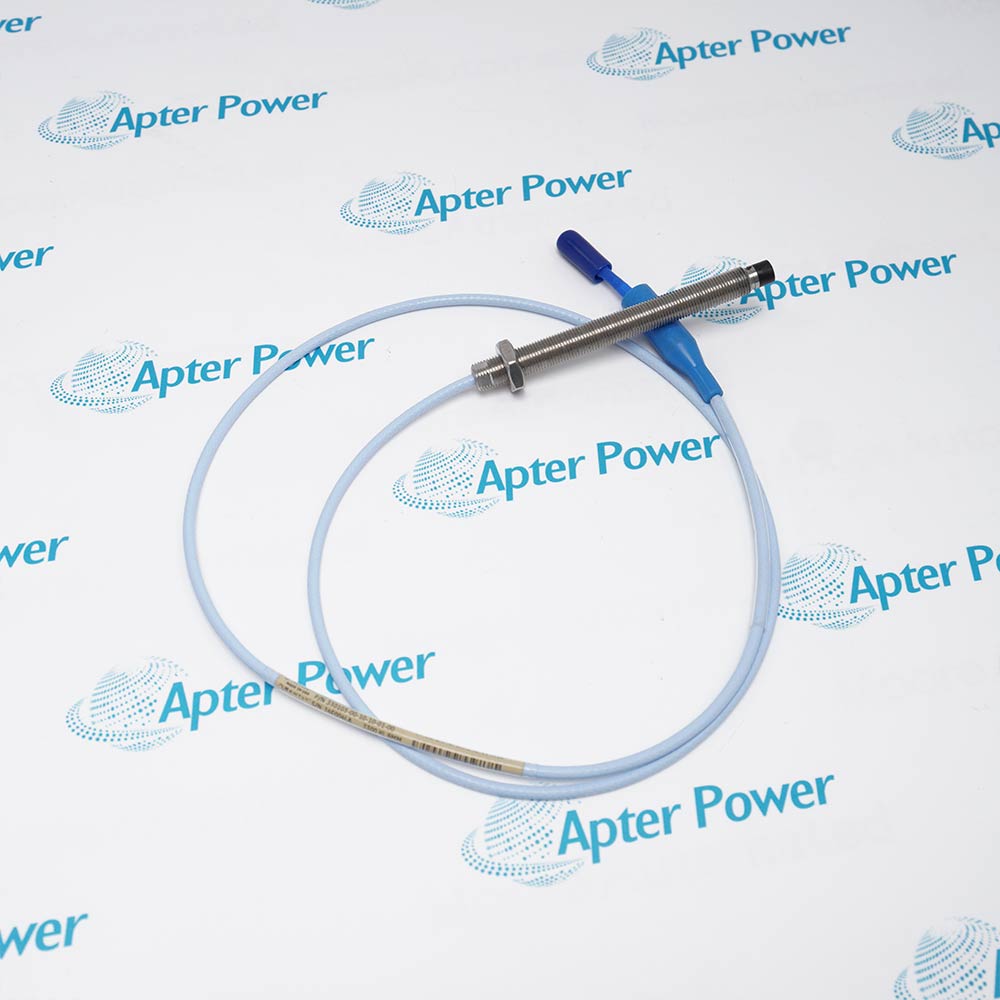

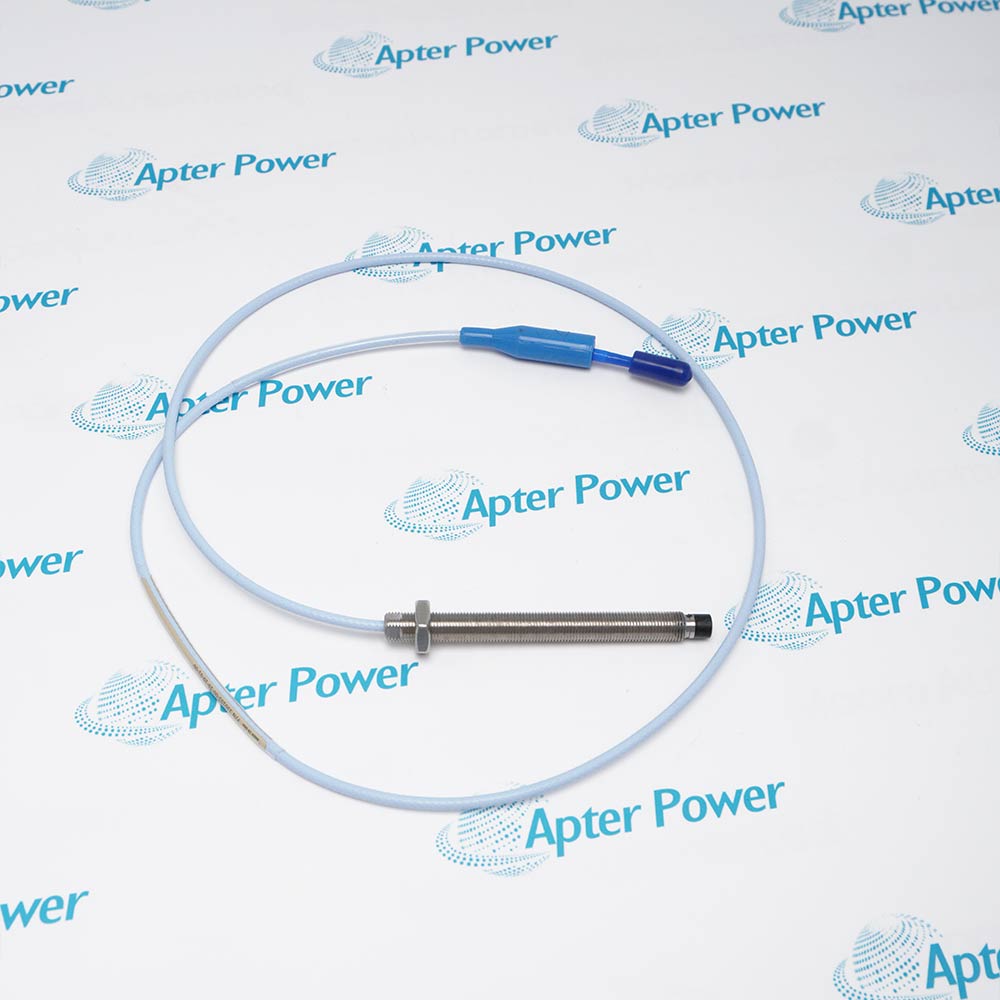

      Bently Nevada 330103-00-10-10-01-00 is an unarmored M10 x 1 3300 XL 8 mm proximity probe with a standard 1.0 m lead and a protected ClickLoc connector.

      Ask our team:

      Get a quick price for： 330103-00-10-10-01-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-10-10-01-00

      Technical specifications for 330103-00-10-10-01-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-10-10-01-00
      • Estimated shipping dimensions:
        1.8x1.5x113cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe Family:
        3300 XL 8 mm
      • Mounting Thread:
        M10 x 1
      • Construction:
        Standard mount; without armor
      • Unthreaded Length:
        00 = 0 mm
      • Overall Case Length:
        10 = 100 mm
      • Total Probe Length:
        10 = 1.0 m
      • Connector:
        01 = miniature coaxial ClickLoc with protector
      • Cable Type:
        Standard; 75 ohm triaxial; FEP insulation
      • Agency Approval Option:
        00 = not required
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 303 or 304 stainless steel
      • Connector Material:
        Gold-plated brass or beryllium copper
      • Nominal Probe DC Resistance:
        7.59 +/- 0.50 ohm
      • Maximum Connector Torque:
        0.565 N m
      • Standard Mount Recommended Case Torque:
        11.2 N m
      • Probe Operating / Storage Temperature:
        -52 to +177 deg C
      • Matched System Linear Range:
        2 mm; approximately 0.25 to 2.3 mm
      • Matched System Scale Factor:
        7.87 V/mm (200 mV/mil) nominal
      • Radial Vibration Gap Setting:
        -9 VDC nominal
      • Matched System Frequency Response:
        0 to 10 kHz; +0 / -3 dB
      • Calibration Target:
        AISI 4140 steel
      • Supported Electrical System Lengths:
        1 m probe only; 5 m or 9 m with extension
      • Proximitor Maximum Current:
        12 mA
      • Proximitor Supply, Non-incendive Circuit:
        -17.5 to -26 VDC; per drawing 140979
      • Proximitor Supply with Barriers:
        -23 to -26 VDC
      • Proximitor Output Resistance:
        50 ohm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-10-10-01-00 is an unarmored M10 x 1 3300 XL 8 mm proximity probe with a standard 1.0 m lead and a protected ClickLoc connector. It provides the sensing element for static position and dynamic shaft-vibration measurements in a matched transducer system.
      • Senses shaft movement without touching the target surface.
      • Uses a protected service connection for the unarmored probe lead.
      • Forms the sensing stage of a matched eddy-current transducer chain.
      • Supports position, vibration, speed and phase-reference measurements.

      The electrical length is established by the probe lead and any extension cable together. Select the matching Proximitor Sensor, then check target material and the static gap before interpreting the monitor signal.

      Important Notice: The -00 approval option does not establish hazardous-area approval. Protect and electrically insulate the coaxial junction, and assess pressure containment independently of the probe seal.

      Bently Nevada 330103-00-10-10-01-00 Manuals & Downloads
      330103-00-10-10-01-00 Technical Reference (PDF)330103-00-10-10-01-00 Installation & Commissioning Guide (PDF)

      The technical reference covers configuration, signal characteristics and performance conditions. The installation guide organizes system pairing, connection checks and channel commissioning.

      Shaft-relative vibration
      Monitor dynamic shaft motion on fluid-film bearing machinery through the selected 3300 XL measurement chain.
      Axial position monitoring
      Measure the static position of an appropriate conductive target within the calibrated linear region.
      Speed reference
      Use the matched proximity system to detect the installed speed target under the machine-specific configuration.
      Keyphasor reference
      Provide a phase-reference signal where the target geometry and monitoring arrangement are engineered for that use.
      Bently Nevada 330103-00-10-10-01-00 installation checks: match the electrical length, protect the ClickLoc junction and verify the conditioned signal before release.
      1
      Match the 1.0 m probe lead plus extension cable to the selected Proximitor electrical length; do not add an arbitrary lead.
      2
      Insulate the ClickLoc junction from ground and keep its supplied protector properly seated.
      3
      Tighten two XL ClickLoc connectors by hand; the 0.565 N m value is a maximum, not a tightening target.
      4
      Confirm the AISI 4140 calibration basis or use the approved correction for the actual target material.
      5
      Set and verify the radial-vibration static gap near -9 VDC before judging the AC vibration signal.
      6
      Keep standard-probe service within -52 to +177 deg C; consider seal failure risk below -34 deg C.
      7
      Treat the -00 approval selection separately from the installation area requirements.
      8
      Provide independent containment for process liquids or gases; these probes are not pressure-tested before shipment.

      Technical notes

      Technical notes

      The 1.0 m probe can operate with the matching 1 m Proximitor Sensor, or with the correct extension cable for a 5 m or 9 m system. The -01 connector option includes a protector; insulate the connection from ground.

      FAQS

      • Can 330103-00-10-10-01-00 be connected directly to a 1 m Proximitor Sensor?
        Yes. The 1.0 m probe-only configuration uses the matching 1 m 3300 XL Proximitor Sensor. A 5 m or 9 m system instead requires the proper extension cable to establish that electrical length.
      • What resistance check applies to the lead of 330103-00-10-10-01-00?
        The nominal center-to-outer-conductor probe resistance for the 1.0 m version is 7.59 +/- 0.50 ohm. Perform the check on the isolated probe; this value does not describe the resistance of an assembled monitor circuit.
      • How does the -01 connection of 330103-00-10-10-01-00 differ from option -02?
        Option -01 supplies a miniature coaxial ClickLoc connector with a connector protector and standard cable. Option -02 uses the same standard-cable connector without that protector.
      • Should a wrench be used on the XL connector of 330103-00-10-10-01-00?
        Two XL gold ClickLoc connectors are joined finger tight. A mixed XL/non-XL junction has a different instruction; do not apply that extra turn to two XL connectors.
      • Why does a correct static reading from 330103-00-10-10-01-00 not verify the whole vibration channel?
        Static gap confirms the operating point. Dynamic response also depends on the selected system length, calibrated target and field-wiring frequency response, so channel acceptance includes both static and dynamic checks.
      • Does 330103-00-10-10-01-00 carry a hazardous-area approval through its -00 code?
        The ordering table defines -00 as approval not required. It must not be treated as the multi-approval -05 execution.
      • Can the pressure seal in 330103-00-10-10-01-00 replace independent process containment?
        No. The probe seals differential pressure between tip and case, but probes are not pressure-tested before shipment. Liquids and gases must remain safely contained if a leak occurs.
      • Is 330103-00-10-10-01-00 a housing-vibration accelerometer?
        It is a non-contacting proximity probe. The transducer system measures target distance and therefore supports shaft-relative vibration and static position; it does not directly measure housing acceleration.
