Technical specifications for 330102-00-35-10-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330102-00-35-10-02-CN
-
Estimated shipping dimensions:1.5x1.3x119cm
-
Weight:0.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Unthreaded Length Option:0.0in
-
Overall Case Length Option:3.5in
-
Total Length Option:1.0 meters
-
Maximum Connector Torque:0.565 N•m (5 in•lbf)
-
Probe Tip Material:Polyphenylene sulfide (PPS).
-
Probe Case Material:AISI 303 or 304 stainless steel (SST).
-
Standard cable:75Ω triaxial
Information
Overview
Manuals
Need More Info

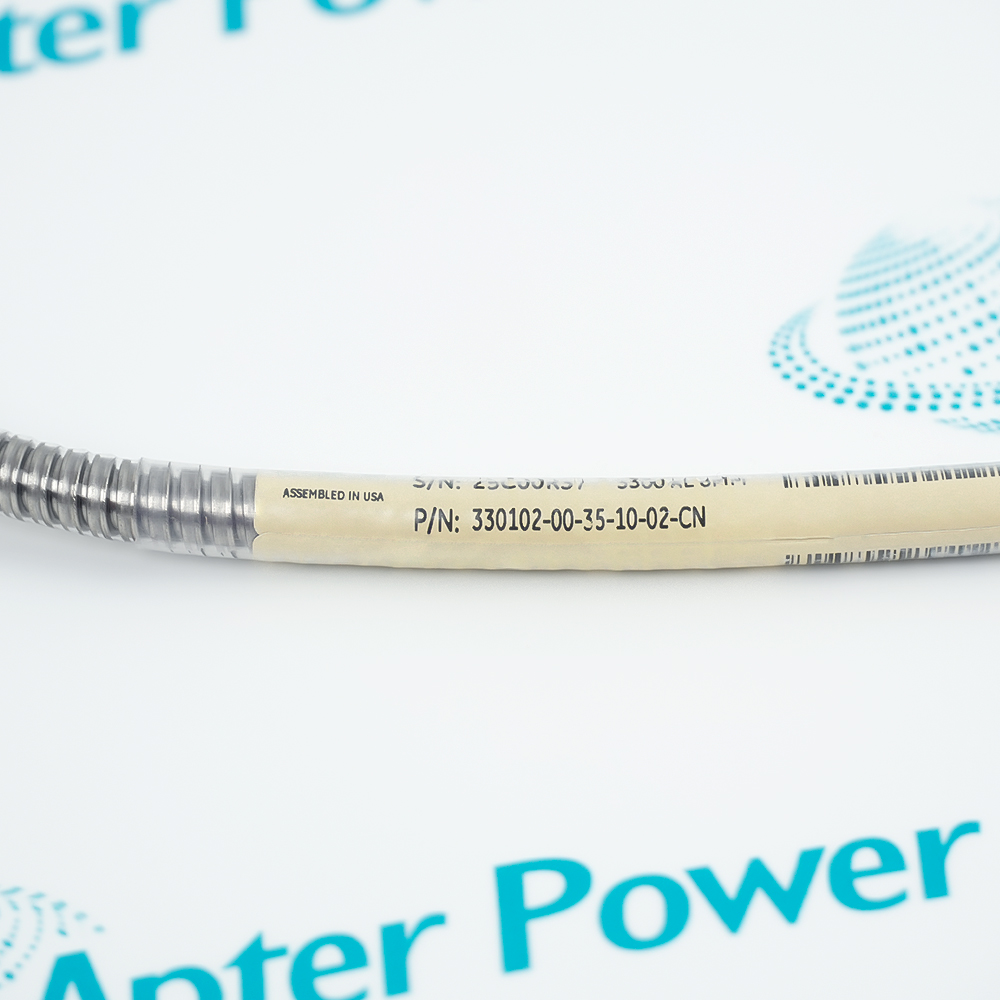

- 330102-00-35-10-02-CN 3300 XL 8 mm Proximity Probes
- A high-performance proximity probe designed for Bently Nevada 3300 XL monitoring systems
- It delivers accurate non-contact vibration and position measurement with an 8 mm tip for stable and reliable operation.
The BENTLY NEVADA 330102-00-35-10-02-CN 3300 XL 8 mm Proximity Probe provides precise non-contact measurement of shaft vibration and position. It outputs a voltage proportional to the distance between the probe tip and the conductive surface, enabling reliable monitoring of both static and dynamic conditions in rotating machinery.
The 3300 XL 8 mm system offers high accuracy, stable linear performance, and strong temperature stability. It is designed for demanding industrial environments, ensuring consistent measurement and dependable operation for critical equipment protection and condition monitoring.
System components, including probes, extension cables, and sensors, are fully interchangeable, eliminating the need for individual calibration. The probe is also backward compatible with other 3300 series 5 mm and 8 mm components, allowing flexible installation for new systems and retrofit applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
BENTLY NEVADA 330102-00-35-10-02-CN 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is 330102-00-35-10-02-CN?330102-00-35-10-02-CN is 3300 XL 8 mm Proximity Probes.
-
What is the Bently Nevada 330102-00-35-10-02-CN 3300 System?The Bently Nevada 3300 System is a modular machinery protection and condition monitoring system from Bently Nevada. It is designed for continuous monitoring of critical parameters such as vibration, displacement, and speed in rotating machinery (e.g., turbines, compressors, pumps, motors) for preventative maintenance and fault protection.
-
What is the 330102-00-35-10-02-CN
-
What is the 330102-00-35-10-02-CN normal operating gap?The optimal gap is generally -9 Vdc (±0.25V) at a 1.27mm target distance.
-
What does this 330102-00-35-10-02-CN probe measure?It measures static (position) and dynamic (vibration) displacement of conductive machinery shafts.
-
What is the 330102-00-35-10-02-CN warranty and lead time?Providers often offer a 12-month warranty. Due to demand, lead times vary, typically ranging from 5-7 business days for stock items.
-
Is it compatible with 330102-00-35-10-02-CN 3300 XL Proximitors?Yes, it is part of the 3300 XL 8 mm transducer system.
