Get a quick price for 330101-30-63-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330101-30-63-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-30-63-10-02-00
-
Estimated shipping dimensions:1.5x1.5x123cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Transducer family:3300 XL 8 mm
-
Measurement principle:Non-contact eddy current
-
Mounting thread:3/8-24 UNF
-
Unthreaded section:3.0 in
-
Overall case length:6.3 in
-
Integral lead length:1.0 m
-
Lead construction:Flexible insulated coaxial lead
-
Termination:miniature ClickLoc coaxial connector with standard cable
-
System matching:Probe plus extension cable equals Proximitor system length
Information
Overview
Manuals
Common Applications
Product Precautions

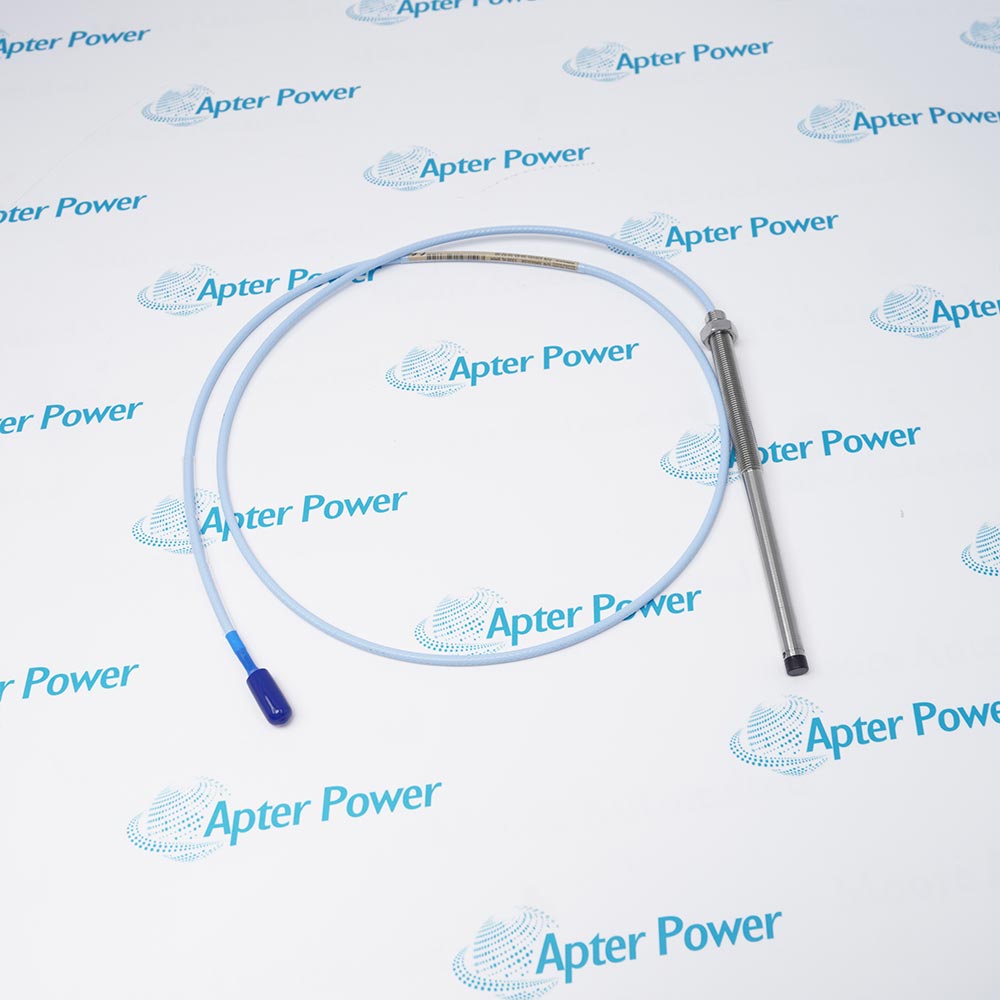

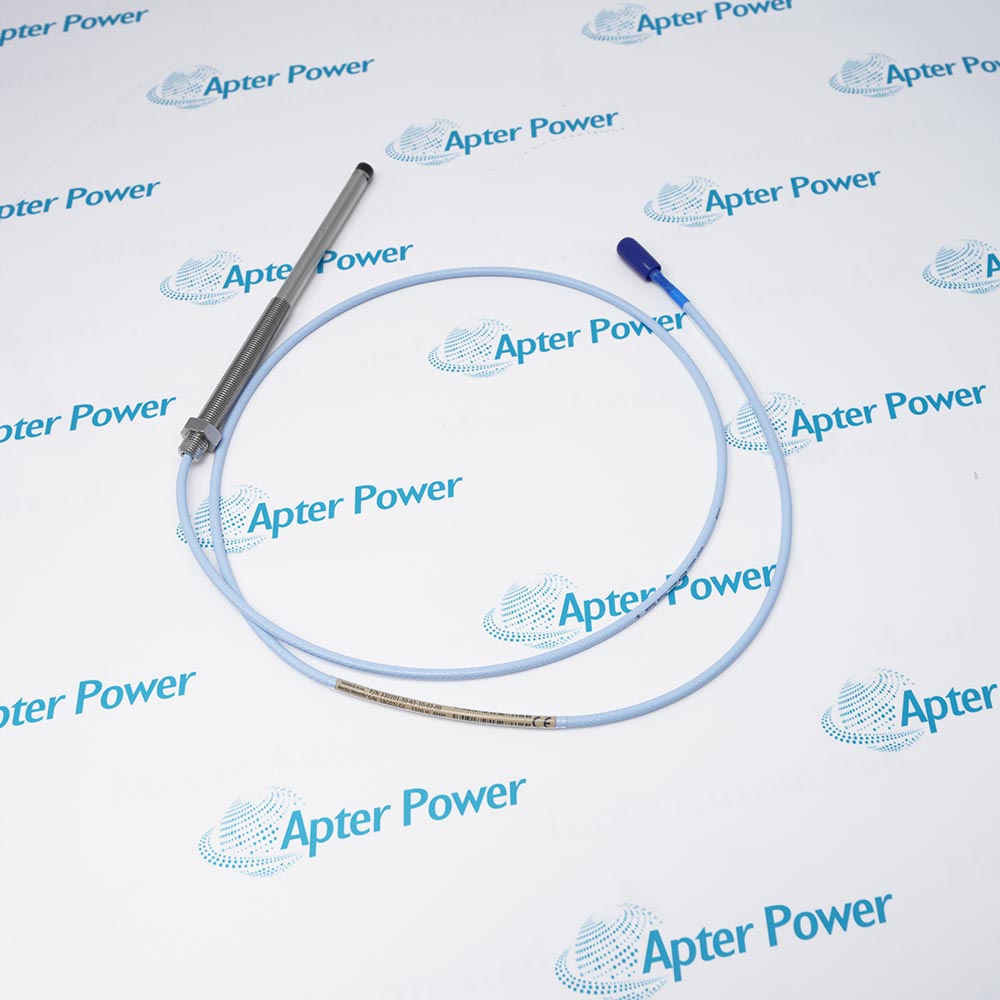

Bently Nevada 330101-30-63-10-02-00 brings the 3300 XL 8 mm sensing tip to the machine measurement point with a 3.0 in unthreaded section and 6.3 in overall case.
- Uses a 3/8-24 UNF threaded case for the selected mounting interface.
- Provides a unarmored lead with a total length of 1.0 m.
- Terminates through miniature clickloc coaxial connector with standard cable.
- Operates as part of a matched probe, extension cable and Proximitor sensor chain.
The proximity probe must remain within its intended measurement or monitoring chain. Match its interfaces, wiring and channel configuration before returning protection to service.
Important Notice: Confirm the complete 330101-30-63-10-02-00 marking, mating interfaces and controlled channel configuration before installation.
Bently Nevada 330101-30-63-10-02-00 Manuals & Downloads
Bently Nevada 330101-30-63-10-02-00 Technical Reference (PDF)Bently Nevada 330101-30-63-10-02-00 Installation & Commissioning Guide (PDF)
The Technical Reference covers product function, interfaces and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Radial vibration
Measure relative shaft motion at a qualified metallic target.
Axial position
Track shaft position where the mechanical range and mounting are suitable.
Phase reference
Provide a shaft-event signal when the receiving channel supports the application.
Condition monitoring
Deliver dynamic displacement and static gap information to compatible electronics.
Before installing Bently Nevada 330101-30-63-10-02-00, confirm the mating interface, wiring arrangement and controlled channel configuration.
1
Confirm the complete 330101-30-63-10-02-00 marking before removing the installed probe.
2
Verify the 3/8-24 UNF thread, 3.0 in unthreaded section and 6.3 in case clearance.
3
Match probe and extension-cable length to the installed Proximitor system length.
4
Keep the coaxial joint clean, dry and free from side load.
5
Do not shorten, splice or twist the calibrated probe lead.
6
Maintain the required target material, diameter and side-view clearance.
7
Set the working gap from the matched system response and machine procedure.
8
Record gap voltage, channel OK state and dynamic response before release.
Technical notes
Confirm the complete 330101-30-63-10-02-00 marking, mating interfaces and controlled channel configuration before installation.
FAQ View All FAQ
-
Which sensing family includes Bently Nevada 330101-30-63-10-02-00?It belongs to the 3300 XL 8 mm proximity-transducer family.
-
What mounting interface is selected for Bently Nevada 330101-30-63-10-02-00?The probe uses a 3/8-24 UNF thread with a 3.0 in unthreaded section and 6.3 in overall case.
-
How long is the integral lead on Bently Nevada 330101-30-63-10-02-00?The selected lead length is 1.0 m.
-
What cable construction is used by Bently Nevada 330101-30-63-10-02-00?This execution is unarmored.
-
Which connector option is fitted to Bently Nevada 330101-30-63-10-02-00?It uses miniature clickloc coaxial connector with standard cable.
-
How should Bently Nevada 330101-30-63-10-02-00 be matched to the signal conditioner?Probe length plus extension-cable length must equal the Proximitor system length.
-
What should be checked before setting the gap for Bently Nevada 330101-30-63-10-02-00?Confirm target material, geometry, mounting clearance and the complete matched chain.
-
Which checks complete commissioning of Bently Nevada 330101-30-63-10-02-00?Verify stable gap voltage, channel OK state, dynamic response and the protection path.
