The 330101-00-36-10-02-05 is an 8 mm Proximity Probe from the 3300 XL series, featuring a 3/8-24 UNF threaded body and supplied without armor. When incorporated into a standard 3300 XL 8 mm system, it fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Supports 100% swapping of probes, cables, and Proximitors without tedious bench recalibration
Captures both static axial position and dynamic radial relative vibration on fluid-film bearingsg
Perfectly matches legacy non-XL 3300 series components for drop-in replacement on older loops
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-36-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Long-term monitors the shaft conditions of large-capacity steam turbine generator sets to prevent total machine destruction caused by excessive shaft vibration or axial thrust movement via micron-level resolution.
Petrochemical & Refining Industry
Continuously measures the operational clearances of critical gas compressor shafts handling flammable media within hazardous locations to avoid bearing pad burnout.
Natural Gas Pipeline Transmission
Ensures steady operation of multi-bearing setups for high-power gas turbines and centrifugal compressor units at remote pipeline booster stations under severe environments.
Hydroelectric Power Industry
Measures massive main shaft runout and thrust bearing clearances of large vertical hydro-generator units under intense water impacts to prevent structural fatigue.
Nuclear Power
Tracks large-capacity conventional island rotating equipment shaft vibration amplitudes over extended lifecycles under rigorous safety operational protocols.
Iron, Steel & Metallurgy Industry
Tracks the rotor mechanical integrity of critical blast-furnace air supply and high-power process fans under heavy thermodynamic alternating environments.
Given that this probe features an ultra-long 360 mm fully threaded case without metal armor, precise calibration of the initial gap voltage (typically -9 Vdc) is mandatory during installation to ensure its 2.0 mm linear range is not exceeded, while preventing mechanical scratching during deep-hole insertion. When routing, the exposed standard cable must be pulled through dedicated protective conduits or wire troughs to shield it from physical wear or chemical oil attack.
Furthermore, keep the ClickLoc coaxial connectors absolutely clean and dry, and maintain strict electrical length matching for the combined probe and extension cable (either a 5-meter or 9-meter system), as cutting or splicing the 1.0-meter integral cable is strictly prohibited.

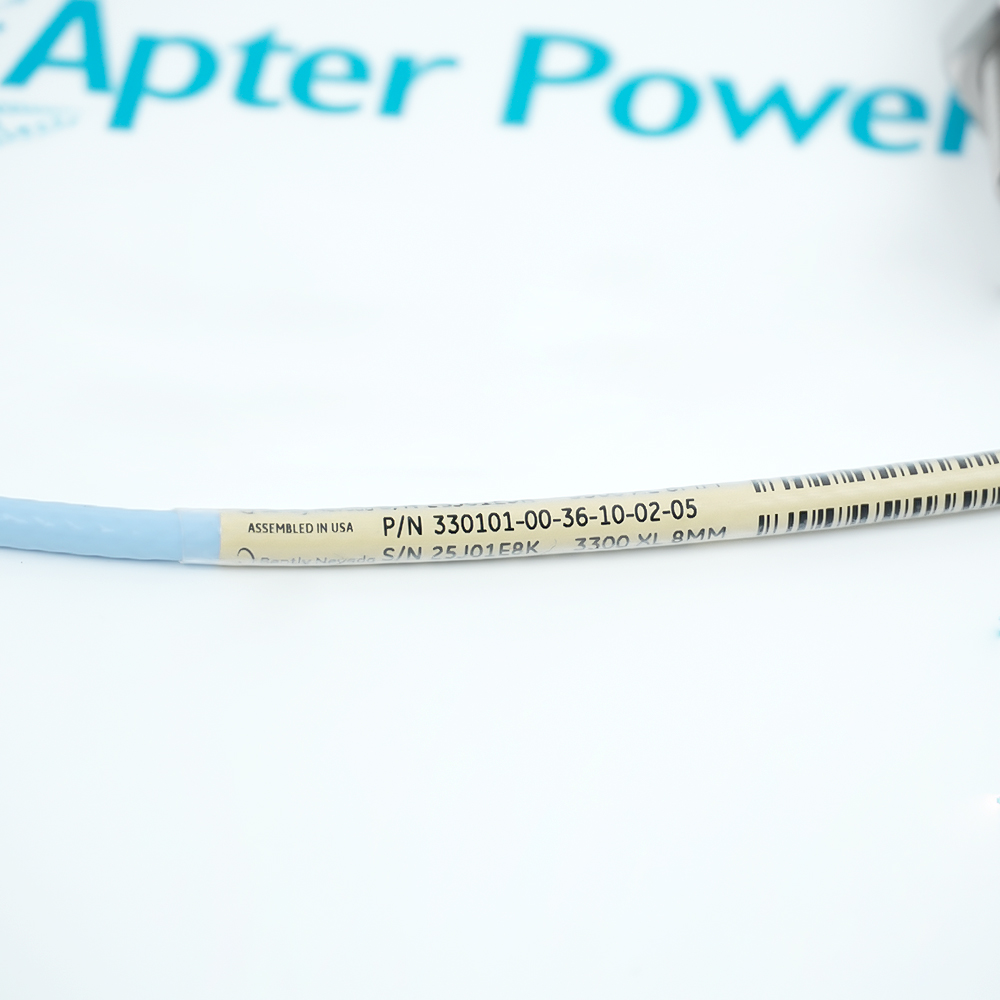

330101-00-36-10-02-05 is a Bently Nevada 3300 XL series 8 mm proximity transducer probe used within this system to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. Featuring a fully threaded 3/8-24 UNF body (360 mm overall case length, 0.0 in unthreaded length), the probe comes equipped with a 1.0-meter standard cable without armor and is terminated with a miniature coaxial ClickLoc connector. It is engineered to withstand an extreme operating temperature range of -51°C to +177°C and carries multiple international hazardous area agency approvals (including CSA, ATEX, and IECEx). Within its 2.0 mm (80 mils) linear measurement range, the system delivers high-precision static (position) and dynamic (vibration) measurements with a standard scale factor of 7.87 V/mm (200 mV/mil). The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is an industrial non-contact eddy current proximity probe belonging to the Bently Nevada 3300 XL 8 mm probe series.
What is the core function of 330101-00-36-10-02-05?
It measures static values (axial position) and dynamic values (radial relative vibration, speed, and Keyphasor references).
How to install and use products like 330101-00-36-10-02-05?
Thread the probe into a standard mounting hole on the machine bearing housing, adjust the gap between the tip and the shaft surface, and secure it with a locknut.
What requires attention during routine maintenance for 330101-00-36-10-02-05?
Regularly inspect the probe tip for metal debris and ensure ClickLoc connectors remain clean, dry, and free of oil or grease contamination.
What is the measurement range of 330101-00-36-10-02-05?
Its linear measurement range is 2.0 mm (approximately 80 mils).
