Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330101-00-25-05-01-05
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330101-00-25-05-01-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-25-05-01-05
-
Estimated shipping dimensions:1.5x1.3x116cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Unthreaded Length Option:0.0 in
-
Total Length Option:0.5 meter (1.6 feet)
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector with connector protector, standard cable
-
Linear Range:2.0 mm (80 mils)
-
Overall Case Length Option:2.5 in
-
Standard Scale Factor:7.87 V/mm (200 mV/mil)
-
Frequency Response:0 Hz to 10 kHz
-
Standard Target Material:AISI 4140 steel
Information
Overview
Manuals
Common Applications
Product Precautions

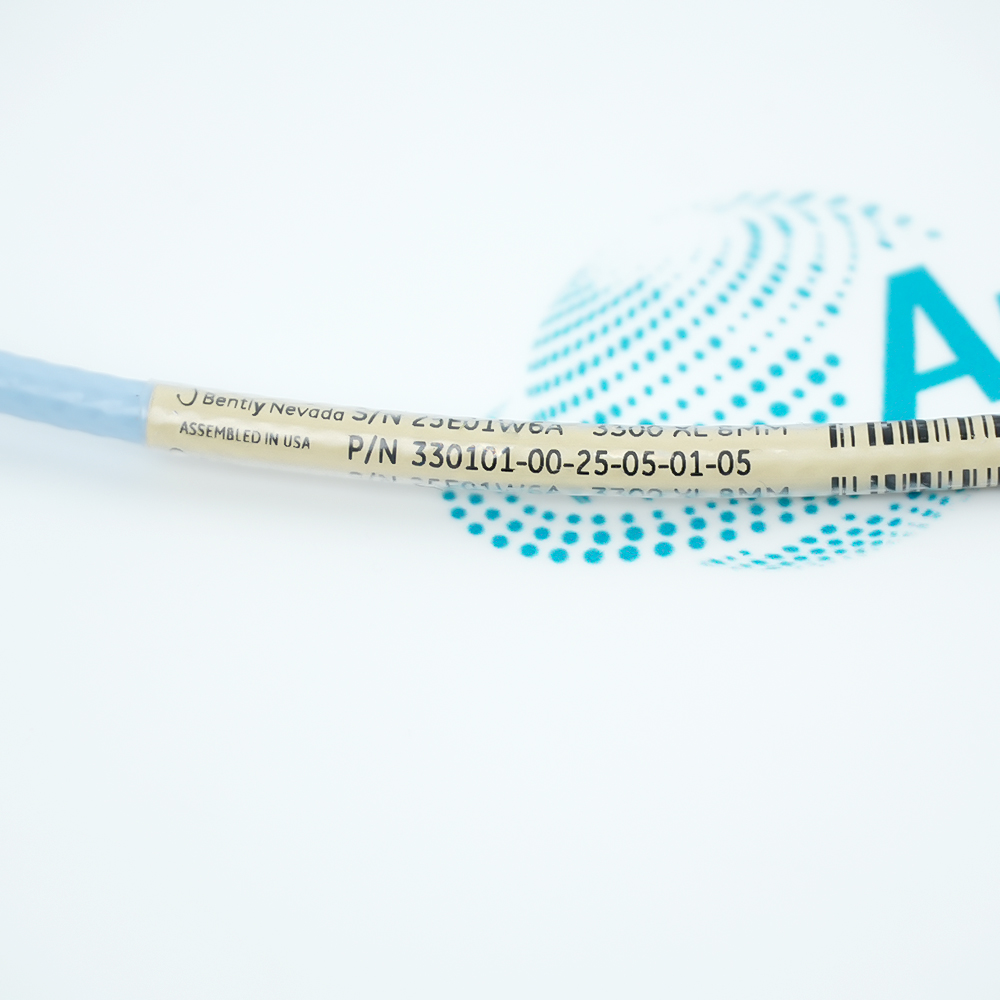

The 330101-00-25-05-01-05 Proximity Transducer Probe delivers precise, non-contact measurement of both static and dynamic shaft positions. Its high sensitivity ensures accurate vibration monitoring for critical rotating machinery in industrial applications. Built with a compact 8 mm diameter and a rugged housing, this probe incorporates TipLoc and CableLoc technology to secure the probe tip and cable. This design improves mechanical stability and reduces maintenance requirements in demanding operating conditions.
- Gold-plated self-locking coaxial connector (Oil & moisture resistant)
- Ultra-stable scale factor for micron-level vibration & position sensing
- Dual AC (dynamic vibration) & DC (static displacement) measurements
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-25-05-01-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Long-term monitors the shaft conditions of large-capacity steam turbine generator sets to prevent total machine destruction caused by excessive shaft vibration or axial thrust movement via micron-level resolution.
Petrochemical & Refining Industry
Continuously measures the operational clearances of critical gas compressor shafts handling flammable media within hazardous locations to avoid bearing pad burnout.
Hydroelectric Power Industry
Measures massive main shaft runout and thrust bearing clearances of large vertical hydro-generator units under intense water impacts to prevent structural fatigue.
Nuclear Power
Tracks large-capacity conventional island rotating equipment shaft vibration amplitudes over extended lifecycles under rigorous safety operational protocols.
Iron, Steel & Metallurgy Industry
Tracks the rotor mechanical integrity of critical blast-furnace air supply and high-power process fans under heavy thermodynamic alternating environments.
Pulp & Paper Industry
Delivers dependable high-precision non-contact shaft state monitoring for fluid-film bearings of drive cylinders in zones filled with high-temperature steam and chemical splashes.
When using 330101-00-25-05-01-05, never over-bend or pull its unarmored cable to prevent internal breakage. Strictly match the 5-meter or 9-meter total system length (probe and extension cable) to guarantee accuracy. Utilize a torque wrench for installation (11.2 N·m recommended) and avoid forcing the ClickLoc connector. Clean any oil contamination from the connector periodically.
Alternative Names
330101 00 25 05 01 05
330101-00-25-05-01-00
330101-00-25-05-01-BR
330101-00-25-05-01-CN
33O1O1-OO-25-O5-O1-O5
330I0I-00-25-05-0I-05
33OIOI-OO-25-O5-OI-O5
330101-00-25-10-01-05
Technical notes
330101-00-25-05-01-05 is a Bently Nevada 3300 XL series 8 mm proximity transducer probe used within this system to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. Featuring a fully threaded 3/8-24 UNF body (2.5 in overall case length, 0.0 in unthreaded length), the probe comes equipped with a 0.5-meter standard cable without armor and is terminated with a miniature coaxial ClickLoc connector. It is engineered to withstand an extreme operating temperature range of -51°C to +177°C and carries multiple international hazardous area agency approvals (including CSA, ATEX, and IECEx). Within its 2.0 mm (80 mils) linear measurement range, the system delivers high-precision static (position) and dynamic (vibration) measurements with a standard scale factor of 7.87 V/mm (200 mV/mil). The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
FAQ View All FAQ
-
What is 330101-00-25-05-01-05?It is an industrial non-contact eddy current proximity probe belonging to the Bently Nevada 3300 XL 8 mm probe series.
-
What is the core function of 330101-00-25-05-01-05?It measures static values (axial thrust position) and dynamic values (radial relative vibration, speed, and Keyphasor references) by fixing directly to the bearing housing.
-
How to install and use products like 330101-00-25-05-01-05?Thread the probe into a standard mounting hole on the machine bearing housing, adjust the physical gap between the tip and the shaft surface, and secure it with a locknut.
-
What is the working principle of 330101-00-25-05-01-05?Based on the eddy current effect, the matched proximitor generates an alternating magnetic field at the probe tip coil; when a metal shaft approaches, it alters the field, converting the gap distance into a proportional voltage signal.
-
Can this probe output industrial signals directly to monitoring systems?No, it must be paired with a 3300 XL extension cable and a Proximitor Sensor to convert the signal into standard DC and AC voltage outputs.
