Technical specifications for 330101-00-20-20-02-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-20-20-02-05
-
Estimated shipping dimensions:1.5x1.3x116cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Standard Probe:-52°C to +177°C
-
Proximitor Sensor Material:A308 aluminum
-
Maximum Connector Torque:0.565 N•m
-
Unthreaded Length Option:0.0 in
-
Overall Case Length Option:2.0 in
-
Total Length Option:2.0 meters (6.6 feet)
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
-
Agency Approval Option:CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Common Applications
Product Precautions

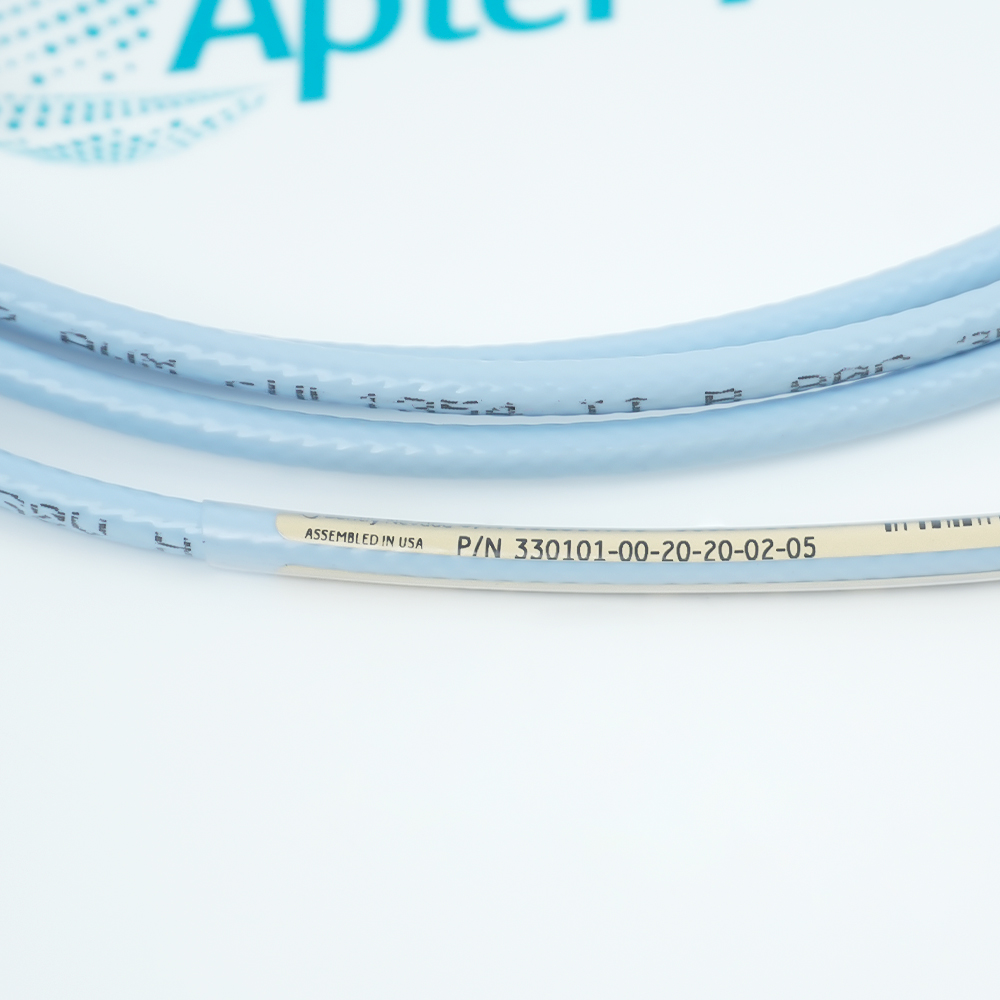

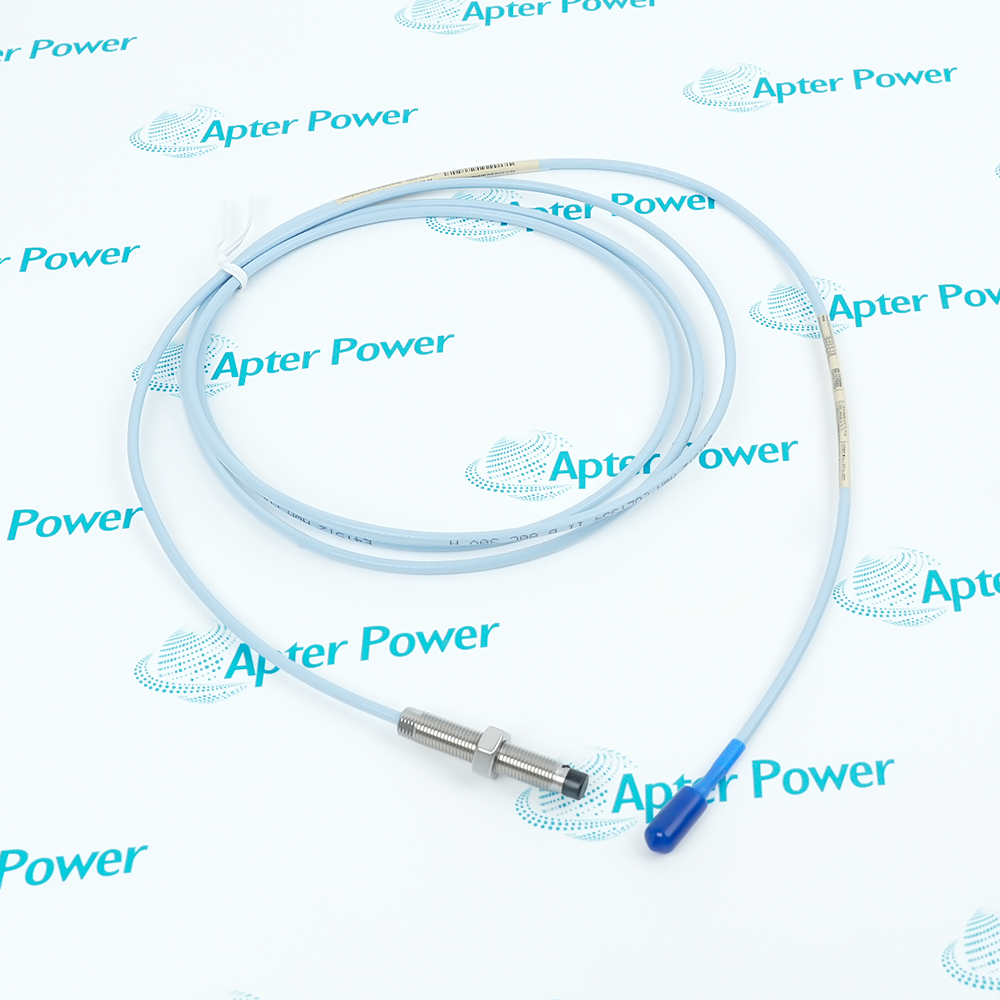

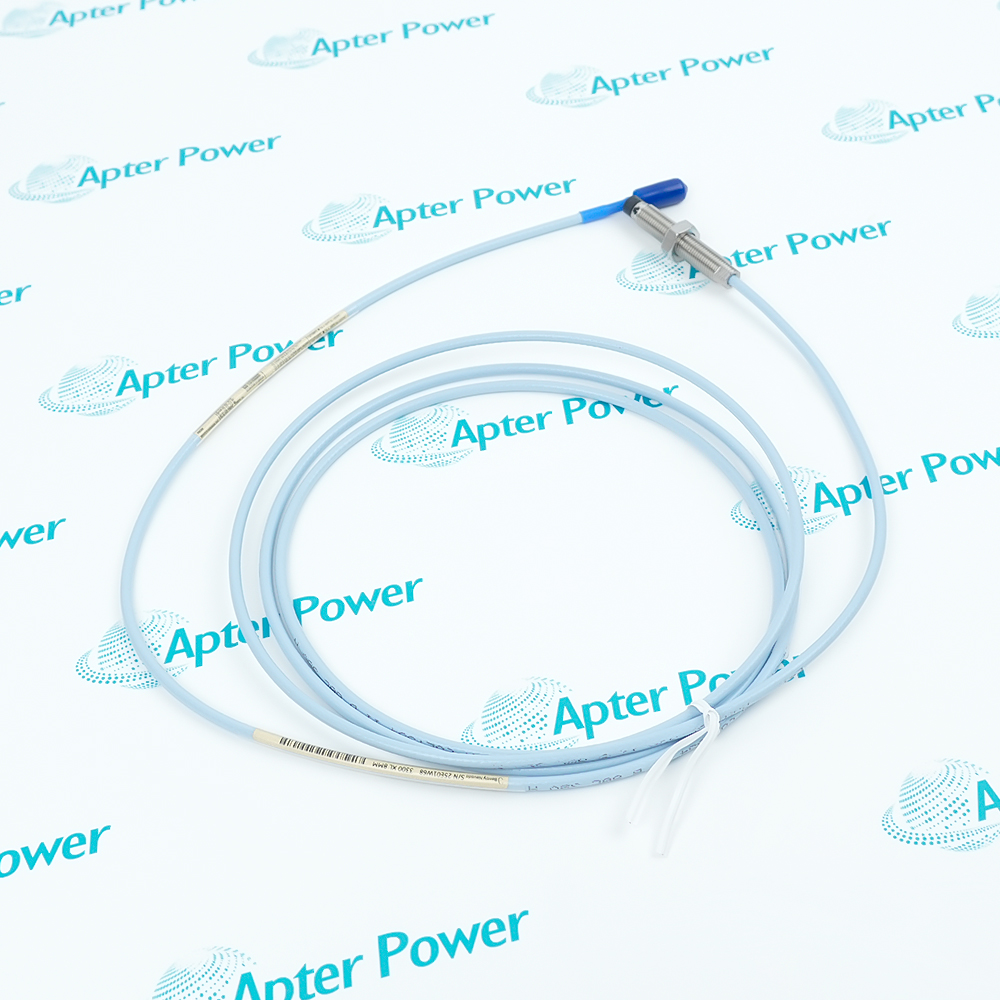

The 330101-00-20-20-02-05 is a Bently Nevada 3300 XL 8 mm proximity probe incorporating a polyphenylene sulfide tip, an AISI 303 or 304 stainless steel housing, a coaxial cable, and a miniature coaxial connector. This configuration indicates a 3/8-24 UNF thread structure, a 0-inch unthreaded length, a 2.0-inch overall thread length, a 2.0-meter integrated cable length, a miniature coaxial connector option with a locking nut, and multiple agency hazardous area approvals.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-20-20-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitors oil-film bearing radial vibration and rotor axial displacement in high-capacity steam turbines.
Petrochemical Refineries
Tracks rotor stability and provides Keyphasor speed references for heavy-duty centrifugal compressors.
Hydroelectric Power Plants
Measures shaft runout and oil gap variations in vertical or horizontal hydro turbine generator bearings.
Nuclear Power Generation
Provides high-reliability shaft vibration data inside the containment structure for auxiliary feed water pumps.
Iron and Steel Metallurgy
Monitors blast furnace blower shaft displacement curves to prevent unexpected thrust bearing contact.
Chemical Processing Plants
Tracks industrial agitator and mixer shaft alignment variations under heavy fluid dynamic loads.
330101-00-20-20-02-05 requires the physical gap voltage between the probe tip and the observed surface to remain within the defined standard range to avoid collision. Prevent excessive twisting, pulling, or bending of the coaxial cable during routing and installation. Adhere to hazardous area safety installation regulations when operating in hazardous locations.
Alternative Names
330101 00 20 20 02 05
330101-00-20-20-02-00
330101-00-20-20-02-CN
330101-00-20-20-02-BR
330101-00-20-20-02-RU
330101-00-20-20-O2-05
330101-00-20-2O-02-05
330101-00-2O-20-02-05
330101-0O-20-20-02-05
330101-O0-20-20-02-05
33010I-00-20-20-02-05
3301O1-00-20-20-02-05
330I01-00-20-20-02-05
33O101-00-20-20-02-05
Technical notes
The 330101-00-20-20-02-05 provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface to measure both static position and dynamic vibration values. This proximity probe is optimized for vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements.
