Technical specifications for 330101-00-18-10-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-18-10-02-CN
-
Estimated shipping dimensions:1.5x1.3x116cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Base Family:330101
-
Unthreaded Length Code:00
-
Case Length Code:18
-
Lead Length Code:10
-
Connector / Cable Code:02
-
Approval Code:CN
-
System Family:3300 XL 8 mm proximity-transducer system
-
System Components:Probe, extension cable and Proximitor Sensor
-
Nominal Scale Factor:7.87 V/mm (200 mV/mil) for the matched system
-
System Linear Range:2 mm (80 mils), approximately 0.25 to 2.3 mm from target
-
Reference Target:AISI 4140 steel unless another calibration is specified
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 303 or 304 stainless steel
-
Probe Cable:75 ohm triaxial FEP-insulated cable
-
Minimum Cable Bend Radius:25.4 mm (1.0 in)
-
Probe Temperature:-52 to +177 deg C operating and storage
-
Proximitor Operating Temperature:-52 to +100 deg C
-
Relative Humidity:100% condensing, non-submersible with protected connectors
-
Connector Torque:Finger tight recommended; 0.565 N m maximum
-
M10 Thread Engagement:15 mm maximum
-
System Length Rule:Probe plus extension cable must equal selected Proximitor length
Information
Overview
Manuals
Common Applications
Product Precautions

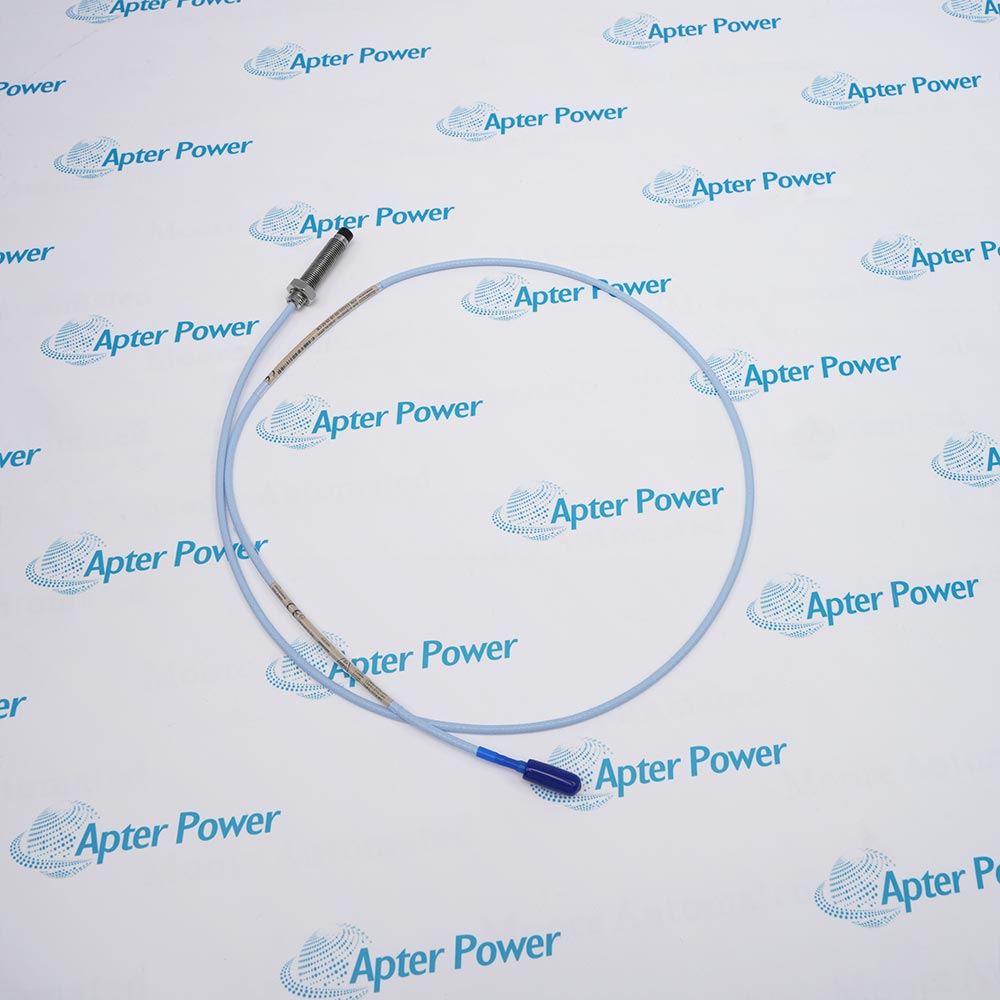

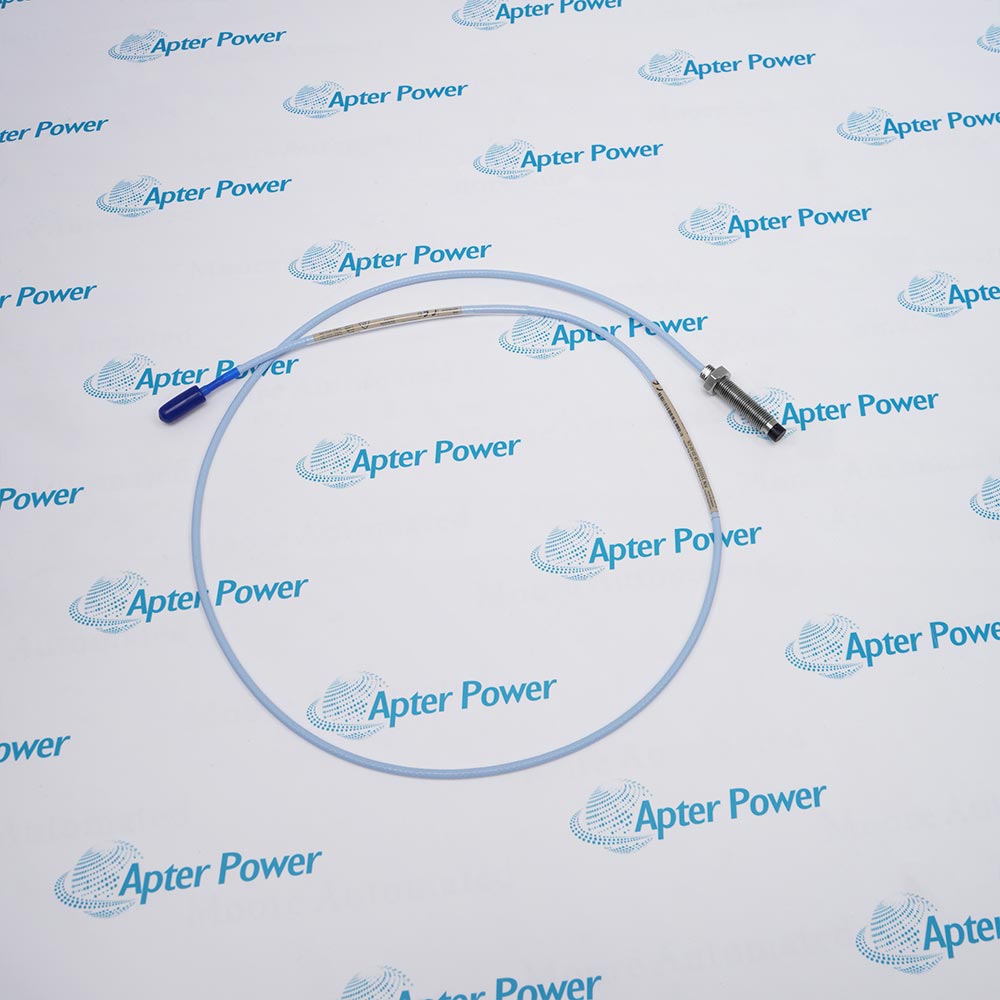

Bently Nevada 330101-00-18-10-02-CN is a proximity probe for the 3300 XL 8 mm proximity-transducer system family. Its complete length, case, cable and approval options define the probe configuration used at the machine measurement point.
- System Family: 3300 XL 8 mm proximity-transducer system.
- System Components: Probe, extension cable and Proximitor Sensor.
- Nominal Scale Factor: 7.87 V/mm (200 mV/mil) for the matched system.
- System Linear Range: 2 mm (80 mils), approximately 0.25 to 2.3 mm from target.
Mounting position, thread engagement, connector condition and cable routing all affect the completed measurement chain. After installation, confirm the static gap or sensor output and compare the dynamic signal with the expected machine response.
Important Notice: Use the exact complete identifier and verify the nameplate, mating hardware, installed system and site procedure before commissioning.
Bently Nevada 330101-00-18-10-02-CN Manuals & Downloads
Bently Nevada 330101-00-18-10-02-CN Technical Reference (PDF)Bently Nevada 330101-00-18-10-02-CN Installation & Commissioning Guide (PDF)
The technical reference organizes manufacturer-supported identity, technical data, evidence boundaries and related models. The installation guide covers nameplate checks, installation readiness, connection, commissioning and acceptance for the exact item.
Identity-controlled maintenance
Use the full identifier when documenting an installed spare or replacement candidate.
System inventory
Record the item within the exact Bently Nevada family and installed measurement chain.
Shutdown inspection
Verify connectors, mounting, routing and visible condition during an authorized outage.
Commissioning evidence
Retain nameplate, configuration and functional-test results with the machine record.
Apply these checks to the exact Bently Nevada 330101-00-18-10-02-CN item.
1
Match the complete identifier before removal or installation.
2
Do not substitute a nearby model or decode an undocumented suffix by analogy.
3
Apply the manufacturer limits only to the component and conditions stated in the source.
4
Confirm all mating components and the total system length where a matched chain is required.
5
Keep connectors clean, dry and mechanically supported.
6
Follow the site isolation and protection-bypass procedure before work.
7
Record the as-found configuration before changing gap, wiring or mounting.
8
Release the item only after the machine-specific functional acceptance is complete.
Technical notes
330101-00-18-10-02-CN should be matched by its complete identifier, installed position and mating components. Before this proximity probe returns to service, inspect its mechanical fit and connections and confirm normal operation at the actual monitoring point.
FAQ View All FAQ
-
What length detail applies to 330101-00-18-10-02-CN?Unthreaded Length Code is 00.
-
What connection detail applies to 330101-00-18-10-02-CN?Connector / Cable Code is 02.
-
How is the approval code specified for 330101-00-18-10-02-CN?Approval Code is CN.
-
Which system is 330101-00-18-10-02-CN associated with?System Family is 3300 XL 8 mm proximity-transducer system.
-
What measurement range applies to 330101-00-18-10-02-CN?Nominal Scale Factor is 7.87 V/mm (200 mV/mil) for the matched system.
-
How is the reference target specified for 330101-00-18-10-02-CN?Reference Target is AISI 4140 steel unless another calibration is specified.
-
What should be inspected before installing 330101-00-18-10-02-CN?Inspect the sensing tip, case, thread, connector and cable, and confirm that the mounting position is clean and mechanically sound.
-
How should 330101-00-18-10-02-CN be checked after installation?Verify the static position or gap, secure cable routing and a stable signal that agrees with the expected machine response.
