Get a quick price for 330101-00-13-15-02-CN
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330101-00-13-15-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-13-15-02-CN
-
Estimated shipping dimensions:1.5x1.3x116cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Unthreaded Length Option:0.0in
-
Overall Case Length Option:1.3in
-
Total Length Option:1.5 meter (4.9 feet)
-
Maximum Connector Torque:0.565 N•m
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 303 or 304 stainless steel (SST)
Information
Overview
Manuals
Need More Info

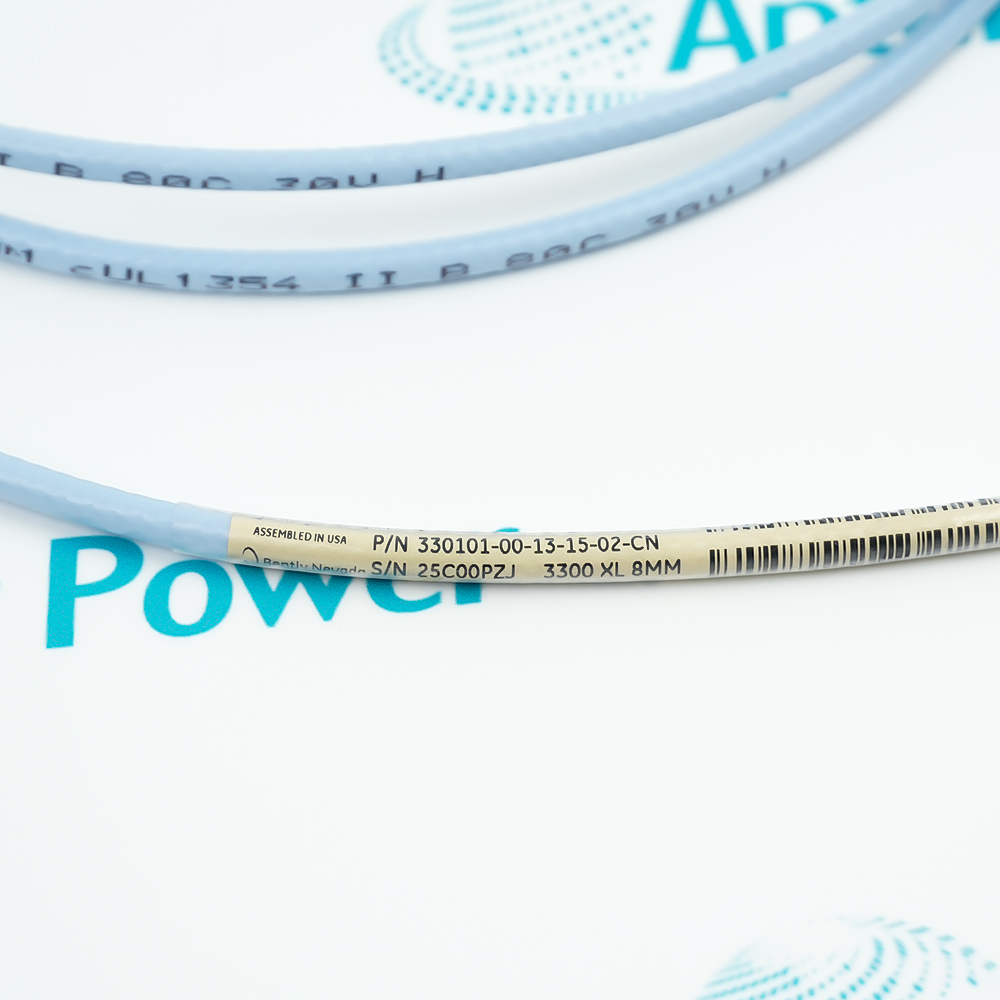

- 330101-00-13-15-02-CN 3300 XL 8 mm Proximity Probes
- A high-performance proximity probe designed for Bently Nevada 3300 XL monitoring systems
- It delivers accurate non-contact vibration and position measurement with an 8 mm tip for stable and reliable operation.
The BENTLY NEVADA 330101-00-13-15-02-CN 3300 XL 8 mm Proximity Probe provides precise non-contact measurement of shaft vibration and position. It outputs a voltage proportional to the distance between the probe tip and the conductive surface, enabling reliable monitoring of both static and dynamic conditions in rotating machinery.
The 3300 XL 8 mm system offers high accuracy, stable linear performance, and strong temperature stability. It is designed for demanding industrial environments, ensuring consistent measurement and dependable operation for critical equipment protection and condition monitoring.
System components, including probes, extension cables, and sensors, are fully interchangeable, eliminating the need for individual calibration. The probe is also backward compatible with other 3300 series 5 mm and 8 mm components, allowing flexible installation for new systems and retrofit applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
BENTLY NEVADA 330101-00-13-15-02-CN 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is 330101-00-13-15-02-CN?330101-00-13-15-02-CN is a 3300 XL 8 mm Proximity Probes.
-
What are the installation guidelines for the 330101-00-13-15-02-CN?Mount using 3/8-24 UNF thread, set proper target gap, lock the ClickLoc connector, and route non-armored cable away from electrical interference.
-
How does the 330101-00-13-15-02-CN differ from other 3300 XL probes?It differs in 0 mm unthreaded length, 130 mm case length, 1.5 m non-armored cable, 3/8-24 UNF mounting thread, and CN certification compared to other 3300 XL 8 mm probe variants.
-
What is the 330101-00-13-15-02-CN application for this probe?The 330101-00-13-15-02-CN is a 3300 XL 8mm proximity probe used for measuring vibration and position in industrial machinery, such as turbines and compressors.
-
Is this 330101-00-13-15-02-CN probe compatible with standard 3300 XL Proximitor sensors?Yes, it is designed to work within the Bently Nevada 3300 XL monitoring system.
-
Can I use silicone tape on the 330101-00-13-15-02-CN cable?It is not recommended to use silicone tape on the probe-to-extension cable connection if it will be exposed to turbine oil.
