      24765-01-00

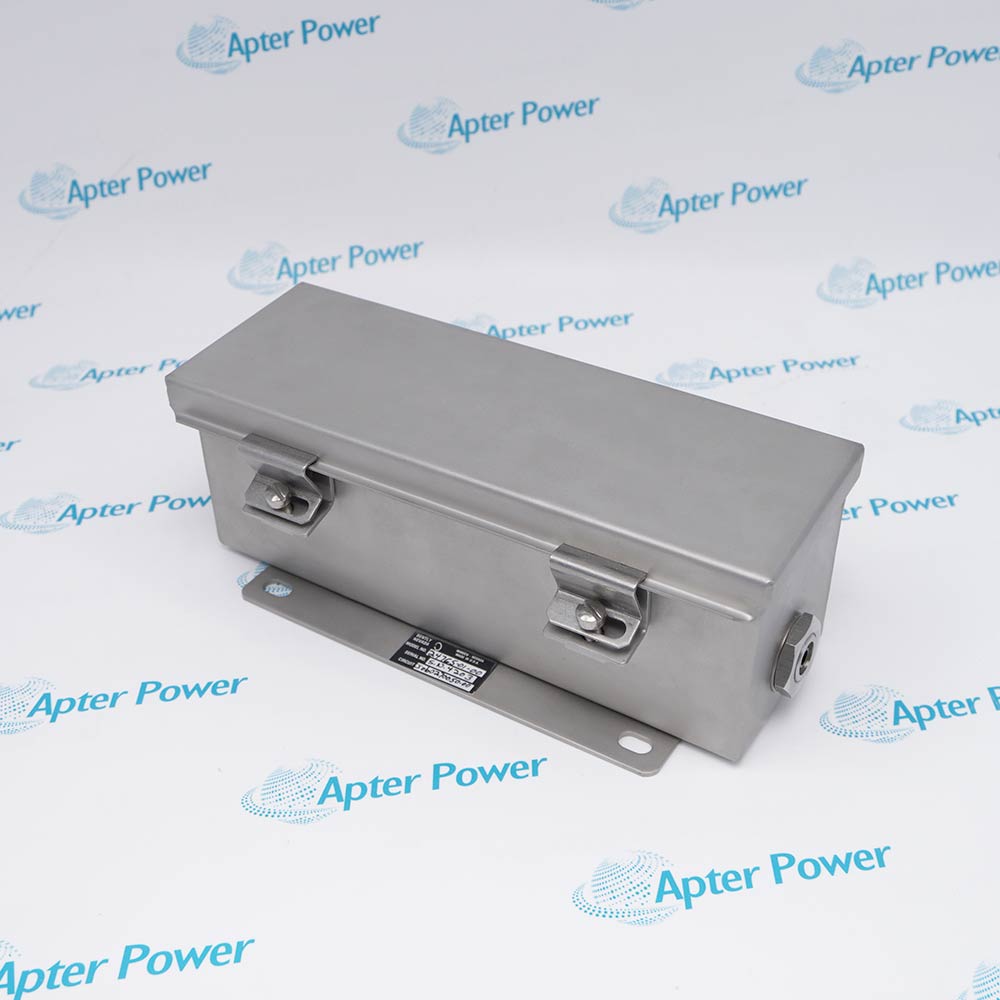

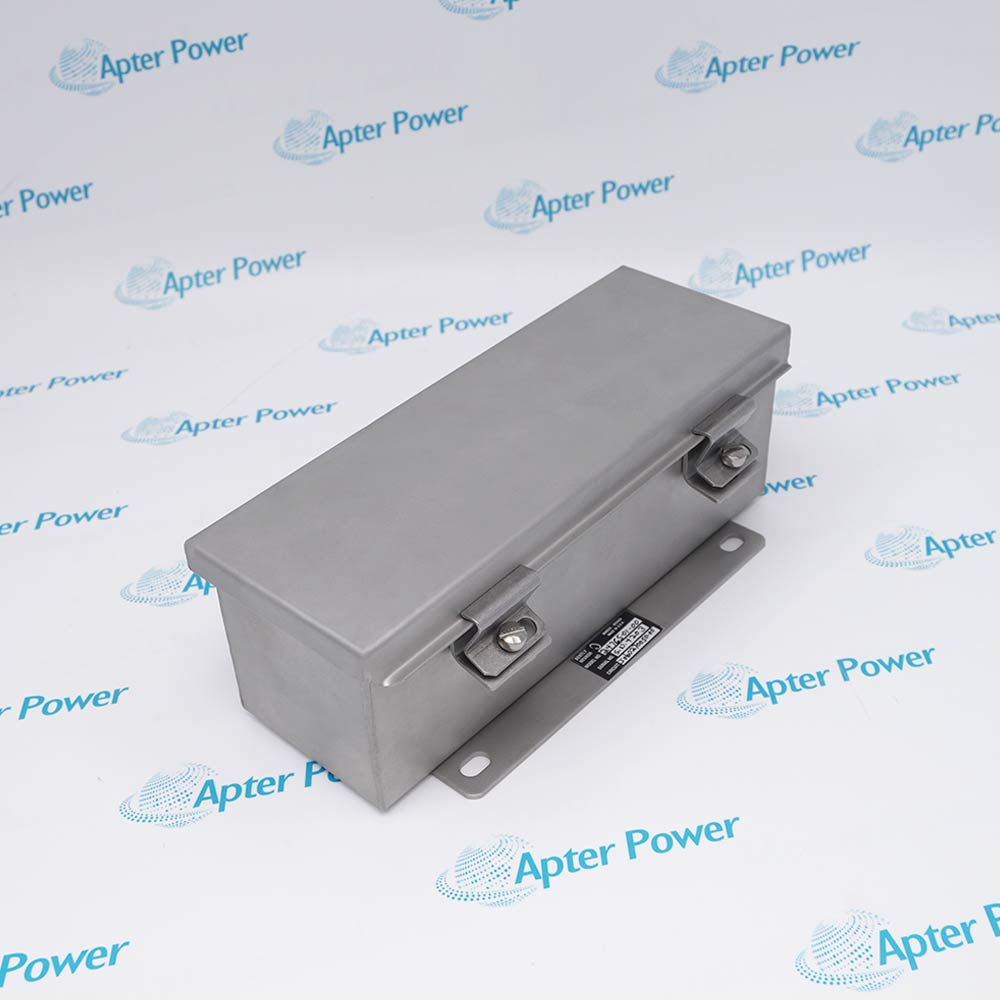

      Case Expansion Transducer Assembly
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Bently Nevada 24765-01-00 is a dc case-expansion transducer assembly with a 25.4 mm ordered range and no spring return. Its LVDT measures turbine-casing thermal growth relative to the foundation for supervisory monitoring.

      Ask our team:

      Get a quick price for： 24765-01-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 24765-01-00

      Technical specifications for 24765-01-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        24765-01-00
      • Estimated shipping dimensions:
        25.5x11.5x9cm
      • Weight:
        1.94 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Transducer type:
        dc LVDT case expansion assembly
      • Input power:
        +24 Vdc, 30 mA minimum
      • Ordered range:
        25.4 mm (1.0 in)
      • Linear measurement span:
        +/-12.7 mm (+/-0.5 in)
      • Spring return:
        Without
      • Scale factor:
        0.346 V/mm (8.79 V/in)
      • -3 dB frequency:
        20 Hz
      • Output impedance:
        7 kohm nominal
      • Minimum load resistance:
        50 kohm
      • Linearity:
        +/-0.5% full-range
      • Operating temperature:
        -18 to 71 deg C
      • Housing design:
        NEMA 3
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      This foundation-referenced assembly tracks turbine-casing movement so thermal expansion and sliding-foot behavior can be supervised during operation.
      • Measures turbine-casing thermal growth relative to the fixed foundation
      • Uses an enclosed LVDT and conditioned dc output for monitoring
      • Provides the no-spring-return mechanical arrangement for the selected assembly
      • Supports dual-transducer supervision of sliding-foot behavior

      Mount 24765-01-00 on the foundation at the engineered case-expansion location and connect its rod to the turbine casing without imposing side load. Establish electrical null and verify the full thermal-growth direction before configuring the 3300 or 3500 monitoring channel.

      Important Notice: Confirm 24765-01-00, 25.4 mm range, no-spring construction, foundation bracket, rod alignment, usable travel, +24 Vdc supply, shield and conduit treatment, monitor scaling, null direction and a controlled alarm test.

      Apter Power 24765-01-00 Manuals and Guides

      The first document is a model-specific engineering data reference. The second is a distinct installation and commissioning workbook with field checks and acceptance records.

      Steam-turbine startup supervision
      Tracks casing growth as the machine heats during controlled startup.
      Sliding-foot obstruction detection
      Uses a dual-transducer arrangement to identify unequal case movement that may indicate a jammed foot.
      Rotor-to-casing growth comparison
      Supports observation of differential thermal growth that can precede rubbing.
      Case-expansion alarm integration
      Feeds a compatible 3300 or 3500 position-monitoring channel for display and alarms.
      Read the applicable Bently Nevada installation information before work. Verify 24765-01-00 and the installed Case Expansion Transducer Assembly configuration before isolation, wiring or commissioning.
      1
      Confirm the full 24765-01-00 marking, 1.0 in range and no-spring option.
      2
      Isolate the dc supply and monitoring channel before mechanical work.
      3
      Verify the foundation bracket and casing connection point against the drawing.
      4
      Align the rod to prevent side load, binding or loss of usable travel.
      5
      Confirm the plunger starts within the required measurement span.
      6
      Check supply polarity, signal conductors, shielding and conduit entry.
      7
      Establish electrical null and verify increasing-growth direction at the monitor.
      8
      Perform a controlled movement check and confirm alarms before turbine release.

      Technical notes

      Technical notes

      Mount 24765-01-00 on the foundation at the engineered case-expansion location and connect its rod to the turbine casing without imposing side load. Establish electrical null and verify the full thermal-growth direction before configuring the 3300 or 3500 monitoring channel.

      FAQS

      • What do the option codes specify for 24765-01-00?
        The -01 range option is 25.4 mm and the -00 spring option means without spring return.
      • What does 24765-01-00 measure?
        Its LVDT measures machine-case thermal growth relative to the foundation.
      • Where is 24765-01-00 typically mounted?
        The system is typically mounted on the foundation opposite the turbine casing's fixed end.
      • Why is rod alignment important for 24765-01-00?
        Side load or binding can restrict travel and distort the reported case-expansion signal.
      • Which monitoring systems can use 24765-01-00?
        The datasheet describes use with compatible 3300 or 3500 monitor arrangements.
      • Why may two transducers be used with 24765-01-00?
        A dual arrangement indicates the position of both sliding feet and can reveal unequal or obstructed movement.
      • How should zero be established for 24765-01-00?
        Set mechanical position and electrical null according to the installation geometry, then confirm signal direction with controlled movement.
      • What should be checked after replacing 24765-01-00?
        Verify range and spring codes, rod alignment, supply, signal polarity, null, travel and alarm response.
